Simagic P-Active P1000-FB Active Pedal Bundle

No review yet. Write Review
Regular price
$2,099.00
Regular price
$2,149.00
Sale price
$2,099.00
Tax included. Shipping calculated at checkout.

Vendor : Simagic

Product Type : Pedals

Sku : 10801-1011

Secure Purchase Secure Purchase
Free Shipping Free Shipping
Satisfaction Guarantee Satisfaction Guarantee
Manufacturer Warranty Manufacturer Warranty

Simagic · P-Active · P1000-FB Bundle

Simagic P-Active P1000-FB Active Pedal BundleAn active brake and a P1000 throttle on one baseplate, ready to bolt in.

This bundle pairs the Simagic P-Active servo-driven active pedal with the Simagic P1000-FB, a P1000 baseplate fitted with the familiar P1000 throttle. You get a complete two-pedal set in one box: a servo-driven active brake that can recreate spring, elastomer and hydraulic feel, with dual 250 kg load cells and live telemetry feedback under your foot, plus a proven throttle on a solid base. Available from Player1 Sim Gear, your authorised Simagic dealer in Australia, shipping Australia-wide.

  • The simplest way into active braking: no existing pedal platform needed, the P-Active and throttle arrive ready to sit on the same P1000 baseplate.
  • Room to grow: add a clutch later, or a second P-Active, and the P-Active also includes adapter kits for P2000 and aluminium profile mounting. See mounting and connection.
Simagic P-Active P1000-FB Active Pedal Bundle, active brake and P1000 throttle on the Keep Racing baseplate
2 pedalsactive brake + P1000 throttle
Dual 250 kgload cells in the brake
180 kgsoftware force limit
16-bitsensor resolution
100 msfull-stroke return
Telemetryfeedback through the brake

Before you order

This is a two-pedal set: active brake plus throttle. A clutch is not included.

The bundle is built for drivers who want an active brake without already owning a Simagic pedal platform. If you already run a Simagic P1000 or P2000 set, the P-Active on its own is usually the better buy, because it mounts to your existing platform. The P-Active is not compatible with the inverted P1000i. Not sure which suits your rig? Call us and we will check it with you.

A complete active-brake pedal set, in one box.

Programmable Brake Feel

A servo motor controls the brake's resistance, so the same pedal can feel like a spring, an elastomer stack or a hydraulic brake. Change it per car instead of swapping parts.

Active Telemetry Feedback

ABS, traction control, wheel lock, wheel slip, RPM and gear shifts are turned into feedback you feel through the P-Active, not just see on a dash.

Dual 250 kg Load Cells

Two custom 250 kg sensors sit directly behind the pedal face and read your foot pressure at 16-bit resolution, with a 180 kg limit set in software.

P1000 Throttle and Baseplate

The P1000-FB gives the P-Active a proper home: a rigid P1000 baseplate with the P1000 throttle already in place beside it.

Raised-Pivot Geometry

The P-Active's higher pivot gives a more forward stroke with less ankle rotation, lining your leg force up for finer pressure control and a smoother release.

Expand When You Are Ready

The P-Active can be set as brake, throttle or clutch in software, and multiple P-Active pedals link over RJ45, so the set can grow with you.

What you get, and why an active brake feels different

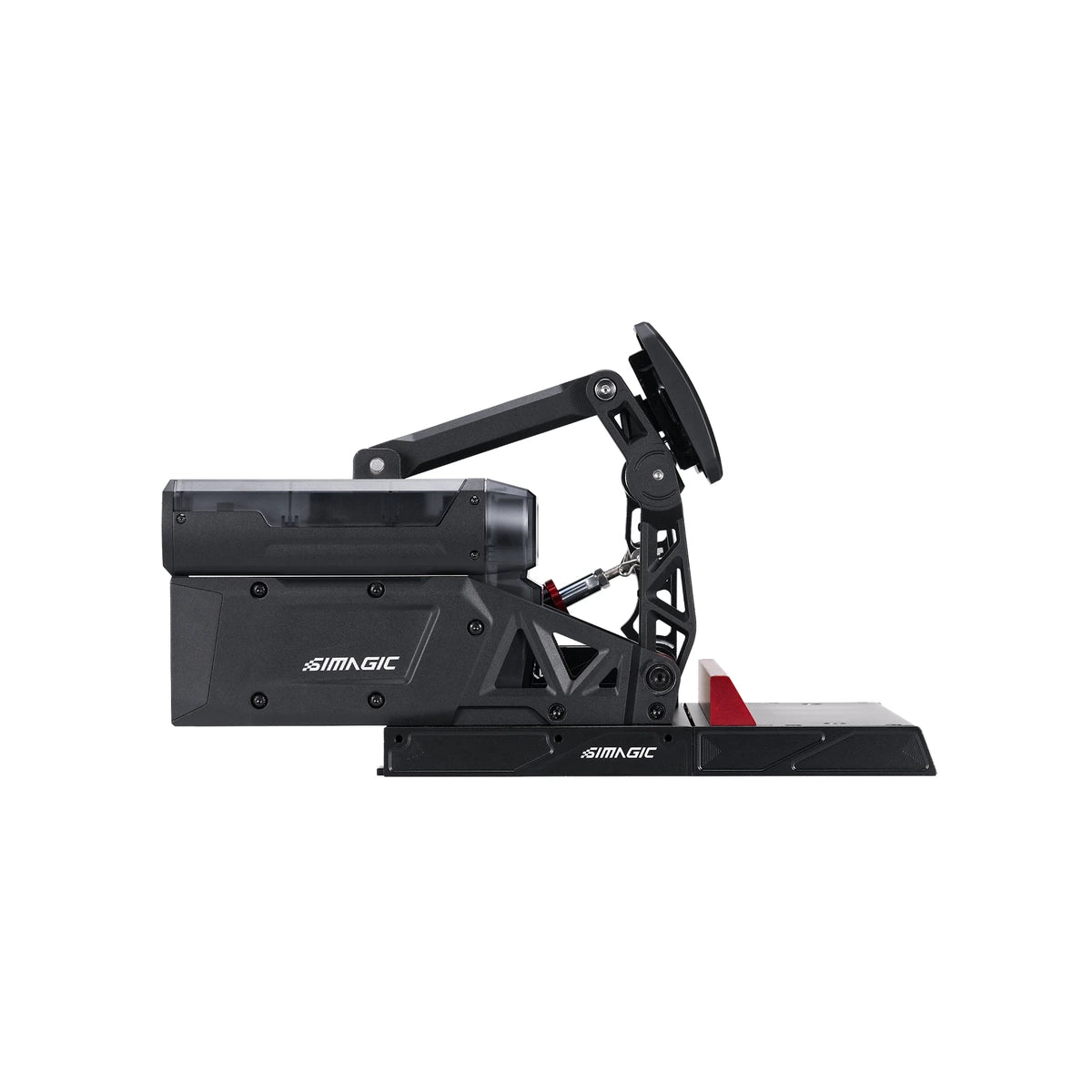

Simagic P-Active P1000-FB Bundle, side profile of the P-Active raised pivot arm and servo drive on the P1000 baseplate

Optimised pedal geometry

Push forward, control better

On most pedals your foot pivots at the ankle and the force goes in at an angle. The P-Active raises the pivot point, so the brake stroke moves forward rather than down.

  • Less ankle rotation through the stroke, which is easier on long stints.
  • Leg force lines up with the pedal, so pressure is easier to hold and modulate at the threshold.
  • Smoother release when you trail off the brake into the corner.

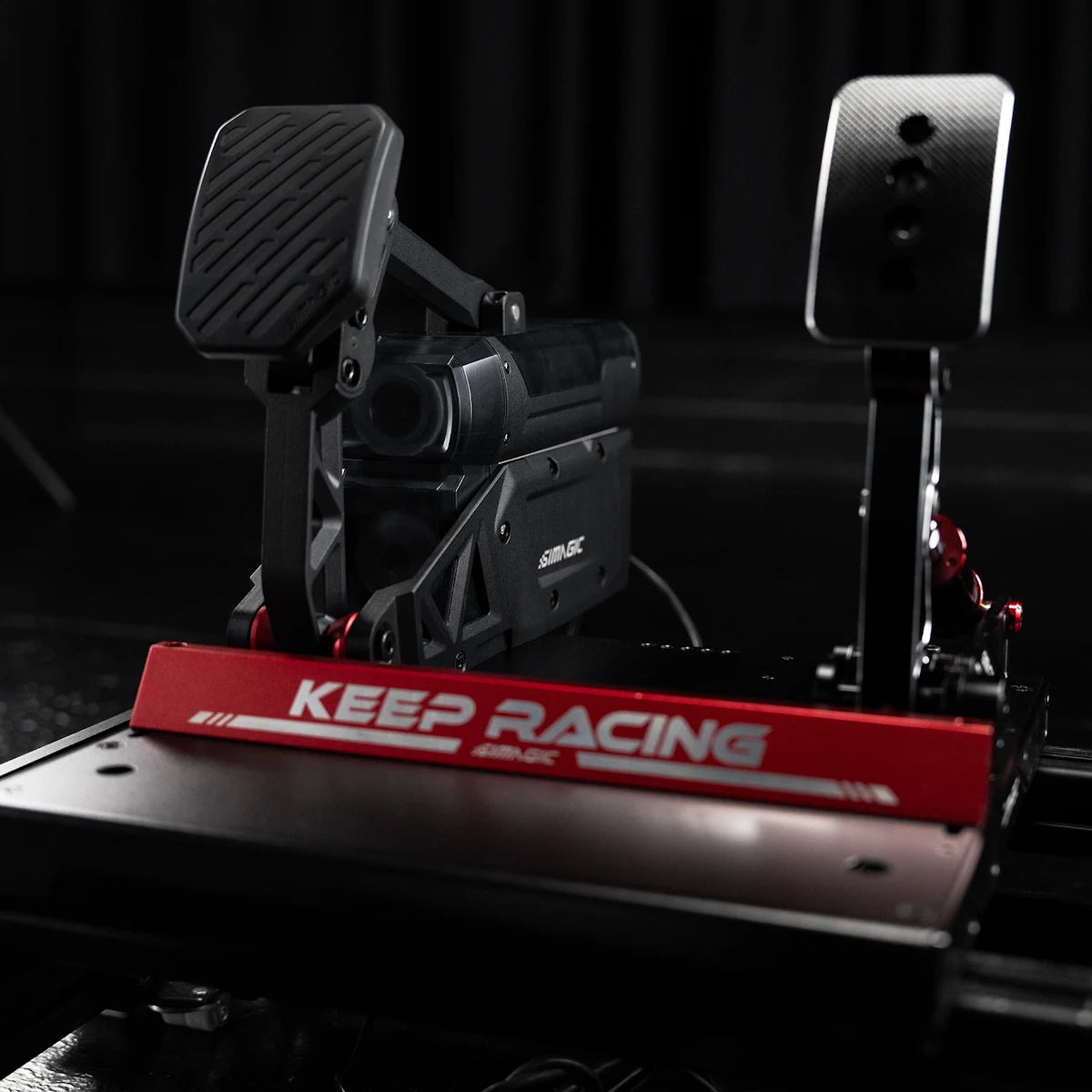

Simagic P-Active active brake and P1000 throttle on the Keep Racing baseplate, studio shot on a dark background

Active feedback

A brake that responds to your drive

Because the resistance is servo-driven, the P-Active can do more than push back. It turns live telemetry into feedback under your foot, so you can feel the ABS working or a wheel starting to lock before you see it.

  • Telemetry effects: ABS, TC, wheel lock, wheel slip, RPM and gear shifts.
  • Recreates real brake types: spring, elastomer and hydraulic feel from one unit.
  • Fast return: full-stroke return in as little as 100 ms.

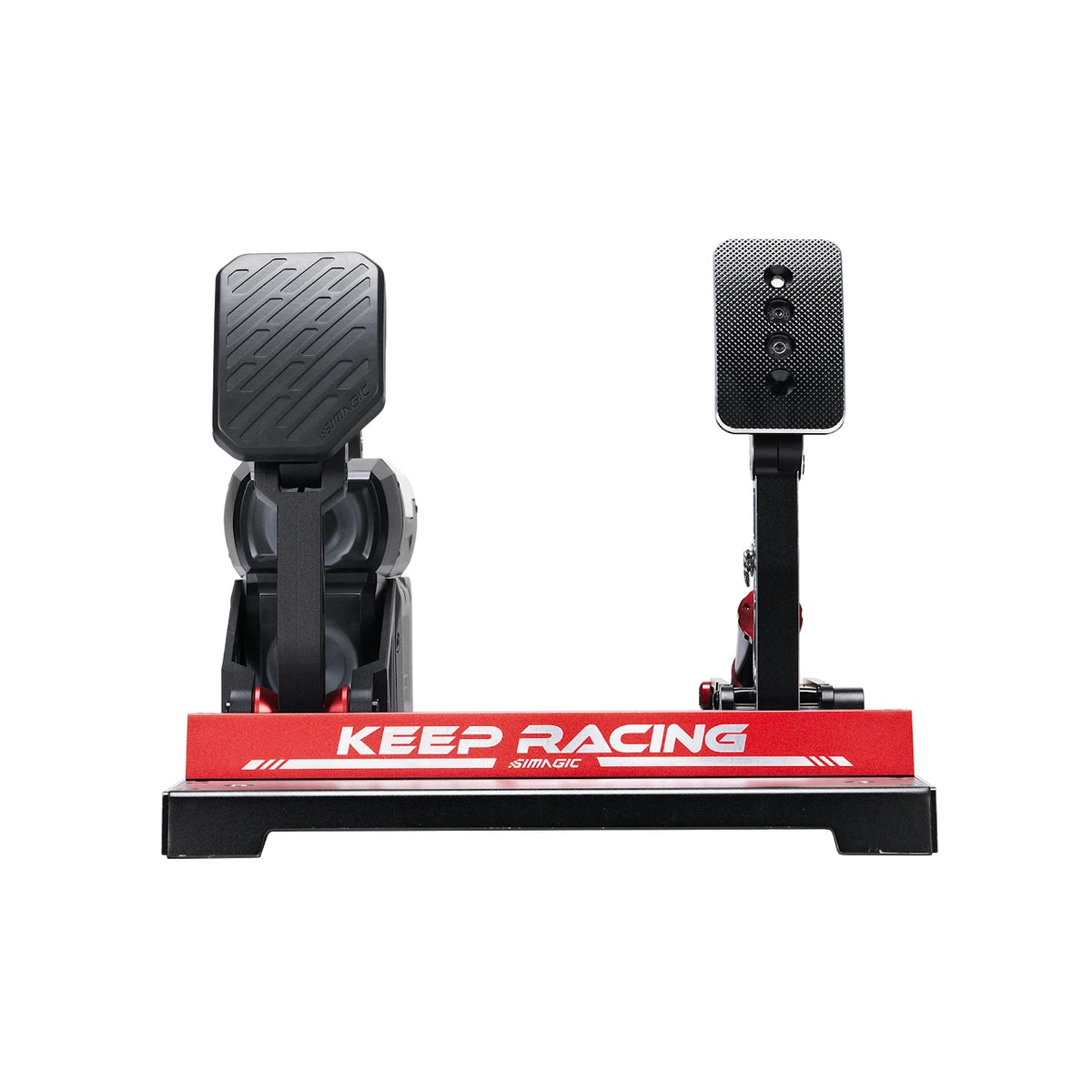

Simagic P-Active P1000-FB Bundle, front view of the P-Active brake pedal face and P1000 throttle on the red Keep Racing baseplate

Max force

Every bit of brake pressure is measured

The two load cells are mounted directly behind the P-Active's pedal face rather than further down the linkage, so they read your foot pressure more directly. Sensor capacity is 250 kg, and Simagic caps the usable range at 180 kg in software.

  • Pressure, not position: braking follows how hard you push, like a real car.
  • 16-bit resolution for fine control right at the edge of lock-up.
  • Adjustable pedal force to suit your seat position and leg strength.

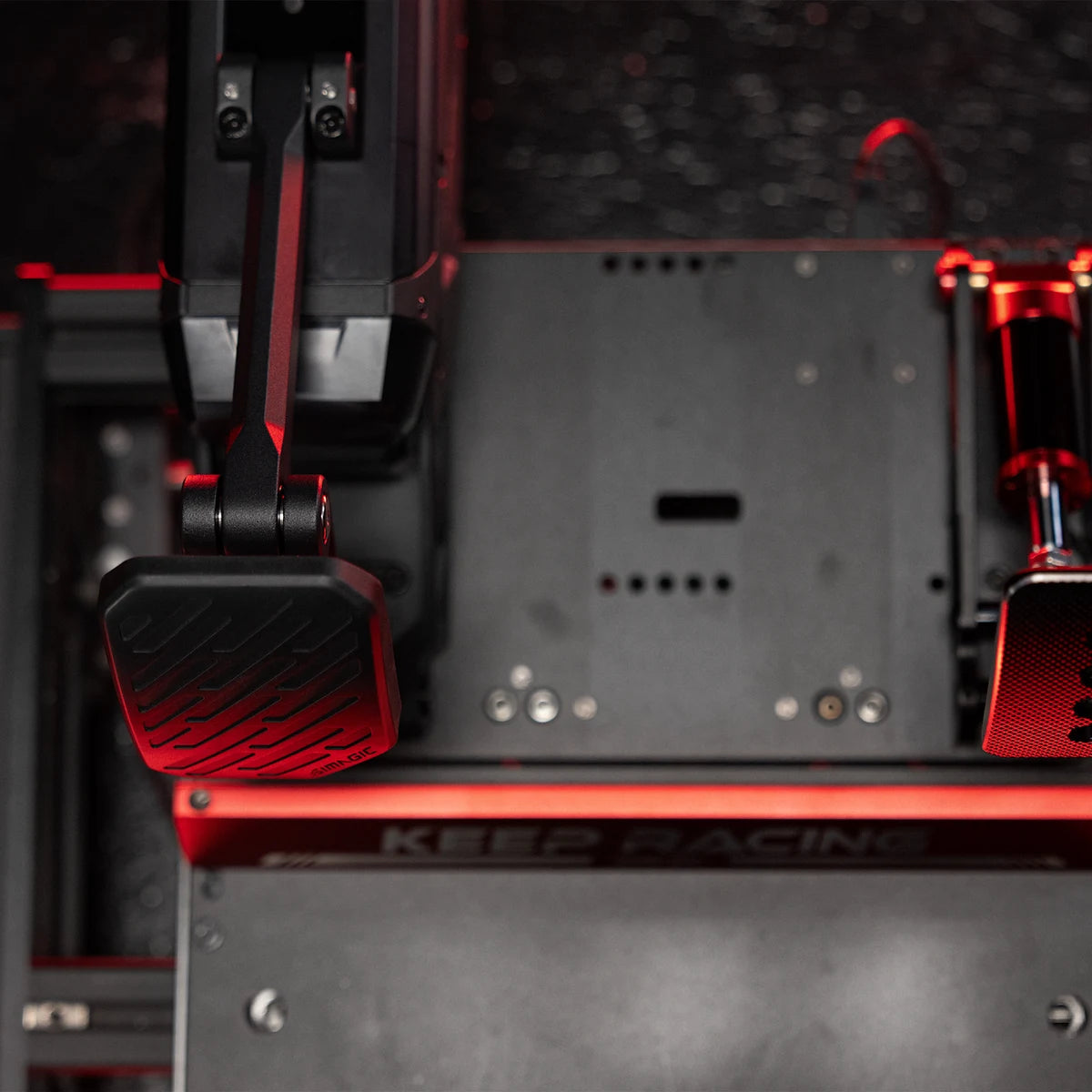

Simagic P-Active pedal face and P1000 baseplate seen from above, installed in a sim racing cockpit

Open pedal ecosystem

Start with two pedals, build from there

Begin with an active brake and the P1000 throttle, then expand at your own pace. Multiple P-Active pedals link to each other over Ethernet (RJ45), so you still only need one USB connection to the PC for them.

  • Add a clutch later: either a second P-Active set to clutch, or a conventional clutch pedal (ask us about fitment).
  • P2000 and aluminium profile adapter kits come with the P-Active, if you ever move it to another platform.
  • Optional P-Active Baseplate (coming from Simagic) supports P2000 pedal faces and third-party throttle and clutch pedals.

SimPro Manager

Tune every part of the brake in software

The P-Active is set up in Simagic SimPro Manager, the same app that runs Simagic wheelbases and pedals. Official presets give you a starting point, and everything can be saved as your own preset.

Role and presets

Assign the P-Active as brake, throttle or clutch, with official presets for each, plus your own custom presets.

Force curves

Linear, exponent, logarithm and S-curve presets, or a custom response curve with eight editable control points.

Dead zone and travel

Adjust the dead zone at the start and end of travel, plus pedal travel, angle, linearity and force.

Damping

Switch damping on or off, with separate compression and rebound damping from 0 to 100%.

Friction and end stops

Adjustable friction intensity (0 to 100%), and front and back stops in Soft, Standard or Firm.

Telemetry effects

ABS, TC, wheel lock, wheel slip, RPM, clutch bite point and gear shift effects, felt through the pedal.

How the bundle fits your rig, and how it connects

Mount or connection Supported Notes
P1000 baseplate (included) Yes The P-Active and P1000 throttle sit together on the included P1000 baseplate.
Cockpit or pedal deck Yes The baseplate bolts to a pedal deck in the same way as a Simagic P1000 set. Tell us your cockpit and we will confirm.
Simagic P2000 pedal sets (2-pedal and 3-pedal) Yes The P-Active can move to a P2000 using its included P2000 profile adapter kit.
Simagic P1000i / P1000i-RS (inverted) No The P-Active is not compatible with the inverted P1000 pedals.
PC Yes The P-Active connects to the PC directly. Several P-Active pedals can share one USB connection by linking over RJ45.
Simagic wheelbase Yes The P-Active can connect to a Simagic base over its CAN FD ports.
Consoles No PC only.

Because the pedals connect to the PC, this set can sit alongside a MOZA, Fanatec, Simucube or Heusinkveld wheelbase as well as a Simagic one. Power: the P-Active needs its own 48 V DC supply (8.3 A, 398 W max). If you want us to confirm cabling or mounting for your exact base and rig, call us on 0488 385 870.

Technical specifications

Simagic P-Active P1000-FB Bundle specifications

Bundle contentsSimagic P-Active active pedal + Simagic P1000-FB (P1000 baseplate with P1000 throttle)
Brake typeServo-driven active pedal (P-Active)
Load cell sensorCustom 250 kg dual sensors
Software force limit180 kg
Sensor resolution16-bit
Full-stroke returnAs little as 100 ms
P-Active rolesBrake, throttle or clutch (set in software)
ConnectivityPC, Simagic base
P-Active power supplyDC 48 V / 8.3 A (398 W max)
P-Active adjustmentTravel, angle and position, linearity, force, dead zone
P-Active materialsAluminium alloy (CNC), PC, rubber
P-Active dimensions (L x W x H)335.9 x 87 x 241.5 mm
P-Active net weight6.12 kg
SoftwareSimagic SimPro Manager
PlatformPC
Warranty2 years
Manufacturer SKU10801-1011

In the box

  • Simagic P-Active active pedal
  • Simagic P1000-FB (P1000 baseplate with P1000 throttle)
  • P1000 adapter kit
  • P2000 profile adapter kit
  • Screw kit
  • Cable kit
  • Quick guide
  • Stickers

Not included: a clutch pedal. Add a Simagic P1000 Clutch Pedal or a second P-Active later if you want three pedals.

Simagic P-Active P1000-FB Bundle FAQ

The basics

What is in the Simagic P-Active P1000-FB Bundle?
The bundle combines the Simagic P-Active servo-driven active pedal with the Simagic P1000-FB, a P1000 baseplate with the P1000 throttle. Together they make a two-pedal set: an active brake and a throttle on one baseplate. The P-Active's own accessories (P1000 and P2000 profile adapter kits, screw kit, cable kit, quick guide and stickers) are included too.
Is this a full three-pedal set?
No. It is a two-pedal set, active brake plus throttle. A clutch is not included. You can add a Simagic P1000 Clutch Pedal or a second P-Active set to clutch later. Call us and we will confirm the right option for your setup.
Should I buy the bundle or the P-Active on its own?
If you already own a Simagic P1000 or P2000 pedal set, the P-Active on its own mounts to your existing platform and is the better buy. If you are starting fresh or upgrading from another brand, the bundle gives you the baseplate and a throttle as well, so you have a complete set in one box.
What is an active pedal?
An active pedal uses a motor to create its resistance instead of a fixed spring, elastomer or hydraulic cylinder. The feel is set in software, it can change from car to car, and the pedal can add feedback from the game such as ABS pulsing or wheel lock. The Simagic P-Active uses a servo motor to do this.
What load cell does the P-Active brake use?
It uses custom dual 250 kg load cell sensors mounted directly behind the pedal face, read at 16-bit resolution. Simagic limits the usable force to 180 kg in software, so you get precise measurement well inside the sensors' capacity.
What does the telemetry feedback do?
The P-Active turns live telemetry into effects you feel through the pedal: ABS, traction control, wheel lock, wheel slip, RPM, clutch bite point and gear shifts. On the brake, for example, you can feel the ABS working or a wheel starting to lock up.

Mounting and setup

Will the bundle fit my cockpit?
The P1000 baseplate bolts to a pedal deck in the same way as a Simagic P1000 set, so it suits most sim racing cockpits with a flat pedal deck or aluminium profile. Every rig is a little different, so tell us your cockpit and we will check it with you before you order.
Can I move the P-Active to a P2000 later?
Yes. The P-Active includes a P2000 profile adapter kit, so it can mount to a Simagic P2000 set or directly to aluminium profile. It is not compatible with the inverted P1000i or P1000i-RS.
Does the P-Active need its own power supply?
Yes. The P-Active runs from its own 48 V DC supply (8.3 A, 398 W max). If you add more P-Active pedals later, each one needs its own power, even though they can share one USB connection to the PC.
Do I need a Simagic wheelbase to use this bundle?
No. The pedals connect to a PC, so they work alongside any wheelbase, including MOZA, Fanatec, Simucube and Heusinkveld setups. If you run a Simagic base such as the Alpha EVO Pro, the P-Active can connect to the base instead.
Does it work on PlayStation or Xbox?
No. The P-Active is designed for PC sim racing.

Comparing options

How is the P-Active different from the Simagic P-HPR haptic reactor?
The P-HPR is a vibration module you add to a conventional pedal for telemetry effects. The P-Active goes further: the motor controls the brake's actual resistance and feel, as well as delivering telemetry feedback.
Should I choose this bundle or a hydraulic set like the P2000?
A hydraulic set like the Simagic P2000 gives one excellent, fixed feel across three pedals. This bundle gives you an active brake that can recreate hydraulic, spring and elastomer feel and change it per car, with telemetry feedback, plus a throttle. If you like to tune, or drive very different cars, the active brake is the more flexible choice.
How does it compare to other active pedals?
We also stock the Simucube ActivePedal Pro and the MOZA mBooster Active Pedal. The P-Active bundle is a strong choice if you want an active brake and a throttle together in one Simagic package, managed in SimPro Manager. Call us and we will talk through which suits your rig.

Buying from Player1 Sim Gear

Are you an authorised Simagic seller in Australia?
Yes. Player1 Sim Gear is an authorised Simagic dealer and reseller in Australia. You are buying genuine Simagic stock with local support, not a grey import, and your purchase is covered by Australian Consumer Law.
What warranty does the bundle have, and who handles it?
The P-Active carries Simagic's 2-year warranty. Warranty is handled locally through us in Queensland, so you deal with our team instead of shipping a unit overseas.
Is the price in Australian dollars?
Yes. The price shown is in Australian dollars and includes GST, with a valid tax invoice and no surprise customs or duty on arrival.
When will the bundle be in stock, and do you ship Australia-wide?
The P-Active is a brand-new release, so call 0488 385 870 or send us a message for the latest availability. We ship Australia-wide from our Queensland warehouse.
