Pimax Crystal Super
- Regular price
- $1,499.00
- Regular price
-
- Sale price
- $1,499.00
- Unit price
- per
Vendor : Pimax
Product Type : VR Headset
Sku : PVH00010216 | 198 | 210
Couldn't load pickup availability
World's First Retina-Level VR

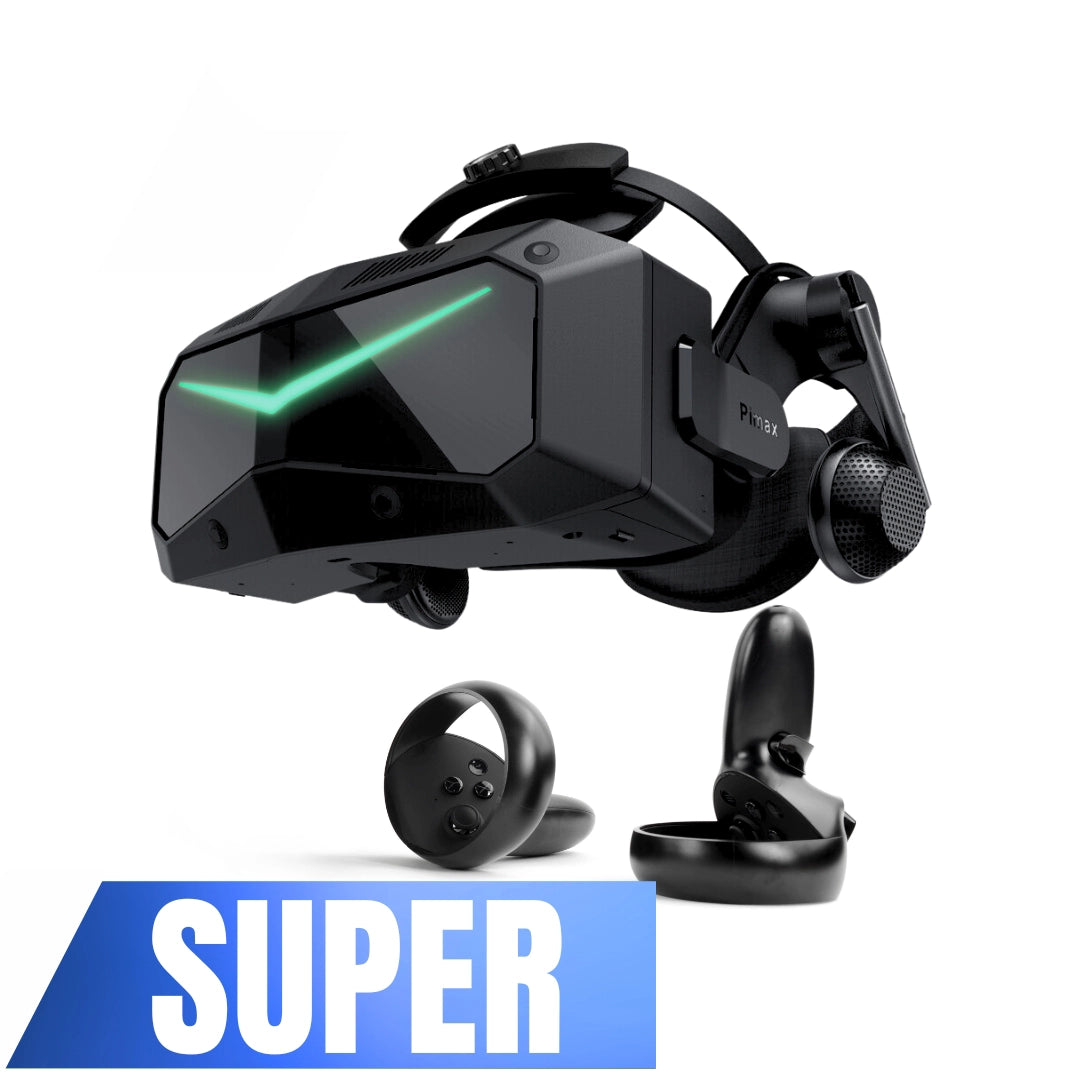

Pimax Crystal Super
See Every Detail. Miss Nothing.
3840 × 3840 per eye. 57 PPD. Up to 140° field of view. Swappable optical engines. The definitive PCVR headset for flight sim, sim racing, and beyond.

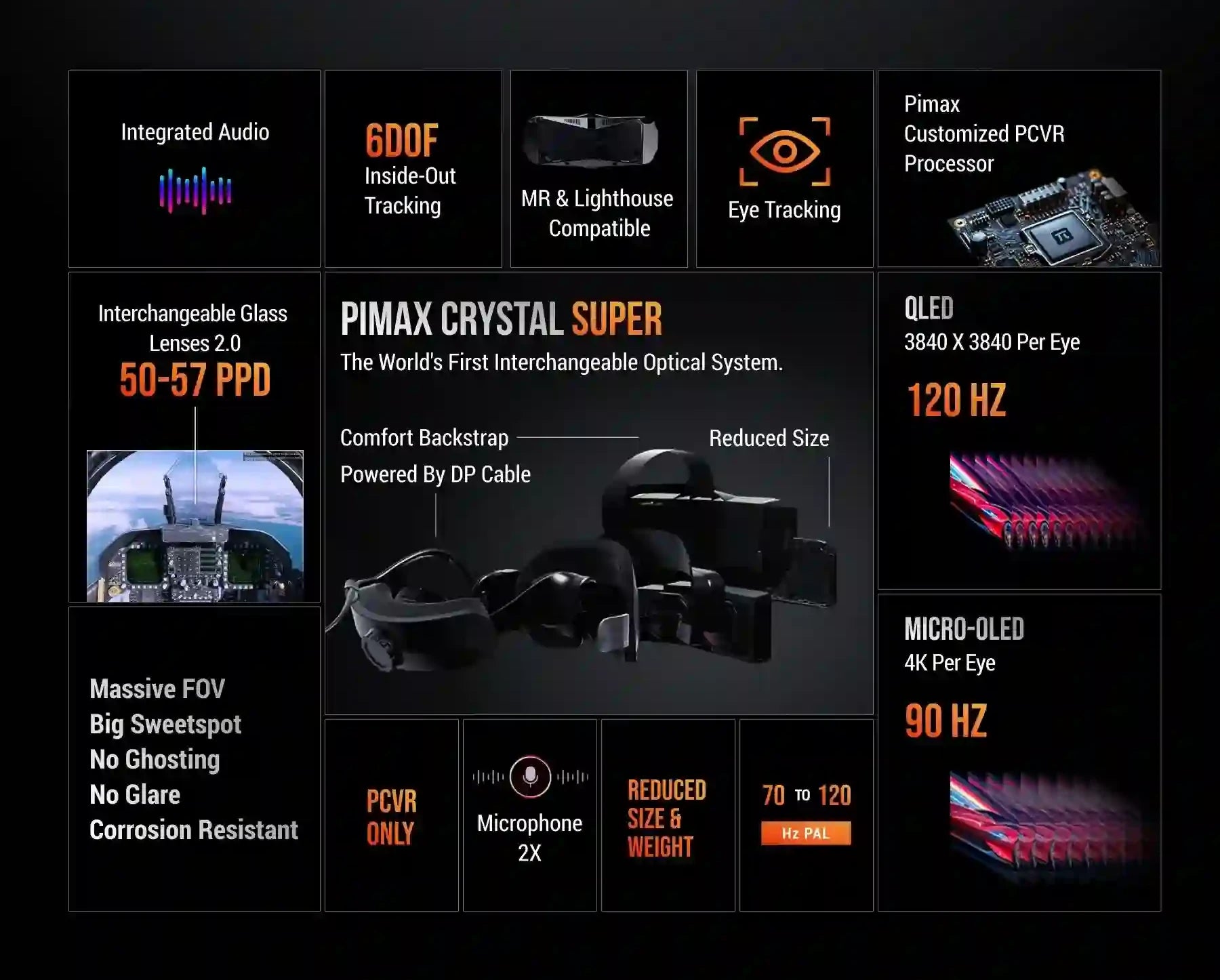

Why Crystal Super
Technology that changes what VR can be
Retina-level clarity — up to 57 PPD
The world's first consumer VR headset to reach the threshold at which individual pixels become invisible to the naked eye. Cockpit gauges, distant terrain, on-screen text — all rendered with surgical sharpness.
Massive field of view — up to 140°
From 106° (57 PPD) to 140° (Ultrawide), the Crystal Super surrounds you with the virtual world rather than framing it. No other headset at this resolution comes close to this field of view.
120Hz Dynamic Foveated Rendering
Eye tracking built directly into the lens barrel — 10 infrared sensors, captured at 120 fps. DFR renders at full resolution only where you look, dramatically reducing GPU load while maintaining peak visual quality.
Swappable optical engines
The Crystal Super is a platform, not just a headset. The entire optical engine — panel, lenses, display — is field-replaceable. Upgrade to Micro-OLED or Ultrawide at any time without buying a new headset.
Local Dimming 2.0 — 1,152 zones/eye
The first local dimming system engineered specifically for VR. Deep blacks and vivid contrast approaching Micro-OLED quality — with 10,000:1 dynamic contrast and no burn-in risk.
Inside-out tracking — no base stations
Four SLAM cameras map your room and track both headset and controllers without external sensors. Setup takes minutes. Optional Lighthouse faceplate available for SteamVR precision tracking.
Choose your configuration
Four Crystal Super models — one interchangeable platform
Every model shares the same headset body, controllers, SLAM tracking, eye tracking, and ergonomics. The difference is the optical engine — and it's always swappable.

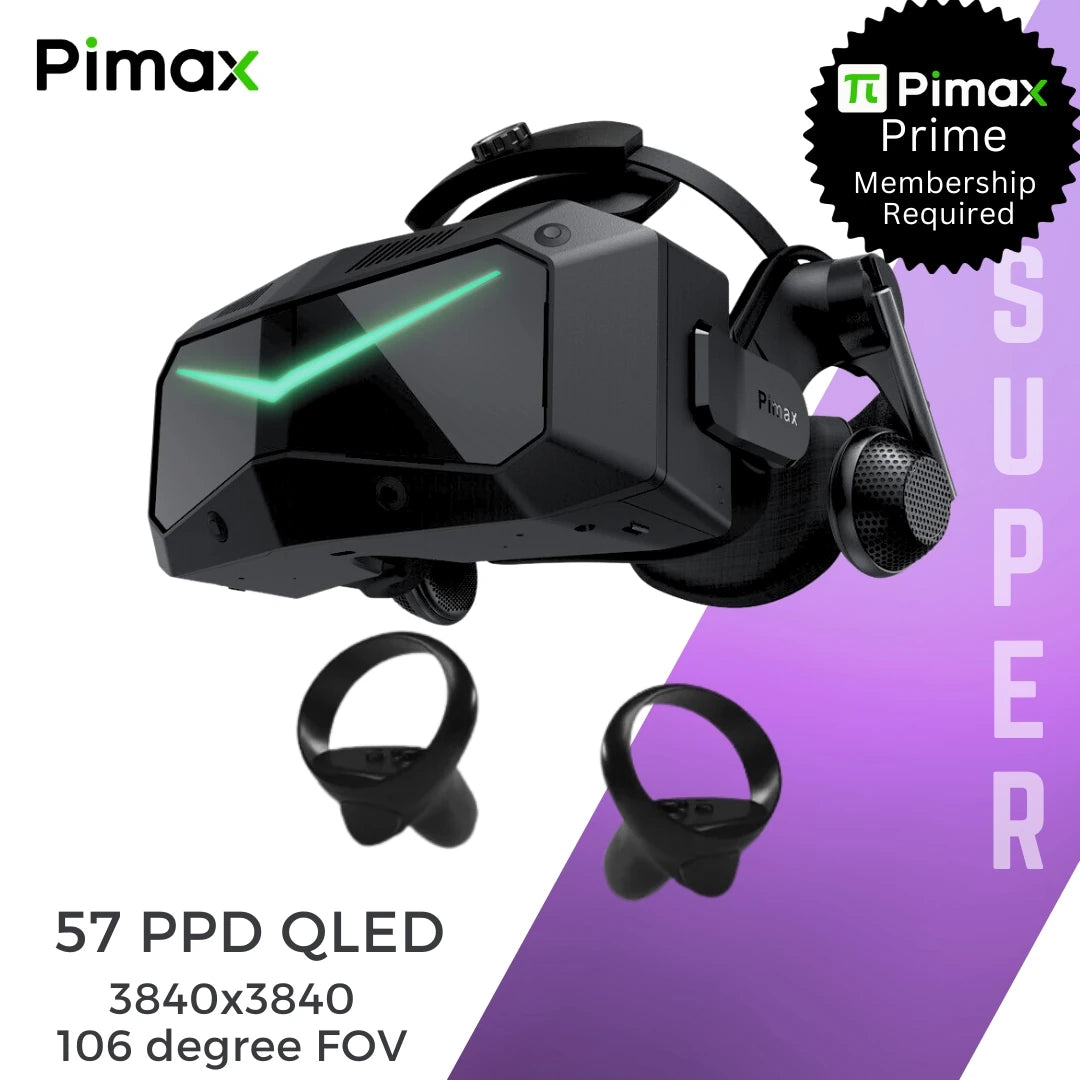

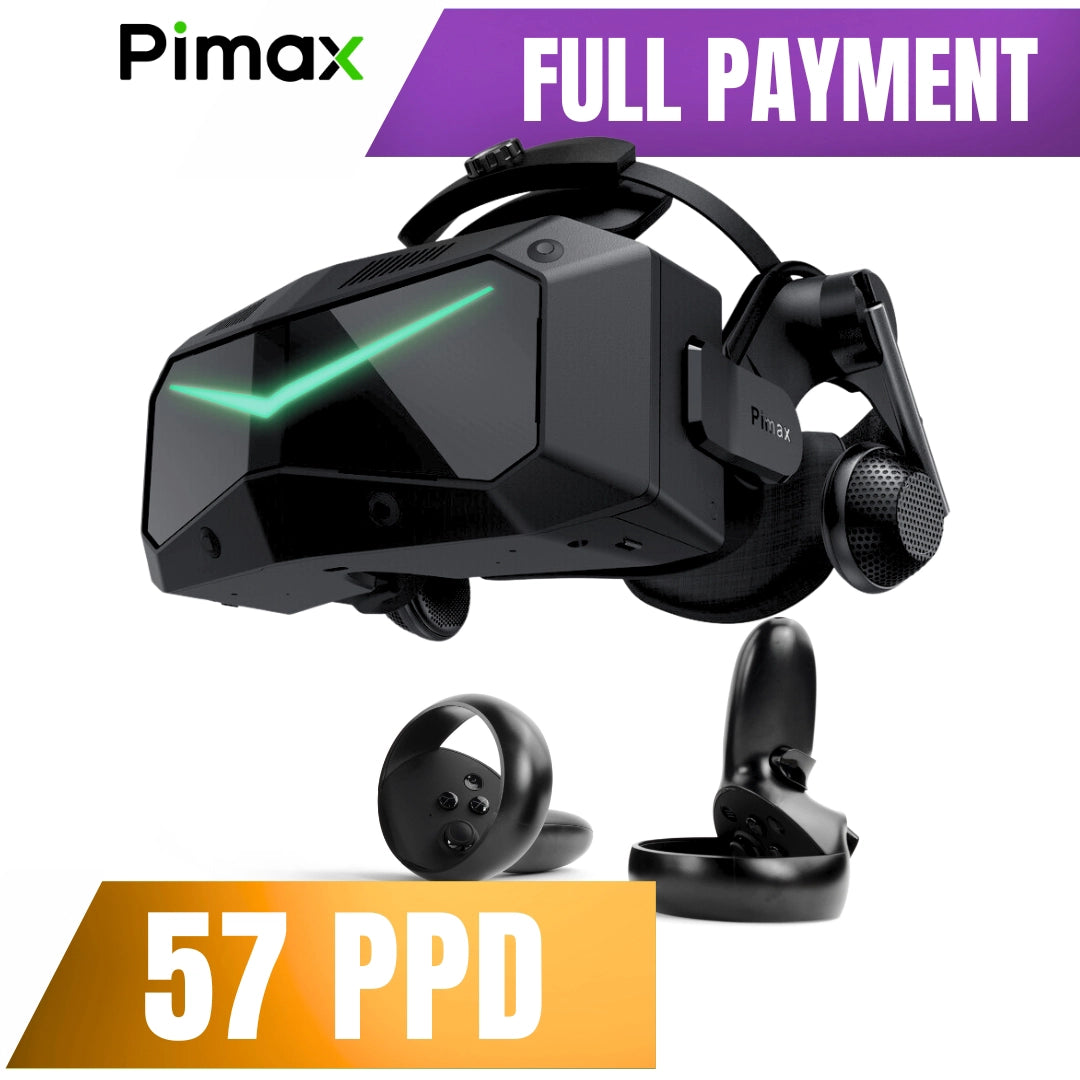

Crystal Super 57 PPD QLED
Maximum pixel density
- PPD57 PPD
- Horiz. FOV106°
- DisplayQLED + MiniLED
- Resolution/eye3840×3840
- Refresh72 / 90 Hz

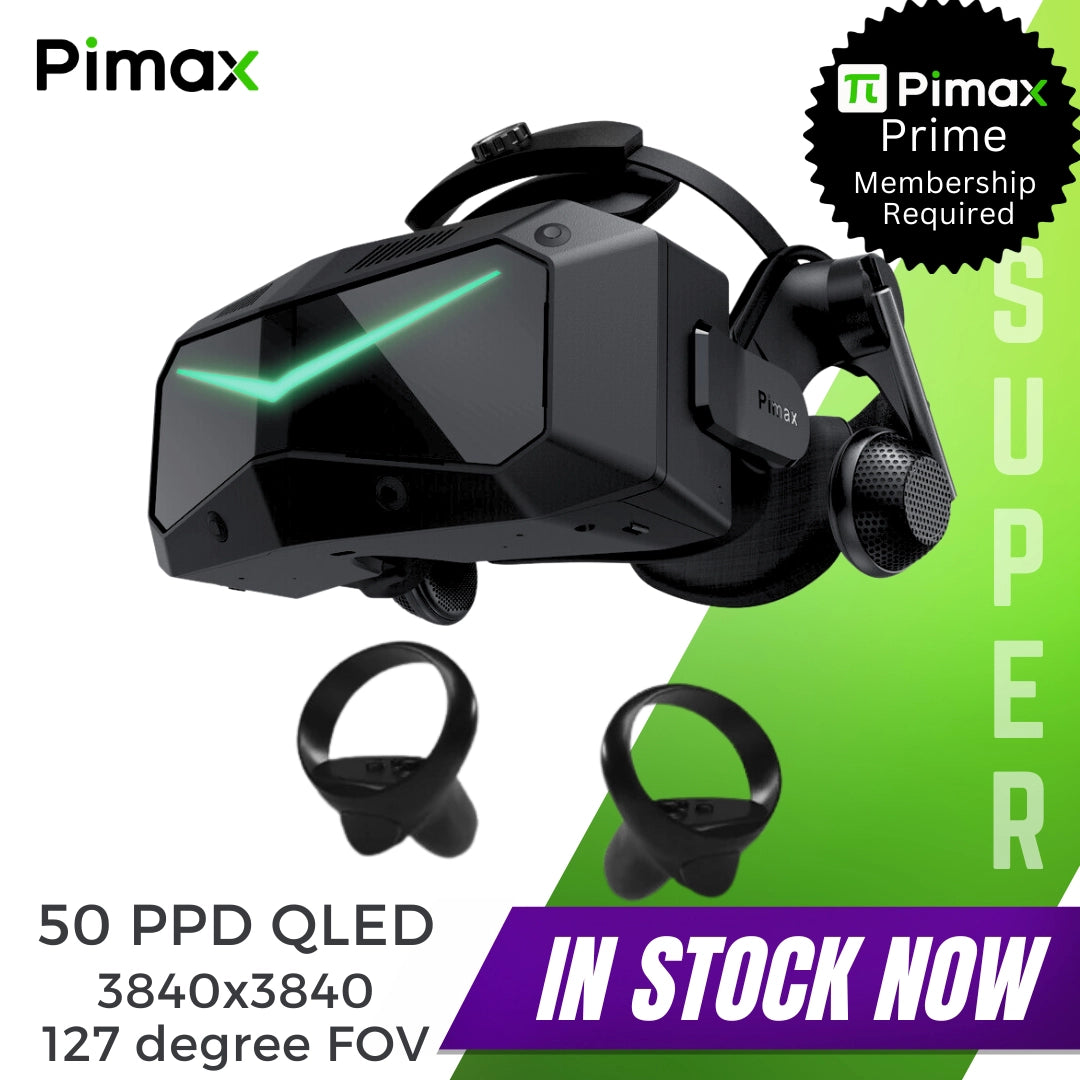

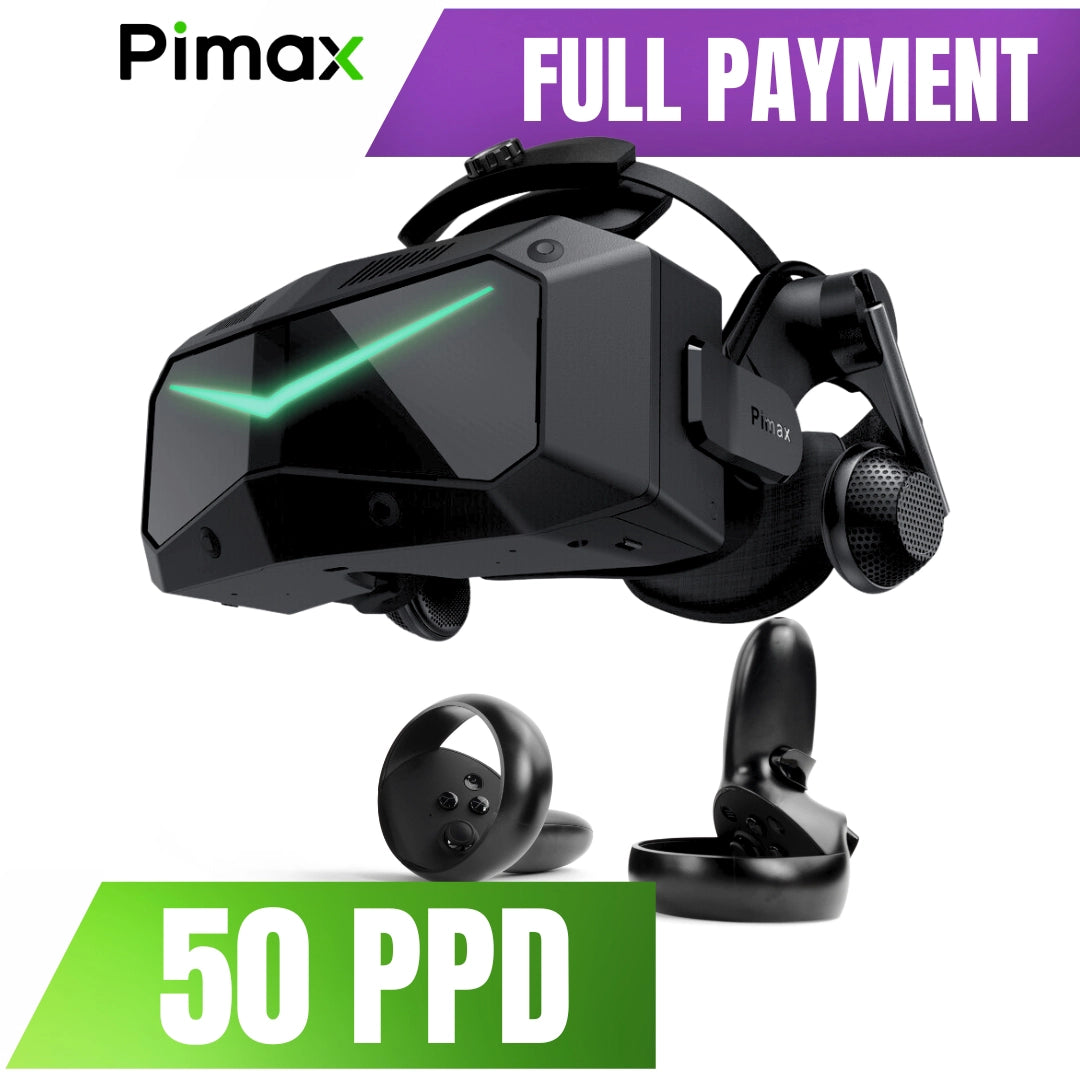

Crystal Super 50 PPD QLED
Wide FOV + near-retina clarity
- PPD50 PPD
- Horiz. FOV127°
- DisplayQLED + MiniLED
- Resolution/eye3840×3840
- Refresh72 / 90 Hz

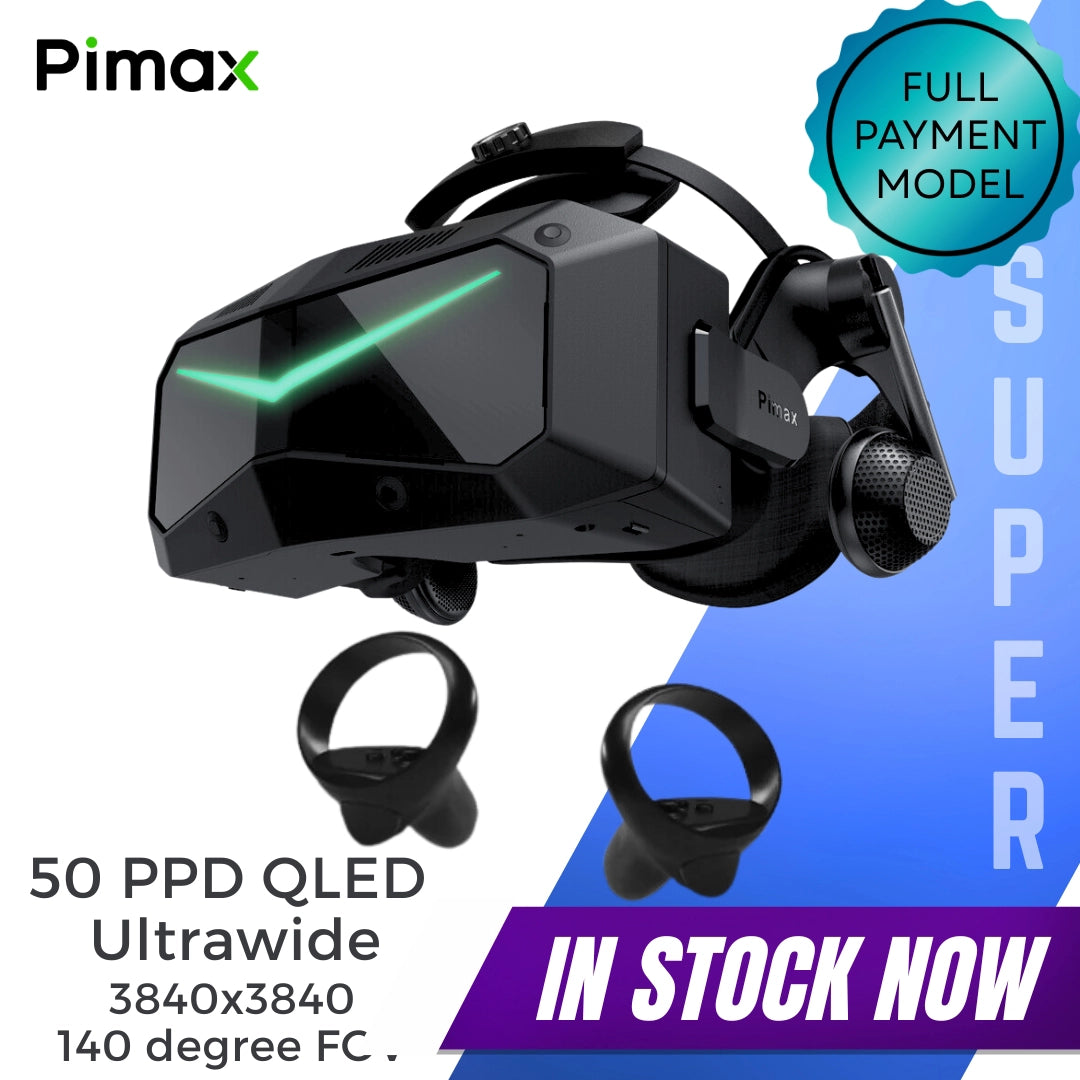

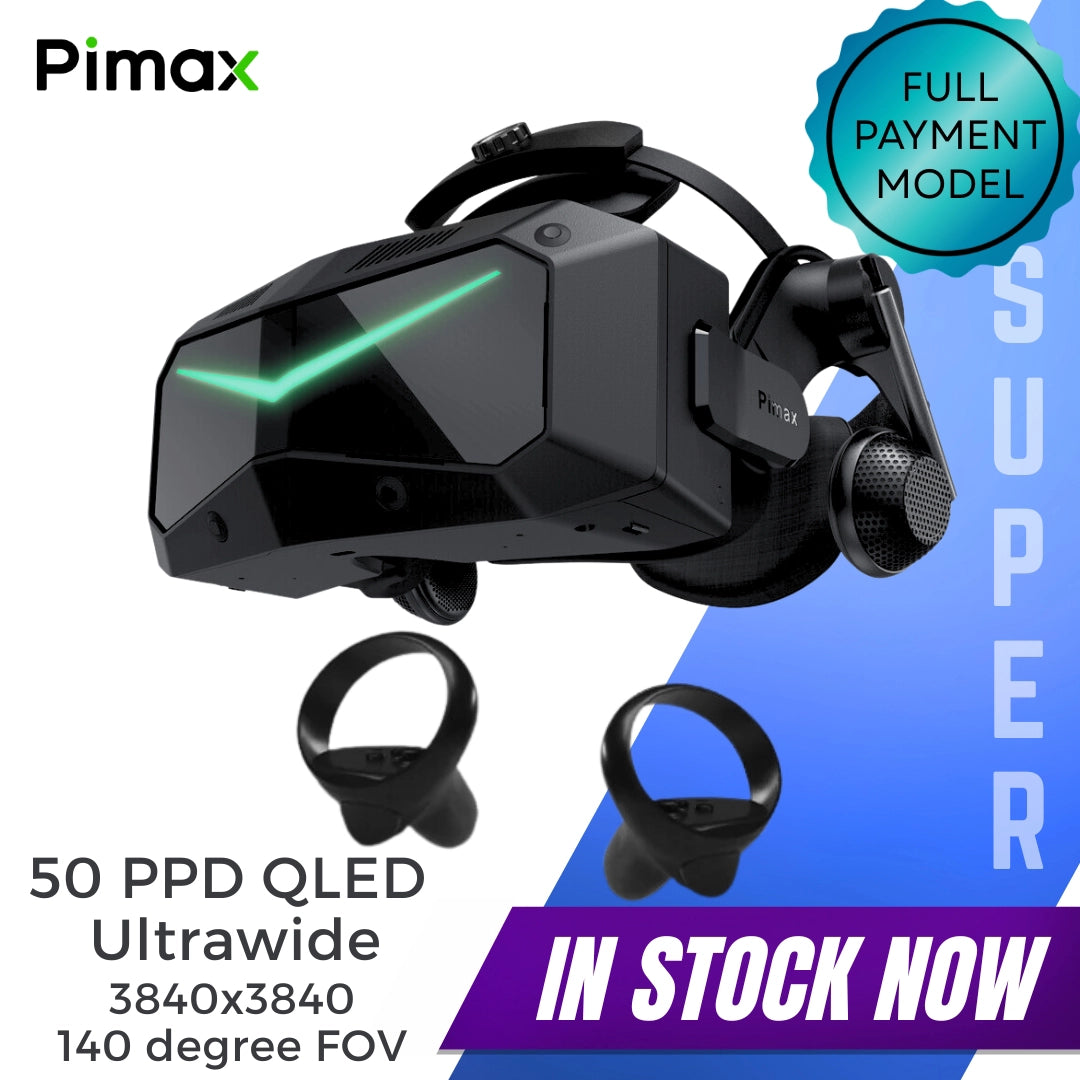

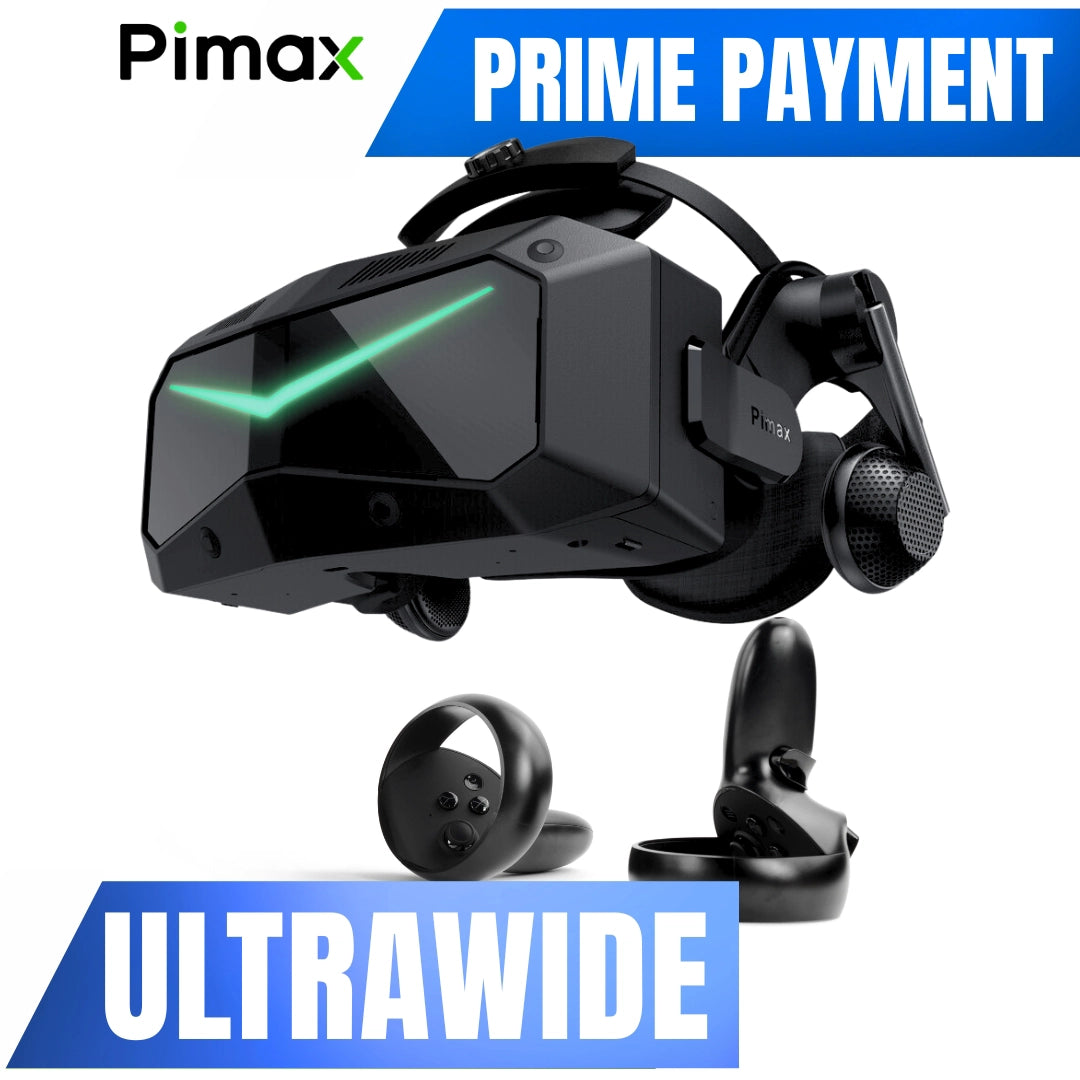

Crystal Super Ultrawide QLED
Widest VR field of view available
- PPD50 PPD
- Horiz. FOV140°
- DisplayQLED + MiniLED
- Resolution/eye3840×3840
- Binocular overlap90°

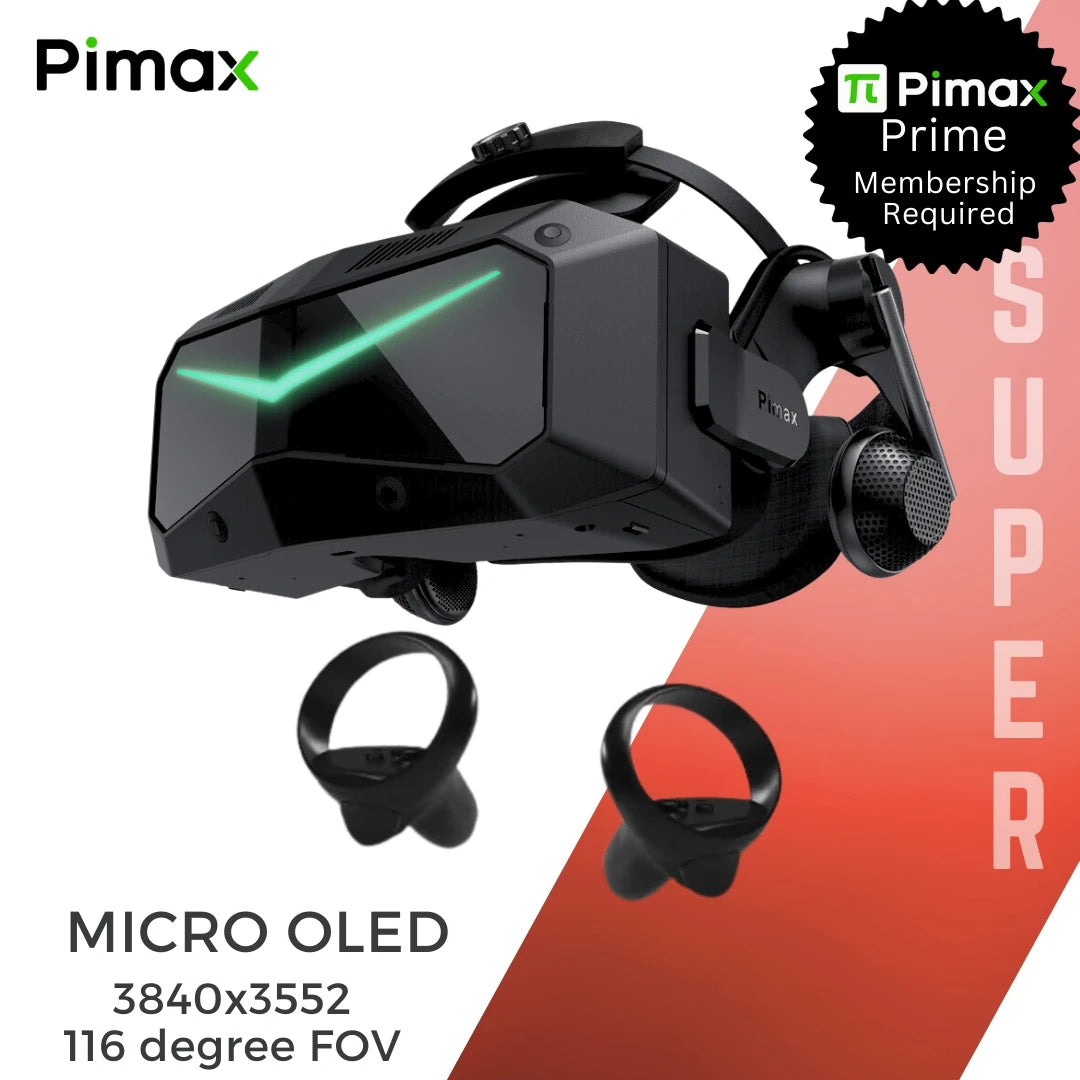

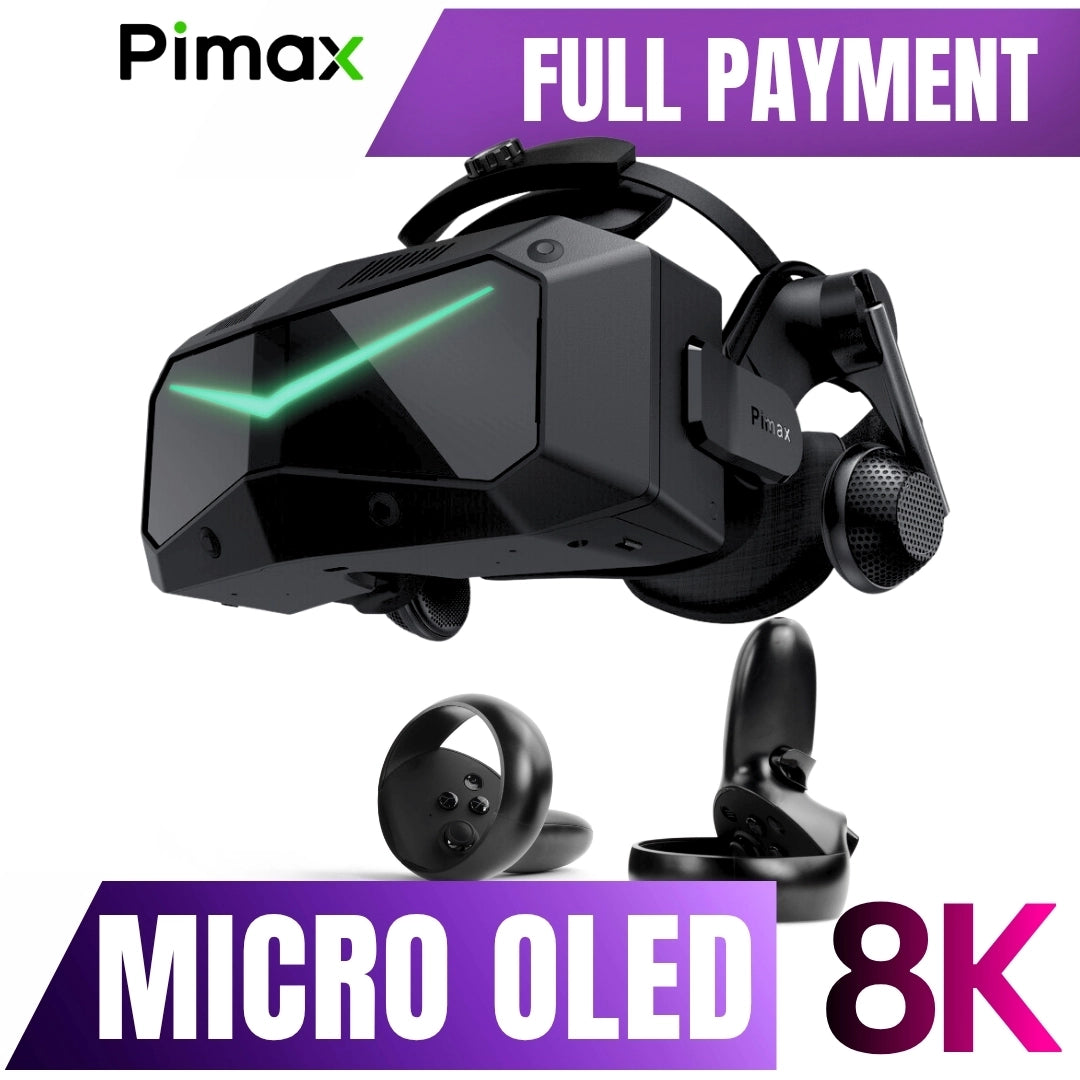

Crystal Super 8K Micro-OLED
Infinite contrast · True blacks
- DisplaySony Micro-OLED
- Horiz. FOV103–105°
- Resolution/eye3840×3552
- ContrastInfinite
- Refresh90 Hz
Side-by-side
Model comparison
| Model | PPD | Horiz. FOV | Display | Contrast | Best for |
|---|---|---|---|---|---|
| 57 PPD QLED | 57 PPD | 106° | QLED + MiniLED | 10,000:1 | Max clarity, sim instruments |
| 50 PPD QLED | 50 PPD | 127° | QLED + MiniLED | 10,000:1 | Balance of FOV + sharpness |
| Ultrawide QLED ★ | 50 PPD | 140° | QLED + MiniLED | 10,000:1 | Maximum immersion |
| 8K Micro-OLED | ~50 PPD | 103–105° | Sony Micro-OLED | Infinite | True blacks, space/night sims |
Introducing Pimax Prime — flexible payment option
Try it first. Pay the rest only if you love it.
Pimax Prime is a two-step payment program. You pay a lower amount upfront, receive the headset, and have 14 days to decide.
Pay the entry price & receive your headset
No credit check. No financing approval. Just order and your Crystal Super ships. Full package included — headset, controllers, cable, accessories.
Try it at home — risk free
VR is personal. Everyone's face shape, vision, and preferences are different. Pimax Prime gives you a genuine trial window to decide for yourself.
Pay the Prime fee to keep it — or send it back
Love it? Pay the one-time Prime fee via the Pimax Play App and it's yours forever — no further subscription, no ongoing costs. Not for you? Return it for a full refund less shipping costs and a 5% restocking fee.
Retailer note: When purchasing the Prime Version, you pay the entry price to us. The remaining Prime fee (~$1,200 AUD) is paid directly to Pimax via the Pimax Play app (paid in USD) after your trial. Full-payment versions are also available — these include the complete cost with no secondary fee. All prices in AUD inc. GST.
Technical specifications
Crystal Super — full spec sheet
What's included
In the box
Peace of mind
Warranty & returns
12-month hardware warranty
Any fault through no fault of the user is repaired or replaced at no cost, including all shipping charges.
14-day return guarantee
All new Crystal Super headsets are covered by a 14-day return window. Return for any reason within the trial period.
Pimax Prime — try before you commit
Pay $1,499 AUD upfront, receive the headset, and take 14 days before paying the remainder. Return for a full refund less shipping costs and a 5% restocking fee if it's not for you.
Common questions
Frequently asked questions
Does the Crystal Super work with my Steam library?
Yes. The Crystal Super runs all SteamVR, OpenXR, and OpenVR applications through Pimax Play. Your entire existing Steam VR library is compatible out of the box.
Do I need to buy base stations?
No — inside-out tracking works without any external hardware. A separate Lighthouse faceplate is available if you prefer SteamVR base station tracking precision, but it's entirely optional.
Can I upgrade to a different optical engine later?
Yes. Individual optical engines are available for separate purchase at any time. The Ultrawide engine is approx. $617 AUD and the Micro-OLED engine is approx. $1,080 AUD. No tools required to swap.
What is the difference between the 57 PPD and 50 PPD models?
Both are QLED models at the same price. The 57 PPD model offers higher pixel density for reading fine detail (cockpit gauges, distant text) with a 106° horizontal FOV. The 50 PPD model widens the field of view to 127° — the most popular configuration for sim racing and general immersion. Both are at retina-level clarity.
Is the Crystal Super wireless?
No. The Crystal Super is a PCVR-only headset that requires its 5m fibre optic DisplayPort cable at all times. It does not support wireless streaming or standalone operation.
What happens if I don't pay the Prime fee after my trial?
If the Prime fee isn't paid after the 14-day trial period, the Pimax Play software will stop functioning. You can resume use at any time by completing the one-time Prime fee payment via the Pimax Play app.
Is the Prime fee a subscription?
No — it's a one-time payment. Once paid, the headset and Pimax Play software are permanently yours with no ongoing fees of any kind. The Prime status is tied to the headset's serial number and transfers with the device if you sell it.
Does it work with laptops?
Yes, if your laptop has a direct GPU output via MiniDisplayPort or USB-C that supports DisplayPort 1.4a at 8K/60Hz. Check your laptop's GPU output specifications before purchasing. Verify via the NVIDIA Control Panel — PhysX settings screen.
Which Crystal Super model is right for me?
It depends on what matters most to you. Choose the 57 PPD QLED if you fly detailed aircraft in DCS World or MSFS 2024 and need to read cockpit gauges and distant instruments with maximum sharpness — this is the highest pixel density VR headset in the world. Choose the 50 PPD QLED if you want near-retina clarity with a wider 127° field of view — the most popular all-round configuration, and identically priced to the 57 PPD. Choose the Ultrawide QLED if you sim race and peripheral immersion is your priority — the 140° FOV wraps the world around you more than any other headset available. Choose the 8K Micro-OLED if you fly or race in dark environments (night ops in DCS, space in Elite Dangerous) and need true blacks and infinite contrast that only Sony Micro-OLED can deliver. Not sure? Call us on 0488 385 870 and we'll help you choose.
What else do I need to complete my sim setup with the Crystal Super?
The Crystal Super is a PCVR headset — it needs a powerful PC with at least an RTX 3080 GPU and a DisplayPort 1.4a output. Beyond that, the complete sim experience depends on your discipline. For sim racing, you'll want a direct drive wheelbase and load-cell pedals (we stock Moza, Simagic, Simucube, and Heusinkveld), a dedicated racing cockpit (Trak Racer and Next Level Racing are our most popular), and optionally a motion platform or ButtKicker for haptic feedback. For flight simulation, you'll need a HOTAS or yoke and throttle, rudder pedals, and a flight cockpit or mount. Player1 Sim Gear stocks everything you need to build the complete setup — browse our Sim Packages, Racing Cockpits, and Wheel & Pedal Combos. Not sure where to start? Call us on 0488 385 870 and we'll build you a package.
Do you ship the Pimax Crystal Super to all of Australia? How long does delivery take?
Yes — we ship the Crystal Super Australia-wide including metro and regional areas. Player1 Sim Gear is the official Australian Pimax distributor, so stock is held locally and doesn't need to be imported from overseas. Delivery timeframes vary by location and stock availability — contact us on 0488 385 870 or via our contact page for current lead times and express shipping options. All orders are fully trackable and insured.
Why buy the Pimax Crystal Super from Player1 Sim Gear rather than overseas?
Player1 Sim Gear is the official Australian Pimax distributor. Buying from us means your warranty is honoured locally — no sending your headset overseas for repairs, no grey-market support complications. You get full Australian Consumer Law protection, local warranty support handled by us, Australian stock (no import delays), GST-inclusive pricing with a valid Australian tax invoice, and a real person you can call on 0488 385 870 if anything goes wrong. We've been in the sim gear business for years and have the reviews to back it up. Buying from an international retailer or grey-market reseller can void your Australian warranty and leave you without support if there's a problem.
What kind of support does Player1 Sim Gear offer after purchase?
We're a specialist sim gear retailer — not a generalist electronics store. Our team actually uses this equipment. We offer pre-sale advice to help you choose the right model and GPU for your specific sim title, setup support after delivery (we can walk you through Pimax Play configuration, SteamVR settings, and DFR tuning), and warranty handling managed locally. You can call us directly on 0488 385 870, message us via the site, or visit our support page. We're rated 5 stars by our customers and we take that seriously.
Build the full experience
Complete your sim setup
The Crystal Super delivers retina-level visuals — pair it with the right cockpit, controls, and haptics to match.
Not sure which model is right for you?
Our team uses this gear every day — we regularly fly DCS World and Microsoft Flight Simulator 2024 on Crystal Supers, and race iRacing and Assetto Corsa Competizione on them too. We know exactly what settings to run and which model suits each sim best.
DCS World
Flight sim
MSFS 2024
Flight sim
iRacing
Sim racing
ACC
Sim racing
Full specification breakdown
Compare all four Crystal Super models
Every model shares the same headset body, tracking system, controllers, and software. Choose the optical engine that matches your priorities.
Crystal Super 57 PPD QLED
Maximum pixel density
- Display
- Display technology QLED + MiniLED
- Resolution per eye 3840 × 3840
- Pixels per degree (PPD) 57 PPD
- Total pixel count ~29.5 million
- Refresh rate 72Hz / 90Hz
- Local dimming zones 1,152 per eye
- Dynamic contrast ratio 10,000:1
- True black capability No (LCD-based)
- Burn-in risk None
- Optics & FOV
- Horizontal FOV 106°
- Vertical FOV 96°
- Binocular overlap 105°
- Lens type Aspheric pancake
- IPD adjustment Auto, 58–72mm
- Dioptre adjustment -6D to +2D
- Eye Tracking & Performance
- Eye tracking Yes — built-in
- Eye tracking speed 120Hz
- IR sensors 10 per eye
- Dynamic Foveated Rendering DFR 2.0
- Min. recommended GPU RTX 3080
- Ideal GPU RTX 4090 / 5080+
- Tracking & Controllers
- Tracking type Inside-out SLAM
- Tracking cameras 4
- Base station compatible Yes (optional faceplate)
- Controllers included Yes (2×)
- Hand tracking Yes (via cameras)
- Audio & Connectivity
- Audio DMAS earphones incl.
- Microphone Dual built-in
- Connection DisplayPort 1.4a + USB-A
- Cable length 5m fibre optic
- Wireless mode Not supported
- Standalone mode Not supported
- Software & Compatibility
- Software platform Pimax Play
- SteamVR compatible Yes
- OpenXR compatible Yes
- OpenVR compatible Yes
- OS requirement Windows 10/11
- Optical Engine
- Engine swappable Yes — field swap
- Tools required None
Best for
Flight sim instrument reading, DCS World, MSFS 2024, iRacing — any application where maximum pixel sharpness is the priority.
Crystal Super 50 PPD QLED
Wide FOV + near-retina clarity
- Display
- Display technology QLED + MiniLED
- Resolution per eye 3840 × 3840
- Pixels per degree (PPD) 50 PPD
- Total pixel count ~29.5 million
- Refresh rate 72Hz / 90Hz
- Local dimming zones 1,152 per eye
- Dynamic contrast ratio 10,000:1
- True black capability No (LCD-based)
- Burn-in risk None
- Optics & FOV
- Horizontal FOV 127°
- Vertical FOV 104°
- Binocular overlap 105°
- Lens type Aspheric pancake
- IPD adjustment Auto, 58–72mm
- Dioptre adjustment -6D to +2D
- Eye Tracking & Performance
- Eye tracking Yes — built-in
- Eye tracking speed 120Hz
- IR sensors 10 per eye
- Dynamic Foveated Rendering DFR 2.0
- Min. recommended GPU RTX 3080
- Ideal GPU RTX 4090 / 5080+
- Tracking & Controllers
- Tracking type Inside-out SLAM
- Tracking cameras 4
- Base station compatible Yes (optional faceplate)
- Controllers included Yes (2×)
- Hand tracking Yes (via cameras)
- Audio & Connectivity
- Audio DMAS earphones incl.
- Microphone Dual built-in
- Connection DisplayPort 1.4a + USB-A
- Cable length 5m fibre optic
- Wireless mode Not supported
- Standalone mode Not supported
- Software & Compatibility
- Software platform Pimax Play
- SteamVR compatible Yes
- OpenXR compatible Yes
- OpenVR compatible Yes
- OS requirement Windows 10/11
- Optical Engine
- Engine swappable Yes — field swap
- Tools required None
Best for
Sim racing, space exploration, general gaming — the widest QLED option with near-retina clarity. Same price as the 57 PPD model.
Crystal Super Ultrawide QLED
Widest VR field of view available
- Display
- Display technology QLED + MiniLED
- Resolution per eye 3840 × 3840
- Pixels per degree (PPD) 50 PPD
- Total pixel count ~29.5 million
- Refresh rate 72Hz / 90Hz
- Local dimming zones 1,152 per eye
- Dynamic contrast ratio 10,000:1
- True black capability No (LCD-based)
- Burn-in risk None
- Optics & FOV
- Horizontal FOV 140°
- Vertical FOV 100°
- Binocular overlap 90° (reduced)
- Lens type Aspheric pancake
- IPD adjustment Auto, 58–72mm
- Dioptre adjustment -6D to +2D
- Eye Tracking & Performance
- Eye tracking Yes — built-in
- Eye tracking speed 120Hz
- IR sensors 10 per eye
- Dynamic Foveated Rendering DFR 2.0
- Min. recommended GPU RTX 3080
- Ideal GPU RTX 4090 / 5080+
- Tracking & Controllers
- Tracking type Inside-out SLAM
- Tracking cameras 4
- Base station compatible Yes (optional faceplate)
- Controllers included Yes (2×)
- Hand tracking Yes (via cameras)
- Audio & Connectivity
- Audio DMAS earphones incl.
- Microphone Dual built-in
- Connection DisplayPort 1.4a + USB-A
- Cable length 5m fibre optic
- Wireless mode Not supported
- Standalone mode Not supported
- Software & Compatibility
- Software platform Pimax Play
- SteamVR compatible Yes
- OpenXR compatible Yes
- OpenVR compatible Yes
- OS requirement Windows 10/11
- Optical Engine
- Engine swappable Yes — field swap
- Tools required None
Best for
Maximum peripheral immersion, open-cockpit racing, open-world VR. Note: reduced binocular overlap (90°) — most users don't notice, but those sensitive to it may prefer the 50 PPD model.
Crystal Super 8K Micro-OLED
Infinite contrast · True blacks
- Display
- Display technology Sony Micro-OLED
- Resolution per eye 3840 × 3552
- Pixels per degree (PPD) ~50 PPD
- Total pixel count ~27.3 million
- Refresh rate 90Hz
- Local dimming zones Per-pixel (OLED)
- Dynamic contrast ratio Infinite
- True black capability Yes
- Burn-in risk Minimal (Micro-OLED)
- Optics & FOV
- Horizontal FOV 103–105°
- Vertical FOV ~96°
- Binocular overlap ~100°
- Lens type Aspheric pancake
- IPD adjustment Auto, 58–72mm
- Dioptre adjustment -6D to +2D
- Eye Tracking & Performance
- Eye tracking Yes — built-in
- Eye tracking speed 120Hz
- IR sensors 10 per eye
- Dynamic Foveated Rendering DFR 2.0
- Min. recommended GPU RTX 3080
- Ideal GPU RTX 4090 / 5080+
- Tracking & Controllers
- Tracking type Inside-out SLAM
- Tracking cameras 4
- Base station compatible Yes (optional faceplate)
- Controllers included Yes (2×)
- Hand tracking Yes (via cameras)
- Audio & Connectivity
- Audio DMAS earphones incl.
- Microphone Dual built-in
- Connection DisplayPort 1.4a + USB-A
- Cable length 5m fibre optic
- Wireless mode Not supported
- Standalone mode Not supported
- Software & Compatibility
- Software platform Pimax Play
- SteamVR compatible Yes
- OpenXR compatible Yes
- OpenVR compatible Yes
- OS requirement Windows 10/11
- Optical Engine
- Engine swappable Yes — field swap
- Tools required None
Best for
Space games (Elite Dangerous, No Man's Sky), night operations in DCS World, horror VR, and anyone who demands true OLED blacks and infinite contrast above all else.
How do refunds work?
- You pay the base price and receive the headset.
- If you like the headset, choose Pimax Prime Membership (payable to Pimax directly), or you can keep trying the headset for 14 days (and then choose Prime), or refund.
- Refunds are only possible during the trial period and do not include original shipping costs or accessories. Trial period refunds are also subject to a 5% handling fee.
What if there's an issue with the headset?
For any technical issue through no fault of the user within the warranty, Pimax will replace the headset at no cost for the user. Any costs, including shipping , are covered by Pimax.
After you’ve paid the Prime Membership fee, you can then use it for free as long as you like?
Yes. The whole headset is yours and you'll never be required to pay for any further subscription. The Prime Membership is tied to your headset, so even if you sell it, the subscription won't reset.
Why is the price split into two parts?
- This refund policy from Pimax is quite good, users can try the headset for 14 days and then refund it if they want. (Many high-end VR brands do not offer any form of refund.)
- We see this as offering more flexible options for users.
Australia-Wide Shipping
We ship all over Australia and want you to get your new gear as fast as possible, so we always aim to ship on the same day we receive your order, using the fastest and most reliable couriers in Australia. Of course, it may not always be possible to process your order on the same day, so please allow 1-2 business days for processing. If we encounter any delays we will let you know via email.
To maximise efficiency, Player1 Sim Gear ships all products in their original packaging straight from our warehouses or directly from our suppliers and manufacturers. Orders may be shipped in part or in full, and different courier companies may be used for different parts of your order. Please allow 2-8 business days for delivery. Please advise your phone number at checkout so we can get in touch with you if there is any problem. If you should receive a product that has been damaged while in transit please contact us immediately.
Please make sure someone will be available to receive your order, otherwise, your package may be diverted to your local post office or to your local shipping depot. We recommend all deliveries are sent to a business address to avoid any re-delivery charges. Note: Player1 Sim Gear will only ship to confirmed addresses, we cannot ship to PO Boxes sorry.
There may be times when the product you have ordered turns out to be out-of-stock with us or our suppliers. We will contact you to arrange a refund or alternate product if an item you have ordered is out-of-stock or unavailable for immediate shipment. You may cancel your order at any time prior to shipping.
International Orders: Apologies at the moment we don't ship internationally as standard. However if you outside Australia and there is something you'd like to purchase please do message us at sales@p1simgear.com.au, we will be happy to see what we can do.
Note re Larger cockpits and remote locations: We do our very best to ensure accurate shipping rates, however for larger cockpits and heavier items, rarely our shipping pricing may not be correct. In the event that the actual shipping costs for a large item should be exceed those quoted in your order, we will call you to discuss before we dispatch. You will have the option then to amend or cancel your order at no cost.
Returns Policy
We hope we can provide as much information and guidance as possible about each item so that you will love whatever you buy. We do understand though that the unforeseen happens. So in the unlikely event you wish to raise a return, please contact us and we shall discuss options and how we will proceed with the return request.
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. You may return your item(s) for an exchange/refund, so long as it is in the same condition that you received it, unopened, with tags and in its original packaging. You’ll also need the receipt or proof of purchase.
To request a return, you must first send an email to support@p1simgear.com.au with your Order number as the email subject and Reason for Return in the email body/message. We will reply to your email with your relevant return information. We will not accept any returned items if we have not had an email from you requesting a return, so you must request a return first, before sending anything back.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
-
You, the buyer, are are fully responsible for paying all charges necessary to return the item to us. A restocking fee of up to 20% of the returned product's value may apply.
-
Items must be returned sealed and unused in their original packaging and in a fully resalable condition. All items are supplied to you, the customer, in brand new condition unless explicitly stated otherwise in the product title. For such items supplied in Brand New condition, if any seals have been broken, the item cannot subsequently be sold as new after the return, therefore the return will be declined or a restocking fee will be levied and partial refund given.
-
If the item is deemed DOA or faulty once opened, we shall troubleshoot and assess the nature of the fault and repair the item or replace like-for-like, should the fault be deemed a legitimate fault.
-
Items returned that are not in their original condition may not be accepted, and the refund request declined.
-
Returned items must be complete with all packaging in good condition, ready for immediate resale. All components and items within packaging (e.g. polystyrene/bubble wrap) must be returned also. We reserve the right to levy a charge to replace product packaging which is damaged / defaced / missing.
-
We cannot accept responsibility for returned parcels which are undelivered back to us (e.g. lost by the courier, delivered to incorrect address) or damaged in transit back to us. We strongly advise you send returned items using an insured & tracked service. Furthermore, we also strongly advise you to obtain and retain your proof of postage, as you may require it should you decide to make a claim against your carrier should they damage or lose your item whilst returning it to us.
For items which require assembly, we are not responsible for any charges (labour or otherwise) incurred during fitment/removal of allegedly faulty (or incorrectly supplied) parts.
Returns made outside of the 30-day return window, or with no valid reason, will be declined.
Pre-Order CancellationsIn the event a Pre-Order becomes unavailable or is cancelled by Player1 Sim Gear you, the buyer, are entitled to a full refund. In the event that you change your mind or choose to cancel your Pre-Order for any reason prior to shipment, cancellation fees may apply to offset any unrecoverable costs incurred by Player1 Sim Gear.
