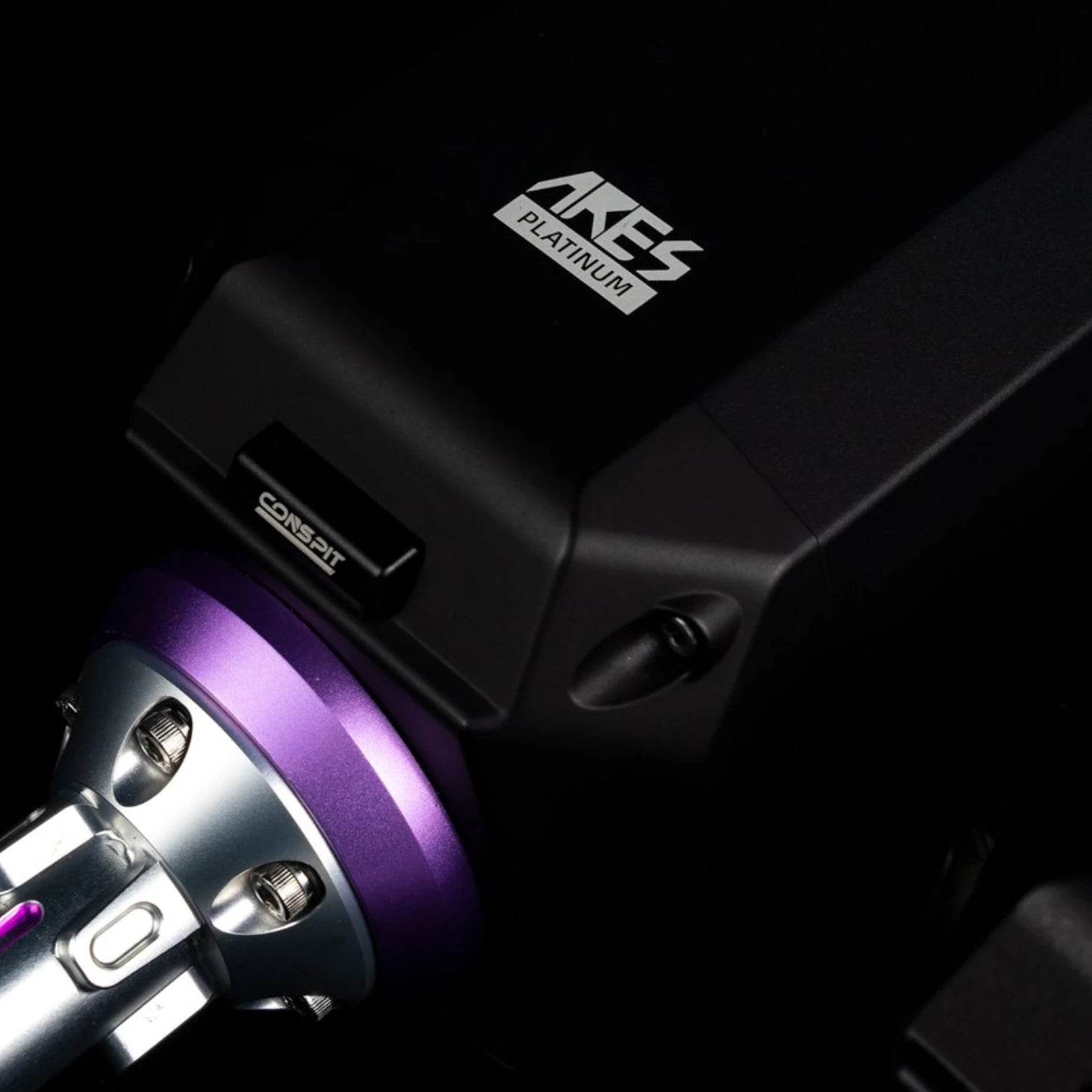

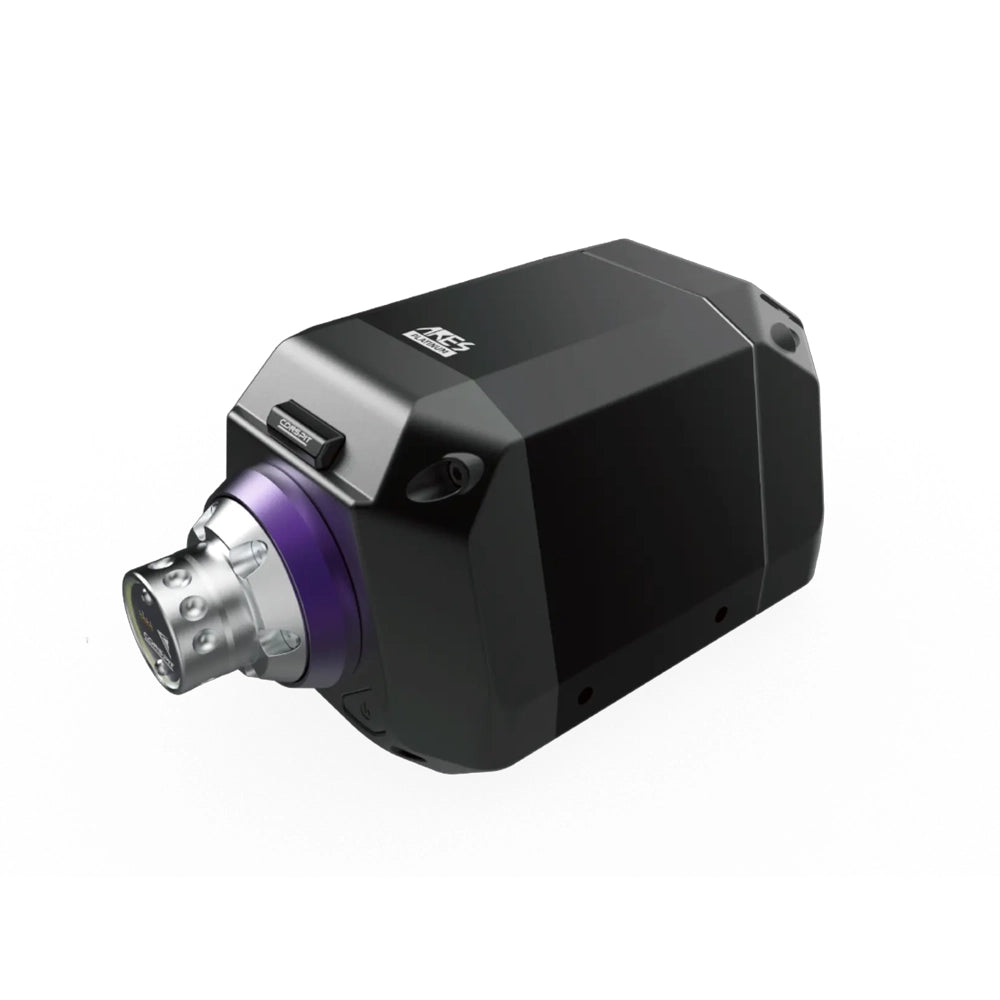

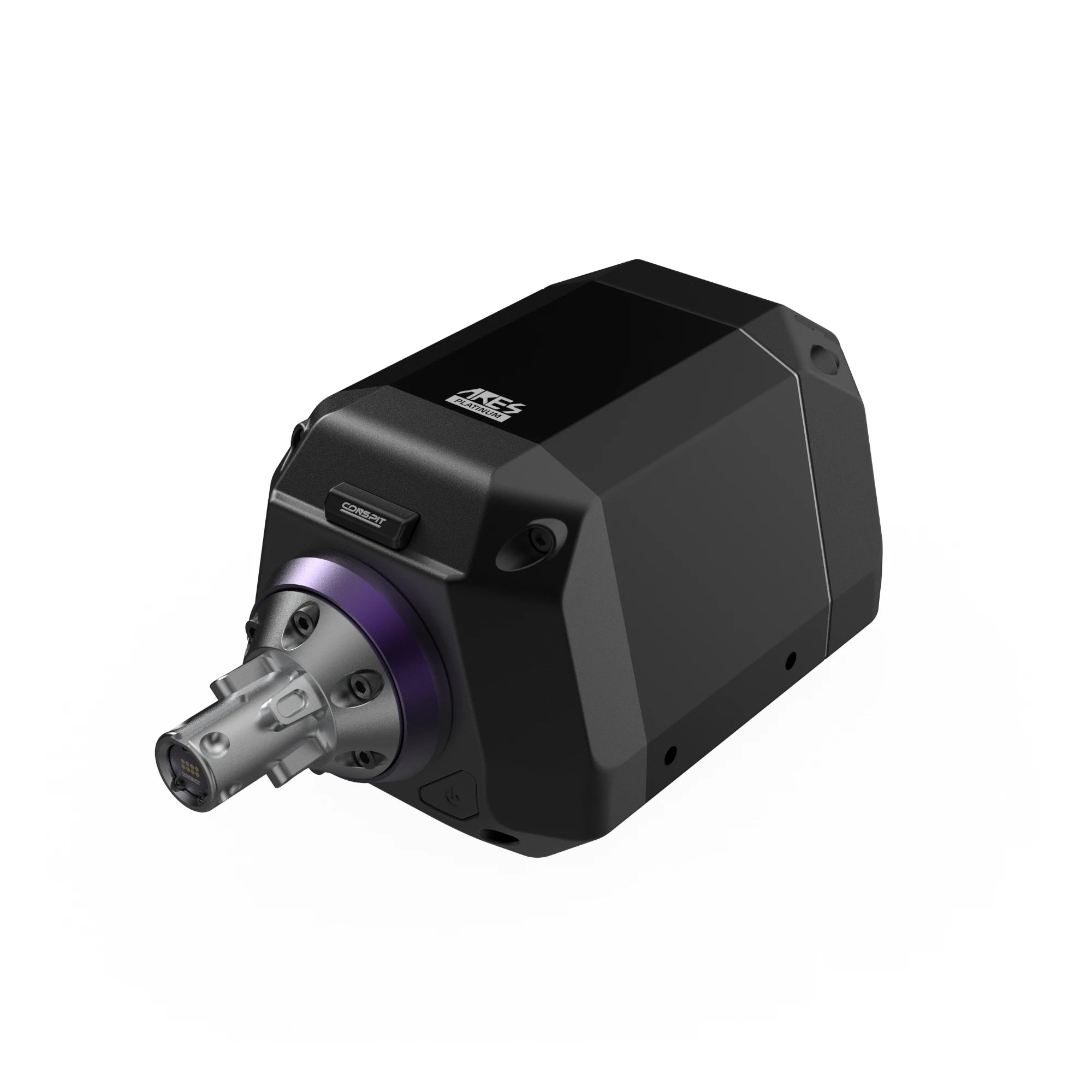

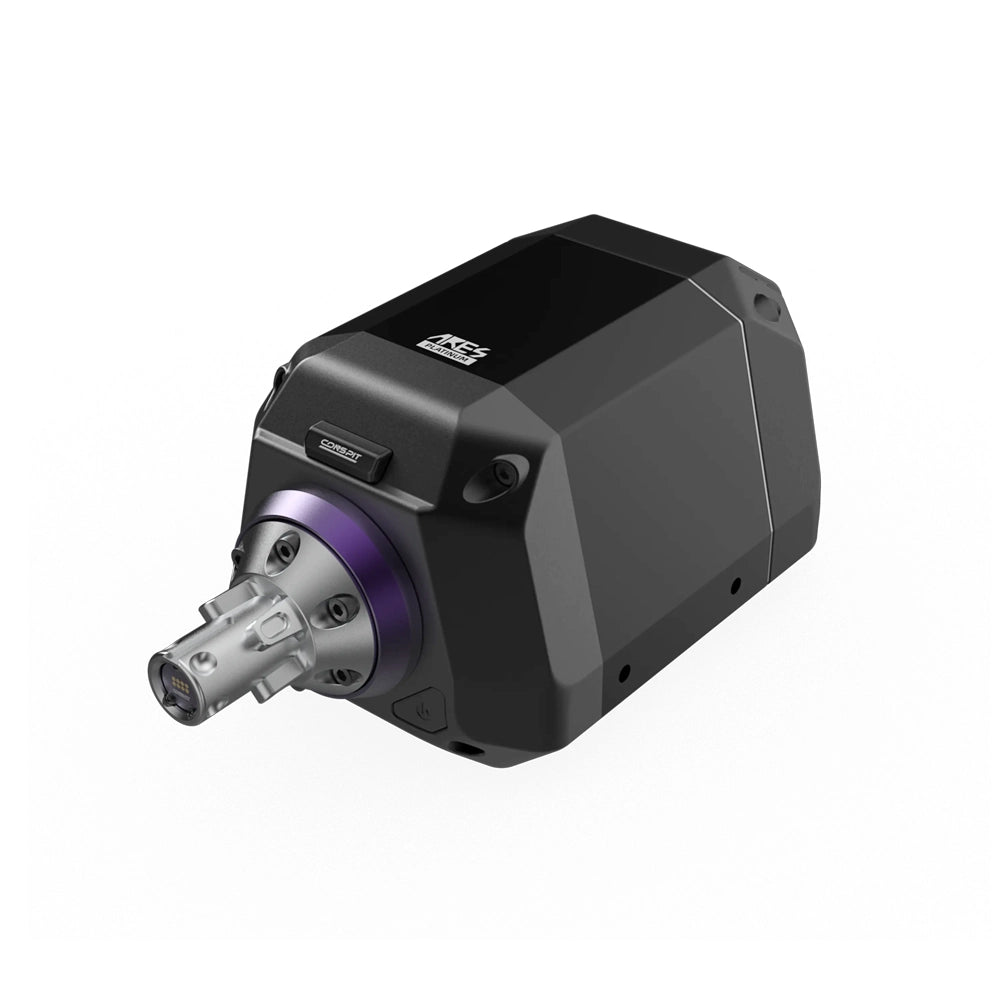

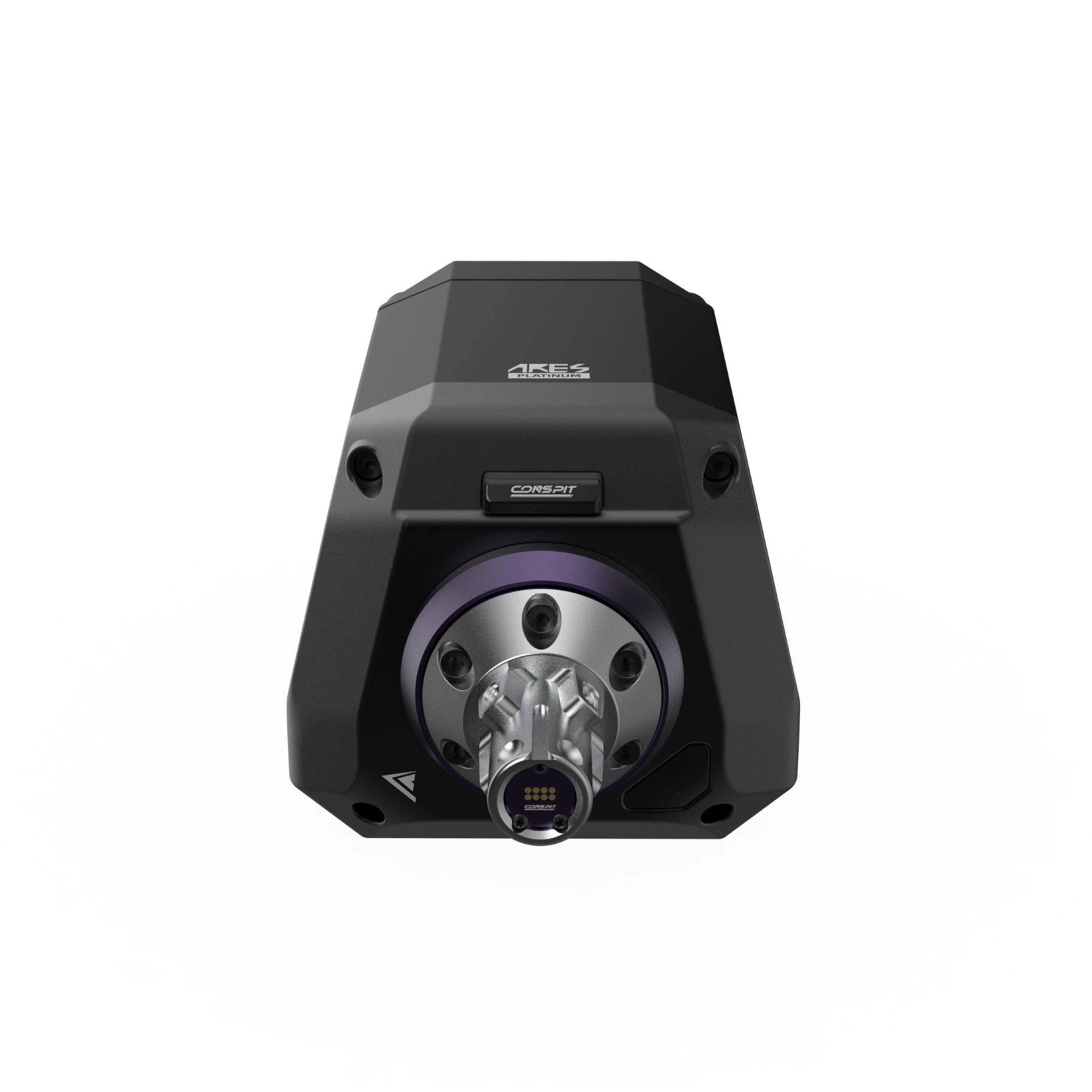

Conspit Ares Platinum Wheel Base (18Nm)

Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Tax included. Shipping calculated at checkout.

Vendor : Conspit

Product Type : Wheel Base

Sku : CP102

Reassurance Image
Secure Checkout
Reassurance Image
Free Shipping
Reassurance Image
Satisfaction Guarantee
Reassurance Image
Manufacturer Warranty

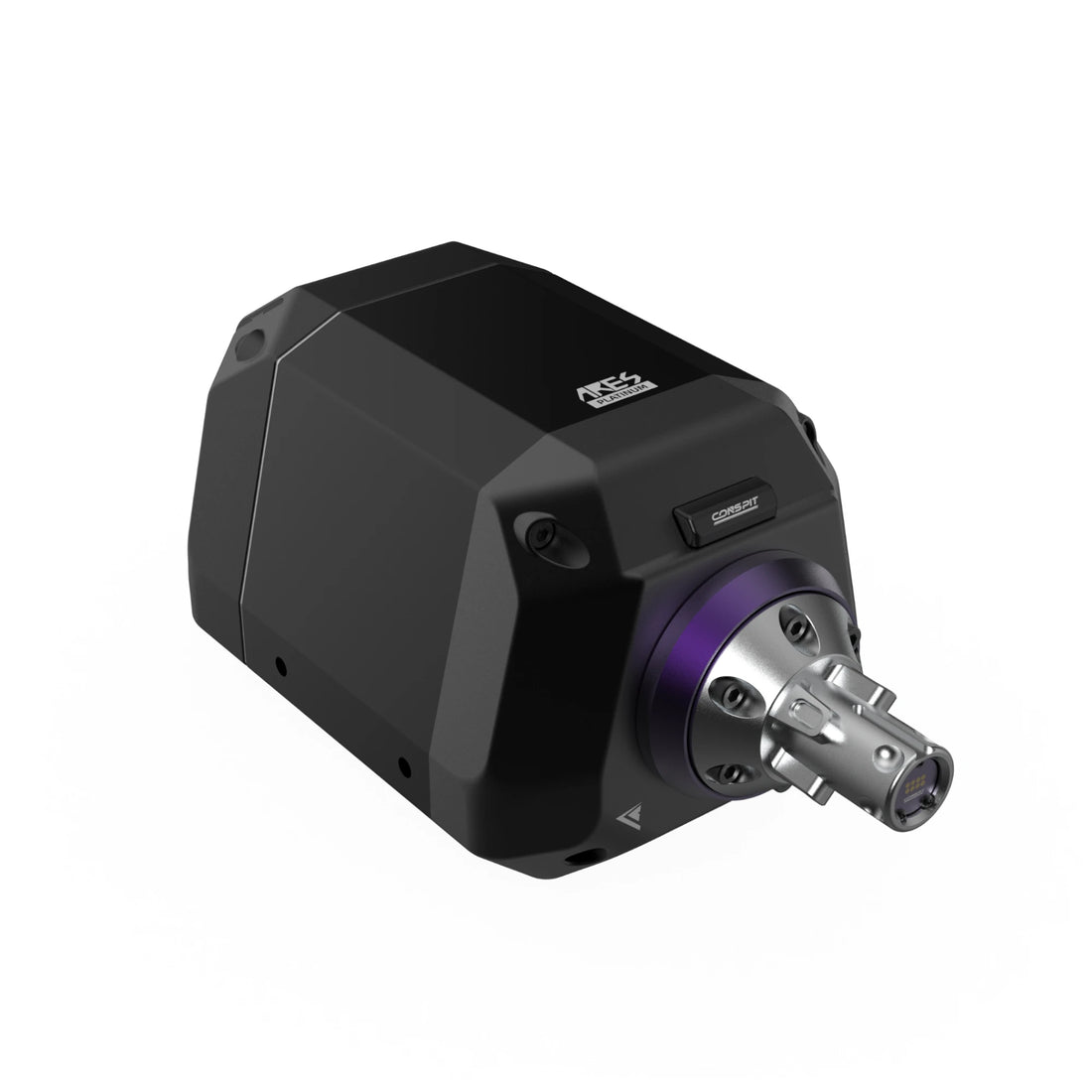

CONSPIT Ares Platinum Sim-Racing Wheelbase

CONSPIT Ares Series Sim-racing Wheelbases are designed for sim racers who seek the ultimate competitive experience. Equipped with a high-precision skew-pole direct-drive motor specifically developed for sim racing and a deeply optimized high-performance force feedback system, it delivers an unprecedented realistic driving experience with highly detailed tactile feedback.

High-quality Materials: The main body uses high-grade aerospace aluminum alloy, ensuring robustness and durability.

Efficient Heat Dissipation:  Proven heat dissipation design ensures reliability even in long-distance and endurance races.

Advanced Manufacturing Techniques:  Employing multiple forming, machining, and surface treatment processes for superior texture.

Highlights

 Superior Performance

  • Utilizing high-performance unsymmetric dual processors at 170MHz+168MHz to ensure efficient and stable calculations.
  • The Ares series direct-drive system uses industry-leading high-precision optical encoders with an angular resolution of less than 0.01° and a bit resolution of 23-bit, ensuring every subtle steering input is accurately captured.
  • With a 20 million RPM military-grade slip ring, signal transmission is stable and without delay, avoiding common electromagnetic interference issues found in Bluetooth or 2.4G wireless communication.

 Masterful Control

  • The Ares series base features a leading motor control system, providing excellent stability, efficiency, and positional accuracy during force feedback torque output.
  • Torque response performance of up to 9.5Nm/ms ensures that any high-frequency details are fully displayed.

Professional-grade Force Feedback Algorithm

In collaboration with Open FFBoard, a deeply customized force feedback algorithm developed and iteratively optimized by professional racing drivers and experienced vehicle dynamics engineers, Ares' force feedback system highly simulates real vehicle dynamics and road surface detail feedback, delivering an ultimate control experience.

 Specialized for the Task

Unlike competitors that directly use industrial servo motors, the motor structure of the Ares base is forward-developed from scratch to optimize the unique demands of sim racing for handling, steering feedback, and stability. Key parameters such as torque response, torque ripple, and cogging torque, which significantly affect the subjective feel, have been specifically optimized to achieve the fastest, smoothest, and most precise tactile feedback.

  • Dual Skewed Pole Design: Using a dual skewed pole design with both stator and rotor skewed poles, this optimizes cogging torque, significantly reducing torque ripple, electromagnetic vibration, and noise, resulting in excellent NVH (Noise, Vibration, and Harshness) performance.
  • Ultra-High Torque Density: Compact size, immense power. Utilizing ultra-high magnetic permeability cores and powerful NdFeB magnets, along with optimal air gap ratio and high slot fill factor design, this motor achieves high torque density and delivers powerful output.
  • Excellent Torque Ripple: After multiple simulations and prototype iterations, we have developed the optimal electromagnetic solution. Through dual skewed pole design of stator and rotor, high slot-pole matching, optimal air gap ratio, and precise magnetic circuit design, we have achieved ultra-low torque ripple, ensuring incredibly smooth steering feel.
  • Advanced Thermal Management: Real-time high-frequency monitoring of the entire system’s temperature ensures stable operation of the motor and its control system, providing excellent thermal management performance.

 Innovative Industrial Design

  • Utilizing a visually lightweight design language, the compact and sleek profile delivers a multi-angle core aesthetic experience, exceeding both visual and performance expectations.

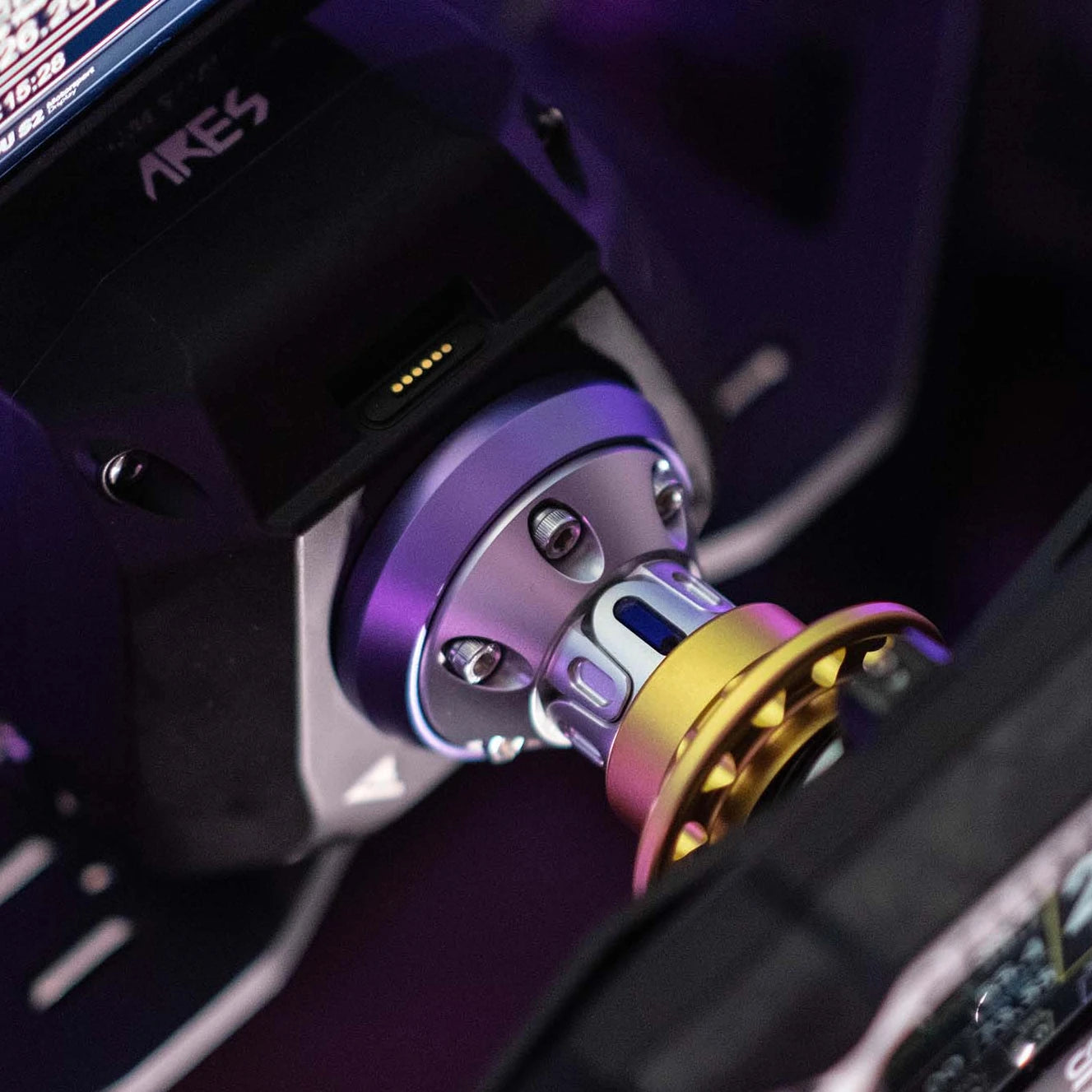

POGO Module

  • The front of the base features magnetic contacts designed for future expansion and quick installation of various functional components.

High Safety Design

  • A unique safety mode ensures driver safety while also allowing children to play safely under parental supervision.

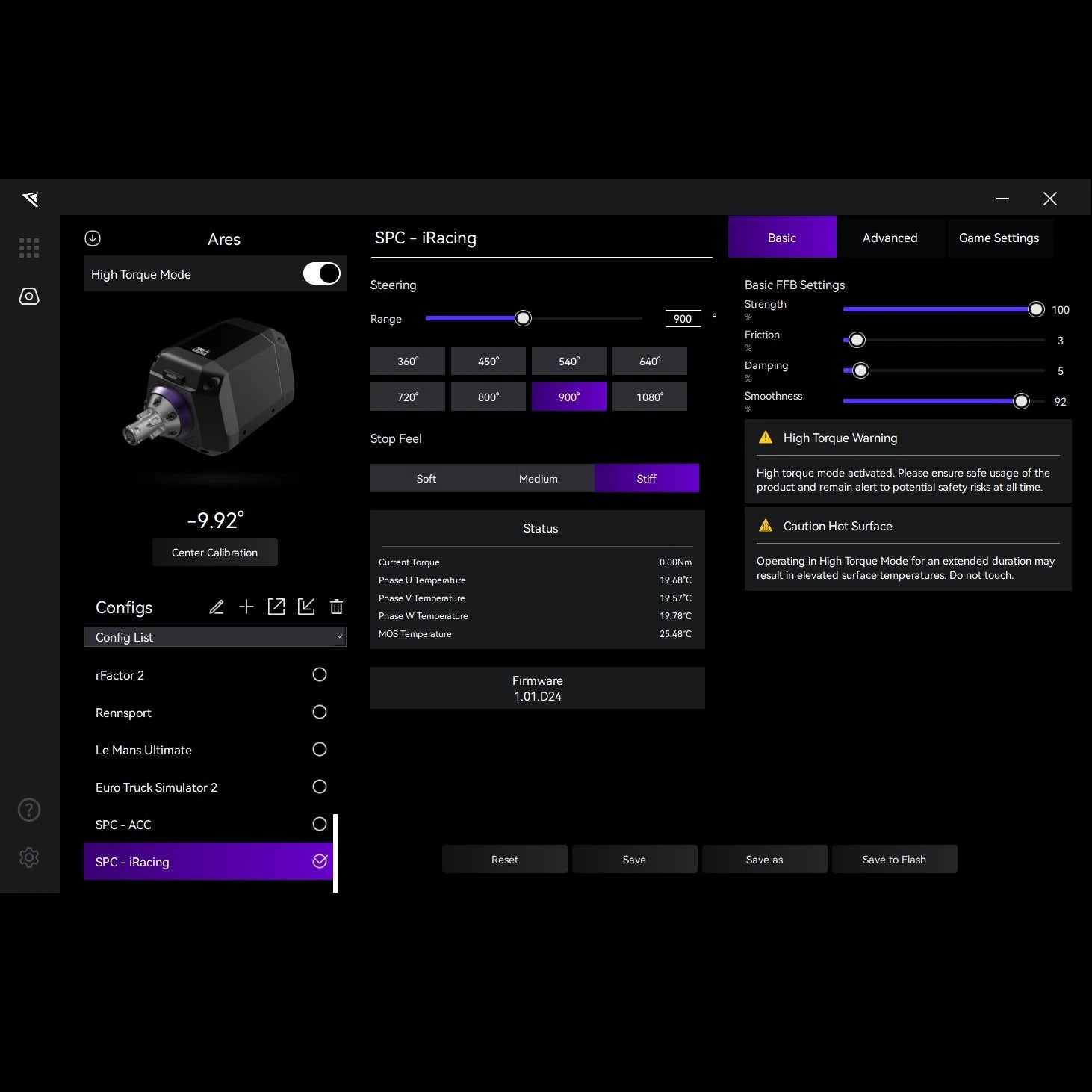

Conspit Link 2.0

  • Quickly configure base functions, monitor status, and create custom presets in the Conspit Link 2.0 software.
  • Official presets crafted by professional drivers and experienced vehicle dynamics engineers allow for quick switching based on different games or vehicle combinations, with pro special presets coming soon.

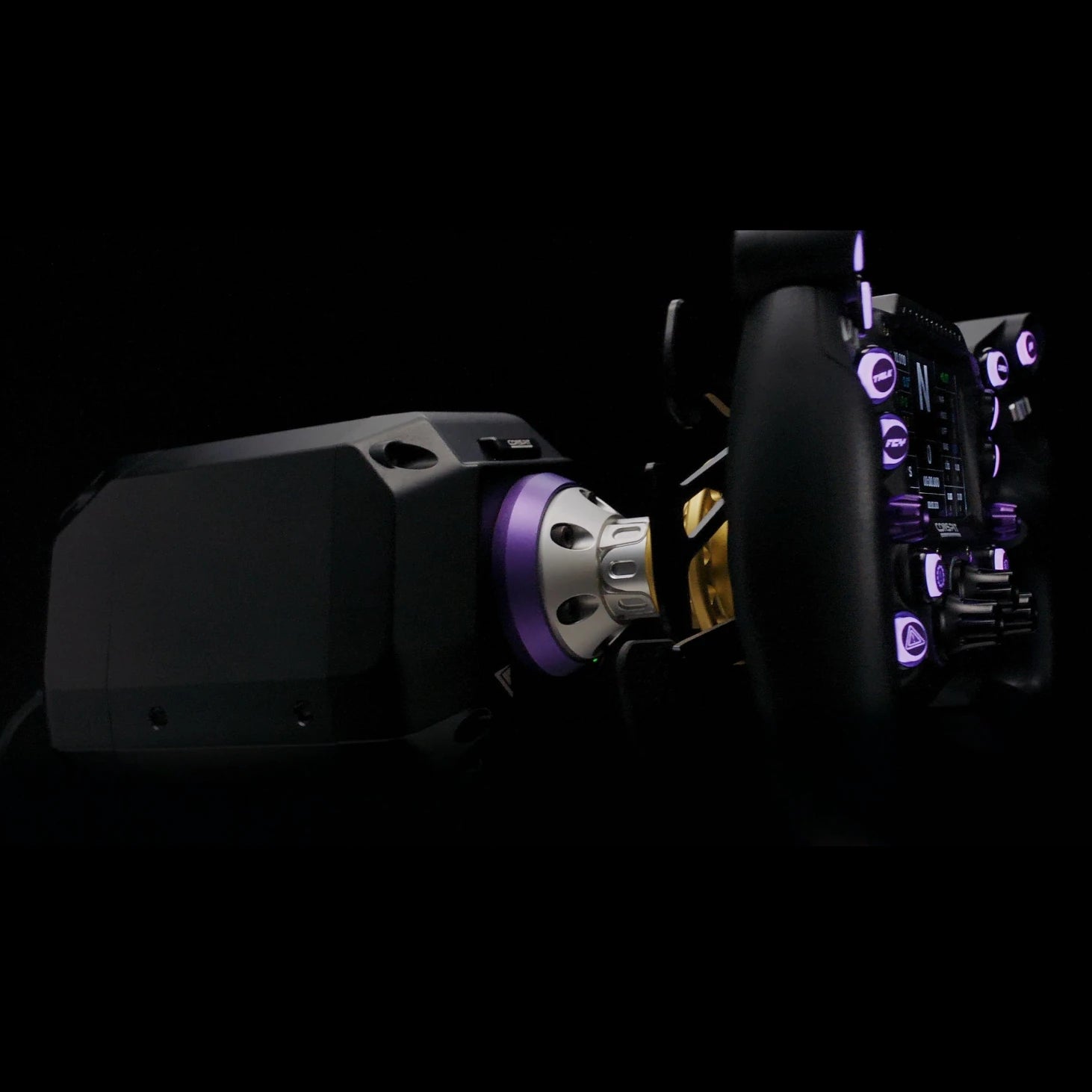

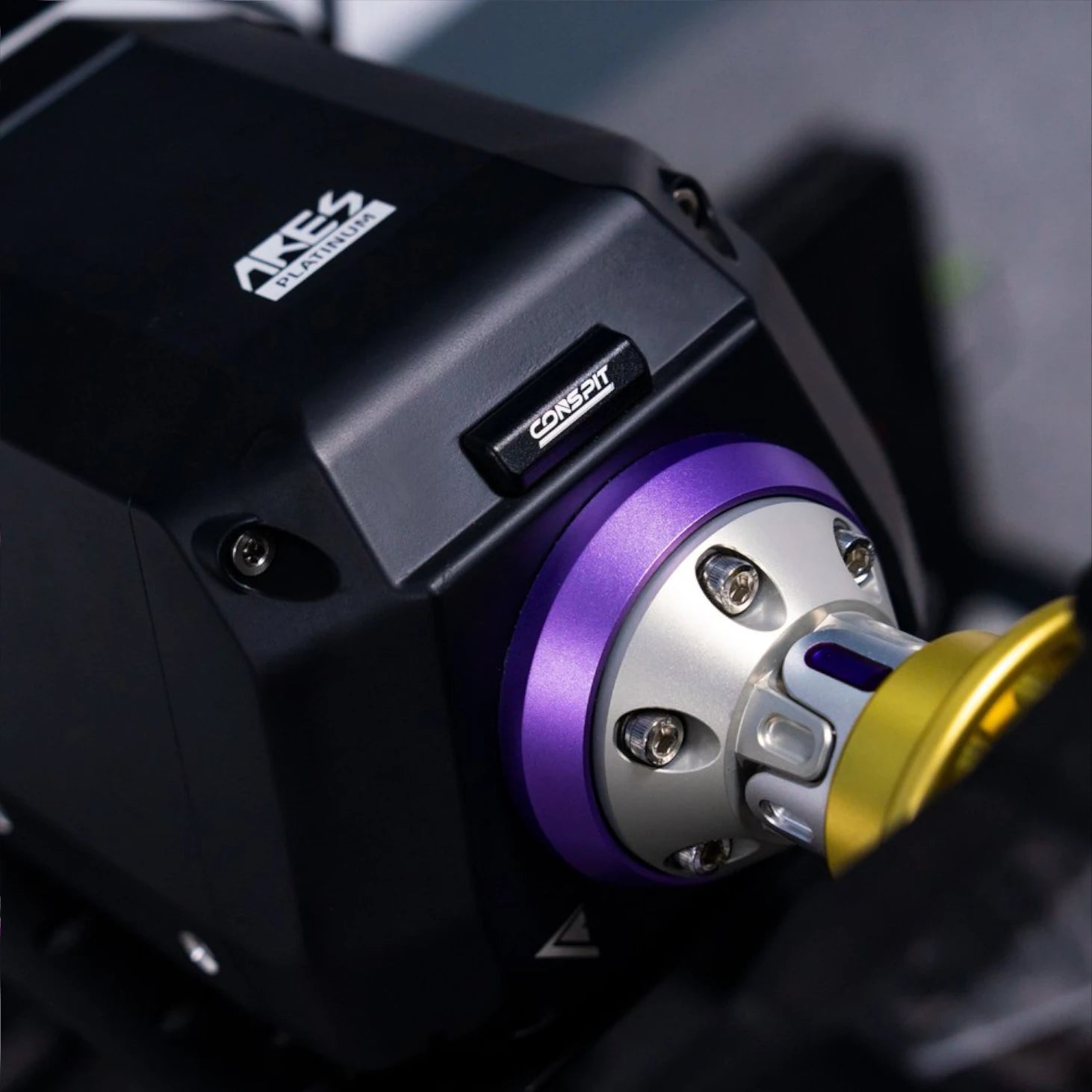

CDP Quick Release

  • Unlike the common ball-type single locking structures on the market, the CDP quick release introduces the clasp + ball design of real Formula racing cars. The entire structure is CNC machined from 7075 aluminum alloy, with the clasp structure responsible for transmitting torque. Topologically optimized to meet high strength requirements, the balls provide longitudinal positioning without bearing torque load, fundamentally solving the wear problems of traditional ball-type quick releases, ensuring zero play even after prolonged use.
  • The electrical connection between the steering wheel and the base is achieved through spring contacts inside the quick release, ensuring stable and reliable plug-and-play functionality.

Ares 10NM   Sim-racing Wheelbase

 Dimensions

134*150*269

 Net Weight

5.6KG

 Maximun Torque

10NM

 Encoder

high-precision optical encoders

 Motor

Dual Skewed Pole Design  Motor

 Resolution

23-bit

Quick Release

CONSPIT ball-type single locking(CDP)quick release

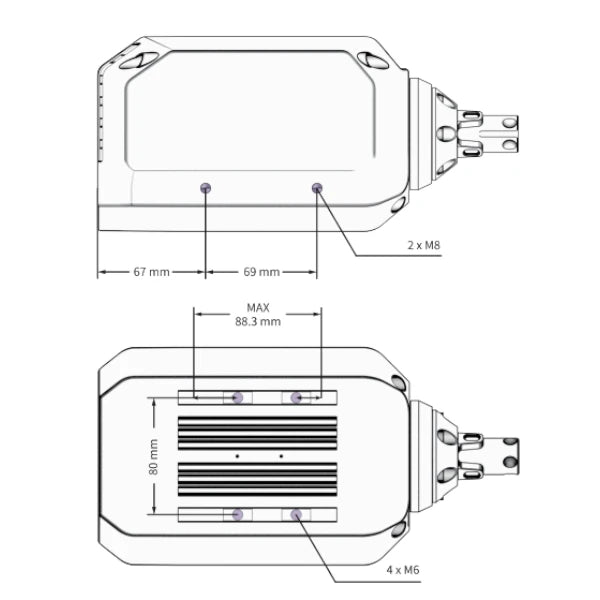

 Mounting Holes

M6 x 4 (bottom), M8 x 4 (sides)

Platform

PC: Windows

 E-Stop

Optional

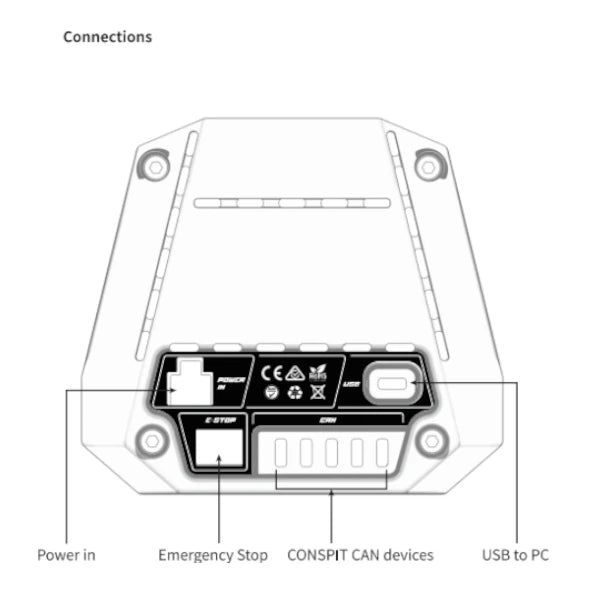

 Connection

USB

 Cable

USB 3.0 cable

Software

CONSPIT LINK 2.0

Ares Platinum 18NM   Sim-racing Wheelbase

 Dimensions

134*150*287

 Net Weight

7.9KG

 Maximun Torque

18NM

 Encoder

high-precision optical encoders

 Motor

Dual Skewed Pole Design  Motor

 Resolution

23-bit

Quick Release

CONSPIT ball-type single locking(CDP)quick release

 Mounting Holes

M6 x 4 (bottom), M8 x 4 (sides)

Platform

PC: Windows

 E-Stop

Optional

 Connection

USB

 Cable

USB 3.0 cable

Software

CONSPIT LINK 2.0

All Conspit products include a full 12 month Manufacturer Warranty.

As an official Conspit Distributor, the Player1 Support Team will provide first-line local support for any and all warranty of support issues.

For any Drivers, Product Manuals, Firmware Downloads and SimHub Profiles check out the Conspit Support Pages.
