Trak Racer TR160 V5 MK5 Racing Simulator

No review yet. Write Review
Regular price
$810.00
Regular price
$900.00
Sale price
$810.00
Tax included. Shipping calculated at checkout.

Vendor : Trak Racer

Product Type : Cockpit

Sku : TR1605-BFNW

Reassurance Image
Secure Purchase
Reassurance Image
Player1 Certified
Reassurance Image
Satisfaction Guarantee
Reassurance Image
Manufacturer Warranty

Trak Racer · TR160 V5 · Professional, Motion-Ready Racing Cockpit

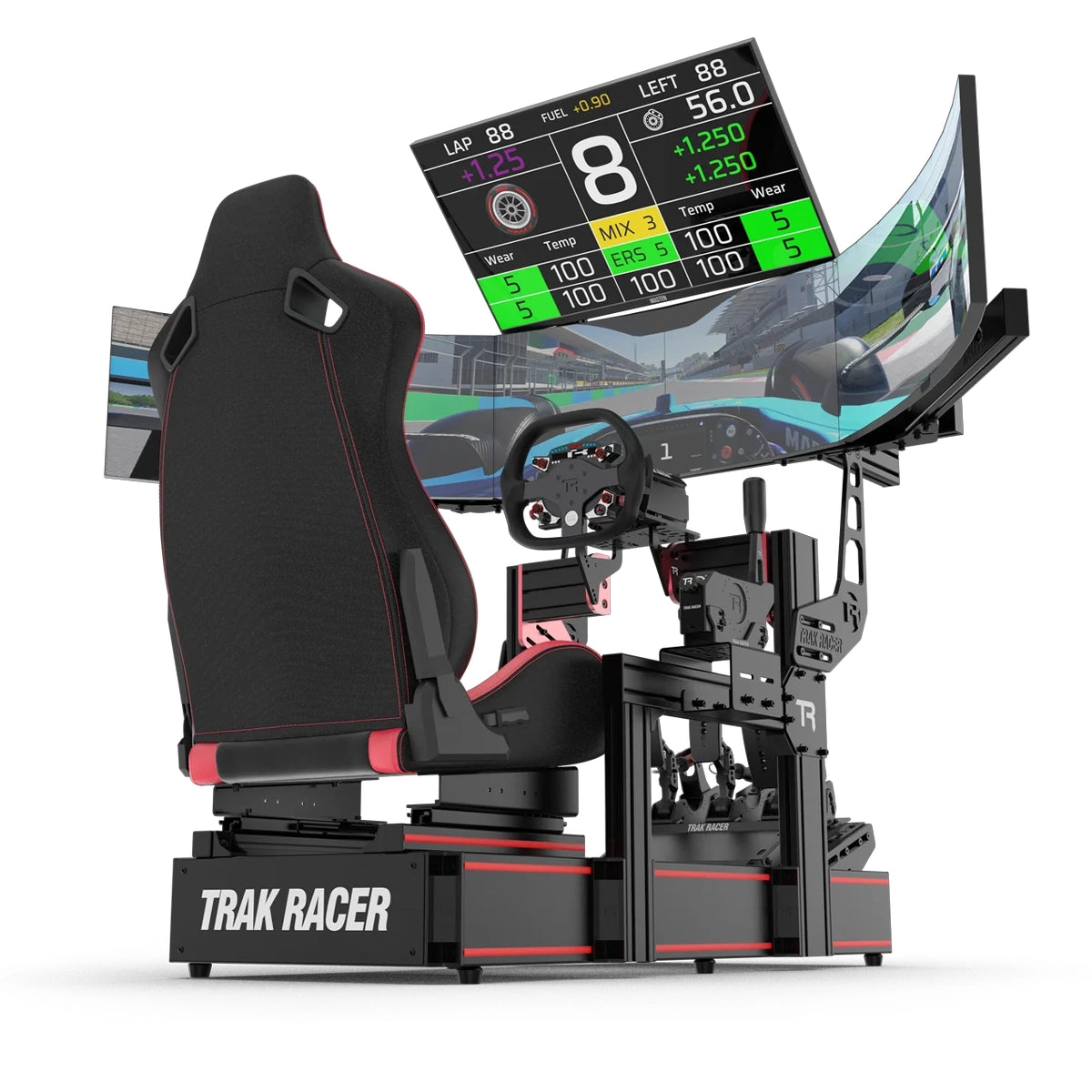

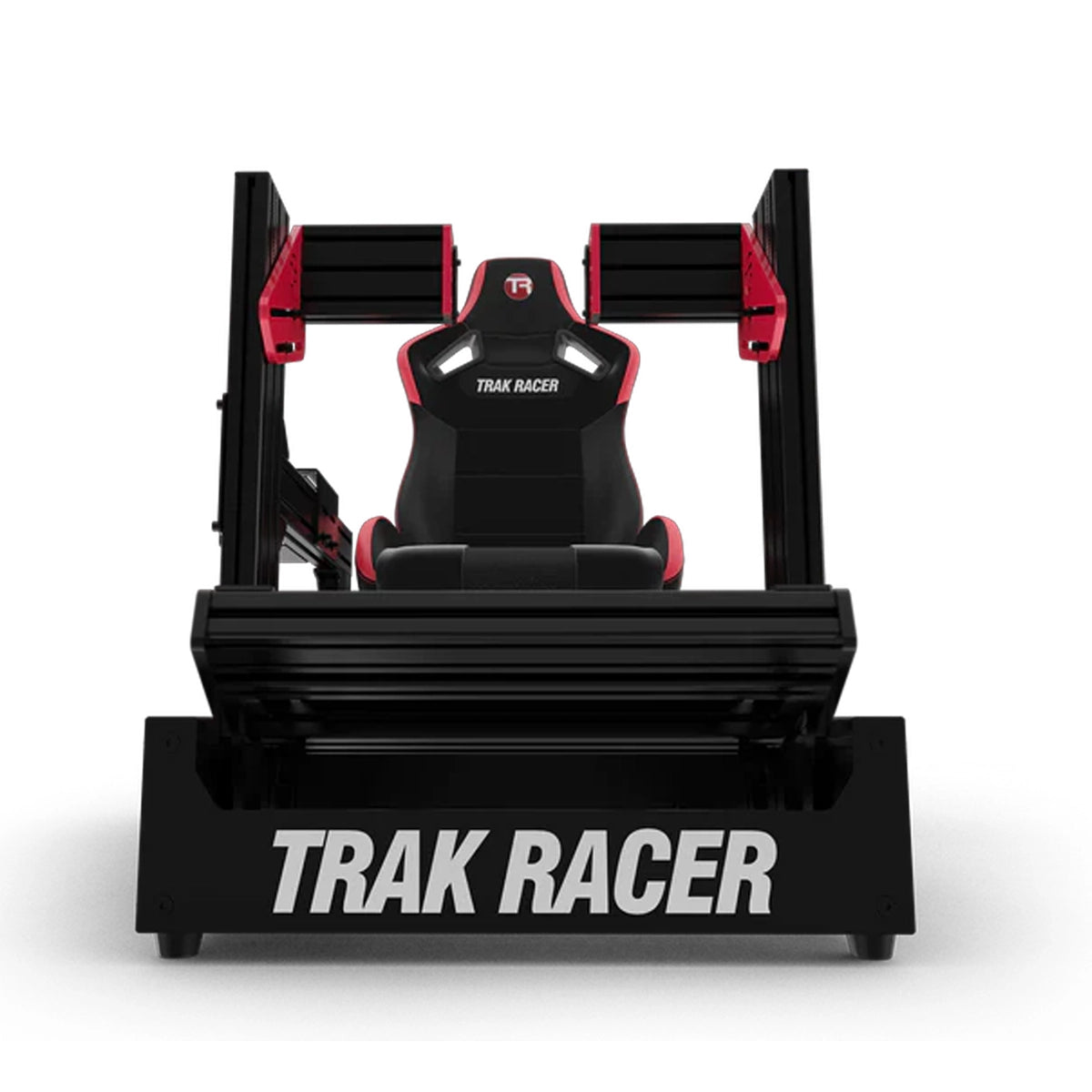

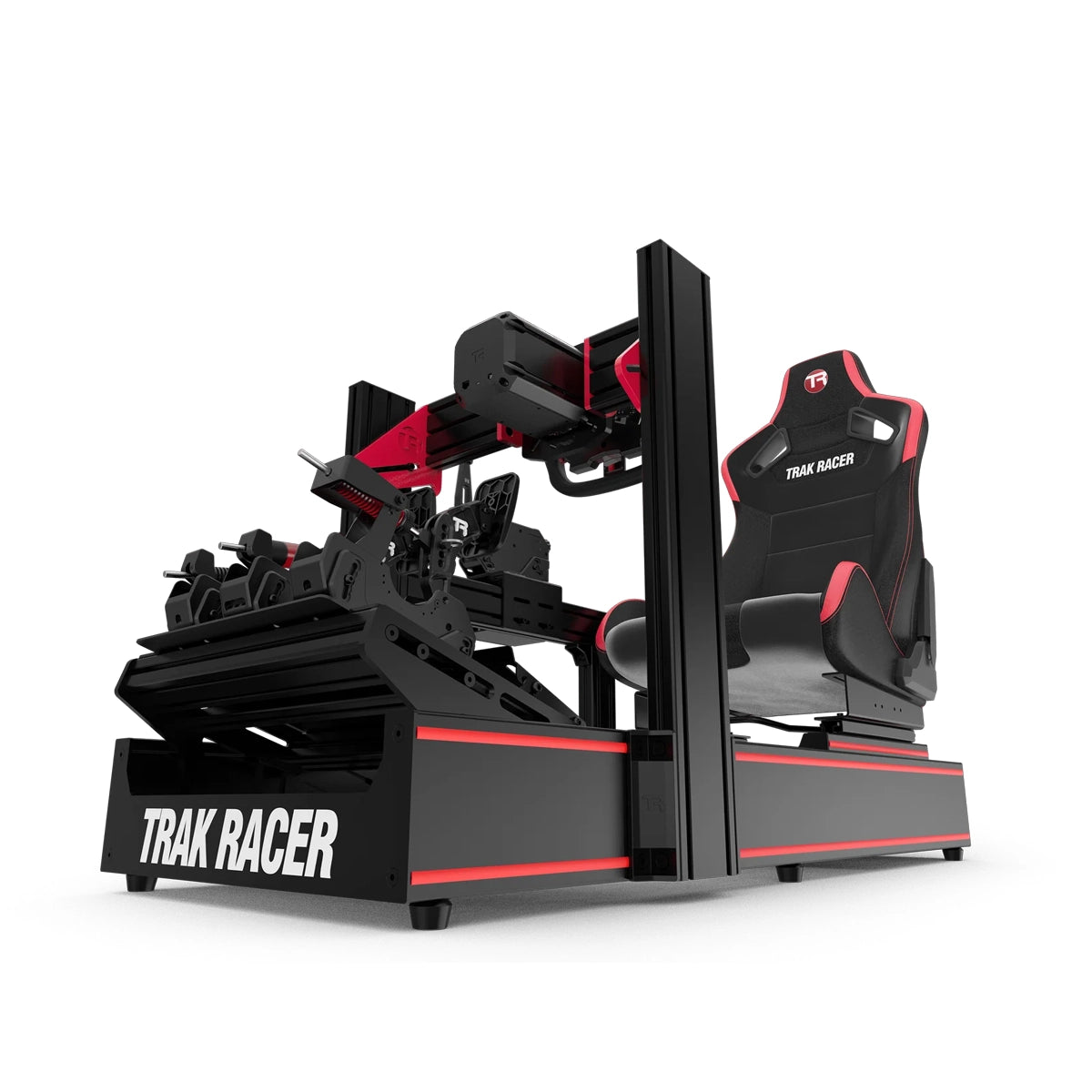

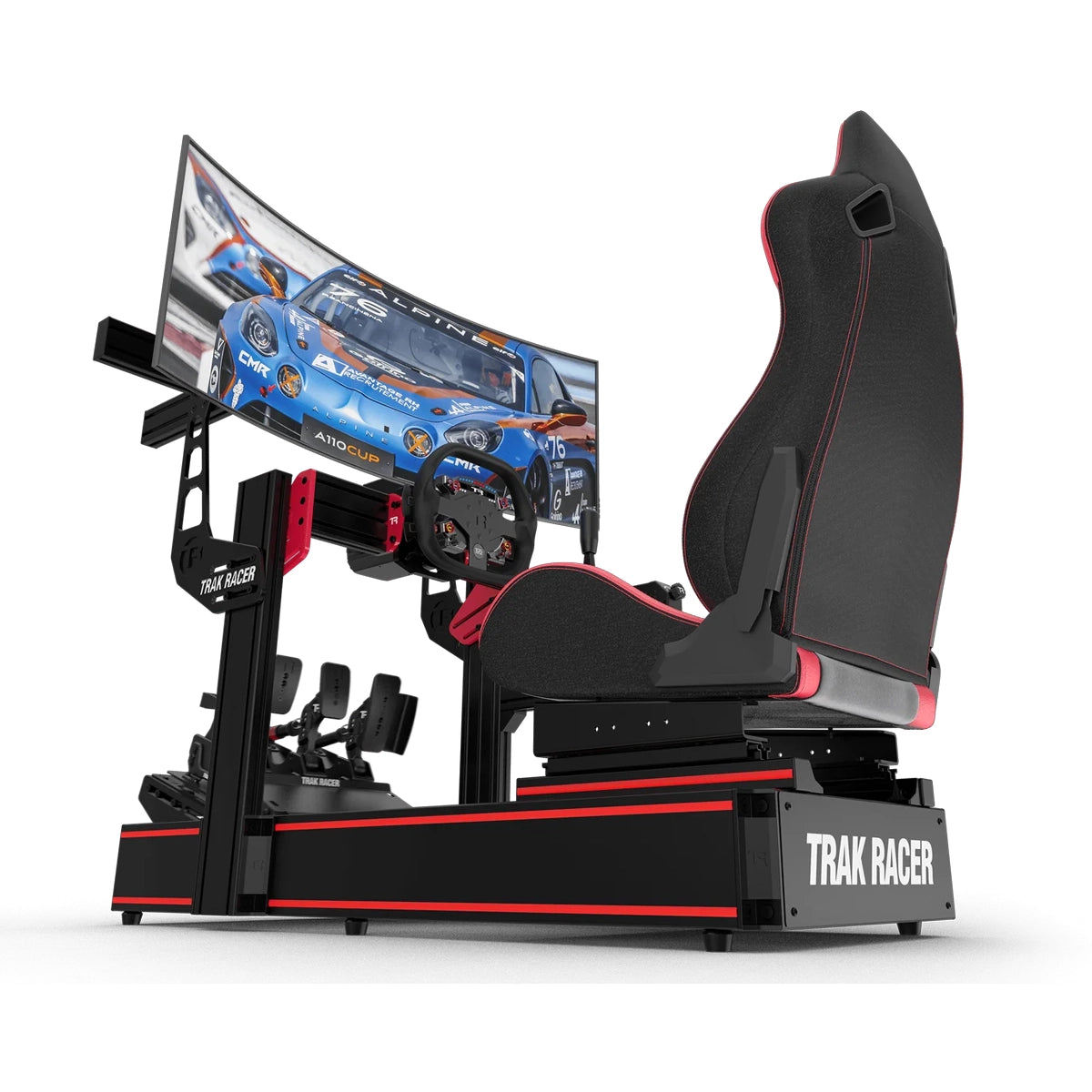

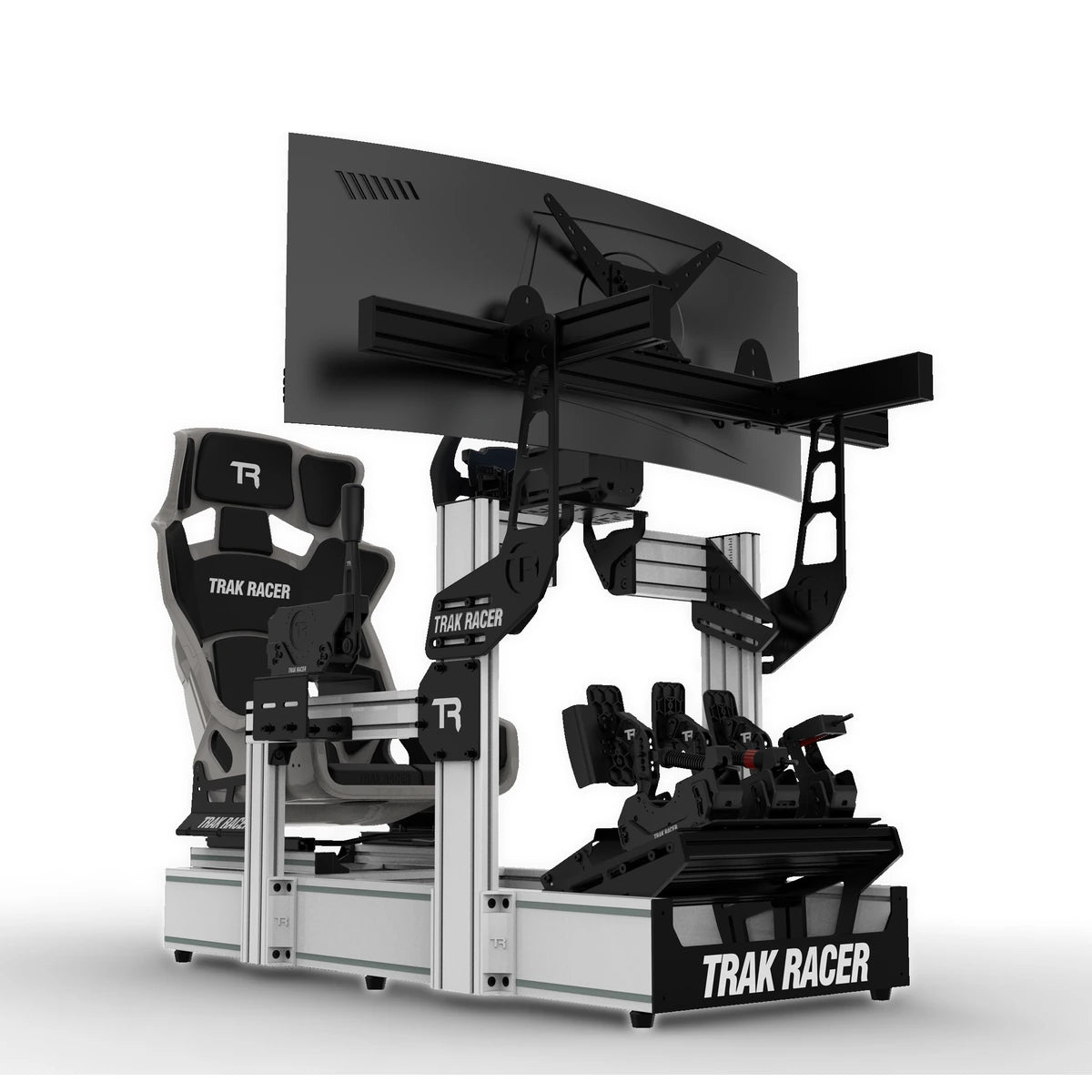

Trak Racer TR160 V5 MK5 Racing Simulator
The strongest in its class. Built for the strongest direct drive.

From 2019 to 2021, the TR160 MK4 was the King of Sims. The TR160 V5 is its upgraded successor — built from the feedback of thousands of MK4 owners. Double-walled 160×40mm aluminium profile, signature corner brackets, and side-mounted wheel uprights deliver a true no-flex experience even with the strongest direct-drive force feedback. Strong, extremely adjustable, motion-ready, and backed by a huge accessory ecosystem. The TR160 V5 is the most capable sim racing cockpit in its class, available from Player1 Sim Gear — your fully authorised Australian Trak Racer partner and reseller, shipping Australia-wide.

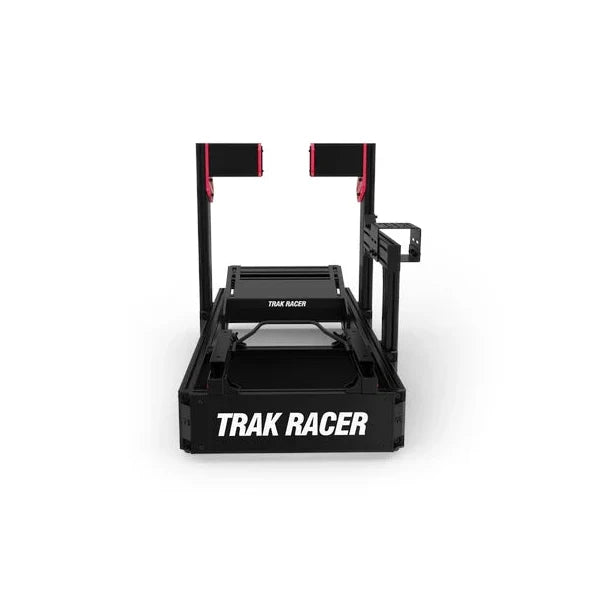

Trak Racer TR160 V5 MK5 racing simulator cockpit frame in anodized black aluminium
160 × 40mmaluminium profile
0 – 30Nm+direct-drive ready
41 kgof rigid frame
Motion-readydirect-fit, no base required
30+optional accessories
Since 2008building racing cockpits

Built to be the strongest in its class.

Double-Walled 160×40mm Aluminium Profile

The main chassis uses 160mm × 40mm anodized black T-slot aluminium extrusion with walls thicker than competitors — engineered to be the strongest profile frame in its class.

No-Flex Wheel Uprights

Side-mounted with heavy-duty brackets and strengthened 160×40mm corner brackets — a true no-flex experience from 0 to 30Nm and beyond, regardless of wheelbase.

TR One Universal Wheel Mounting

Future-proof and fully adjustable — when you upgrade your wheelbase, replace only the part you need. Compatible with every major direct-drive and belt-drive wheelbase on the market.

Three Pedal Mounting Options

Pre-drilled slide plate, extruded profile with heel plate, or the Hybrid Pedal Plate — quick-adjusting between GT, Formula and inverted. No flex under hundreds of kilograms of braking force.

Motion-Ready, Direct-Fit

Motion-ready as a direct fit with no base required — get the whole frame moving, not just the seat. Contact us to spec a full-frame motion system for the TR160 V5.

30+ Accessory Ecosystem

Seats, monitor stands, caster wheels, bass shaker mounts, sim floors and more. Side-mounts attach to the plate or to any 8mm aluminium profile on the frame.

Your feedback is our creation — five key upgrades, in detail.

Trak Racer TR160 V5 Option 1 and 2 pedal mount — pre-drilled plate and extruded profile with heel plate

Pedal Mount — Options 1 & 2

TR One Pedal Plate or Profile Mount

Pre-Drilled Plate · Extruded Profile with Heel Plate

Select between a pre-drilled mounting plate with fine-tune slide function, or an extruded aluminium profile with heel plate — both built to withstand hundreds of kilograms of braking force without flex.

  • Fine-tune slide adjustment — Get pedals exactly where you need them.
  • Heel plate option — Suits newer load-cell pedal sets.
  • Pre-drilled for all major brands — Heusinkveld, Simagic, Moza, Fanatec, Asetek and more.

Pedal Mount — Option 3

Strengthened Hybrid Pedal Plate

GT · Formula · Inverted — Quick Adjust

Quick-adjust between GT (low), Formula (high) or inverted (upside down) without tools — pre-drilled for all major pedal brands and strengthened to handle maximum braking load in any position.

  • GT position — Classic reclined angle for GT and touring car racing.
  • Formula position — Raised plate for an open-wheel seating position.
  • Inverted — Upside-down for heel-and-toe technique.
Trak Racer TR160 V5 Option 3 Hybrid inverted pedal plate — GT, Formula and inverted positions
Trak Racer TR160 V5 TR One wheel mount system — future-proof wheelbase swap animated

TR One Wheel Mount

The New Benchmark in Sim Racing Wheel Mounting

Future-Proof · Slide & Angle Adjustable

Upgrade your wheelbase by replacing only the part of the mount you need — not the whole assembly. Fully adjustable for slide and angle, compatible with every major direct-drive and belt-drive wheelbase.

  • Future-proof — Replace only what your new wheelbase requires.
  • Universal fit — Simagic, Fanatec, Moza, Asetek, Simucube, Logitech, Thrustmaster and more.
  • 0–30Nm+ — No flex even with the strongest direct-drive wheelbases.

Included — TR One Expandable Shifter Mount

Gen 2 Shifter Mount — Overhauled & Strengthened

Thicker Design · Fine-Tune Slide · Handbrake & Flight Sim Mounts

Completely redesigned Gen 2 mount — thicker, stronger, with fine-tune slide adjustment. New side-mounts for handbrakes and flight sim peripherals attach directly to the plate or any 8mm aluminium profile.

  • Gen 2 overhauled design — Thicker and stronger than the original.
  • Fine-tune slide — Position your shifter exactly where it needs to be.
  • Handbrake & flight sim mounts — Attaches to the plate or any 8mm profile.
Trak Racer TR160 V5 TR One Gen 2 expandable shifter mount animated
Trak Racer TR160 V5 Dual-Lock premium seat slider kit animated

Included — Seat

Dual-Lock Seat Slider Kit — Included

Quick Adjustment · Minimal Play · Premium Rails

The TR Premium seat slider runner kit delivers quick seat position adjustment with the least amount of play in its class. Swap between drivers in seconds. Seat sold separately.

  • Dual-Lock mechanism — Locks firmly with minimal play or rattle.
  • Quick adjustment — Swap positions fast between drivers.
  • Seat sold separately — GT-style, rally and reclining Trak Racer seats available.

The strongest frame in its class — engineered, not assembled.

Built at the Factory

Double-Walled 160×40mm Profile · Signature Corner Brackets

Built from the feedback of thousands of TR160 MK4 owners — thicker aluminium walls than competitors, signature corner brackets, and 160×40mm brackets for extra rigidity throughout.

  • 160 × 40mm main chassis — T-slot extrusion with walls thicker than competitors.
  • Signature & corner brackets — 32g 40×40mm and strengthened 160×40mm.
  • Heavy-duty 90° brackets — Anodized black with laser-cut carbon steel plates.

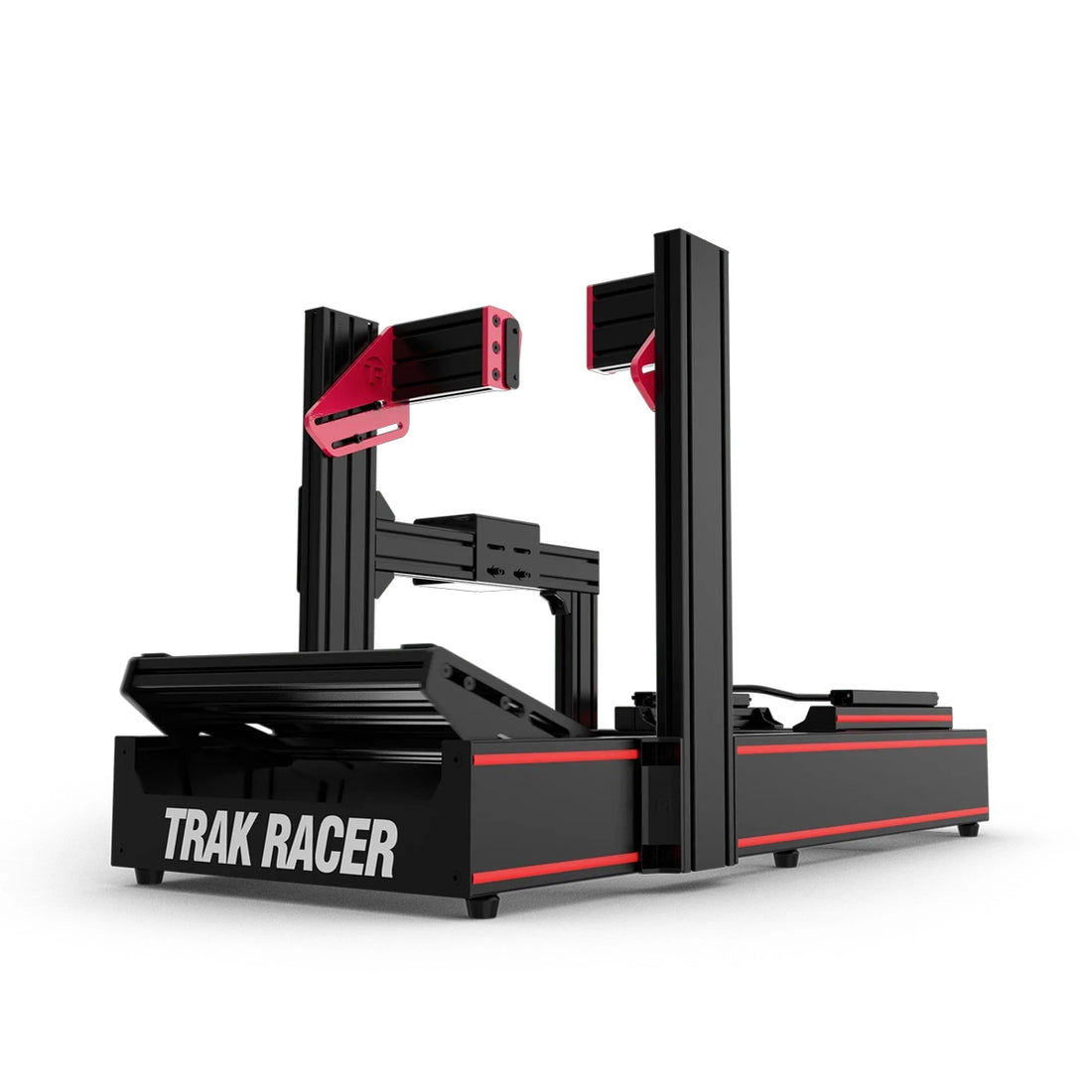

Trak Racer TR160 V5 frame construction — double-walled 160x40mm aluminium profile and corner brackets
Trak Racer TR160 V5 side-mounted wheel uprights and no-flex wheel deck

No-Flex Wheel Deck

Side-Mounted Uprights — Built for 30Nm and Beyond

Heavy-Duty Brackets · Strengthened 160×40mm Corner Brackets

Side-mounted wheel uprights with heavy-duty brackets keep the deck rock solid under load — no flex even with the strongest direct-drive force feedback.

  • Side-mounted uprights — Heavy-duty brackets for a no-flex experience.
  • 0 to 30Nm+ — Ready for the strongest direct-drive wheelbases.
  • Strengthened corner brackets — Extra rigidity exactly where the load is.

The new benchmark in sim racing wheel mounting.

Future-Proof & Universal

TR One Wheel Mounting System

Slide & Angle Adjustable · Every Major Wheelbase

Upgrade your wheelbase by replacing only the part of the mount you need — not the whole assembly. Fully adjustable for slide and angle.

  • Future-proof — Replace only the part your new wheelbase needs.
  • Universal fit — Simagic, Fanatec, Moza, Asetek, Simucube, Logitech, Thrustmaster and more.
  • Slide & angle adjustable — Dial in your exact steering position.
Trak Racer TR160 V5 TR One wheel mounting system and pedal deck

Three pedal mounting options — built for hundreds of kilograms of braking force.

Trak Racer TR160 V5 adjustable pedal mounting options

No Flex Under Braking

Pre-Drilled · Extrusion + Heel Plate · Hybrid GT/Formula/Inverted

Pre-Drilled for All Major Pedal Brands

All three options withstand hundreds of kilograms of braking force without flex, pre-drilled for Heusinkveld, Simagic, Fanatec, Asetek, Moza, Logitech, Thrustmaster and more.

  • Pre-drilled mounting plate — Fine-tune slide function for precise positioning.
  • Extruded profile with heel plate — Suits newer pedal sets.
  • Hybrid Pedal Plate — Quick-adjust between GT, Formula or inverted.

Expandable mounts and a premium seat slider — ready for any peripheral.

Gen 2 Strengthened

TR One Expandable Shifter Mount & Dual-Lock Seat Slider

Side-Mounts for Handbrakes & Flight-Sim Peripherals

Completely overhauled Gen 2 shifter mount — thicker, with fine-tune slide adjustment. New side-mounts attach to the plate or any 8mm profile. Dual-Lock seat slider included.

  • Gen 2 shifter mount — Overhauled, thicker, with fine-tune slide.
  • Side-mounts — For handbrakes and flight-sim peripherals.
  • Dual-Lock seat slider — Quick adjustment, minimal play. Seat sold separately.
Trak Racer TR160 V5 expandable shifter mount and Dual-Lock seat slider rails

Wheelbase & Pedal Compatibility

Connection & Compatibility Overview

The TR160 V5 is designed to mount almost any sim-racing wheelbase and pedal set on the market. The TR One Wheel Mount and the included pedal mounts are pre-drilled and adjustable for the major brands below. Not sure about your exact model? Call us and we'll confirm before you order.

Hardware Mounting Solution Supported Brands Notes
Direct-Drive Wheelbase TR One Wheel Mount Simagic Alpha / EVO, Fanatec, Moza, Asetek, Simucube, VRS, Cammus Slide & angle adjustable · 0–30Nm+
Belt-Drive / Gear Wheelbase TR One Wheel Mount Logitech, Thrustmaster and more Future-proof — upgrade only the part you need
Pedal Set Pre-Drilled / Heel Plate / Hybrid Heusinkveld, Simagic, Fanatec, Asetek, Moza, Logitech, Thrustmaster GT / Formula / inverted with Hybrid plate
Shifter / Handbrake Gen 2 Expandable Mount All major brands Side-mounts to plate or any 8mm profile
Monitor (optional) Cockpit-Mounted Stand Single up to 80" · Triple up to 45" (incl. quad) Optional accessory · sold separately
Motion System Direct-fit Motion-ready — no base required Contact us to spec a motion system

Optional accessories such as monitor stands and motion systems are sold separately. Not sure what fits your wheelbase, pedals or peripherals? Call us on 0488 385 870 and we'll confirm the right configuration for your setup.

Trak Racer TR160 V5 — Full Specifications

Trak Racer · TR160 V5 MK5

TR160 V5 Racing Simulator

Main Profile160 × 40mm Anodized Black Aluminium T-slot
Wheel Supports120 × 40mm Black Anodized Aluminium
Shifter Support80 × 40mm Black Anodized Aluminium

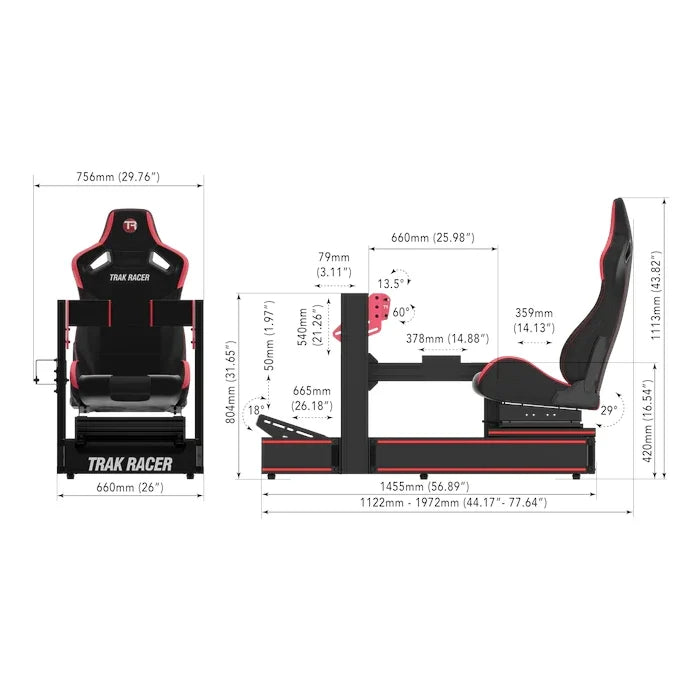

Frame Footprint580mm wide × 1,400mm long
Assembled Size660mm × 1,445mm
Weight41kg (90.4 lbs)
Recommended Wheelbase Torque0 to 30Nm+
Wheel MountTR One Wheel Mounting System (slide & angle adjustable)
Pedal Mount4-way adjustable · GT / Formula / Inverted (with Hybrid plate)
Shifter MountTR One Gen 2 Expandable + oversized support
Seat SliderDual-Lock TR Premium rails (seat sold separately)
Monitor Stand Support (optional)Single up to 80" · Triple up to 45" (incl. quad)
Motion-ReadyYes — direct-fit, no base required
Assembly TimeApprox. 7+ hours
Design & EngineeringDesigned and engineered in Australia

In the box

  • TR One Wheel Mount
  • Pedal Mount — select from Pre-Drilled Plate, Extrusion with Heel Plate, or Hybrid Pedal System
  • Universal Gen 2 Shifter Mount + oversized shifter support
  • Premium Dual-Lock Seat Slider Rails
  • BONUS rubber feet to protect floors
  • Set of cable ties / clips
  • Coloured dust strips
  • All mounting screws, brackets and fixtures
  • Assembly tool kit
  • Seat, monitor stand and motion system sold separately as optional accessories.

Which Trak Racer Rig Is Right For You?

Trak Racer builds cockpits for every budget and driving style, from entry-level expandable frames to flagship convertible Formula/GT rigs. The TR160 V5 sits at the top of the profile range as the most rigid profile cockpit, with double-walled 160×40mm extrusion and motion-ready engineering.

Trak Racer TR40S racing simulator

Entry

TR40S

Trak Racer TR120S V2 racing simulator

Mid-Range

TR120S V2

Trak Racer TR160 V5 MK5 racing simulator

You're here

TR160 V5

Trak Racer TR8 Pro V2 racing simulator

Tubular

TR8 Pro V2

Alpine Racing TRX V2 racing simulator

Flagship

Alpine Racing TRX V2

Type Extruded aluminium Profile cockpit Profile cockpit Tubular steel Hybrid Formula + GT
Position Entry-level Mid-range Most rigid profile Popular tubular Flagship convertible
Best For First rig, grow-as-you-go Compact, rigid profile rig Max rigidity & adjustability Tubular rig, integrated monitor Ultimate Formula/GT setup

Frequently asked questions

Wheelbase, Pedals & Compatibility

What wheelbases are compatible with the TR160 V5, and how much torque can it handle?

The TR160 V5 uses the TR One Wheel Mounting System, which is compatible with all major direct-drive and belt-drive wheelbases — including Simagic Alpha and EVO, Fanatec, Moza, Asetek, Simucube, Logitech, Thrustmaster, Cammus, VRS and more. The recommended wheelbase torque range is 0 to 30Nm and beyond. The wheel uprights are side-mounted with heavy-duty brackets and strengthened 160×40mm corner brackets for a no-flex experience even with the strongest direct-drive force feedback.

Which pedals and shifters can I mount on the TR160 V5?

The TR160 V5 offers three pedal mounting options — a pre-drilled fine-tune slide plate, an extruded profile with heel plate, and a strengthened Hybrid Pedal Plate. All three are pre-drilled for all major pedal brands, including Heusinkveld, Simagic, Fanatec, Asetek, Moza, Logitech and Thrustmaster, and withstand hundreds of kilograms of braking force without flex. The included TR One Gen 2 Expandable Shifter Mount, plus new side-mounts for handbrakes and flight-sim peripherals, attach directly to the plate or to any 8mm aluminium profile.

Is a seat included with the TR160 V5?

No — the TR160 V5 includes the Premium Dual-Lock seat slider rails, but a seat is not included. This lets you choose the seat that best suits your driving style. Trak Racer offers GT-style and Rally-style fixed fibreglass seats and a reclining sport seat, all of which mount to the included slider rails. See the "Complete your sim cockpit" section below to add a seat.

What exactly comes in the box?

The TR160 V5 includes the TR One Wheel Mount; your selected pedal mount (Pre-Drilled Plate, Extrusion with Heel Plate, or Hybrid Pedal System); the Universal Gen 2 Shifter Mount with oversized shifter support; Premium Dual-Lock Seat Slider Rails; bonus rubber feet to protect floors; a set of cable ties and clips; coloured dust strips; all mounting screws, brackets and fixtures; and an assembly tool kit. A seat, monitor stand and motion system are sold separately.

Motion, Monitors & Expansion

Is the TR160 V5 motion compatible?

Yes — the TR160 V5 is motion-ready as a direct fit, with no base required. Rather than just moving your seat, you can get the whole frame moving with a full-frame motion system. Contact us and we'll help you spec a motion system that suits the TR160 V5.

What monitor stand options are available?

Monitor stands are available as optional accessories. The cockpit-mounted single monitor stand supports displays up to 80", and the cockpit-mounted triple monitor stand supports displays up to 45" (including quad configurations). Both bolt directly to the TR160 V5 frame for a stable, integrated viewing setup. See the "Complete your sim cockpit" section below.

Can I expand the TR160 V5 with more accessories later?

Absolutely. The TR160 V5 is built around a huge accessory ecosystem with 30+ optional accessories — seats, single and triple monitor stands, universal caster wheels with brake, bass shaker / tactile transducer mounts, sim floors and more. New side-mounts for handbrakes and flight-sim peripherals attach directly to the plate or to any 8mm aluminium profile, so the rig grows with you.

Assembly, Dimensions & Driving Position

How long does the TR160 V5 take to assemble, and is it difficult?

Assembly takes approximately 7 or more hours. The TR160 V5 ships with all mounting screws, brackets and fixtures plus an assembly tool kit, and is designed and engineered in Australia. It is a serious, heavily adjustable frame, so we recommend setting aside time and following the assembly guide carefully. If you get stuck, our team is happy to help.

What are the frame dimensions and footprint?

The TR160 V5 has a frame footprint of 580mm wide by 1,400mm long, and an assembled size of 660mm by 1,445mm. It weighs 41kg (90.4 lbs) of rigid frame and has low ground clearance, with hardwood rubber floor protectors included to protect your floors.

Can I switch between a GT and a Formula driving position?

Yes — with the strengthened Hybrid Pedal Plate, the pedal mount is 4-way adjustable and quick-adjusts between GT (low), Formula (high) and inverted positions. Combined with the slide-and-angle-adjustable TR One Wheel Mount and the Dual-Lock seat slider rails, you can dial in a GT or Formula driving position to suit your car and discipline.

What is the TR One system and how is the TR160 V5 future-proof?

The TR One Wheel Mounting System is the new benchmark in sim-racing wheel mounting. It is future-proof: when you upgrade your wheelbase, you only replace the part of the mount needed for the new base, rather than buying a whole new mount. The base kit includes two 80×40mm aluminium profiles and four anodized aluminium plates and is fully adjustable for both slide and angle.

Buying in Australia

What warranty and support do you offer on the TR160 V5?

Player1 Sim Gear is an Australian Trak Racer retailer, and your purchase is covered by Australian Consumer Law, which provides statutory guarantee rights such as repair, replacement or refund for major failures. Our team are active sim racers and can help with pre-sale advice, compatibility checks, assembly guidance and accessory selection. For any support question, use the "Send us a message" button below to reach us directly, or call us on 0488 385 870.

How is the TR160 V5 shipped in Australia?

Player1 Sim Gear ships the TR160 V5 Australia-wide. As a large, heavy cockpit frame it is dispatched on a freight service to your address. Delivery timeframes vary by location across Australia. For current stock availability and a delivery estimate to your suburb, call us on 0488 385 870 or send us a message and we'll confirm before you order.

Who uses Trak Racer cockpits?

Trak Racer has been building racing cockpits since 2008 and is the official and trusted simulator supplier to the Alpine F1 Team and Airbus Aircraft. Their rigs are used by Alpine F1 and Alpine Academy drivers including Esteban Ocon, Victor Martins and Caio Collet, and are trusted by professional drivers, game centres, major gaming events and event-hire companies. Collaborations include Alpine F1, Airbus, Xbox, Ubisoft, Sony and Castrol.

Complete your sim cockpit

The TR160 V5 is the foundation. Add a seat, your monitor stand, caster wheels for easy positioning, tactile feedback, and a sim floor to complete a serious, motion-ready racing setup.

Build your TR160 V5

Player1 Sim Gear is a fully authorised Australian Trak Racer partner and reseller. Our team builds and races on the equipment we sell — we can confirm your wheelbase, pedal and peripheral compatibility, recommend the right seat and monitor stand, and help you spec a full-frame motion system. Ships Australia-wide.

Call 0488 385 870

Mount Compatibility

WHEEL DECK COMPATIBILITY
WITH TR ONE WHEEL DECK OR STANDARD WHEEL DECK OPTION

  • Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
  • Logitech G25, G27, G29, G920, G923
  • Fanatec Elite, Clubsport, Podium DD1/DD2, CSL DD , Fanatec GT DD Pro and CSL Elite
  • AccuForce V1/V2
  • SIMAGIC M10
  • Moza R9, R16, R21 DD Wheel Bases
  • Simagic Alpha Mini


Also, Flight/Heavy Equipment

  • Logitech Flight Yoke System (by clamp)
  • Logitech Flight Switch/Multi/Instrument Panels
  • Logitech Heavy Equipment
  • Turtle Beach Velocity One Flight


WITH TR ONE DIRECT DRIVE FRONT OPTION

  • Trak Racer Direct Drive (Coming Soon)
  • Simucube SC1 / SC2 Sport, Pro, Ultimate
  • VRS Force Pro
  • AccuForce V1/V2 (turn the top cover around to fit)
  • MiGe 130ST(small and big)
  • Bodnar 53 series
  • SIMAGIC ALPHA / ALPHA Mini
  • Lenze MCS12 series
  • Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
  • Ricmotech Mini-Mite Direct-Drive Steering System Base
  • IMMSOURCE ET3 and ET5
  • Asetek Direct Drive


WITH TR ONE FANATEC DD OPTION

  • Fanatec Podium DD1/DD2
  • Fanatec CSL DD
  • Fanatec GT DD Pro

Contact us if your product is not listed


PEDAL DECK COMPATIBILITY
WITH PRE-DRILLED PLATE AND HYBRID FORMULA/GT/INVERTED KIT

  • Trak Racer Loadcell Pro Pedals (Coming Soon)
  • Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (including Inverted Pedals)
  • Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
  • Heusinkveld Ultimate/Ultimate+, Sprint and Pro
  • Logitech G29, G920, G923
  • Meca Cup1-2, Meca Cup1-3, Clutch and Base Plate
  • VRS DirectForce Pro Pedals
  • HPP PRX 3P, JBV 2/3 Pedal System
  • Simagic P2000-S100 Pedal Set
  • BJ Sim Racing Steel Series, 1000psi Hydraulic
  • DC Sim Racing DC3
  • Sim Coaches P1-3
  • Simtrecs ProPedal GT
  • Asetek Hydraulic (we recommend the aluminium profile with heel plate option)
  • Velazquez Engineering PRO+ Hydraulic
  • Simforge Mark-1
  • 3DRAP Ngasa
  • Protosimtech PT2
  • OBP Pro Race V2 Sim Pedal System
  • Simworx Pro Series
  • WAVE IMPETUS
  • Quaife Throttle Pedal and Brake
  • Cube Controls Hydraulic
  • Venym Pedals
  • Moza CRP Pedal set
  • JCL Hydraulic Pedals


Also, Flight/Heavy Equipment

  • Thrustmaster TPR: THRUSTMASTER PENDULAR RUDDER
  • Thrustmaster T.Flight Rudder Pedals
  • Logitech Flight Rudder Pedals
  • Logitech Heavy Equipment


WITH ALUMINIUM PROFILE WITH HEEL PLATE

  • Trak Racer Loadcell Pro Pedals (Coming Soon)
  • Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (including Inverted Pedals)
  • Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
  • Heusinkveld Ultimate/Ultimate+, Sprint and Pro
  • Meca Cup1-2, Meca Cup1-3, Clutch and Base Plate
  • VRS DirectForce Pro Pedals
  • HPP PRX 3P, JBV 2/3 Pedal System
  • Simagic P2000-S100 Pedal Set
  • BJ Sim Racing Steel Series, 1000psi Hydraulic
  • DC Sim Racing DC3
  • Sim Coaches P1-3
  • Simtrecs ProPedal GT
  • Asetek Hydraulic
  • Velazquez Engineering PRO+ Hydraulic
  • Simforge Mark-1
  • 3DRAP Ngasa
  • Protosimtech PT2
  • OBP Pro Race V2 Sim Pedal System
  • Simworx Pro Series
  • WAVE IMPETUS
  • Quaife Throttle Pedal and Brake
  • Cube Controls Hydraulic
  • Venym Pedals
  • Moza CRP Pedal set
  • JCL Hydraulic Pedals

Contact us if your product is not listed


SHIFTER MOUNT COMPATIBILTY

  • Trak Racer Sequential Shifter Pro (Coming Soon)
  • Fanatec ClubSport Shifter, SQ
  • Thrustmaster TH8A, RSTSS, TSS+
  • Prosim PSL Sequential Shifter
  • Heusinkveld SQ Shifter
  • Logitech G Shifter
  • DSD SQ Shifter
  • Jinx Shifter - additional mount required
  • Simworx Pro Series - additional mount required
  • VNM Simulation Sequential Shifter
  • Quaife PSL Sequential V2, Sequential, and H Pattern - additional mount required
  • Aiologs SQ Shifter
  • BJ Sim Racing Shifter 3.0
  • Frex H Pattern
  • SIMAGIC Sequential Shifter

Contact us if your product is not listed.

OPTIONAL HANDBRAKE MOUNT COMPATIBILITY (SKU TR80-HB4)

  • Trak Racer Loadcell Pro Handbrake (Coming Soon)
  • Fanatec Clubsport Handbrake
  • Thrustmaster TSS+
  • DSD Hydralulic Handbrake
  • RealGear RALLYpro Handbrake
  • Heusinkveld Handbrake
  • Prosim Handbrake Digital/RX Analog
  • Quaife Handbrake
  • VNM Simulation Handbrake
  • Aiologs Handbrake

Contact us if your product is not listed

OPTIONAL OVERSIZED SHIFTER MOUNT (SKU: TR80-BIGSHIF)

  • DSD SQ Shifter
  • Jinx Shifter
  • Simworx Pro Series
  • Quaife PSL Sequential V2, Sequential and H Pattern

    Australia-Wide Shipping

    We ship all over Australia and want you to get your new gear as fast as possible, so we always aim to ship on the same day we receive your order, using the fastest and most reliable couriers in Australia. Of course, it may not always be possible to process your order on the same day, so please allow 1-2 business days for processing. If we encounter any delays we will let you know via email.

    To  maximise efficiency, Player1 Sim Gear ships all products in their original packaging straight from our warehouses or directly from our suppliers and manufacturers. Orders may be shipped in part or in full, and different courier companies may be used for different parts of your order. Please allow 2-8 business days for delivery.  Please advise your phone number at checkout so we can get in touch with you if there is any problem. If you should receive a product that has been damaged while in transit please contact us immediately.

    Please make sure someone will be available to receive your order, otherwise, your package may be diverted to your local post office or to your local shipping depot. We recommend all deliveries are sent to a business address to avoid any re-delivery charges.  Note: Player1 Sim Gear will only ship to confirmed addresses, we cannot ship to PO Boxes sorry.

    There may be times when the product you have ordered turns out to be out-of-stock with us or our suppliers. We will contact you to arrange a refund or alternate product if an item you have ordered is out-of-stock or unavailable for immediate shipment. You may cancel your order at any time prior to shipping.

    International Orders: Apologies at the moment we don't ship internationally as standard. However if you outside Australia and there is something you'd like to purchase please do message us at sales@p1simgear.com.au, we will be happy to see what we can do.

    Note re Larger cockpits and remote locations:  We do our very best to ensure accurate shipping rates, however for larger cockpits and heavier items, rarely our shipping pricing may not be correct. In the event that the actual shipping costs for a large item should be exceed those quoted in your order, we will call you to discuss before we dispatch. You will have the option then to amend or cancel your order at no cost.

    Returns Policy

    We hope we can provide as much information and guidance as possible about each item so that you will love whatever you buy. We do understand though that the unforeseen happens. So in the unlikely event you wish to raise a return, please contact us and we shall discuss options and how we will proceed with the return request.

    We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.  You may return your item(s) for an exchange/refund, so long as it is in the same condition that you received it, unopened, with tags and in its original packaging. You’ll also need the receipt or proof of purchase.

    To request a return, you must first send an email to support@p1simgear.com.au with your Order number as the email subject and Reason for Return in the email body/message. We will reply to your email with your relevant return information. We will not accept any returned items if we have not had an email from you requesting a return, so you must request a return first, before sending anything back.

    Damages and issues
    Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

    Refunds
    We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    All returns are subject to the following conditions:
    • You, the buyer, are are fully responsible for paying all charges necessary to return the item to us. A restocking fee of up to 20% of the returned product's value may apply.

    • Items must be returned sealed and unused in their original packaging and in a fully resalable condition. All items are supplied to you, the customer, in brand new condition unless explicitly stated otherwise in the product title. For such items supplied in Brand New condition, if any seals have been broken, the item cannot subsequently be sold as new after the return, therefore the return will be declined or a restocking fee will be levied and partial refund given.

    • If the item is deemed DOA or faulty once opened, we shall troubleshoot and assess the nature of the fault and repair the item or replace like-for-like, should the fault be deemed a legitimate fault.

    • Items returned that are not in their original condition may not be accepted, and the refund request declined.

    • Returned items must be complete with all packaging in good condition, ready for immediate resale. All components and items within packaging (e.g. polystyrene/bubble wrap) must be returned also. We reserve the right to levy a charge to replace product packaging which is damaged  / defaced / missing.

    • We cannot accept responsibility for returned parcels which are undelivered back to us (e.g. lost by the courier, delivered to incorrect address) or damaged in transit back to us. We strongly advise you send returned items using an insured & tracked service. Furthermore, we also strongly advise you to obtain and retain your proof of postage, as you may require it should you decide to make a claim against your carrier should they damage or lose your item whilst returning it to us.

    For items which require assembly, we are not responsible for any charges (labour or otherwise) incurred during fitment/removal of allegedly faulty (or incorrectly supplied) parts.

    Returns made outside of the 30-day return window, or with no valid reason, will be declined.

    Pre-Order Cancellations
    In the event a Pre-Order becomes unavailable or is cancelled by Player1 Sim Gear you, the buyer, are entitled to a full refund. In the event that you change your mind or choose to cancel your Pre-Order for any reason prior to shipment, cancellation fees may apply to offset any unrecoverable costs incurred by Player1 Sim Gear.

    Bonus Products Included

    Oversized Seat Mounting Brackets
    Seat Slider Rails and Adjustment Bar
    4 x Sim Levelling Feet with Steel Brackets
    Adjustable Left or Right Side Gear Shift Mount
    Red Profile Strips
    10 x Cable Clips
    Branded Shifter Mount Connector Plate

      Other Parts Included

      Trak Racer aluminium profile walls are thicker than other brands to ensure you're getting the additional rigidity over our competition.

      160mm x 40mm Black Anodized Aluminium Chassis
      120mm x 40mm Black Anodized Aluminium Wheel Supports
      80mm x 40mm Black Anodized Aluminium Shifter Support
      4-Way Fully Adjustable Pedal Mount (pre-drilled for pedals)
      All Mounting Fixtures
      Upgraded 32 gram 40x40mm Corner Brackets
      Strengthened 160x40mm Corner Brackets
      Assembly Tool Kit Included

        Seat Options
        GT Race Seat, Rally Seat, Recline Seat or No Seat

        Wheel Mount Options
        Heavy Duty, no Flex Wheel Deck, Direct Drive Front Mount (shown) or Fanatec Podium DD1 DD2 - All with full slide and angle adjustment.

        Sliders
        Left/Right Mounting Gear Shifter
        Angle, Slide, and Height Adjustable Wheel Mount
        Bucket Seat Mounting Brackets
        Tools and screws included
          *Electronics, Seat and Monitor Stand are not included
            All Trak Racer products carry a Manufacturer warranty of a minimum of 12 months and up to 5 years on specific parts. Trak Racer products are however designed to last far beyond the warranty period. For all warranty concerns please contact us or reach out directly to support@trakracer.com.
