MOZA R9 GT Bundle: R9 V3, KS Wheel and SRP2 Pedals

No review yet. Write Review
Regular price
$1,199.00
Regular price
$1,267.00
Sale price
$1,199.00
Tax included. Shipping calculated at checkout.

Vendor : Moza

Product Type : Wheel & Pedals

Sku : r9-ks-srp2

Secure Purchase Secure Purchase
Free Shipping Free Shipping
Satisfaction Guarantee Satisfaction Guarantee
Manufacturer Warranty Manufacturer Warranty

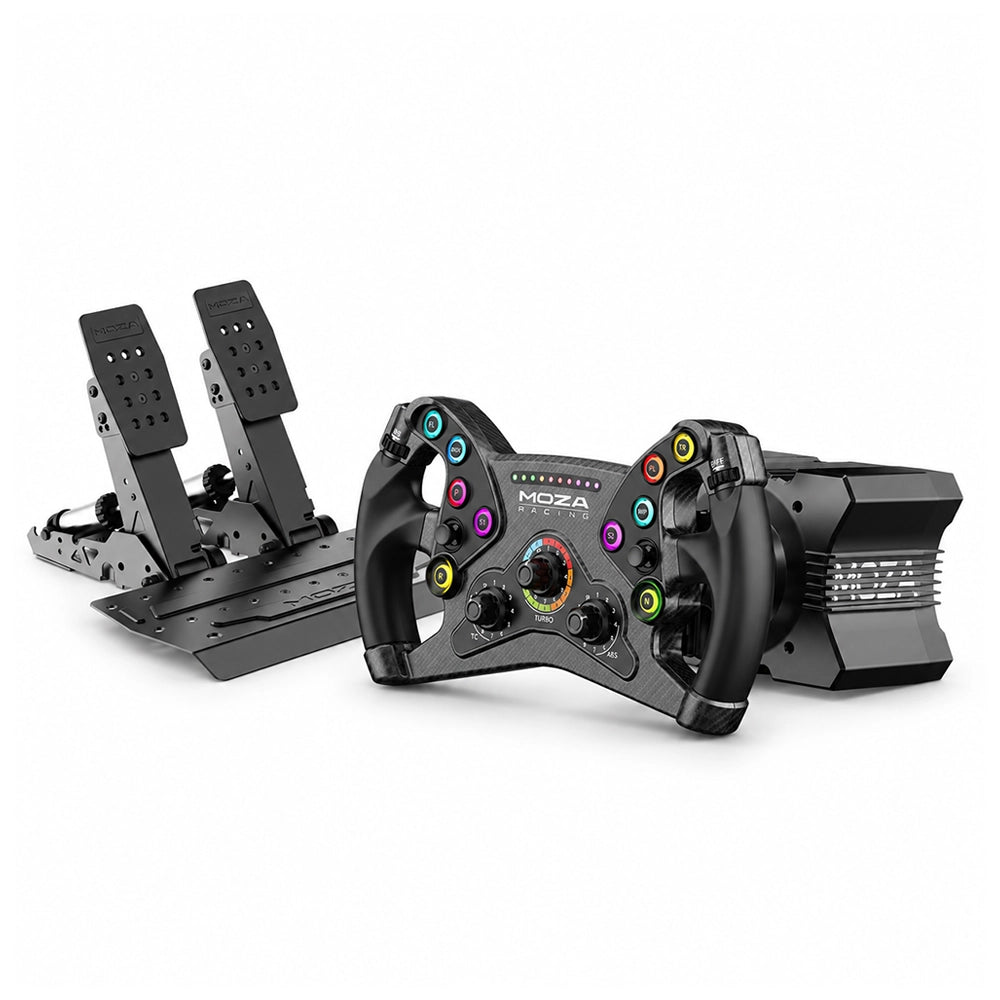

MOZA Racing · Wheel, Base and Pedals Bundle

MOZA R9 GT Bundle: 9 Nm direct drive, GT wheel and load cell pedals.

The R9 V3 direct drive base, the 300 mm KS GT wheel and the SRP2 load cell pedals: a complete, matched MOZA cockpit core for GT and open-wheel racing on PC, in one bundle.

  • 9 Nm direct drive with a 21-bit magnetic encoder and active cooling
  • KS GT wheel with magnetic paddles, dual clutch and up to 70 inputs
  • SRP2 pedals with a 100 kg load cell brake and full adjustment
  • Authorised Australian Dealer for MOZA with local QLD warranty support
9 Nm direct drive21-bit magnetic encoder300 mm KS GT wheel70 programmable inputs100 kg load cell brake15-bit pedal angle sensorMOZA quick releasePC Pit House tuning
Authorised Australian Dealer for MOZA RacingGenuine stock, local QLD warranty support, prices in AUD including GST.
Authorised DealerGenuine MOZA stock
Local WarrantyHandled in QLD, no overseas returns
Free Shipping Australia WideFreight from Queensland
Sim Racing AdviceWe run what we sell

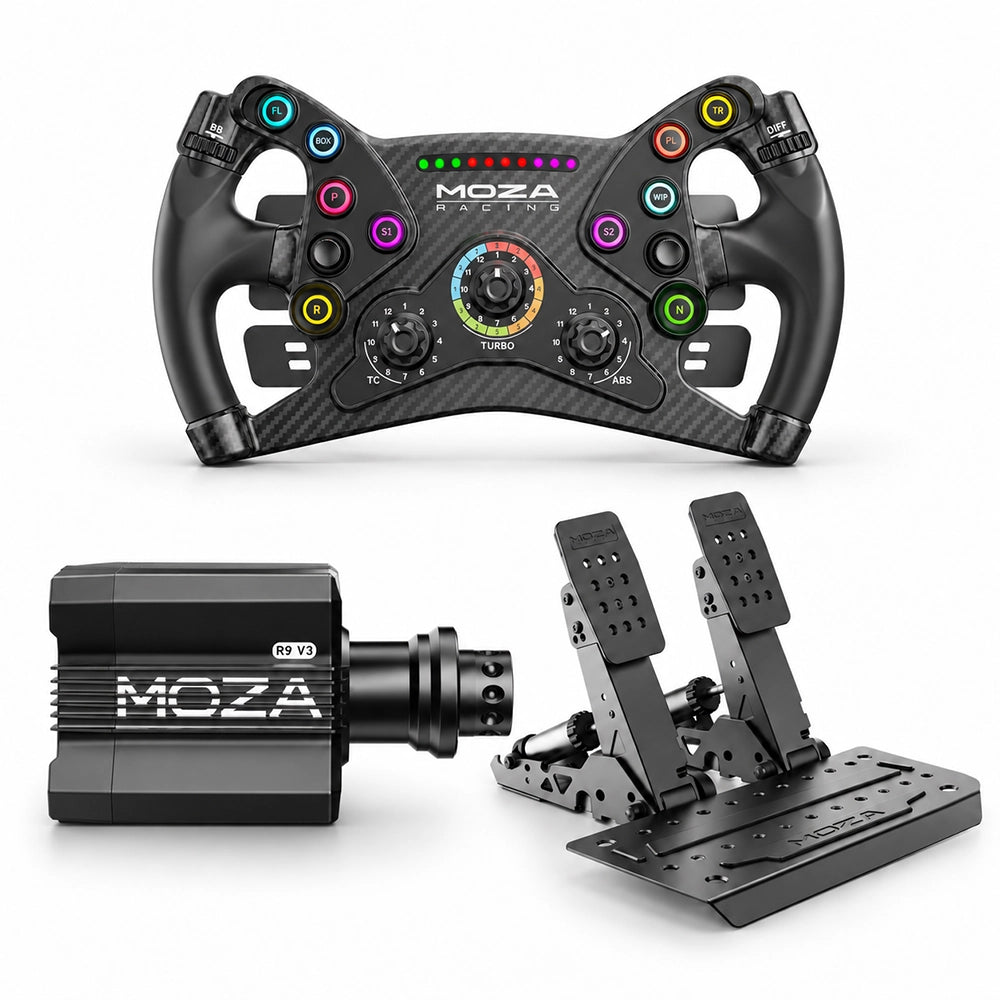

What's in the bundle

Three current MOZA products, matched to work together.

MOZA R9 V3 direct drive wheel base
×1

MOZA R9 V3 Direct Drive Wheel Base

9 Nm direct drive base with a 21-bit magnetic encoder, aviation-grade aluminium housing, intelligent temperature control and ports for a shifter, handbrake, dash and e-stop.

MOZA KS steering wheel
×1

MOZA KS Steering Wheel

300 mm butterfly GT wheel in carbon fibre-reinforced composite, with RGB buttons, RPM LEDs, Hall sensor magnetic paddles and dual clutch paddles.

MOZA SRP2 pedals, throttle and brake
×1

MOZA SRP2 Pedals (Throttle and Brake)

Two-pedal set with a 100 kg load cell brake, a 15-bit angle sensor, swappable elastomers and adjustable angle, spacing and height.

Bought separately: As a bundle: You save
Why this bundle

Real direct drive, a real GT wheel, real load cell braking.

Nothing here is an entry-level part dressed up. Each piece is a current MOZA product in its own right, and each one is worth keeping as you build around it.

MOZA KS steering wheel with RGB buttons and rev lights on a dark background
The wheel

A 300 mm GT wheel with formula-level controls

Carbon fibre-reinforced composite, TPE rubber grips and ten luminous buttons. Light enough to feel every detail the base sends through it.

MOZA R9 V3 direct drive wheel base, aluminium housing and quick-release shaft
The base

9 Nm of genuine direct drive

A servo motor and 21-bit magnetic encoder deliver smooth, highly detailed force feedback.

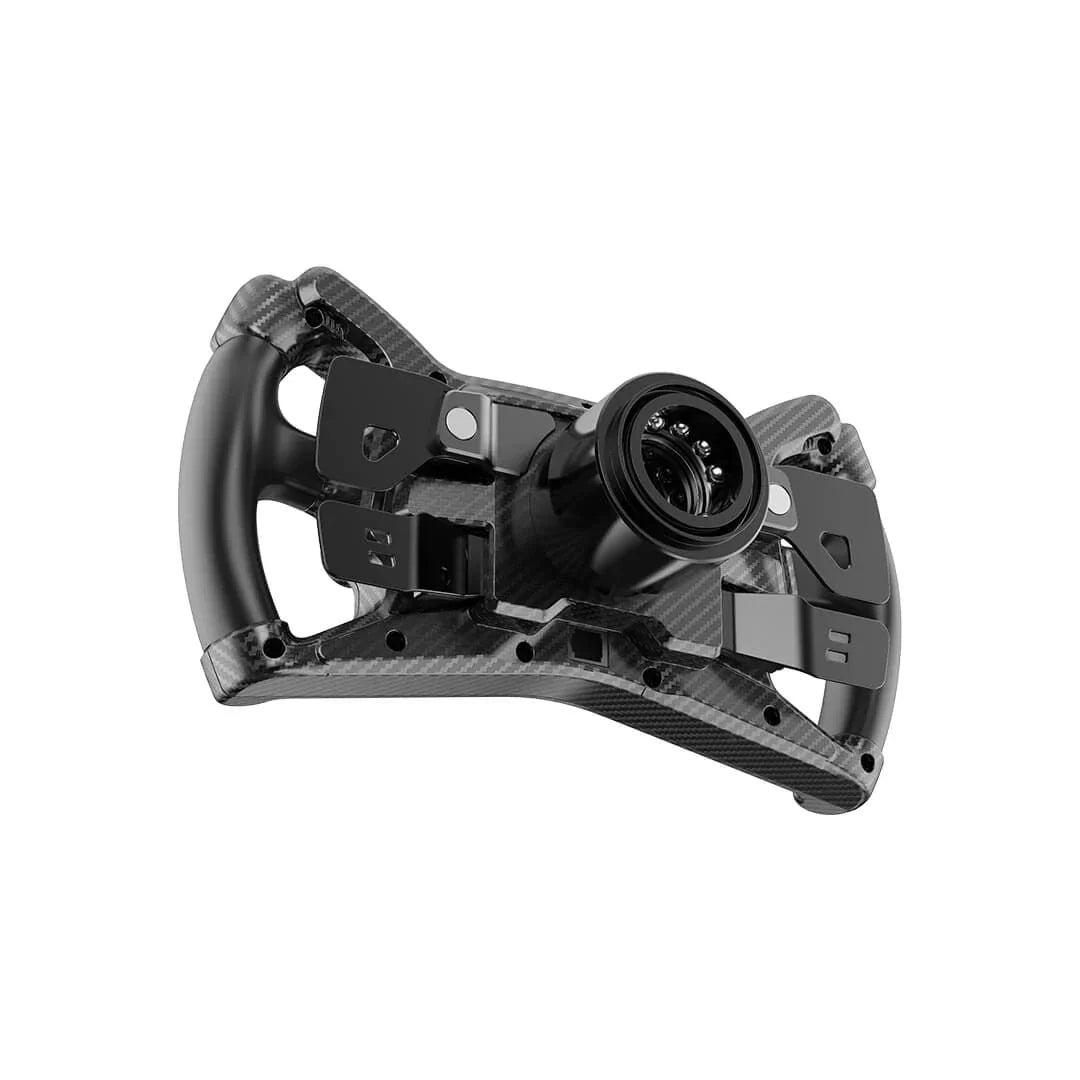

MOZA KS steering wheel rear view showing Hall sensor magnetic shift paddles and dual clutch paddles
Paddles

Magnetic shifting, dual clutch starts

Non-contact Hall sensor paddles with a crisp magnetic click, plus clutch paddles in three modes.

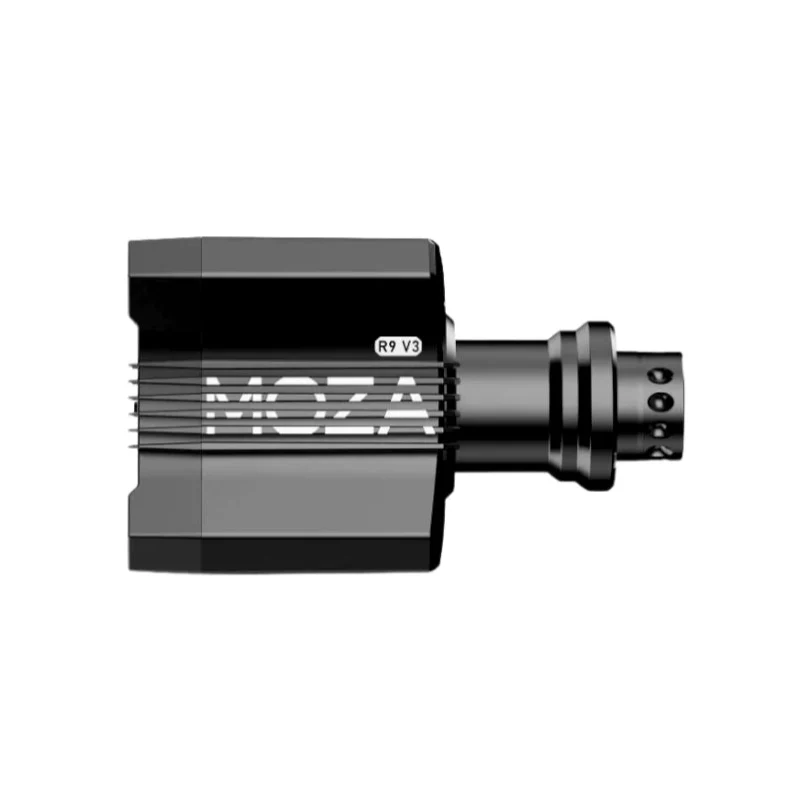

MOZA R9 V3 wheel base side profile with MOZA lettering on the cooling fins
Built to last

Aviation-grade aluminium, actively cooled

Intelligent temperature monitoring and active cooling keep the R9 V3 consistent through long races.

MOZA SRP2 pedals close-up of the brake load cell and damper assembly
The brake

100 kg load cell, tuned by feel

Angle and load sensing combine for a progressive, repeatable brake you can trail with confidence.

MOZA KS steering wheel close-up of programmable short-travel RGB buttons
Controls

Up to 70 programmable signals

Short-travel RGB buttons, joysticks and encoders put every car setting within reach.

Built as a system

More than three boxes on a shelf.

  • Matched from day one

    Base, wheel and pedals are current MOZA products chosen to work together, set up from one app: MOZA Pit House.

  • Genuine direct drive

    9 Nm from a high-performance servo motor with a 21-bit encoder, for detailed, smooth force feedback.

  • GT wheel, formula-level controls

    Up to 70 programmable inputs, so brake bias, TC, ABS and pit functions sit under your thumbs.

  • Load cell braking

    Brake by pressure, the way real cars work, for more consistent trail braking and fewer lock-ups.

  • Clean cable routing

    The KS takes power and data through the R9 V3's industrial-grade conductive slip ring and quick release.

  • Room to grow

    Add a clutch pedal, shifter, handbrake or dash, or move up to a stronger base and keep the wheel and pedals.

The base

MOZA R9 V3: 9 Nm of direct drive.

Smooth, Detailed Force Feedback

Direct drive wheel base

The R9 V3 drives the wheel straight from a high-performance servo motor, read by a 21-bit magnetic encoder at over two million steps per revolution. The result is fast, detailed force feedback that lets you feel the car load up, the tyres let go and every kerb along the way. Its aviation-grade aluminium housing is actively cooled and temperature monitored, so the feel stays consistent through long races.

  • 9 Nm peak torque, 180 W peak power: direct drive with no belts or gears
  • 90 to 2700 degrees of rotation: set in Pit House for any car
  • Industrial-grade conductive slip ring: no coiled wheel cable
  • Ports for shifter, handbrake, dash and e-stop: expand the cockpit later
MOZA R9 V3 direct drive wheel base, angled front view with the quick-release shaft
The wheel

MOZA KS: the GT wheel.

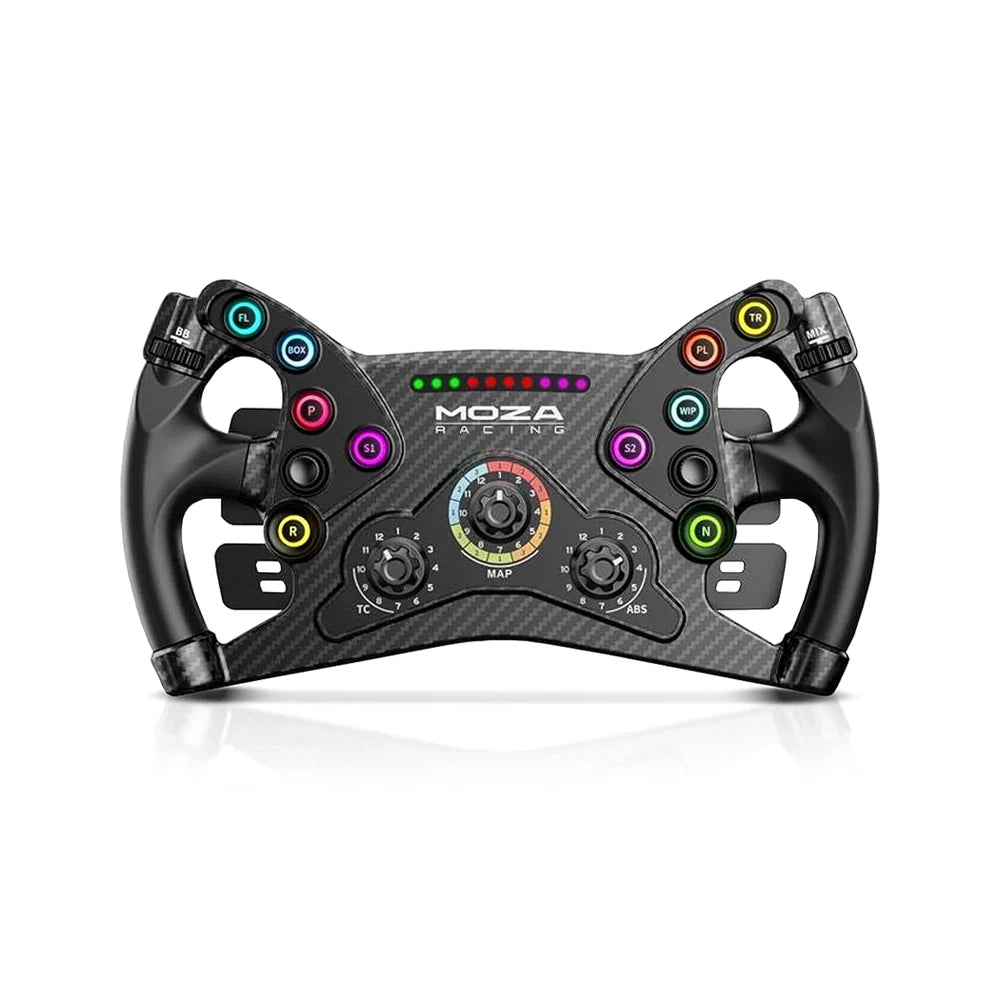

MOZA KS steering wheel front view with RGB buttons, rotary encoders and RPM LEDs

300 mm Butterfly GT Wheel

Carbon fibre-reinforced composite

The KS is MOZA's GT wheel: a 300 mm butterfly shape in carbon fibre-reinforced composite with TPE rubber grips, light enough to let the base's detail through. Ten luminous short-travel buttons, two joysticks, five encoders and ten RPM LEDs put every setting within reach, and it clicks onto the R9 V3 with the MOZA quick release.

  • Hall sensor magnetic shift paddles: a crisp, consistent click
  • Dual clutch paddles: combined axis, independent axis or button mode
  • Up to 70 programmable signals: for brake bias, TC, ABS, ERS and DRS
  • Telemetry RPM LEDs: colours and thresholds set in Pit House

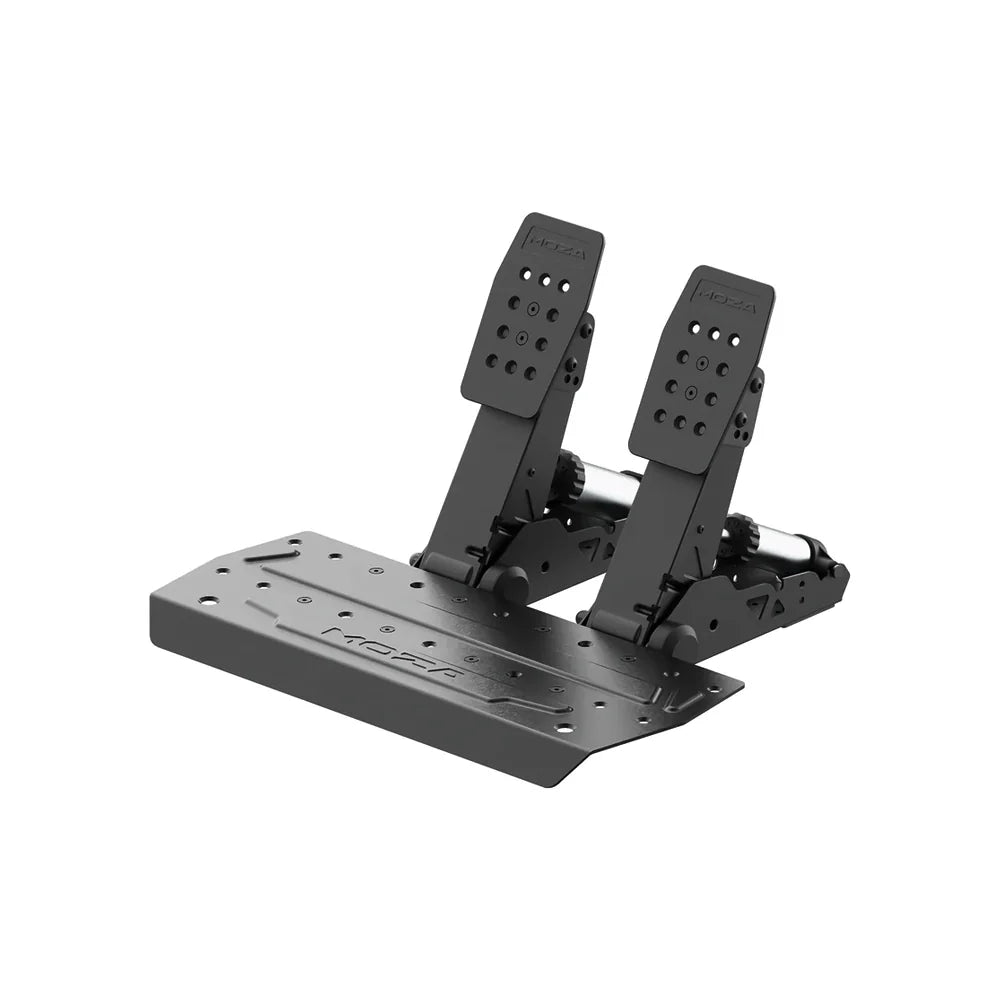

The pedals

MOZA SRP2: load cell braking.

Brake by Pressure, Not Travel

100 kg load cell, 15-bit angle sensor

The SRP2 brake fuses a 100 kg load cell with a 15-bit angle sensor: the angle sensor handles the first part of the stroke and the load cell takes over as you build pressure, so it brakes like a real car. Swappable elastomers change the feel, and the pedal angle, spacing and height all adjust to suit your seating position.

  • Hybrid load cell and angle sensing: use together or on their own
  • Swappable elastomers: tune how firm the brake feels
  • Adjustable angle, spacing and height: 10 or 25 degrees, 15 mm and 36 mm
  • Floor, stand or cockpit: anti-slip pads for floor use

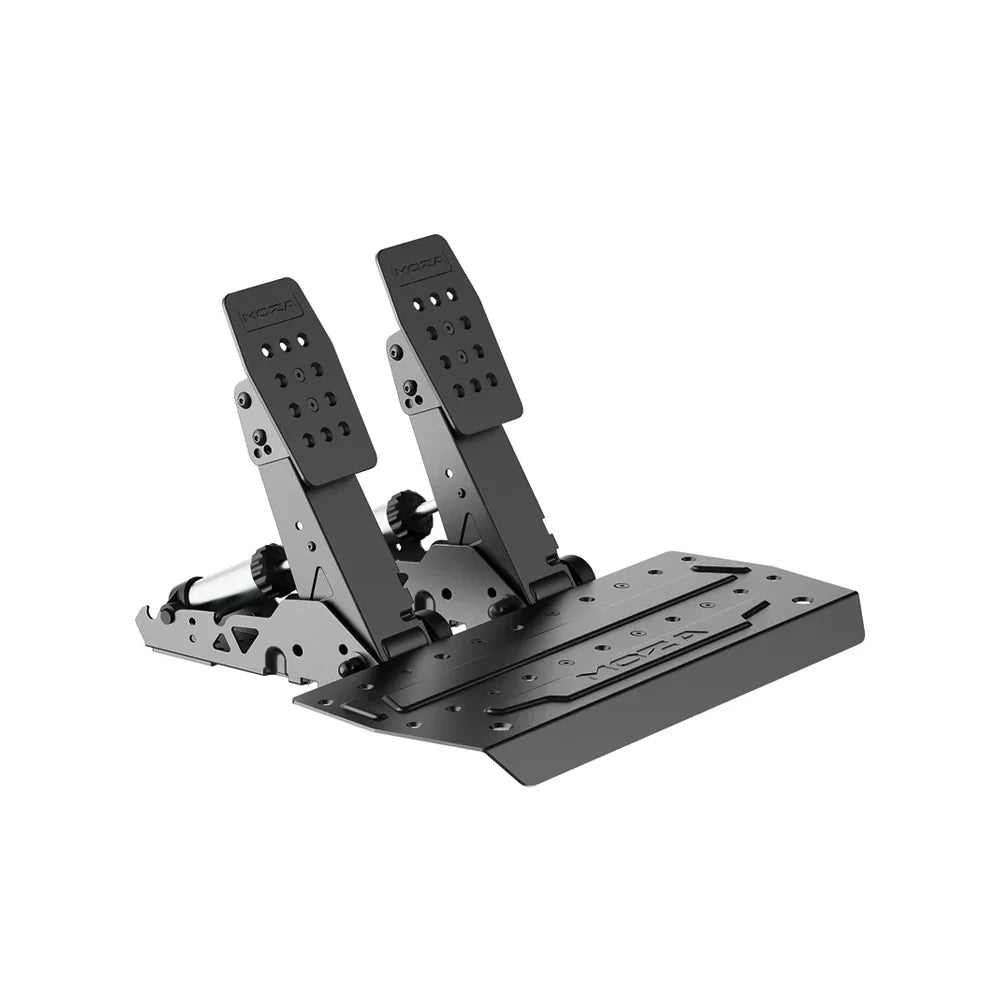

MOZA SRP2 pedals, front right view of the throttle and load cell brake pedal
Mounting

Mounting the R9 GT Bundle: what you need.

The bundle doesn't include a clamp or stand, so plan where it will live. The R9 V3 uses a 4-hole bottom mount that suits most sim racing cockpits and wheel stands. Racing from a desk? Add the table clamp. The SRP2 can bolt to a cockpit or sit on the floor.

MOZA table clamp for R12, R9 and R5 wheel bases
Desk

Moza Table Clamp for R12, R9 and R5 Wheel Bases

Clamps the R9 V3 to a sturdy desk edge. The simplest way to start if you don't have a cockpit yet.

MOZA SRP2 pedals rear support bracket
Floor

Moza SRP2 Pedals Rear Support Bracket

Braces the SRP2 base against a wall or fixed object so the pedals stay put under heavy braking on the floor.

Software

Tune all three in MOZA Pit House.

One app sets up the base, the wheel and the pedals, with presets for popular sims and full control when you want it.

MOZA Pit House software on a monitor, tuning a MOZA steering wheel and wheel base
  • Force feedback strength, damping, friction, inertia and curves on the R9 V3
  • Rotation angle per car, from 90 to 2700 degrees
  • KS button lighting, RPM LED colours and shift-light thresholds
  • Clutch paddle mode: combined axis, independent axis or button
  • SRP2 pedal curves, brake engagement point and live output display
  • Firmware updates for every device, plus the MOZA mobile app for the base
Specifications

Bundle specifications

R9 V3 peak torque 9 N·m
R9 V3 peak power 180 W
Encoder 21-bit magnetic (2,097,152 steps per rev)
Motor Servo motor, 18-slot / 16-pole
Wheel rotation 90 to 2700 degrees
USB refresh rate 1000 Hz
Base housing Aviation-grade aluminium alloy
Base mounting 4-hole bottom mount; table clamp and side mount optional
Base ports Power, pedals, e-stop, USB, dash, shifter, handbrake
Base size (L x W x H) 240 x 157 x 124 mm
KS wheel size 300 mm butterfly GT
KS inputs 10 RGB buttons, 2 joysticks, 2 thumb encoders, 3 rotary encoders
KS paddles 2 magnetic shift + 2 clutch, Hall sensor
KS clutch modes Combined axis, independent axis, button
KS RPM LEDs 10, colours adjustable in Pit House
SRP2 brake 100 kg load cell + 15-bit angle sensor
SRP2 adjustment Angle 10/25 deg, 15 mm left/right, 36 mm height
SRP2 pedals Throttle and brake (clutch sold separately)
Platform PC
Software MOZA Pit House (+ MOZA mobile app for the base)
What's included

In the box

1 x MOZA R9 V3 Direct Drive Wheel Base

  • Power supply
  • USB cable
  • Toolkit
  • User manual
  • Warranty card

1 x MOZA KS Steering Wheel

  • MOZA sticker
  • Toolkit

1 x MOZA SRP2 Pedals (Throttle and Brake)

  • Toolkit
  • Warranty card
Common questions

Frequently asked questions

What is included in the MOZA R9 GT Bundle?
Three MOZA products: the MOZA R9 V3 Direct Drive Wheel Base, the MOZA KS steering wheel and the MOZA SRP2 Pedals (throttle and brake). The base comes with its power supply, USB cable and toolkit, the wheel with its toolkit, and the pedals with their own toolkit. A table clamp or cockpit is not included; see the mounting section above for what to pair it with.
Is this the same as MOZA's official R9 V3 and KS with SRP2 Bundle?
Yes. It is the same three-piece combination MOZA sells as the R9 V3 and KS with SRP2 Bundle: R9 V3 base, KS wheel and SRP2 two-pedal set. We call it the R9 GT Bundle because the KS is MOZA's GT-style wheel.
Why is it called the GT bundle?
The KS is a 300 mm butterfly-style GT wheel with a carbon fibre-reinforced composite body and TPE rubber grips. It suits GT, touring car and open-wheel racing, and its dual clutch paddles and rotary encoders give you quick access to brake bias, traction control and ABS in GT cars.
Is 9 Nm of torque enough?
For most drivers, yes. 9 Nm of direct drive torque is enough to feel weight transfer, kerbs and loss of grip clearly, without the base fighting you on long stints. If you want more headroom, the MOZA R12 V2 GT Bundle pairs the same style of wheel with 12 Nm, and the R9 V3 can be swapped for a MOZA R12 V2 later without changing the wheel.
Does the bundle come with a table clamp or mount?
No. The R9 V3 has a 4-hole bottom mount for a cockpit or wheel stand, and the table clamp is optional. To run it on a desk, add the MOZA Table Clamp for R12, R9 and R5 Wheel Bases. For a permanent setup, browse our sim racing cockpits.
Can I use the SRP2 pedals on the floor without a cockpit?
Yes. MOZA designed the SRP2 to mount to a cockpit or stand, or to sit directly on the floor, with anti-slip pads under the base. For extra stability on the floor, the optional SRP2 Rear Support Bracket braces the pedal base against a wall or a fixed object.
Does it work on PlayStation or Xbox?
No. MOZA lists PC as the platform for the R9 V3, so this bundle is for Windows PC sim racing. If you need a console setup, call us and we will point you to a compatible package.
Which games work with the R9 GT Bundle?
MOZA lists Assetto Corsa, Assetto Corsa Competizione, iRacing, the F1 series, rFactor 2, Automobilista 2, Forza Horizon, DiRT Rally 2.0, WRC, Euro Truck Simulator 2 and Assetto Corsa Rally, among many other PC titles that support a wheel and pedals.
Do the pedals include a clutch?
No. The SRP2 in this bundle is the two-pedal set (throttle and brake), which is how most GT and formula drivers race, using the dual clutch paddles on the KS for starts. If you drive manual cars with an H-pattern shifter, add the SRP2 Clutch Pedal Add-On.
How does the SRP2 load cell brake work?
The brake combines a 100 kg load cell with a 15-bit angle sensor. MOZA's fusion algorithm uses the angle sensor for the first part of the pedal travel and the load cell for the rest, so you brake by pressure like a real car while keeping fine control at the top of the stroke. You can also run either sensor on its own.
Can I adjust the brake feel and pedal position?
Yes. Swappable elastomers change the brake feel, the throttle has two-step preload adjustment, and you can set pedal angle (10 or 25 degrees), left and right position (15 mm) and height (36 mm). MOZA's optional Performance Kit expands the brake to over 1,000 feel configurations.
What controls does the KS wheel have?
Ten programmable short-travel RGB buttons (0.25 mm travel), two depressible joysticks, two 20-position thumb encoders, three 12-position rotary encoders, two Hall sensor magnetic shift paddles and two clutch paddles, plus ten RPM LEDs. In total it offers up to 70 programmable input signals.
Can I use the KS wheel on a non-MOZA wheel base?
Yes. On any MOZA non-wireless base it simply clicks onto the MOZA quick release. For third-party bases, MOZA's Universal Hub and wheel base mount adapter lets the KS connect to your PC over USB.
Can I upgrade the wheel or base later?
Yes. Both use the MOZA quick release, so you can add more MOZA steering wheels to swap between cars, or move up to a stronger base and keep the KS and SRP2. See the full MOZA range.
What software do I need?
MOZA Pit House on your PC. It sets force feedback strength, damping and curves on the R9 V3, the KS button lights and RPM LEDs, clutch paddle modes, and the SRP2 pedal curves and brake engagement point. The R9 V3 can also be tuned from the MOZA mobile app.
Can I add a shifter, handbrake or dash?
Yes. The R9 V3 has dedicated ports for a shifter, handbrake, dash and emergency stop. Popular additions are the MOZA SGP Sequential Shifter, HGP H-pattern shifter, HBP Handbrake and CM2 Racing Dash.
Is the bundle covered by warranty in Australia?
Yes. As an Authorised Australian Dealer for MOZA Racing, Player1 Sim Gear handles warranty locally in Queensland with no overseas returns required, and you are covered by Australian Consumer Law. Call 0488 385 870 if anything needs attention.
Do you offer free shipping in Australia?
Yes. MOZA products ship free Australia wide, with freight from our Queensland base. We are not shipping MOZA to New Zealand at the moment.
Is the price in Australian dollars and does it include GST?
Yes. Prices on our site are in Australian dollars and include GST, and you receive a valid Australian tax invoice. The price shown next to the Add to Cart button is always the current bundle price.
Should I choose this or the R5 Pro or R12 V2 GT bundle?
The MOZA R5 Pro bundle is the entry point at 6 Nm. This R9 GT Bundle steps up to 9 Nm, the KS wheel and load cell pedals, which suits most drivers for years. The R12 V2 GT Bundle adds more torque for heavier cars and stronger rigs. Call 0488 385 870 and we will help you pick.

R9, R12 or something else?

We race the gear we sell. Call us and we'll help you choose the right base, wheel and pedals for your sims and your rig.

Call 0488 385 870

Australia-Wide Shipping

We ship all over Australia and want you to get your new gear as fast as possible, so we always aim to ship on the same day we receive your order, using the fastest and most reliable couriers in Australia. Of course, it may not always be possible to process your order on the same day, so please allow 1-2 business days for processing. If we encounter any delays we will let you know via email.

To  maximise efficiency, Player1 Sim Gear ships all products in their original packaging straight from our warehouses or directly from our suppliers and manufacturers. Orders may be shipped in part or in full, and different courier companies may be used for different parts of your order. Please allow 2-8 business days for delivery.  Please advise your phone number at checkout so we can get in touch with you if there is any problem. If you should receive a product that has been damaged while in transit please contact us immediately.

Please make sure someone will be available to receive your order, otherwise, your package may be diverted to your local post office or to your local shipping depot. We recommend all deliveries are sent to a business address to avoid any re-delivery charges.  Note: Player1 Sim Gear will only ship to confirmed addresses, we cannot ship to PO Boxes sorry.

There may be times when the product you have ordered turns out to be out-of-stock with us or our suppliers. We will contact you to arrange a refund or alternate product if an item you have ordered is out-of-stock or unavailable for immediate shipment. You may cancel your order at any time prior to shipping.

International Orders: Apologies at the moment we don't ship internationally as standard. However if you outside Australia and there is something you'd like to purchase please do message us at sales@p1simgear.com.au, we will be happy to see what we can do.

Note re Larger cockpits and remote locations:  We do our very best to ensure accurate shipping rates, however for larger cockpits and heavier items, rarely our shipping pricing may not be correct. In the event that the actual shipping costs for a large item should be exceed those quoted in your order, we will call you to discuss before we dispatch. You will have the option then to amend or cancel your order at no cost.

Returns Policy

We hope we can provide as much information and guidance as possible about each item so that you will love whatever you buy. We do understand though that the unforeseen happens. So in the unlikely event you wish to raise a return, please contact us and we shall discuss options and how we will proceed with the return request.

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.  You may return your item(s) for an exchange/refund, so long as it is in the same condition that you received it, unopened, with tags and in its original packaging. You’ll also need the receipt or proof of purchase.

To request a return, you must first send an email to support@p1simgear.com.au with your Order number as the email subject and Reason for Return in the email body/message. We will reply to your email with your relevant return information. We will not accept any returned items if we have not had an email from you requesting a return, so you must request a return first, before sending anything back.

Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.

All returns are subject to the following conditions:
  • You, the buyer, are are fully responsible for paying all charges necessary to return the item to us. A restocking fee of up to 20% of the returned product's value may apply.

  • Items must be returned sealed and unused in their original packaging and in a fully resalable condition. All items are supplied to you, the customer, in brand new condition unless explicitly stated otherwise in the product title. For such items supplied in Brand New condition, if any seals have been broken, the item cannot subsequently be sold as new after the return, therefore the return will be declined or a restocking fee will be levied and partial refund given.

  • If the item is deemed DOA or faulty once opened, we shall troubleshoot and assess the nature of the fault and repair the item or replace like-for-like, should the fault be deemed a legitimate fault.

  • Items returned that are not in their original condition may not be accepted, and the refund request declined.

  • Returned items must be complete with all packaging in good condition, ready for immediate resale. All components and items within packaging (e.g. polystyrene/bubble wrap) must be returned also. We reserve the right to levy a charge to replace product packaging which is damaged  / defaced / missing.

  • We cannot accept responsibility for returned parcels which are undelivered back to us (e.g. lost by the courier, delivered to incorrect address) or damaged in transit back to us. We strongly advise you send returned items using an insured & tracked service. Furthermore, we also strongly advise you to obtain and retain your proof of postage, as you may require it should you decide to make a claim against your carrier should they damage or lose your item whilst returning it to us.

For items which require assembly, we are not responsible for any charges (labour or otherwise) incurred during fitment/removal of allegedly faulty (or incorrectly supplied) parts.

Returns made outside of the 30-day return window, or with no valid reason, will be declined.

Pre-Order Cancellations
In the event a Pre-Order becomes unavailable or is cancelled by Player1 Sim Gear you, the buyer, are entitled to a full refund. In the event that you change your mind or choose to cancel your Pre-Order for any reason prior to shipment, cancellation fees may apply to offset any unrecoverable costs incurred by Player1 Sim Gear.
User Manuals, Drivers & Configuration docs available at: https://mozaracing.com/downloads
