MOZA R5 Pro Direct Drive Wheel and Pedals Bundle

No review yet. Write Review
Regular price
$729.00
Regular price
Sale price
$729.00
Tax included. Shipping calculated at checkout.

Vendor : Moza

Product Type : Wheel & Pedals

Sku : RS105

Secure Purchase Secure Purchase
Free Shipping Free Shipping
Satisfaction Guarantee Satisfaction Guarantee
Manufacturer Warranty Manufacturer Warranty
MOZA Racing · Authorised Dealer

Your First Step Into Direct Drive

The MOZA R5 Pro Racing Bundle is a complete, ready to race direct drive setup: the 6 N·m R5 Pro wheel base, the ES Lite steering wheel with 22 programmable inputs and RPM lights, the SR-P Lite2 two-pedal set and a table clamp so you can be driving the day it arrives. Behind the compact housing sits a 21-bit magnetic encoder, a 600 MHz processor and MOZA's NexGen Force Feedback Algorithm 5.0, which is what separates this from a geared or belt-driven starter wheel.

6 N·m direct drive 21-bit magnetic encoder 600 MHz processor NexGen FFB algorithm 5.0 22 programmable inputs Aluminium quick release Steel pedal construction Table clamp included
Authorised Australian Dealer for MOZA RacingGenuine stock, local QLD warranty support, prices in AUD including GST.
Authorised DealerGenuine MOZA stock
Local WarrantyHandled in QLD, no overseas returns
Free Shipping Australia WideFreight from Queensland
Sim Racing AdviceWe run what we sell
Everything you need to hit the track

One box, three pieces of real gear

This is not an entry-level wheel dressed up as direct drive. Each part of the R5 Pro bundle is a current MOZA product in its own right, chosen to work together and to still be worth keeping as you upgrade around them.

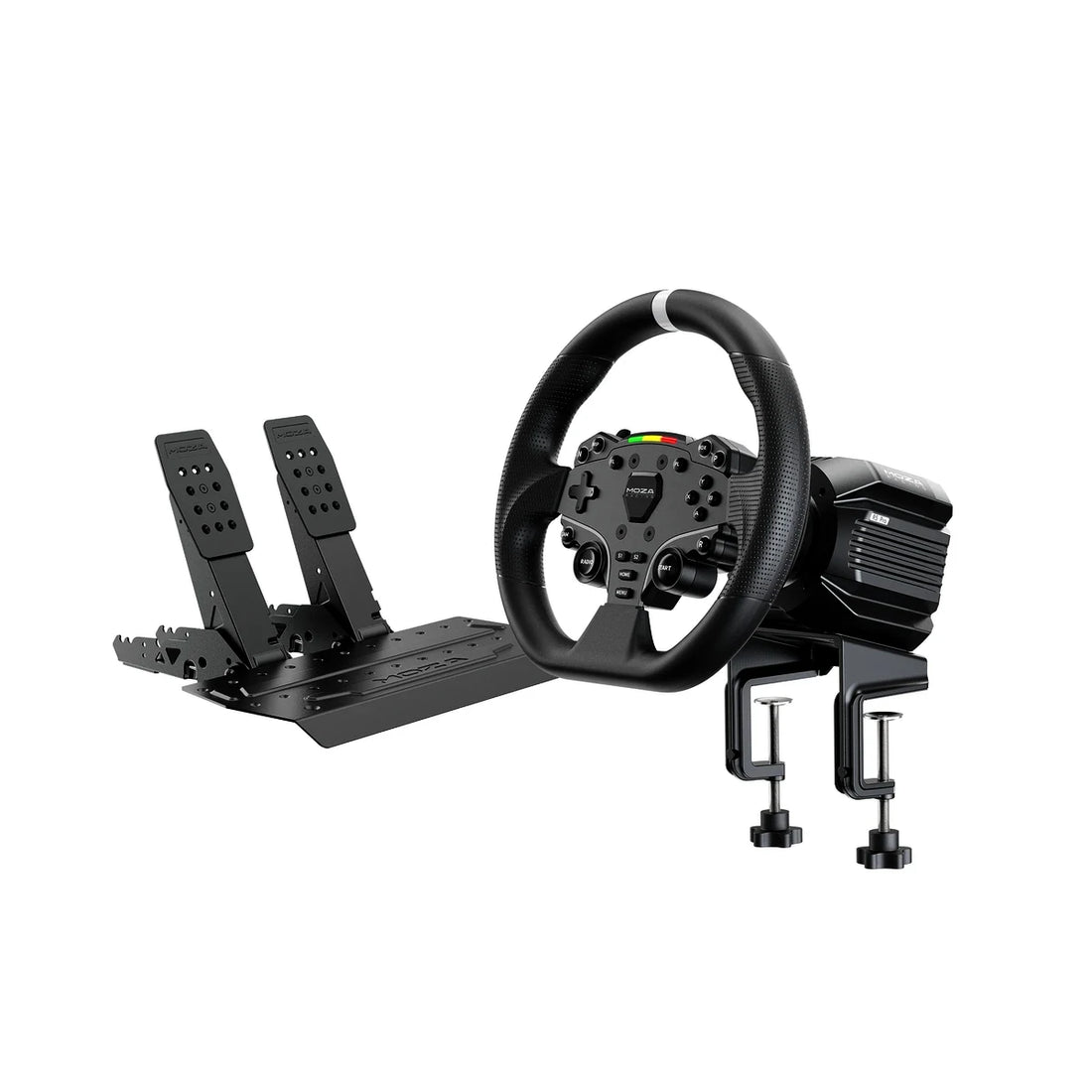

MOZA R5 Pro bundle with wheel base, ES Lite steering wheel and SR-P Lite2 pedals on a dark backdrop
Complete package

Base, wheel, pedals and clamp

The R5 Pro wheel base, the ES Lite steering wheel, the SR-P Lite2 two-pedal set and a table clamp. Unbox it, clamp it to a desk or bolt it to a rig, and race.

MOZA R5 Pro motor rotor with blue energy streaks, illustrating 6 Nm of direct drive torque
6 N·m constant

A real step up in force

The R5 Pro delivers 6 N·m of constant torque, a 9.1 percent increase over the previous generation, with more motor headroom for detailed, responsive and consistent force feedback.

MOZA processor chip on a circuit board, the 600 MHz CPU inside the R5 Pro wheel base
21-bit resolution

64 times the previous generation

A 21-bit high-resolution magnetic encoder with over two million points of resolution, feeding a 600 MHz processor, for finer force feedback detail and more precise steering control.

MOZA R5 Pro wheel base with the ES Lite wheel attached, showing the compact motorsport-inspired profile
Compact by design

Fits a desk, a stand or a full rig

Inspired by MOZA's flagship bases and shrunk down, the R5 Pro sits happily on a desktop with the included clamp, on a wheel stand, or bolted to a cockpit when you build one.

GT race car on a circuit, the kind of racing the MOZA R5 Pro bundle is built for
Race your favourites

Compatible with what you already play

iRacing, Assetto Corsa and Competizione, Le Mans Ultimate, the F1 series, EA SPORTS WRC, Forza Motorsport and Horizon, Automobilista 2, rFactor 2, BeamNG.drive, Euro Truck Simulator 2 and dozens more.

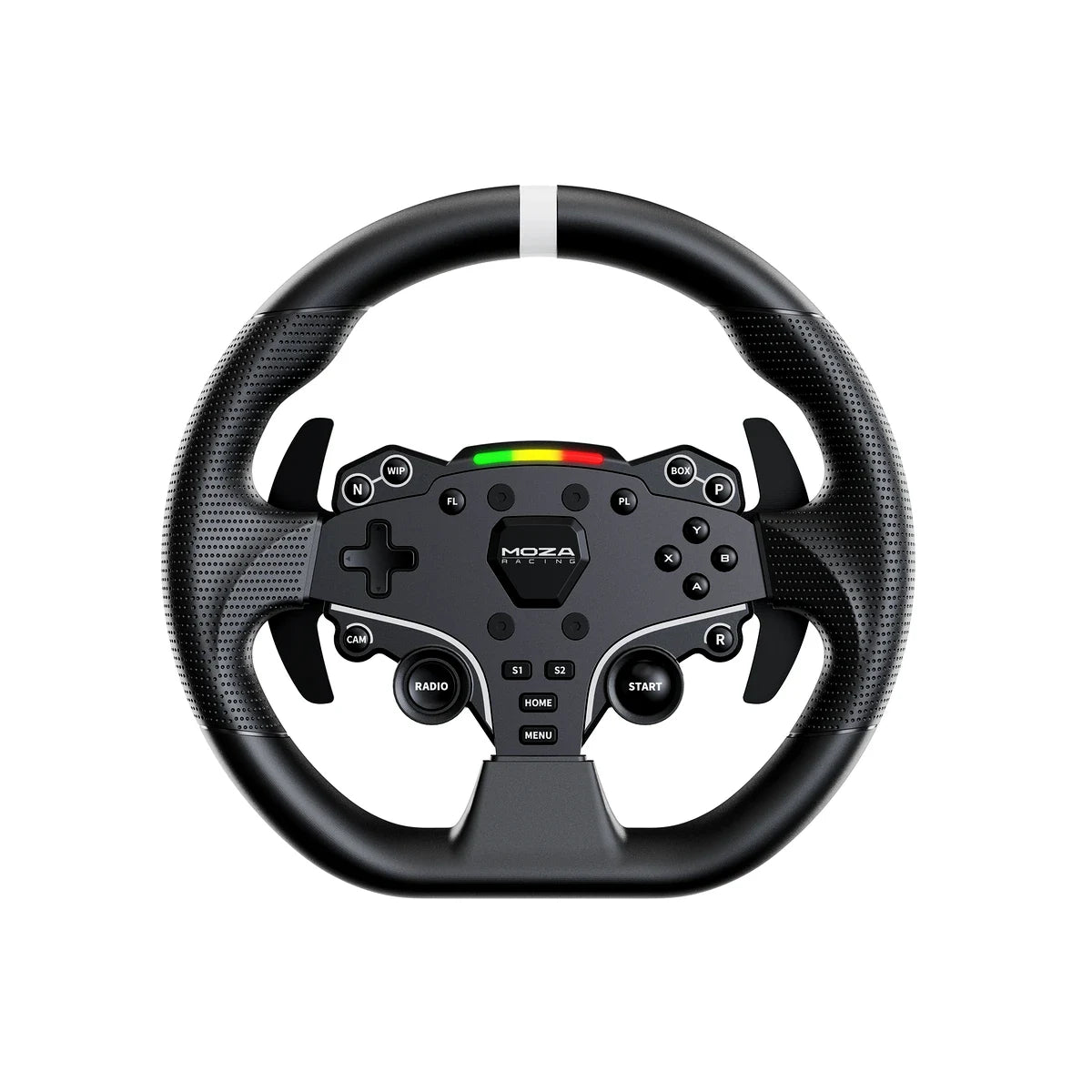

MOZA ES Lite steering wheel lit against a dark backdrop, showing the rubber grips and RPM lights
ES Lite steering wheel

22 inputs and RPM lights

A 280 mm wheel with an aluminium alloy frame, metal shift paddles, soft-touch rubber grips, 22 programmable inputs and 10 top-mounted RGB RPM lights with customisable shift timing.

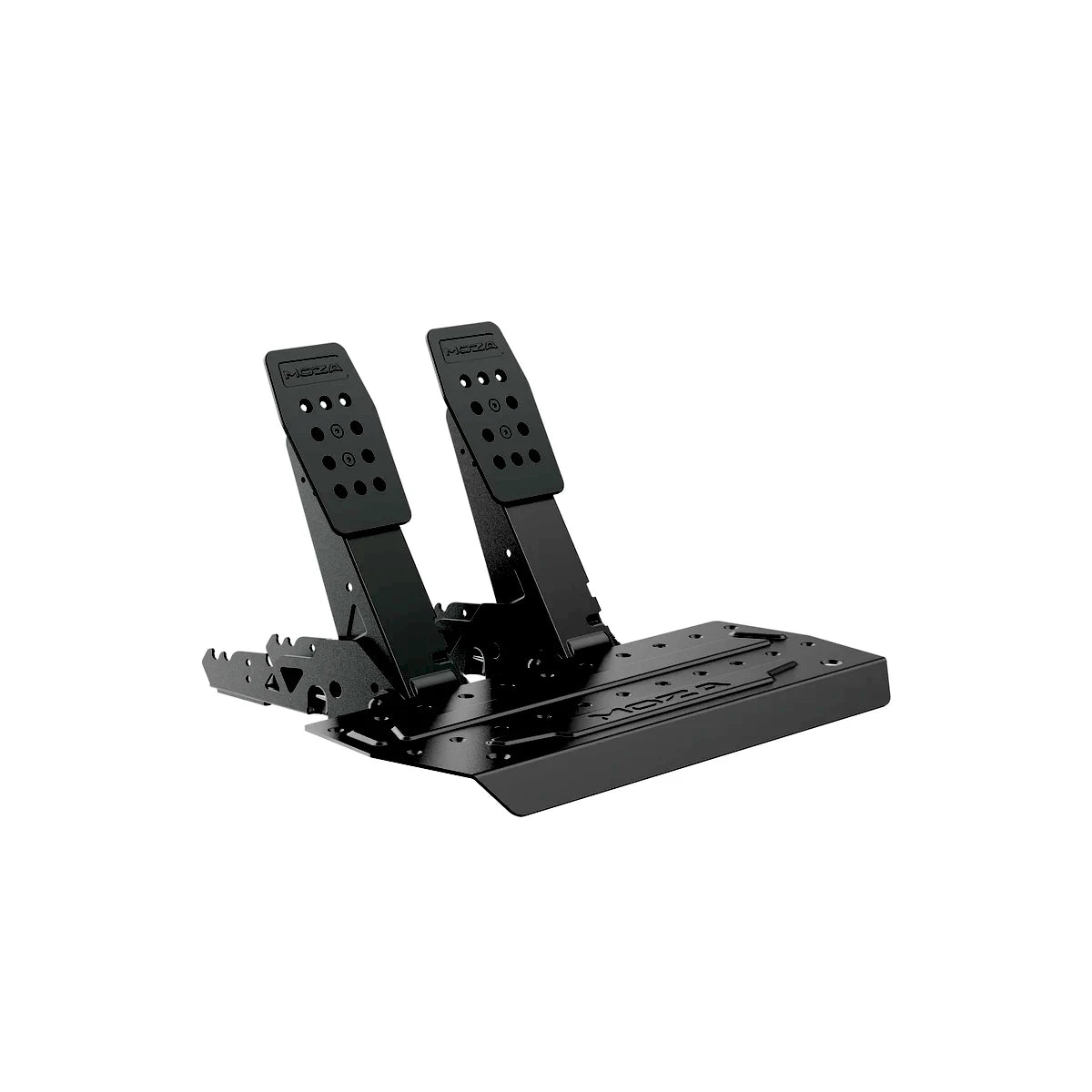

MOZA SR-P Lite2 pedals on their rail showing the adjustable spacing and pedal face height
SR-P Lite2 pedals

Steel, adjustable, upgradeable

High-strength steel construction with contactless Hall sensors, plus or minus 15 mm of lateral spacing adjustment and 36 mm of pedal face height adjustment. The bundle includes throttle and brake; a clutch pedal is available separately.

MOZA R5 Pro wheel base showing its high-strength die-cast aluminium body
Die-cast aluminium

Rigid and compact

A high-strength die-cast aluminium alloy body gives the R5 Pro exceptional rigidity and durability without adding bulk, and helps it shed heat during long sessions.

Rear of the MOZA R5 Pro wheel base with pedal, dash, shifter, handbrake and emergency stop ports
Ecosystem ports

Room to grow

Dedicated ports for pedals, dashboard, shifter, handbrake and an emergency stop switch mean the next MOZA part you add plugs straight into the base, not into another USB port.

Formula car on track with MOZA and iRacing branding, showing deep iRacing integration
Deep iRacing integration

360 Hz force feedback

High-frequency force feedback at 360 Hz plus Wheel LFE support, for richer detail and a more refined steering feel in iRacing.

Exploded view of the MOZA R5 Pro shaft and industrial-grade conductive slip ring
Built to last

10 million revolution slip ring

An industrial-grade conductive slip ring rated for over 10 million revolutions, with high-speed data transmission, for stable long-term performance.

Software

Tune it in MOZA Pit House

The bundle is set up to work out of the box, but everything is adjustable when you want to start dialling it in. Pit House runs on PC and the MOZA mobile app handles on-the-fly changes.

MOZA Pit House software showing R5 Pro force feedback tuning and per-game profiles
  • Force feedback strength, damping and filtering with per-game profiles
  • FFB interpolation smooths torque transitions while preserving road texture and kerb detail
  • Game FFB decoupling breaks the signal into individually tunable elements
  • Force feedback equaliser and custom non-linear curve tuning
  • Telemetry-based effects for gear shifts, engine vibration and ABS in supported titles
  • Pedal output curves, dead zone adjustment and real-time hardware monitoring
  • Intelligent temperature control with real-time motor temperature monitoring
  • Mobile app control, including transferring a setup to a new device
Why the R5 Pro bundle

What makes it worth starting here

  • Genuine direct drive

    The motor drives the wheel directly, with no belts or gears in between, so nothing filters or delays what the game is telling you.

  • 6 N·m of constant torque

    A 9.1 percent increase over the previous generation, with the motor headroom to keep force feedback consistent through a race rather than fading.

  • Complete and ready to race

    Base, wheel, pedals and a table clamp in one box, so there is nothing else to buy before your first session.

  • Every part is upgradeable

    The quick release takes any MOZA wheel, the pedals accept a clutch and performance kits, and the base has ports for a shifter, handbrake and dash.

  • NexGen algorithm 5.0

    MOZA's latest force feedback algorithm brings richer road detail, improved dynamic response and far more tuning flexibility than an entry wheel gives you.

  • Adjustable pedals from day one

    Steel construction, contactless Hall sensors, adjustable spacing and pedal face height, and multiple mounting options for floor or rig use.

In the box

What you get

  • 1 x MOZA R5 Pro direct drive wheel base
  • 1 x MOZA ES Lite steering wheel (280 mm)
  • 1 x MOZA SR-P Lite2 two-pedal set (throttle and brake)
  • 1 x Table clamp
  • Power adapter and cable
  • Tool kit
  • User manual
  • MOZA Pit House software (free download)
Compatibility

Platform and game support

Area Detail
Platform PC (Windows). This bundle is not console licensed.
iRacing Deep integration with 360 Hz high-frequency force feedback and Wheel LFE.
Assetto Corsa family Assetto Corsa, Competizione, EVO and Rally, with customisable telemetry FFB effects.
Racing sims Le Mans Ultimate, Automobilista 2, rFactor 2, RaceRoom, Project CARS 1 to 3, Project Motor Racing, KartKraft.
F1 and rally F1 2018 through F1 25, EA SPORTS WRC, WRC 9, 10 and Generations, DiRT Rally 2.0, DiRT 4, Richard Burns Rally.
Forza Forza Motorsport, Forza Horizon 4, 5 and 6.
Other BeamNG.drive, Euro Truck Simulator 2, American Truck Simulator, Farming Simulator 22 and 25, Test Drive Unlimited Solar Crown.
Technical specs

Specifications

Drive system Direct drive
Peak torque 6 N·m
Peak power 100 W
Maximum steering angle 90 to 2700 degrees
Encoder resolution 21-bit
Processor 600 MHz
Force feedback algorithm MOZA NexGen 5.0
USB refresh rate 1000 Hz
Base housing material Aluminium alloy, black
Base weight 2.9 kg
Input voltage 110 to 220 V AC to 12 V DC
Base ports Power, USB, pedals, dash, shifter, handbrake, emergency stop
Mounting options Bottom, front and desktop mounting; desk clamp included
Quick release All-aluminium quick release
Wheel size 280 mm
Wheel inputs 22 programmable buttons
Wheel rev lights 10 top-mounted RGB LEDs, adjustable in Pit House
Wheel frame and paddles Aluminium alloy frame, metal shift paddles, TPE grips
Pedals SR-P Lite2, throttle and brake, high-strength steel, Hall sensors
Pedal adjustment ±15 mm lateral spacing, 36 mm pedal face height
Platform PC
Online firmware update Supported
SKU RS105
Common questions

Frequently asked questions

What is included in the MOZA R5 Pro Racing Bundle?
The R5 Pro direct drive wheel base, the ES Lite 280 mm steering wheel, the SR-P Lite2 two-pedal set with throttle and brake, and a table clamp, plus the power adapter, cable, tool kit and user manual. It is a complete setup, nothing else is needed to start racing.
Is 6 Nm enough to start with?
Yes. 6 N·m of direct drive torque feels considerably stronger and far more detailed than a geared or belt-driven entry wheel, because the motor drives the wheel directly with nothing in between. Most drivers run well below maximum strength anyway.
What is the difference between the R5 Pro and the standard R5 bundle?
The R5 Pro steps up to 6 N·m from the R5's 5.5 N·m, adds a 21-bit encoder with 64 times the resolution of the previous generation, a 600 MHz processor and the NexGen 5.0 algorithm, and pairs it with the newer SR-P Lite2 pedals. Compare it against our standard R5 bundle if you are weighing the two.
Does it work on PlayStation or Xbox?
No. The R5 Pro bundle is a PC setup. If you need console support, message us and we will point you at a base and wheel combination that carries the right licence for your platform.
Can I clamp it to a desk?
Yes, a table clamp is included in the bundle. Bottom, front and desktop mounting are all supported, so the same setup moves onto a wheel stand or a cockpit later without buying a different base.
Do the pedals include a clutch?
The bundle includes throttle and brake. A matching SR-P Lite2 clutch pedal is available separately and bolts onto the same base plate, so you can add it whenever you want a three-pedal set. See our pedal accessories for the clutch and performance kits.
Can I upgrade the steering wheel later?
Yes. The R5 Pro uses an all-aluminium quick release, so any MOZA wheel fits. The ES Lite also takes interchangeable wheel mods, including a 12 inch round rim and a 280 mm formula rim, if you want a different shape without changing the whole wheel.
What can I add to the base?
The base has dedicated ports for pedals, a dashboard, a shifter, a handbrake and an emergency stop switch. MOZA peripherals plug directly into the base rather than eating USB ports on your PC.
How adjustable are the pedals?
The SR-P Lite2 pedals give up to plus or minus 15 mm of lateral spacing adjustment and 36 mm of pedal face height adjustment, with anti-slip rubber pads for standalone floor use and pre-drilled holes for mounting to a cockpit.
Do the pedals use a load cell?
The SR-P Lite2 pedals use high-precision contactless Hall sensors rather than a load cell. If you want a load cell brake, the MOZA SRP2 pedals are the natural upgrade and plug into the same base.
Is it loud?
Direct drive is generally quieter than gear-driven wheels because there is no gear train. You will hear the motor working under heavy force feedback, but there is no whine or rattle from gears.
Does the wheel have shift lights?
Yes. The ES Lite has 10 top-mounted RGB RPM indicator lights with customisable shift timing, fully adjustable through MOZA Pit House.
What software do I need?
MOZA Pit House on Windows, a free download. It handles force feedback tuning, pedal curves, dead zones, RGB and firmware updates. The MOZA mobile app lets you make adjustments on the fly and move a setup to a new device.
Will it fit a cockpit?
Yes. Bottom and front mounting are supported on the base and the pedals have pre-drilled mounting holes, so the bundle bolts into a wheel stand or a full cockpit when you are ready. Browse our cockpits and seats when you get there.
What warranty does it come with in Australia?
As the authorised Australian dealer for MOZA Racing, Player1 Sim Gear handles warranty locally in Queensland with no overseas returns required, backed by Australian Consumer Law.
Do you offer free shipping in Australia?
Yes. MOZA products ship free Australia wide, with freight from our Queensland base. We are not shipping MOZA to New Zealand at the moment.
Is the price in AUD and does it include GST?
Yes, the price shown is in Australian dollars and includes GST, from a local authorised MOZA dealer with no hidden import fees.
Can you help me pick between this and a bigger base?
Absolutely. Message us with what you race and the space you have, and we will tell you honestly whether the R5 Pro bundle is the right call or whether you should start higher up the range.
