Trak Racer 40x40 Pivot Joint for 8mm Extrusion

Regular price
$19.00
Regular price
$19.00
Sale price
$19.00
Tax included. Shipping calculated at checkout.

Vendor : Trak Racer

Product Type : Spare Parts

Sku : TR80-JOINT2

Secure Checkout Secure Checkout
5 Star Service 5 Star Service
Phone Support Phone Support
Manufacturer Warranty Manufacturer Warranty

Trak Racer · 4040 Profile · Pivot Joint

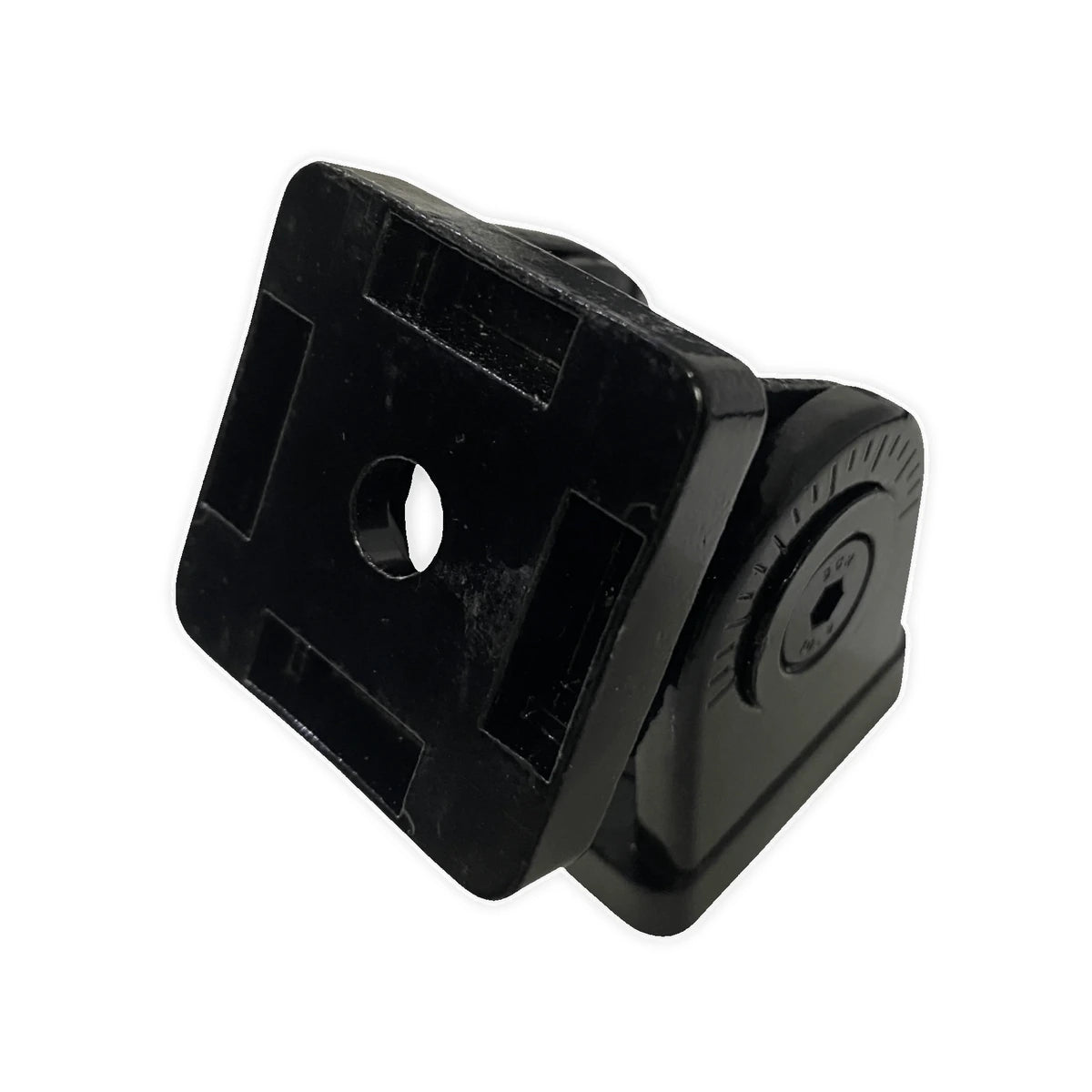

Trak Racer 40x40 Pivot Joint Connector
Angle-adjustable joint for 40x40mm, 8mm-slot aluminium extrusion.

The Trak Racer 40x40 Pivot Joint Connector links two 40x40mm (4040) aluminium extrusion profiles at an adjustable angle, with a full 180-degree pivot range. Cast from durable zinc alloy and supplied with the T-nuts, bolts and spring nuts you need to fit it, it is the go-to fastener for diagonal braces, angled monitor arms, keyboard trays and custom sub-frames on Trak Racer profile rigs. Available from Player1 Sim Gear, your authorised Australian Trak Racer dealer, shipping Australia-wide.

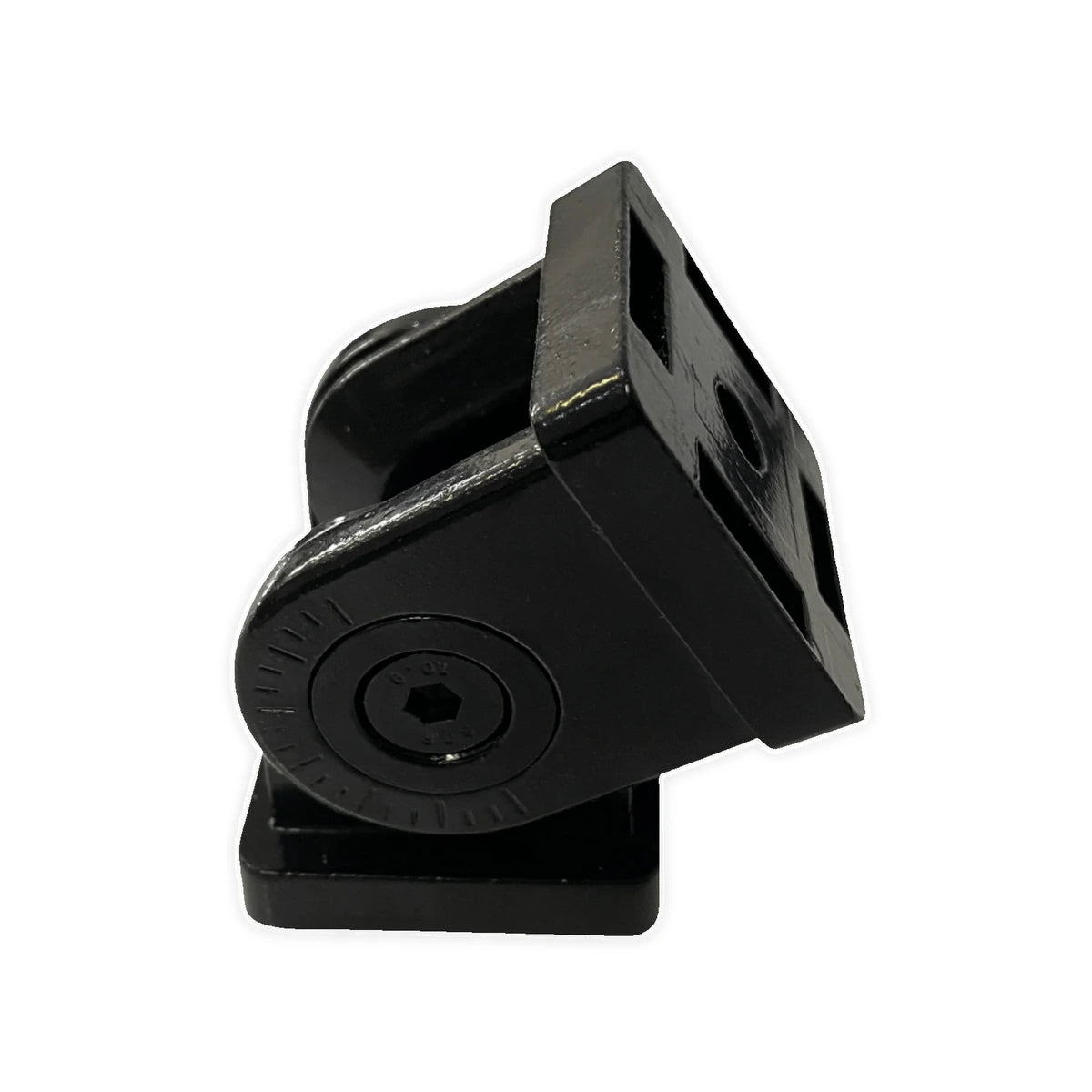

Trak Racer 40x40 pivot joint connector, angled view, black zinc-alloy hinge between two extrusion faces
180°pivot range
Zinc alloyconstruction
40x40mm4040 profile, 8mm slot
HardwareT-nuts and bolts included
Trak Racerextrusion frames

One connector for angled, adjustable extrusion joints.

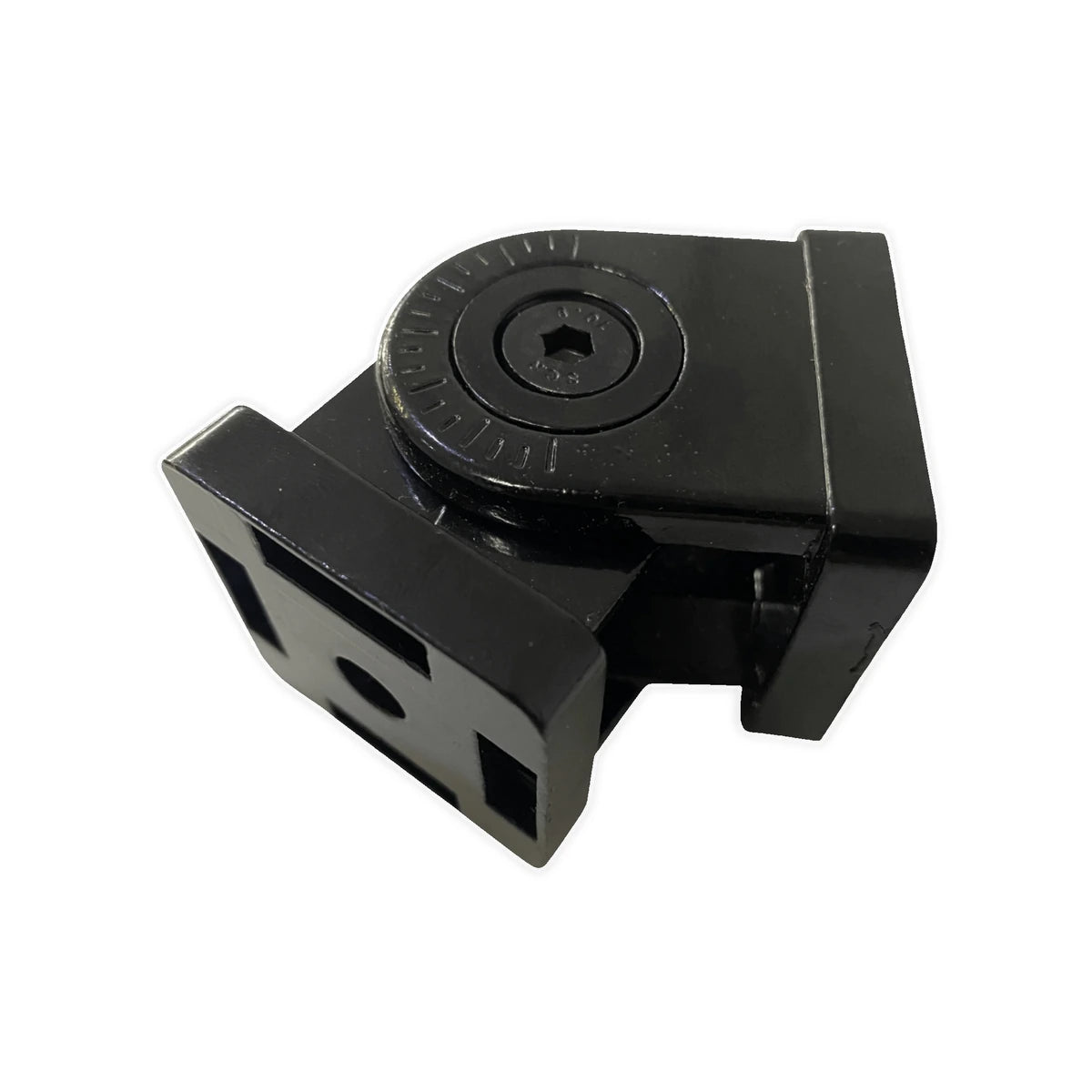

Adjustable 180° Pivot

A movable hinge lets you join two profiles at almost any angle across a full 180-degree range, then lock it in place. Ideal for diagonal braces and angled arms.

Durable Zinc-Alloy Body

Cast from zinc alloy for a strong, long-lasting joint that holds its position under load, so your braces and supports stay put.

Sized for 4040, 8mm Slot

Engineered for 40x40mm (4040 series) aluminium extrusion with an 8mm T-slot, the profile used across the Trak Racer rig range.

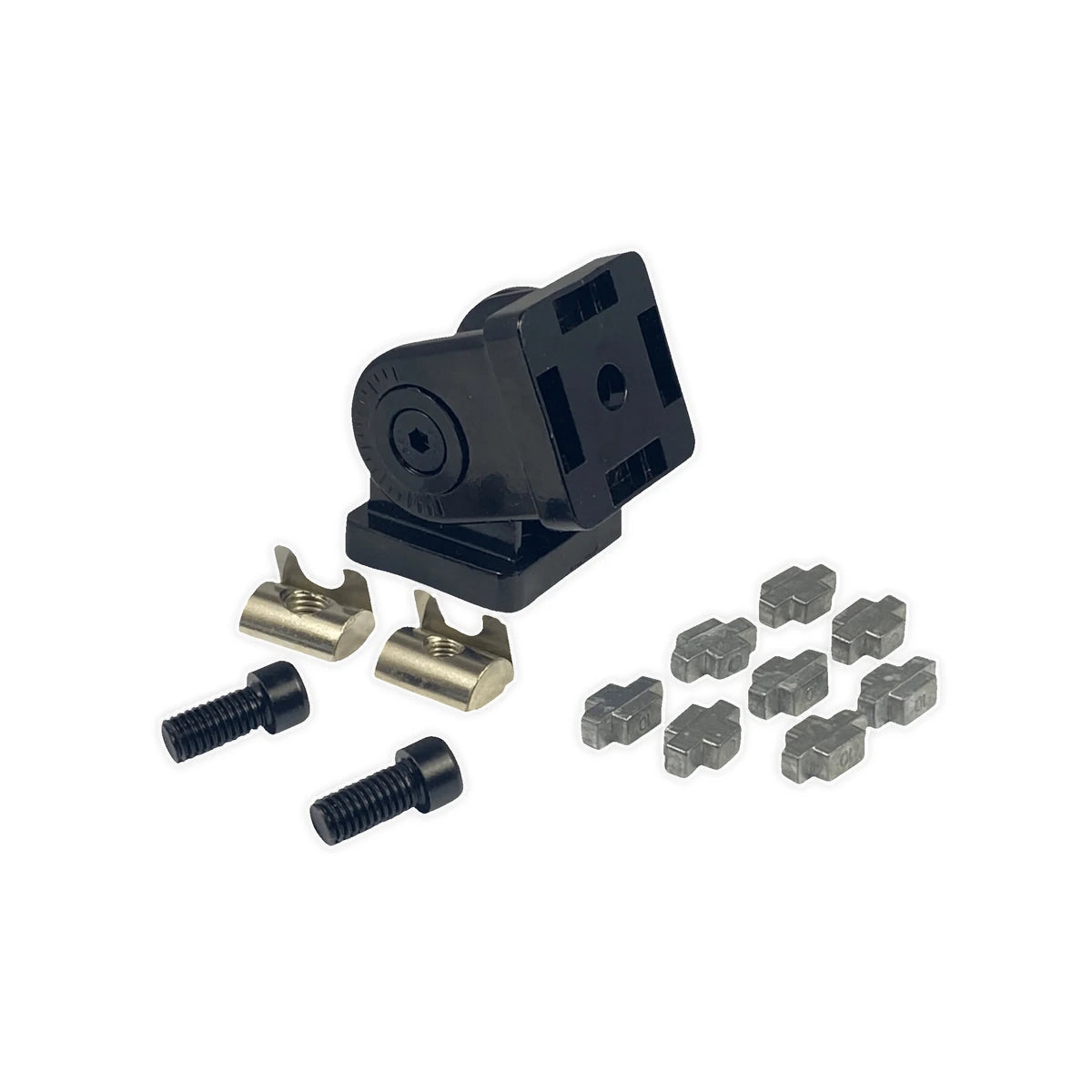

Mounting Hardware Included

Comes with the T-nuts, bolts and spring nuts needed to secure it to your extrusion, so there is nothing extra to source before you build.

Build Braces and Sub-Frames

Perfect for adding angled cross-braces, monitor arm supports, keyboard trays, button-box arms and custom sub-frames to a profile cockpit.

Trak Racer Extrusion Compatible

Works across the Trak Racer 4040 profile range and other 8mm-slot 4040 extrusion rigs, keeping your build modular and expandable.

Which rigs does the pivot joint fit?

The 40x40 Pivot Joint is designed for 40x40mm (4040) aluminium extrusion with an 8mm slot. That covers the full range of Trak Racer extrusion frames below, and it also suits other branded 4040, 8mm-slot rigs. Building out a Trak Racer cockpit such as the TR160 V5 or TR120S V2? This joint is a handy way to add angled braces and supports.

Trak Racer Frame Compatible Notes
TR200 Direct-fit 4040 profile, 8mm slot
TRA Direct-fit 4040 profile, 8mm slot
TR160 Direct-fit 4040 profile, 8mm slot
TR120 Direct-fit 4040 profile, 8mm slot
TR80S Direct-fit 4040 profile, 8mm slot
TR40S Direct-fit 4040 profile, 8mm slot
TRK Direct-fit 4040 profile, 8mm slot

Also compatible with other branded 4040, 8mm-slot extrusion rigs, but profile sizes vary between brands, so check your extrusion dimensions before ordering. Browse more rig spares and accessories, or call us on 0488 385 870 and we will confirm the right parts for your build.

40x40 Pivot Joint Connector: Specifications

Trak Racer · TR80-JOINT2

40x40 Pivot Joint Connector

MaterialZinc alloy
Profile Fitment40x40mm (4040 series), 8mm slot
Rotation Range180 degrees
Joint TypeMovable hinge / pivot bracket
Included HardwareT-nuts, bolts and spring nuts
Weight0.25 kg
SKUTR80-JOINT2

Frequently asked questions

What it is and how it fits

What is the Trak Racer 40x40 Pivot Joint used for?

It is a flexible pivot joint connector that links two 40x40mm aluminium extrusion profiles at an adjustable angle. It is commonly used to add diagonal cross-braces, angled monitor or button-box arms, keyboard trays and custom sub-frames to a profile sim racing cockpit.

Which aluminium profile does it fit?

It is designed for 40x40mm (4040 series) aluminium extrusion with an 8mm slot. That is the profile used across the Trak Racer rig range, and it also suits other branded 4040, 8mm-slot extrusion.

How far does the joint pivot?

The movable hinge gives a full 180-degree rotation range, so you can set and lock almost any angle between the two profiles.

What is it made from?

The joint body is cast from zinc alloy for strength and durability, so it holds its position and resists wear under load.

In the box and compatibility

Does it come with mounting hardware?

Yes. Each joint is supplied with the T-nuts, bolts and spring nuts needed to fasten it into an 8mm extrusion slot, so you can fit it straight out of the box.

Which Trak Racer rigs is it compatible with?

It fits Trak Racer extrusion frames including the TR200, TRA, TR160, TR120, TR80S, TR40S and TRK. If you are not sure which frame you have, call us on 0488 385 870 and we will help.

Will it fit other brands of aluminium extrusion?

It suits any 4040, 8mm-slot aluminium profile. Profile sizes and slot widths differ between brands, so measure your extrusion (profile size and slot width) before ordering, or contact us to confirm.

Buying in Australia

What support do you offer, and how is it shipped?

Player1 Sim Gear is an authorised Australian Trak Racer dealer, and your purchase is covered by Australian Consumer Law. As a small, compact part it ships Australia-wide by courier. For current stock and a delivery estimate, call us on 0488 385 870 or send us a message.

Complete your rig

Pair the pivot joint with more Trak Racer spares and a profile cockpit to expand, brace and customise your setup.

Not sure which parts you need?

Player1 Sim Gear is an authorised Australian Trak Racer dealer. We can confirm the right joints, brackets and hardware for your profile rig before you order. Ships Australia-wide.
