Simagic P700 Wall Mount Bracket

No review yet. Write Review
Regular price
$49.00
Regular price
Sale price
$49.00
Tax included. Shipping calculated at checkout.

Vendor : Simagic

Product Type : Wall Mount Bracket

Sku : P700WallMount

Hurry! Only
5
units left in stock!
Reassurance Image
Secure Purchase
Reassurance Image
Player1 Certified
Reassurance Image
Satisfaction Guarantee
Reassurance Image
Manufacturer Warranty

Simagic Sim Racing Pedals

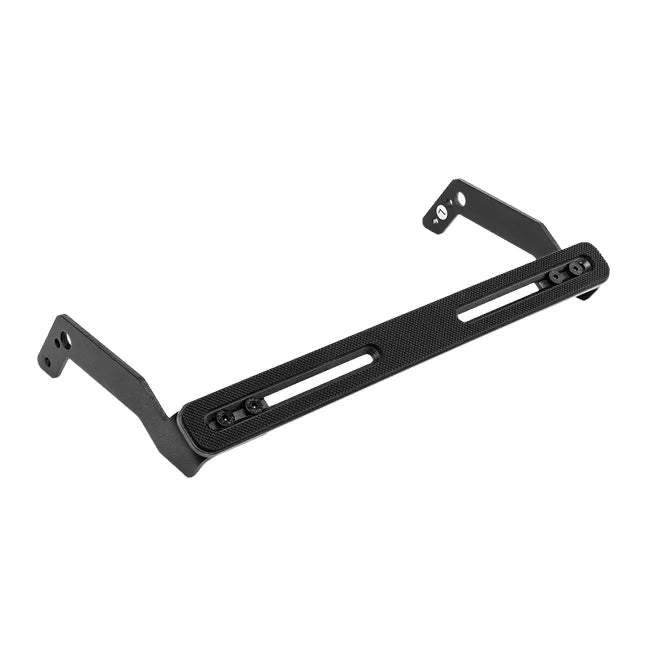

Wall Mount Bracket for P700 Pedals

Pro-Grade Load Cell Braking. Expandable. Adjustable. Built to Last.

150KG Load Cell Dual Sensor System 35 Brake Settings Expandable to 3 Pedals Haptic Ready 24-Month Warranty SKU: SIMAGIC-CP700

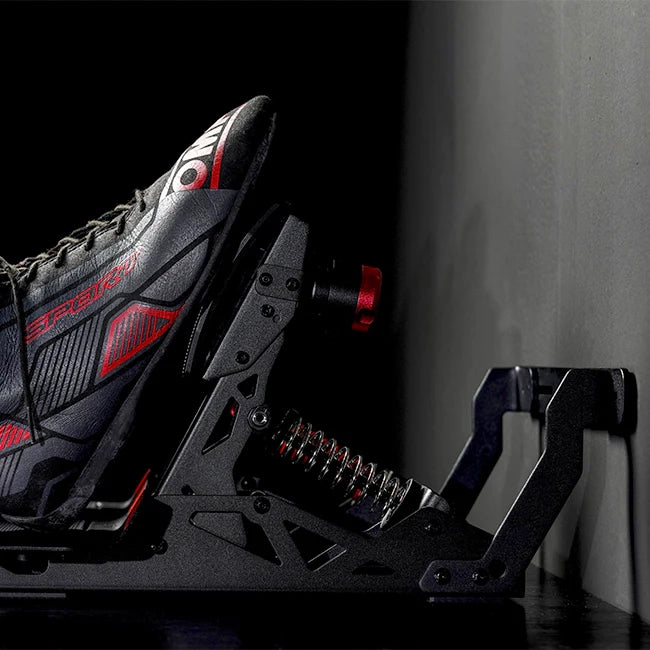

The SIMAGIC P700-WM Wall Mount is the ideal accessory for those looking for a practical and robust solution to mount their pedals vertically.

Designed specifically for the SIMAGIC P700, this mount allows them to be fixed directly to the wall, keeping the gaming area tidy and ready for quick simracing sessions without compromising stability or ergonomics.

  • Specific design for SIMAGIC P700 pedals
  • Stable and secure wall mounting
  • High-strength metal structure
  • Allows pedals to be positioned vertically to save space
  • Easy installation with included hardware
  • Compatibility with the full range of pedal adjustment

Guides & Manuals:



     P700 Sim Racing Compatibility

    • iRacing
    • Assetto Corsa
    • ACC
    • rFactor 2
    • F1 Series
    • Dirt Rally 2.0
    • BeamNG.drive
    • Gran Turismo 7
    • Any USB Controller

    Connects as a standard USB HID device — no drivers required. Configure pedal curves, deadzones, calibration, and haptic effects via the free SimPro Manager V3.0.0 software.


    Why Choose the Simagic P700?

    🏁Pro-Grade Load Cell
    ⚙️Adaptive Sensing Tech
    🔧35 Brake Settings
    Expandable to 3 Pedals
    🦶Ergonomic Design
    🛡️24-Month Warranty
    🛡️
    24-Month Warranty — Race with Confidence

    Every Simagic P700 2-Pedal Set is backed by a 24-month warranty from the date of purchase, covering parts and labour. Lifetime online technical support and free firmware updates are included for the life of the product.

    Player1 Sim Gear logo

    Authorised Partner

    Player1 Sim Gear is an official partner for Simagic products in Australia. Buy with confidence knowing you're purchasing genuine Simagic hardware from an official partner — with local support and backed by the full 24-month Simagic warranty.

    The Simagic P700 2-Pedal Set (Throttle + Brake) delivers pro-grade 150KG load cell braking and Hall-effect throttle control at an accessible price point. Start here and expand to a full 3-pedal setup any time with the optional C-P700 clutch module.

    Technical Specifications

    Configuration 2-Pedal (Throttle + Brake)
    Main Material High-Strength Steel
    Heel Plate Material Silicone (anti-slip, barefoot-friendly)
    Sensor System Dual — 12-Bit Hall-Effect Angle Sensor + 150KG Load Cell
    Load Cell Range 150KG Brake
    Angle Sensor Resolution 12-Bit (4,096 steps)
    Brake Settings 35 elastomer + spring configurations
    Spring Types Coil springs (multiple stiffness levels)
    Elastomer Types 55° and 75° elastomers with compression springs
    Pedal Adjustability Height, angle, module spacing (3-axis)
    Max Pedal Force Rated 200KG
    Dimensions 358 × 413 × 218 mm
    Net Weight 3.6 KG
    Connection USB (PC) / RJ45 or USB (Alpha EVO Series) / USB (Alpha Series)
    Software SimPro Manager V3.0.0 (free)
    Mounting Floor (rubber feet + carpet spikes), wall (optional P700-WM), rig / cockpit, inverted
    Haptic Compatibility P-HPR, P-HPR GT (sold separately)
    Expandable Yes — add C-P700 clutch to create 3-pedal set (sold separately)
    Certifications FCC, CE, RCM, RoHS, REACH, VCCI, EAC
    Warranty 24 Months (parts and labour)

    Sensing Technology

    Load Cell Mode (Brake)

    Sensor Type Strain gauge load cell
    Measures Applied force
    Capacity 150KG
    Best For Rigid rig / cockpit mounting, stiffer elastomers, race-style braking
    Feel Progressive, force-based — mirrors real vehicle brake behaviour

    Hall Sensor Mode (Throttle & Brake Travel)

    Sensor Type Hall-effect angle sensor
    Measures Pedal travel (angle)
    Resolution 12-Bit (4,096 steps)
    Best For Floor use, softer elastomers, road-car style feel
    Feel Smooth, progressive travel — no wear, no dead zones

    What's in the Box

    P700 Throttle Pedal
    P700 Brake Pedal
    Brake Performance Kit
    Screw & Wrench Kit
    Data Cable
    USB Cable

    C-P700 Clutch Pedal, P700-WM Wall Mount, and P-HPR Haptic Modules sold separately.

    Certifications & Compliance

    FCC CE RCM RoHS REACH VCCI EAC

    The Simagic P700 3-Pedal Set (Throttle, Brake + Clutch) is a complete sim racing pedal solution ready out of the box. Includes the C-P700 clutch module — no additional purchases needed for a full three-pedal setup.

    Technical Specifications

    Configuration 3-Pedal (Throttle, Brake + Clutch)
    Main Material High-Strength Steel
    Heel Plate Material Silicone (anti-slip, barefoot-friendly)
    Sensor System Dual — 12-Bit Hall-Effect Angle Sensor + 150KG Load Cell
    Load Cell Range 150KG Brake
    Angle Sensor Resolution 12-Bit (4,096 steps)
    Brake Settings 35 elastomer + spring configurations
    Spring Types Coil springs (multiple stiffness levels)
    Elastomer Types 55° and 75° elastomers with compression springs
    Clutch Pedal C-P700 — Hall-effect sensor, adjustable resistance, half-clutch engagement configurable via SimPro Manager
    Pedal Adjustability Height, angle, module spacing (3-axis)
    Max Pedal Force Rated 200KG
    Dimensions 358 × 413 × 218 mm (base unit)
    Net Weight 3.6 KG (base) + C-P700 clutch weight
    Connection USB (PC) / RJ45 or USB (Alpha EVO Series) / USB (Alpha Series)
    Software SimPro Manager V3.0.0 (free)
    Mounting Floor (rubber feet + carpet spikes), wall (optional P700-WM), rig / cockpit, inverted
    Haptic Compatibility P-HPR, P-HPR GT (sold separately)
    Certifications FCC, CE, RCM, RoHS, REACH, VCCI, EAC
    Warranty 24 Months (parts and labour)

    C-P700 Clutch Pedal — Included

    Sensor Type Hall-effect angle sensor
    Resistance Adjustable spring resistance
    Half-Clutch Engagement Configurable via SimPro Manager V3.0.0
    Bite Point Control Yes — software configurable
    Connection Direct plug-in to P700 pedal set
    Haptic Compatible Yes (P-HPR / P-HPR GT)

    What's in the Box

    P700 Throttle Pedal
    P700 Brake Pedal
    C-P700 Clutch Pedal
    Brake Performance Kit
    Screw & Wrench Kit
    Data Cable
    USB Cable

    P700-WM Wall Mount and P-HPR Haptic Modules sold separately.

    Certifications & Compliance

    FCC CE RCM RoHS REACH VCCI EAC

    Both configurations share the same core hardware — same load cell, same sensors, same build quality and adjustability. The only difference is whether the C-P700 clutch pedal is included.
    Feature P700 — 2-Pedal Set P700 — 3-Pedal Set
    Throttle Pedal
    Brake Pedal
    Clutch Pedal (C-P700) Sold separately Included
    150KG Load Cell
    12-Bit Hall-Effect Sensor
    Full-Range Adaptive Sensing
    35 Brake Settings
    High-Strength Steel Build
    Silicone Heel Plate
    3-Axis Adjustability
    Haptic Module Ready
    Half-Clutch Engagement Via SimPro Manager
    SimPro Manager V3.0.0
    Floor / Rig / Wall Mounting
    PC USB Compatible
    Simagic Alpha EVO Compatible
    Warranty 24 Months 24 Months
    Expandable to 3 Pedals Add C-P700 Already complete

    Both sets use identical core hardware. The 3-pedal set is the better choice if you know you want a clutch now. The 2-pedal set is ideal if you want to start smaller and upgrade when ready.


    Answers to the most common questions about the Simagic P700 Pedal Set. Can't find what you're looking for? Contact Player1 Sim Gear — Australia's official Simagic partner.
    The 2-pedal set includes a throttle and brake pedal. The 3-pedal set adds the C-P700 clutch pedal, making it a complete throttle, brake, and clutch configuration ready out of the box. Both share the same 150KG load cell brake, dual sensor system, and adjustability features. If you already own the 2-pedal set, you can add the C-P700 clutch at any time without replacing any hardware.
    Yes. The C-P700 clutch module plugs directly into the P700 pedal set. You can start with the 2-pedal configuration and add the clutch at any time without replacing any existing hardware. It's designed as a modular system from the ground up.
    Full-Range Adaptive Sensing Technology is Simagic's proprietary signal processing system that dynamically adjusts gain across your entire braking range. Traditional fixed-gain pedals make light inputs feel vague and over-compress heavy inputs. The P700 solves this by identifying your real braking force window during calibration and applying the optimal amplification at each force level while driving — so every input is predictable, repeatable, and consistent lap after lap.
    Load cell mode measures the force you apply to the pedal, not its physical travel. This mirrors how real vehicle braking works and is recommended for rigid cockpit or rig mounting with stiffer elastomers. It helps build accurate and repeatable muscle memory.

    Hall sensor (angle) mode measures pedal travel and is recommended for floor use with softer elastomers, delivering a more progressive, passenger-car style feel. Both sensors are active simultaneously — you choose which output drives your braking input via SimPro Manager.
    The 35 settings refer to the quick-change elastomer and spring combinations for the brake pedal. These include coil springs in multiple stiffness levels and 55° and 75° elastomers used with compression springs. They range from soft, long-travel setups suited to casual or road-car style driving, through to stiff, short-travel race-spec configurations suitable for GT4 and TCR-style braking.

    Changing the setting is a simple mechanical adjustment — no tools required for elastomer swaps. The included Brake Performance Kit contains the necessary elastomers and springs.
    The P700 connects to PC via standard USB HID — no drivers required, compatible with any game that accepts USB controller input. It also connects to Simagic Alpha Series wheelbases via USB and to Simagic Alpha EVO Series wheelbases via RJ45 or USB.

    Compatible simulators include iRacing, Assetto Corsa, Assetto Corsa Competizione, rFactor 2, Gran Turismo 7, F1 Series, Dirt Rally 2.0, BeamNG.drive, and any title supporting USB HID input.
    No. The P700 includes rubber anti-slip feet and carpet spike inserts for stable floor use. An optional P700-WM wall mount is available for wall-supported setups. The pedals also support rig mounting via standard profile frames and inverted installation for dedicated sim cockpit builds.
    The P700 is compatible with the P-HPR Linear Haptic Pedal Reactor and the P-HPR GT Linear Haptic Pedal Reactor (both sold separately). These modules mount directly to the pedal set and provide real-time tactile feedback for ABS activation, gear shifts, wheel slip, wheel lock, traction control, and half-clutch engagement. Effects are fully configurable via SimPro Manager V3.0.0.
    SimPro Manager V3.0.0 (free download) lets you:

    — Calibrate pedal force input and travel range
    — Adjust output curves and deadzones per pedal
    — Configure telemetry-based haptic effects (ABS, TC, wheel slip, gear shift, half-clutch)
    — Set half-clutch engagement point and bite point
    — Create and save pedal profiles linked to specific cars or simulators
    — Switch between load cell and Hall sensor modes on the brake
    — Update firmware
    Every Simagic P700 purchased from Player1 Sim Gear is covered by a 24-month warranty from the date of purchase, covering parts and labour. Lifetime online technical support and free firmware updates are included for the life of the product.

    Player1 Sim Gear is Australia's official Simagic partner — buy with confidence knowing you have local support backed by the full Simagic warranty.
    The Simagic P700 meets the following international safety and EMC standards: FCC (USA), CE (Europe), RCM (Australia/New Zealand), RoHS, REACH, VCCI (Japan), and EAC (Eurasian Customs Union).
