Simagic P700 Pedals | 3 Pedal Set

No review yet. Write Review
Regular price
$399.00
Regular price
$439.00
Sale price
$399.00
Tax included. Shipping calculated at checkout.

Vendor : Simagic

Product Type : Pedals

Sku : SMP700C

Hurry! Only
6
units left in stock!
Reassurance Image
Secure Purchase
Reassurance Image
Player1 Certified
Reassurance Image
Satisfaction Guarantee
Reassurance Image
Manufacturer Warranty
Simagic Sim Racing Pedals

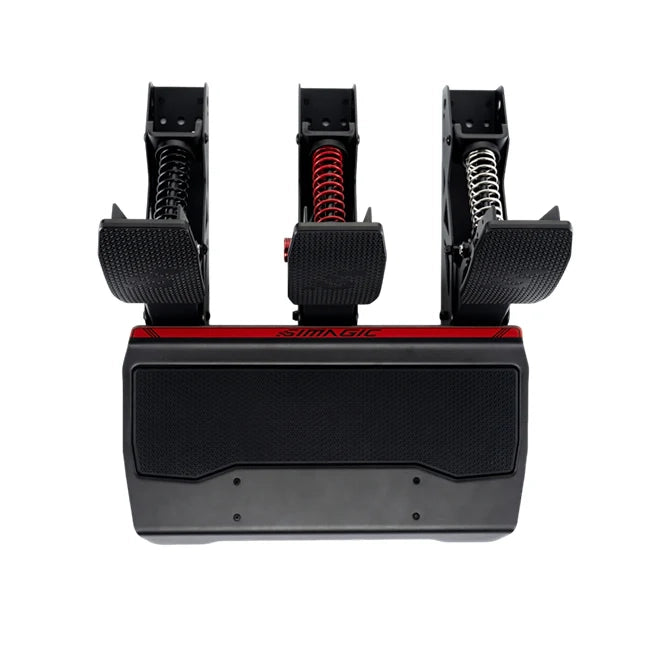

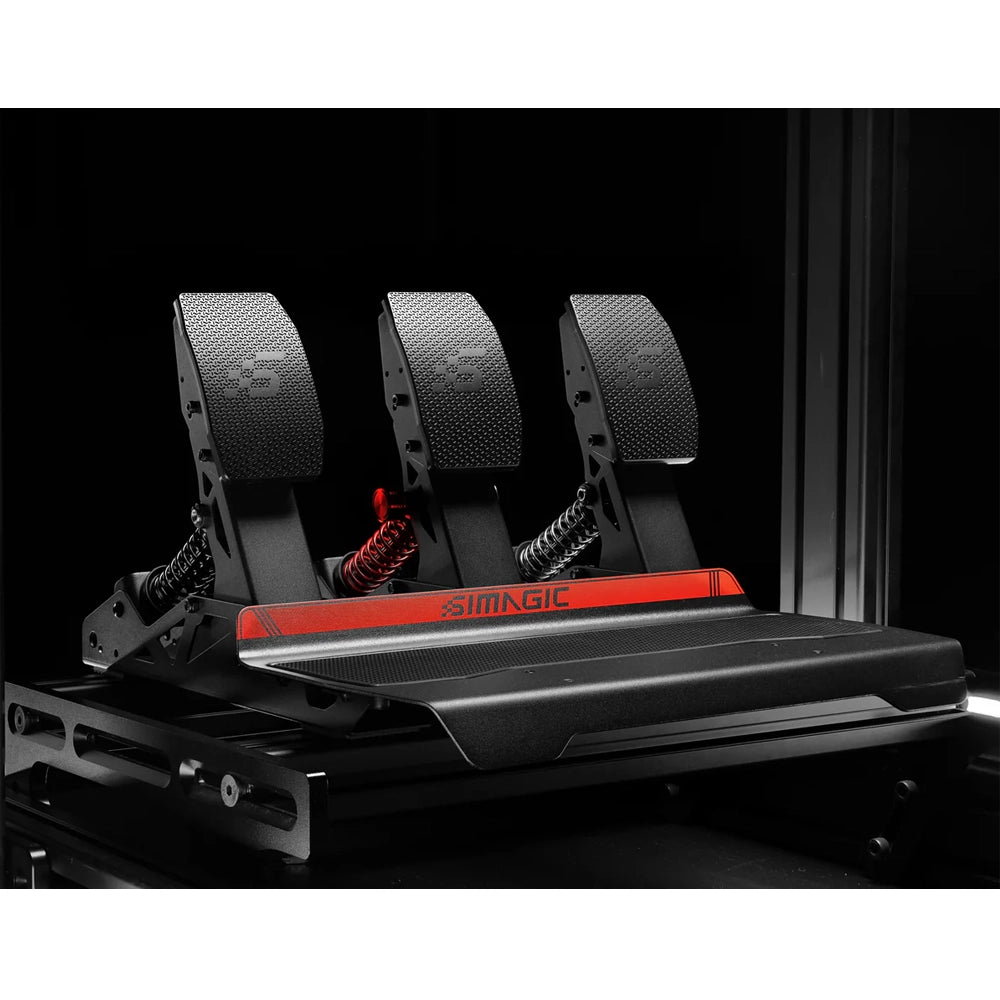

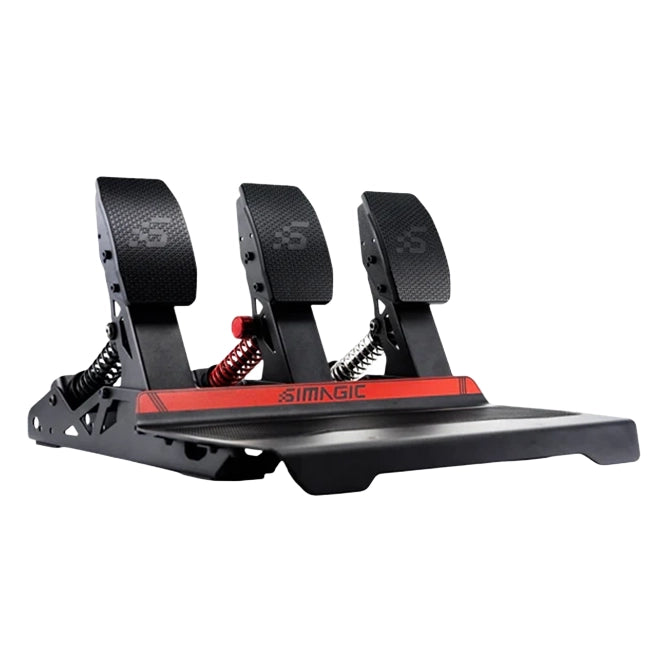

P700 3-Pedal Set

Pro-Grade Load Cell Braking. Dedicated Clutch. Complete Sim Racing Setup.

150KG Load Cell Dual Sensor System 35 Brake Settings Clutch Included Haptic Ready 24-Month Warranty SKU: SIMAGIC-P700-3PED

The Simagic P700 3-Pedal Set is a complete sim racing pedal solution combining a pro-grade throttle, load cell brake, and dedicated clutch pedal — everything you need for full immersion, right out of the box. Whether you're heel-toeing through corners or perfecting clutch kick launches, the P700 three-pedal setup gives you the control and feel of a real racing car.

At the core is a 150KG load cell brake paired with a Hall-effect angle sensor, combining force-based and travel-based sensing for braking that feels authentic to a real racing car. Full-Range Adaptive Sensing Technology automatically adjusts signal gain across the entire braking range, eliminating the vague light-input feel and heavy-input compression of traditional fixed-gain pedals. Configure every aspect of pedal response — curves, deadzones, haptic effects, and half-clutch engagement points — via the free SimPro Manager V3.0.0 software.

At a glance: 3-pedal set (throttle, brake + clutch) with 150KG load cell brake, 12-bit Hall-effect dual sensor system, Full-Range Adaptive Sensing Technology, 35 quick-change elastomer brake settings, dedicated clutch pedal, silicone heel plate, all-metal steel construction rated to 200KG, three-axis ergonomic adjustability, haptic module ready (P-HPR / P-HPR GT) — complete setup, no additional modules required.

Technical Specifications

Configuration
3-Pedal (Throttle, Brake + Clutch)
Main Material
High-Strength Steel
Heel Plate
Silicone
Sensor System
Dual — Hall Angle + Load Cell
Load Cell Range
150KG
Angle Sensor
12-Bit Hall-Effect
Brake Settings
35 Elastomer Configurations
Adjustability
Height, Angle, Module Spacing
Dimensions
358 × 413 × 218 mm
Net Weight
3.6 KG
Certifications
FCC, CE, RCM, RoHS, REACH, VCCI, EAC
Warranty
24 Months

Compatibility & Accessories

  • PC (USB HID — no drivers required)
  • Simagic Alpha Series Wheelbase (USB)
  • Simagic Alpha EVO Series Wheelbase (RJ45 or USB)
  • SimPro Manager V3.0.0 Software (free)
  • C-P700 Clutch Pedal (included)
  • P-HPR / P-HPR GT Haptic Pedal Reactors (sold separately)
  • P700-WM Wall Mount (sold separately)

P-HPR Haptic Pedal Reactors and P700-WM Wall Mount are sold separately.

Key Features

Brake & Throttle Technology

  • 150KG Load Cell Brake — measures applied force, not position, for true-to-track braking feel and consistent muscle memory
  • Hall-Effect Throttle Sensor — wear-free, zero dead-zone throttle input with smooth, precise response
  • Full-Range Adaptive Sensing — automatically adjusts signal gain across the braking range for predictable, repeatable inputs lap after lap
  • 35 Elastomer Configurations — coil springs and 55°/75° elastomers for quick-change pedal feel from road-car soft to TCR/GT4 race-spec stiff

Build, Ergonomics & Expandability

  • All-Metal Construction — high-strength steel frame rated to 200KG of pedal force for long-term rigidity
  • Silicone Heel Plate — anti-slip, barefoot-friendly surface that also conceals adjustment screws for a clean finish
  • Three-Axis Adjustability — independently adjust angle, height, and module spacing to suit any cockpit layout or seating position
  • Dedicated Clutch Pedal Included — full three-pedal setup ready out of the box; configure half-clutch engagement and bite points via SimPro Manager

What's in the Box

  • P700 Throttle Pedal
  • P700 Brake Pedal
  • C-P700 Clutch Pedal
  • Brake Performance Kit
  • Screw & Wrench Kit
  • Data Cable
  • USB Cable

P700-WM Wall Mount sold separately. P-HPR Haptic Pedal Reactors sold separately.

Sim Racing Compatibility

  • iRacing
  • Assetto Corsa
  • ACC
  • rFactor 2
  • F1 Series
  • Dirt Rally 2.0
  • BeamNG.drive
  • Gran Turismo 7
  • Any USB Controller

Connects as a standard USB HID device — no drivers required. Configure pedal curves, deadzones, calibration, and haptic effects via the free SimPro Manager V3.0.0 software.


Why Choose the Simagic P700?

🏁Pro-Grade Load Cell
⚙️Adaptive Sensing Tech
🔧35 Brake Settings
🦾Clutch Included
🦶Ergonomic Design
🛡️24-Month Warranty
🛡️
24-Month Warranty — Race with Confidence

Every Simagic P700 3-Pedal Set is backed by a 24-month warranty from the date of purchase, covering parts and labour. Lifetime online technical support and free firmware updates are included for the life of the product.

Player1 Sim Gear logo

Authorised Partner

Player1 Sim Gear is an official partner for Simagic products in Australia. Buy with confidence knowing you're purchasing genuine Simagic hardware from an official partner — with local support and backed by the full 24-month Simagic warranty.

The Simagic P700 2-Pedal Set (Throttle + Brake) delivers pro-grade 150KG load cell braking and Hall-effect throttle control at an accessible price point. Start here and expand to a full 3-pedal setup any time with the optional C-P700 clutch module.

Technical Specifications

Configuration 2-Pedal (Throttle + Brake)
Main Material High-Strength Steel
Heel Plate Material Silicone (anti-slip, barefoot-friendly)
Sensor System Dual — 12-Bit Hall-Effect Angle Sensor + 150KG Load Cell
Load Cell Range 150KG Brake
Angle Sensor Resolution 12-Bit (4,096 steps)
Brake Settings 35 elastomer + spring configurations
Spring Types Coil springs (multiple stiffness levels)
Elastomer Types 55° and 75° elastomers with compression springs
Pedal Adjustability Height, angle, module spacing (3-axis)
Max Pedal Force Rated 200KG

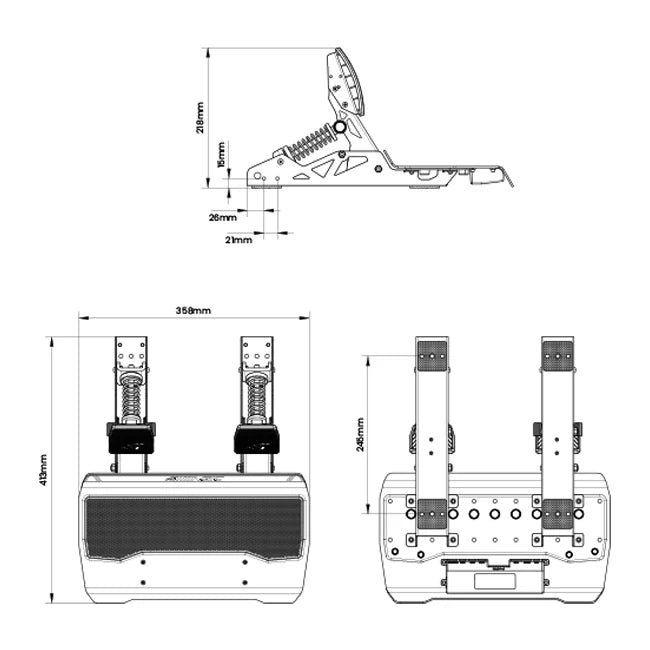

Dimensions 358 × 413 × 218 mm
Net Weight 3.6 KG
Connection USB (PC) / RJ45 or USB (Alpha EVO Series) / USB (Alpha Series)
Software SimPro Manager V3.0.0 (free)
Mounting Floor (rubber feet + carpet spikes), wall (optional P700-WM), rig / cockpit, inverted
Haptic Compatibility P-HPR, P-HPR GT (sold separately)
Expandable Yes — add C-P700 clutch to create 3-pedal set (sold separately)
Certifications FCC, CE, RCM, RoHS, REACH, VCCI, EAC
Warranty 24 Months (parts and labour)

Sensing Technology

Load Cell Mode (Brake)

Sensor Type Strain gauge load cell
Measures Applied force
Capacity 150KG
Best For Rigid rig / cockpit mounting, stiffer elastomers, race-style braking
Feel Progressive, force-based — mirrors real vehicle brake behaviour

Hall Sensor Mode (Throttle & Brake Travel)

Sensor Type Hall-effect angle sensor
Measures Pedal travel (angle)
Resolution 12-Bit (4,096 steps)
Best For Floor use, softer elastomers, road-car style feel
Feel Smooth, progressive travel — no wear, no dead zones

What's in the Box

P700 Throttle Pedal
P700 Brake Pedal
Brake Performance Kit
Screw & Wrench Kit
Data Cable
USB Cable

C-P700 Clutch Pedal, P700-WM Wall Mount, and P-HPR Haptic Modules sold separately.

Certifications & Compliance

FCC CE RCM RoHS REACH VCCI EAC

The Simagic P700 3-Pedal Set (Throttle, Brake + Clutch) is a complete sim racing pedal solution ready out of the box. Includes the C-P700 clutch module — no additional purchases needed for a full three-pedal setup.

Technical Specifications

Configuration 3-Pedal (Throttle, Brake + Clutch)
Main Material High-Strength Steel
Heel Plate Material Silicone (anti-slip, barefoot-friendly)
Sensor System Dual — 12-Bit Hall-Effect Angle Sensor + 150KG Load Cell
Load Cell Range 150KG Brake
Angle Sensor Resolution 12-Bit (4,096 steps)
Brake Settings 35 elastomer + spring configurations
Spring Types Coil springs (multiple stiffness levels)
Elastomer Types 55° and 75° elastomers with compression springs
Clutch Pedal C-P700 — Hall-effect sensor, adjustable resistance, half-clutch engagement configurable via SimPro Manager
Pedal Adjustability Height, angle, module spacing (3-axis)
Max Pedal Force Rated 200KG
Dimensions 358 × 413 × 218 mm (base unit)
Net Weight 3.6 KG (base) + C-P700 clutch weight
Connection USB (PC) / RJ45 or USB (Alpha EVO Series) / USB (Alpha Series)
Software SimPro Manager V3.0.0 (free)
Mounting Floor (rubber feet + carpet spikes), wall (optional P700-WM), rig / cockpit, inverted
Haptic Compatibility P-HPR, P-HPR GT (sold separately)
Certifications FCC, CE, RCM, RoHS, REACH, VCCI, EAC
Warranty 24 Months (parts and labour)

C-P700 Clutch Pedal — Included

Sensor Type Hall-effect angle sensor
Resistance Adjustable spring resistance
Half-Clutch Engagement Configurable via SimPro Manager V3.0.0
Bite Point Control Yes — software configurable
Connection Direct plug-in to P700 pedal set
Haptic Compatible Yes (P-HPR / P-HPR GT)

What's in the Box

P700 Throttle Pedal
P700 Brake Pedal
C-P700 Clutch Pedal
Brake Performance Kit
Screw & Wrench Kit
Data Cable
USB Cable

P700-WM Wall Mount and P-HPR Haptic Modules sold separately.

Certifications & Compliance

FCC CE RCM RoHS REACH VCCI EAC

Both configurations share the same core hardware — same load cell, same sensors, same build quality and adjustability. The only difference is whether the C-P700 clutch pedal is included.
Feature P700 — 2-Pedal Set P700 — 3-Pedal Set
Throttle Pedal
Brake Pedal
Clutch Pedal (C-P700) Sold separately Included
150KG Load Cell
12-Bit Hall-Effect Sensor
Full-Range Adaptive Sensing
35 Brake Settings
High-Strength Steel Build
Silicone Heel Plate
3-Axis Adjustability
Haptic Module Ready
Half-Clutch Engagement Via SimPro Manager
SimPro Manager V3.0.0
Floor / Rig / Wall Mounting
PC USB Compatible
Simagic Alpha EVO Compatible
Warranty 24 Months 24 Months
Expandable to 3 Pedals Add C-P700 Already complete

Both sets use identical core hardware. The 3-pedal set is the better choice if you know you want a clutch now. The 2-pedal set is ideal if you want to start smaller and upgrade when ready.


Answers to the most common questions about the Simagic P700 Pedal Set. Can't find what you're looking for? Contact Player1 Sim Gear — Australia's official Simagic partner.
The 2-pedal set includes a throttle and brake pedal. The 3-pedal set adds the C-P700 clutch pedal, making it a complete throttle, brake, and clutch configuration ready out of the box. Both share the same 150KG load cell brake, dual sensor system, and adjustability features. If you already own the 2-pedal set, you can add the C-P700 clutch at any time without replacing any hardware.
Yes. The C-P700 clutch module plugs directly into the P700 pedal set. You can start with the 2-pedal configuration and add the clutch at any time without replacing any existing hardware. It's designed as a modular system from the ground up.
Full-Range Adaptive Sensing Technology is Simagic's proprietary signal processing system that dynamically adjusts gain across your entire braking range. Traditional fixed-gain pedals make light inputs feel vague and over-compress heavy inputs. The P700 solves this by identifying your real braking force window during calibration and applying the optimal amplification at each force level while driving — so every input is predictable, repeatable, and consistent lap after lap.
Load cell mode measures the force you apply to the pedal, not its physical travel. This mirrors how real vehicle braking works and is recommended for rigid cockpit or rig mounting with stiffer elastomers. It helps build accurate and repeatable muscle memory.

Hall sensor (angle) mode measures pedal travel and is recommended for floor use with softer elastomers, delivering a more progressive, passenger-car style feel. Both sensors are active simultaneously — you choose which output drives your braking input via SimPro Manager.
The 35 settings refer to the quick-change elastomer and spring combinations for the brake pedal. These include coil springs in multiple stiffness levels and 55° and 75° elastomers used with compression springs. They range from soft, long-travel setups suited to casual or road-car style driving, through to stiff, short-travel race-spec configurations suitable for GT4 and TCR-style braking.

Changing the setting is a simple mechanical adjustment — no tools required for elastomer swaps. The included Brake Performance Kit contains the necessary elastomers and springs.
The P700 connects to PC via standard USB HID — no drivers required, compatible with any game that accepts USB controller input. It also connects to Simagic Alpha Series wheelbases via USB and to Simagic Alpha EVO Series wheelbases via RJ45 or USB.

Compatible simulators include iRacing, Assetto Corsa, Assetto Corsa Competizione, rFactor 2, Gran Turismo 7, F1 Series, Dirt Rally 2.0, BeamNG.drive, and any title supporting USB HID input.
No. The P700 includes rubber anti-slip feet and carpet spike inserts for stable floor use. An optional P700-WM wall mount is available for wall-supported setups. The pedals also support rig mounting via standard profile frames and inverted installation for dedicated sim cockpit builds.
The P700 is compatible with the P-HPR Linear Haptic Pedal Reactor and the P-HPR GT Linear Haptic Pedal Reactor (both sold separately). These modules mount directly to the pedal set and provide real-time tactile feedback for ABS activation, gear shifts, wheel slip, wheel lock, traction control, and half-clutch engagement. Effects are fully configurable via SimPro Manager V3.0.0.
SimPro Manager V3.0.0 (free download) lets you:

— Calibrate pedal force input and travel range
— Adjust output curves and deadzones per pedal
— Configure telemetry-based haptic effects (ABS, TC, wheel slip, gear shift, half-clutch)
— Set half-clutch engagement point and bite point
— Create and save pedal profiles linked to specific cars or simulators
— Switch between load cell and Hall sensor modes on the brake
— Update firmware
Every Simagic P700 purchased from Player1 Sim Gear is covered by a 24-month warranty from the date of purchase, covering parts and labour. Lifetime online technical support and free firmware updates are included for the life of the product.

Player1 Sim Gear is Australia's official Simagic partner — buy with confidence knowing you have local support backed by the full Simagic warranty.
The Simagic P700 meets the following international safety and EMC standards: FCC (USA), CE (Europe), RCM (Australia/New Zealand), RoHS, REACH, VCCI (Japan), and EAC (Eurasian Customs Union).
