Simagic P1000-F Modular Pedals

No review yet. Write Review
Regular price
$749.00
Regular price
$799.00
Sale price
$749.00
Tax included. Shipping calculated at checkout.

Vendor : Simagic

Product Type : Pedals

Sku : SMG-PD2-1000

Brake
Secure Purchase Secure Purchase
Free Shipping Free Shipping
Satisfaction Guarantee Satisfaction Guarantee
Manufacturer Warranty Manufacturer Warranty

Simagic · P1000 · Two-pedal set

Simagic P1000-F Modular PedalsThrottle and brake on the P1000 baseplate, now available with a hydraulic brake.

The P1000-F is the two-pedal version of Simagic's modular P1000: a throttle and a load cell brake that you can tune with swappable rubber pads and springs, then build on with a clutch, haptics or lighting when you are ready. Choose the Standard version, or the Hydraulic version (P1000-FRS) with the Simagic P-HYS hydraulic braking system for the damping and rebound of a real car's brake. Available from Player1 Sim Gear, your authorised Simagic dealer in Australia, shipping Australia-wide.

Simagic P1000-FRS modular pedals with the P-HYS hydraulic brake fitted, red Keep Racing heel plate on a black baseplate
2 pedalsthrottle + brake
27,648feel combinations
Load cell / Hallswitchable brake sensor
Hydraulic optionP-HYS brake fitted
Modularadd clutch, haptics, lighting
Local supportauthorised Simagic dealer

Before you order

This is a two-pedal set: throttle plus brake. A clutch is not included.

Pick Hydraulic above if you want the P-HYS hydraulic brake in the box, or Standard for the P1000 elastomer brake (you can add P-HYS later). Want three pedals from day one? The Simagic P1000 includes a clutch, or add the P1000 Clutch Pedal to this set. For hanging pedals, see the inverted P1000i. Not sure which suits your rig? Call us on 0488 385 870 and we will check it with you.

A tunable two-pedal set that you can keep upgrading.

Hydraulic Brake Option

The Hydraulic version adds Simagic's P-HYS system, built for the P1000, to recreate the damping and rebound you feel through a real car's brake.

Load Cell or Hall Sensor

Switch the brake between a load cell, which reads pressure for short race-car travel, and a Hall angle sensor, which reads position for longer road-car travel.

27,648 Feel Combinations

Swappable rubber pads and springs let you build a brake feel that suits you, and change it when you change cars or seating position.

Adjust Everything

Pedal spacing, height, pitch angle and stroke are all adjustable, and the throttle can be set from light to heavy.

Modular Upgrades

Add a clutch, the P-HTS hydraulic throttle, P-HPR haptic reactors or the RGB heel stop as your setup grows.

Simple Installation

An integrated baseplate design keeps setup straightforward, so you spend less time fitting and more time driving.

What you get, and how to make it yours

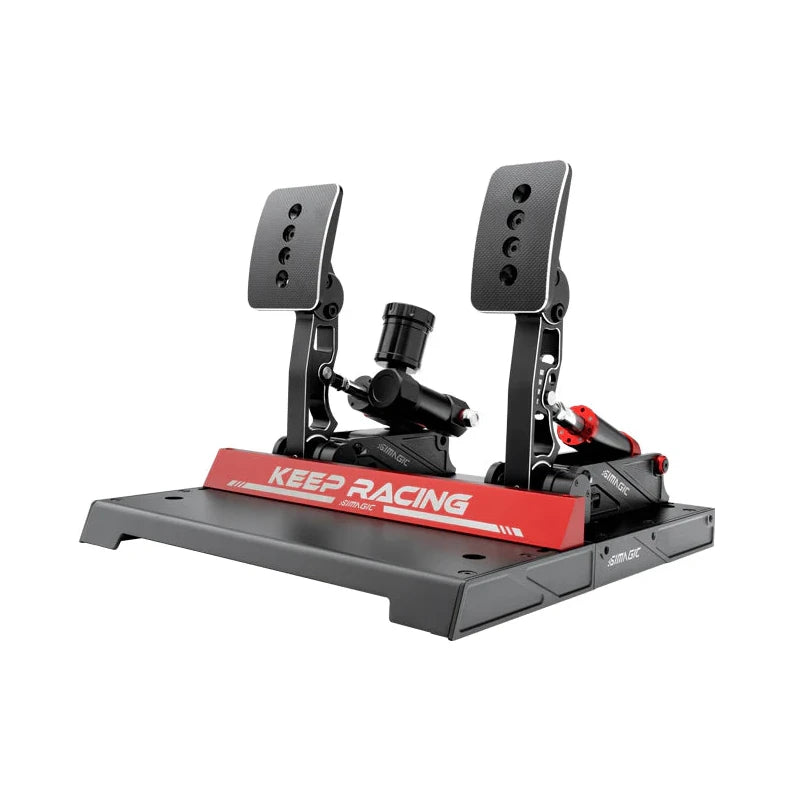

Simagic P1000-F pedals with the P-HYS hydraulic brake cylinder and reservoir fitted to the brake pedal

Hydraulic version (P1000-FRS)

Real brake damping, built in

The Hydraulic version pairs the P1000-F with the Simagic P-HYS hydraulic braking system. Instead of only compressing an elastomer stack, the brake pushes through a hydraulic cylinder, giving the progressive damping and rebound of a real car's brake.

  • Made for the P1000: P-HYS is Simagic's own hydraulic system for this platform.
  • Better value as a set: costs less than the Standard version plus P-HYS bought separately.
  • Already own the Standard? P-HYS can be added later as an upgrade.

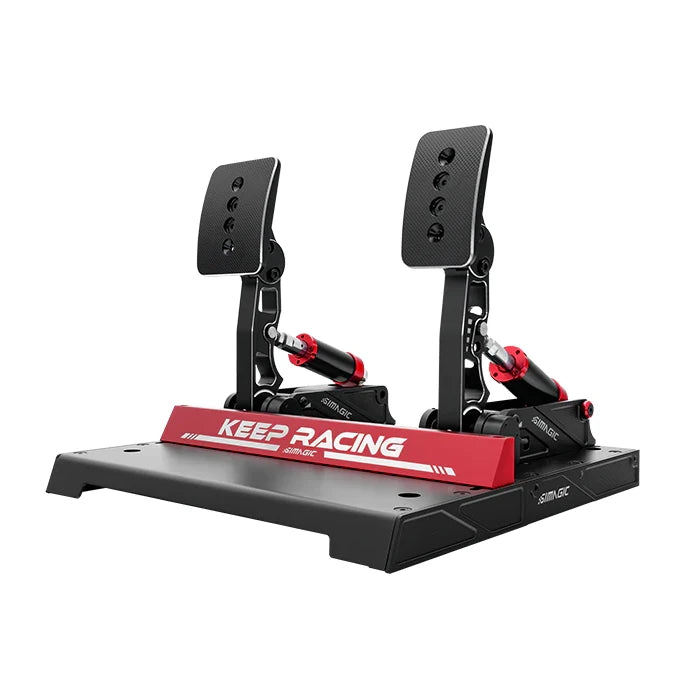

Simagic P1000-F modular pedals, rear three-quarter view showing the load cell and adjustment points

Precise control

Load cell or Hall sensor, your choice

The P1000 brake can switch between a load cell and a Hall angle sensor. Use the load cell for race cars with short, firm travel, where braking follows how hard you push. Use the Hall sensor for road cars with longer travel, where pedal position matters more.

  • Pressure-based braking for consistent threshold braking lap after lap.
  • Position-based option for long-travel road-car feel.
  • Switch freely to suit the car you are driving.

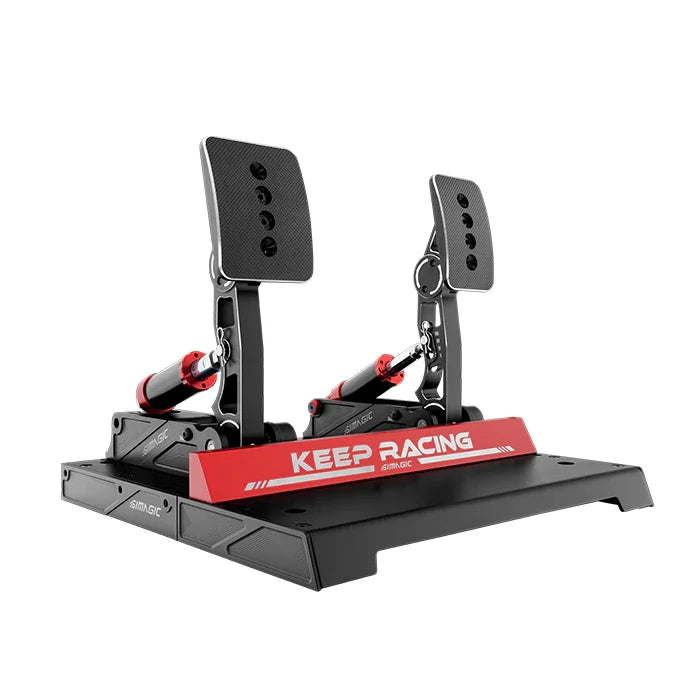

Simagic P1000-F modular pedals, front-right three-quarter view of the throttle and brake on the baseplate

Modular tuning

Build the feel that suits you

Swappable rubber pads and springs give up to 27,648 combinations, so you can make the brake as soft or as firm as you like. For even more options, the P1000 Brake Upgrade Kit adds extra springs, rubbers and polyurethane pieces.

  • Adjustable spacing and height to line the pedals up with your feet.
  • Pitch angle and stroke to suit your seating position.
  • Throttle strength from light to heavy.

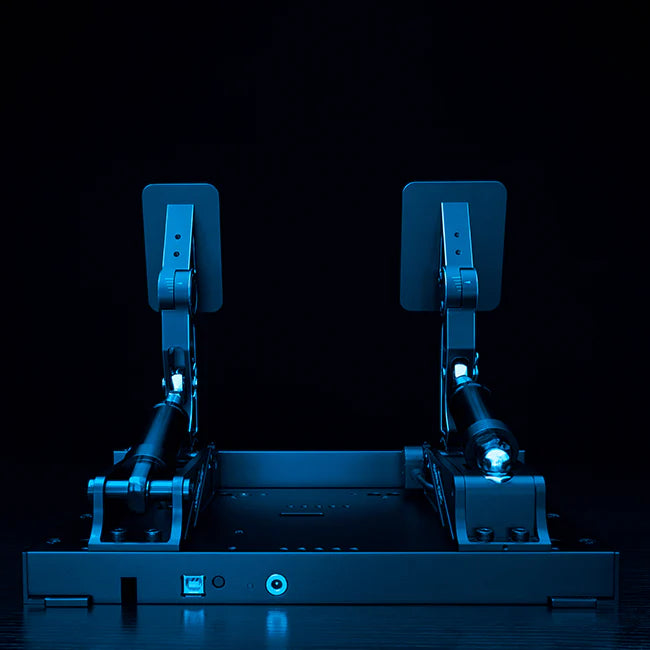

Simagic P1000-F modular pedals, dark studio shot with blue backlighting

Upgrade path

Start with two pedals, build from there

The P1000-F is part of Simagic's modular P1000 system, so the pedals you buy today can keep improving.

What works with the P1000-F

Add-on or setup Supported Notes
P-HYS hydraulic brake Yes Included with the Hydraulic version. Can be added to the Standard version later.
P1000 Clutch Pedal Yes Adds a third pedal to the set.
P-HTS hydraulic throttle Yes 6-step adjustable throttle damper.
P-HPR haptic reactor Yes Needs the Simagic Power Supply. One supply runs up to three P-HPR units plus the heel stop and light bar.
RGB heel stop (P-SRH) Yes Telemetry lighting, for example red on the brake and green on the throttle. Needs the power supply.
Inverted (hanging) mounting No For inverted pedals, see the Simagic P1000i and its inverted P-HYS.
Consoles No PC only.

Because the pedals connect to the PC, they can sit alongside a Simagic, MOZA, Fanatec, Simucube or other wheelbase. If you want us to confirm mounting for your exact cockpit, call us on 0488 385 870.

Technical specifications

Simagic P1000-F Modular Pedals specifications

ModelSimagic P1000-F (two-pedal set)
VersionsStandard, or Hydraulic (P1000-FRS) with the P-HYS hydraulic braking system
Pedals includedThrottle and brake
Brake sensorLoad cell or Hall angle sensor, switchable
Brake feel tuningSwappable rubber pads and springs, up to 27,648 combinations
AdjustmentsPedal spacing, pedal height, pitch angle, pedal stroke, throttle strength (light to heavy)
Hydraulic brake (Hydraulic version)Simagic P-HYS, recreates real brake damping and rebound
Optional add-onsP1000 clutch, P-HTS hydraulic throttle, P-HPR haptic reactor, RGB heel stop (P-SRH), Brake Upgrade Kit
PlatformPC
Player1 SKUSMG-PD2-1000 (Standard), SMG-PD2-1000HYS (Hydraulic)

In the box

  • Simagic P1000-F throttle and brake pedals
  • P1000 baseplate
  • Simagic P-HYS hydraulic braking system (Hydraulic version only)

Not included: a clutch pedal, haptic reactors, RGB heel stop or power supply. These are sold separately.

Simagic P1000-F Modular Pedals FAQ

The basics

What is the Simagic P1000-F?
The P1000-F is the two-pedal version of Simagic's modular P1000 pedals: a throttle and a brake on the P1000 baseplate. It uses the same modular design as the three-pedal Simagic P1000, so you can tune the feel with swappable rubber pads and springs and add a clutch or upgrades later.
What is the difference between the Standard and Hydraulic versions?
The Standard version has the P1000's elastomer and spring brake. The Hydraulic version, the P1000-FRS, comes with the Simagic P-HYS hydraulic braking system, which recreates the damping and rebound of a real car's hydraulic brake. Choosing the Hydraulic version costs less than buying the Standard set and the P-HYS separately.
Does the P1000-F include a clutch?
No. It is a two-pedal set, throttle plus brake. You can add the Simagic P1000 Clutch Pedal at any time if you want three pedals. If you already know you want a clutch, the three-pedal Simagic P1000 may suit you better.
Can I switch between load cell and Hall sensor?
Yes. The P1000 lets you switch freely between the load cell sensor and the Hall angle sensor. A load cell suits race cars with short, firm brake travel, because it reads how hard you push. The Hall sensor reads pedal position and suits road cars with longer travel.
How many ways can I tune the pedal feel?
Simagic quotes up to 27,648 combinations from the P1000's swappable rubber pads and springs, plus adjustable pedal spacing, height, pitch angle and stroke, and a light-to-heavy throttle setting. The P1000 Brake Upgrade Kit adds more springs, rubbers and polyurethane pieces if you want to go further.

Upgrades and setup

Can I add the hydraulic brake later?
Yes. If you buy the Standard version, the P-HYS hydraulic braking system can be added later as an upgrade. Buying the Hydraulic version up front works out cheaper than buying them separately.
Is there a hydraulic throttle too?
Yes. The Simagic P-HTS Hydraulic Throttle System is sold separately and adds a 6-step adjustable damper to the throttle for smoother, more controlled corner exits.
Do the add-ons need a power supply?
The haptic and lighting add-ons do. If you add the P-HPR haptic reactor or the RGB heel stop, you also need the Simagic Power Supply. One power supply runs all of them, up to three P-HPR units plus the heel stop and light bar. The P-HYS hydraulic brake does not need power.
Will it work with the inverted P1000i?
The P1000-F is an upright (floor-mounted) pedal set. If you want hanging, inverted pedals, look at the Simagic P1000i instead, which has its own inverted hydraulic brake, the P1000i P-HYS.
Does it work on PlayStation or Xbox?
No. The Simagic P1000 pedals are designed for PC sim racing.
