Playmax Flight Simulation Chair and Stand

Regular price
$599.00
Regular price
Sale price
$599.00
Tax included. Shipping calculated at checkout.

Vendor : Playmax

Product Type : Flight Cockpit

Sku : PFSC

Secure Checkout Secure Checkout
5 Star Service 5 Star Service
Phone Support Phone Support
Manufacturer Warranty Manufacturer Warranty

Playmax · PFSC · Flight Simulator Cockpit

Playmax Flight Simulation Chair and Stand

Seat, frame and every mounting plate in one box.

Most people building a first flight rig end up buying a stand, then a seat, then a set of mounts, and spending more than they meant to. The Playmax Flight Simulation Chair and Stand is the whole cockpit in a single purchase: a powder-coated steel frame with twin side plates for a HOTAS, a height-adjustable top plate for a yoke, wheel or centre-mount stick, an angle-adjustable pedal plate, and a reclining PU leather seat on a 180 mm slide. It supports pilots from 130 cm to 200 cm and up to 100 kg, and it takes a wheel base up to 12 N·m if you want to race on it as well. Stocked in Queensland and shipped Australia-wide.

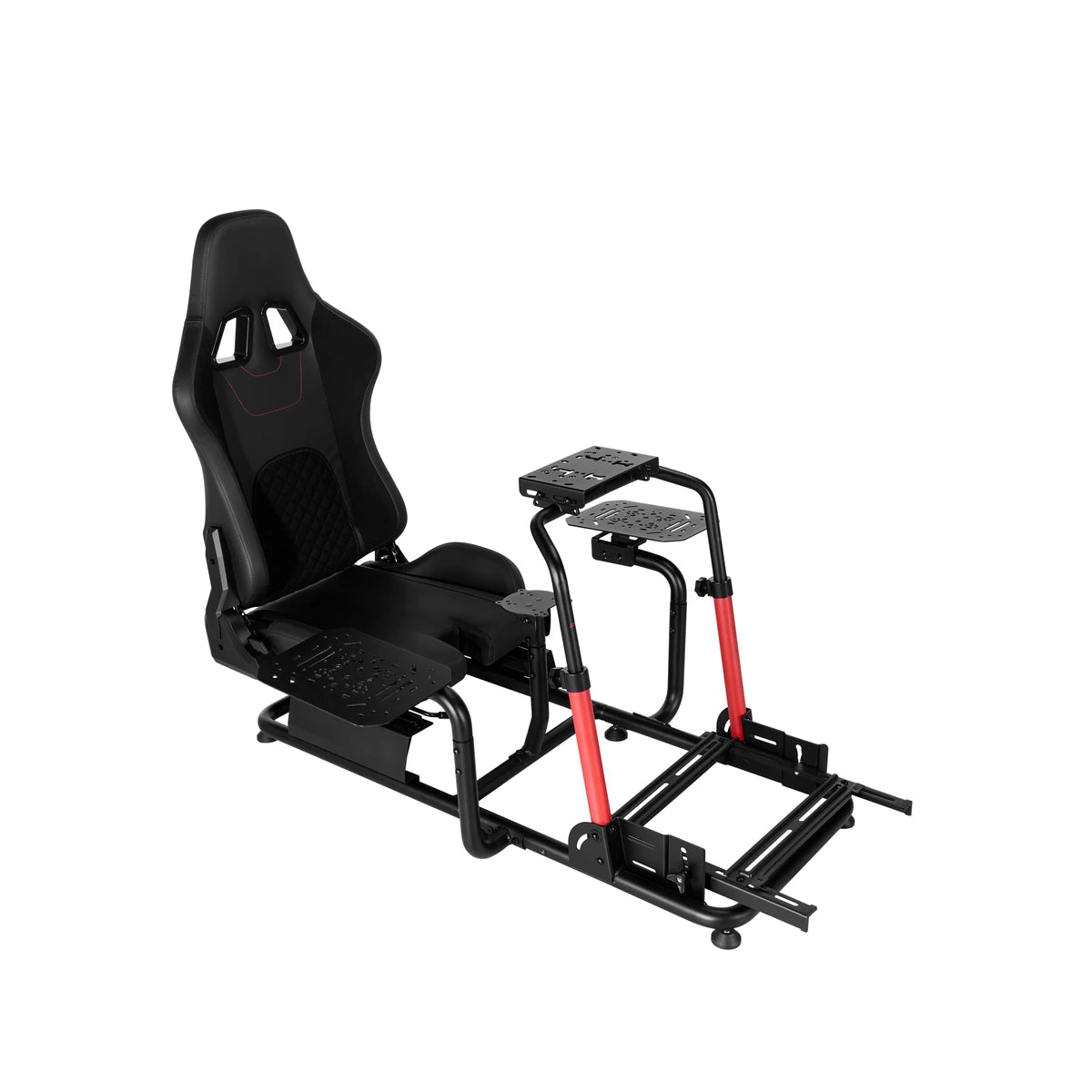

Playmax Flight Simulation Chair and Stand, complete cockpit with reclining seat and adjustable control plates
12 N·mmax wheel base torque
100 kgmax user weight
130 to 200 cmrecommended height
45° to 90°seat back tilt
180 mmseat slide travel

A complete flight position, not a stand you still have to finish.

Chair and Stand Together

The reclining seat, the steel frame and the mounting plates ship as one product with the hardware to bolt them together. There is no separate seat, seat bracket or mount kit to work out and buy afterwards.

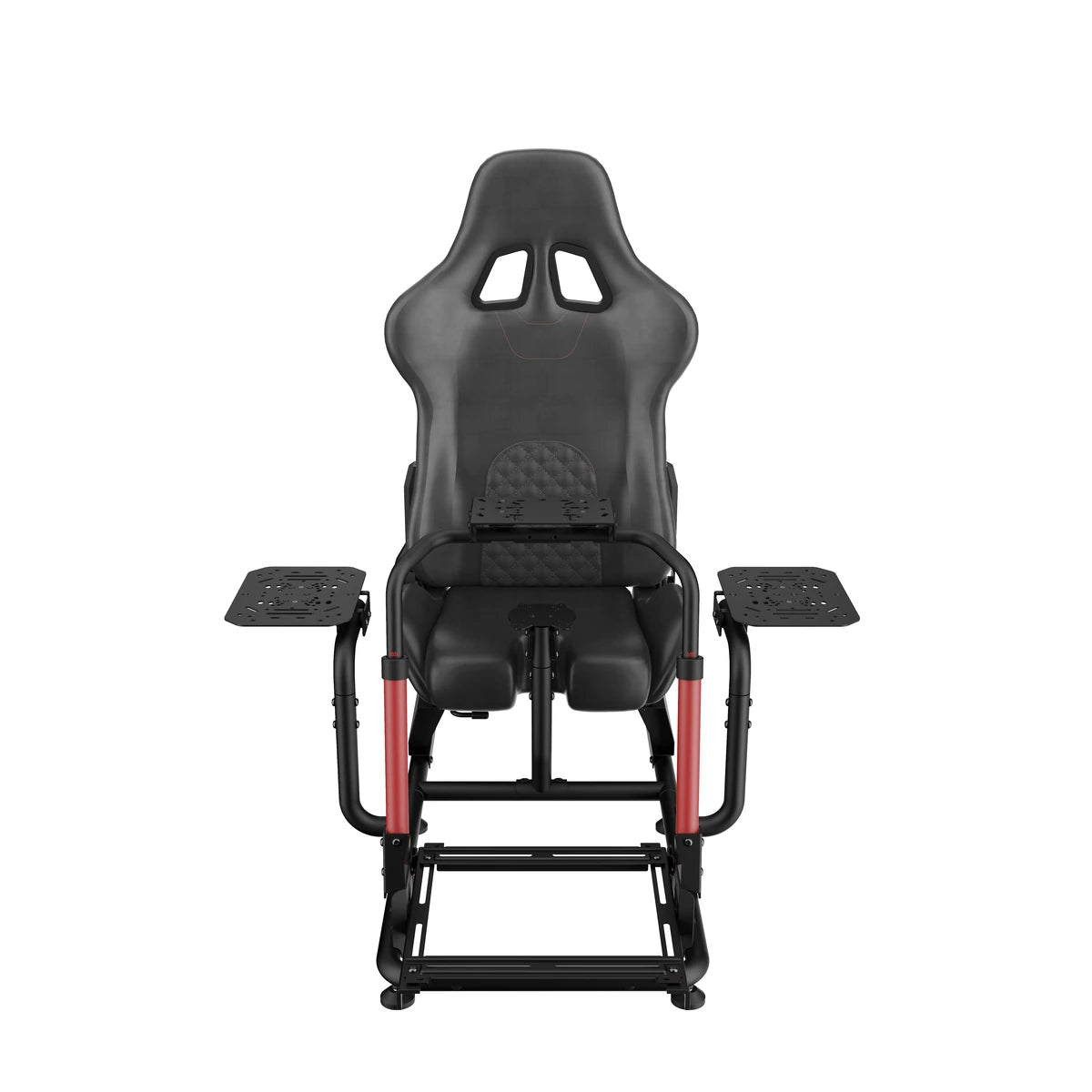

Twin Side Plates for a HOTAS

Separate plates either side of the seat put a joystick under your right hand and a throttle under your left, at armrest height, instead of leaving both sitting on a desk in front of you.

Five-Position Control Panel Tilt

The front control panel tilts through five fixed detents, from 29 degrees forward to 29 degrees back, so a yoke, a wheel base or a centre-mount stick sits at the angle you actually fly or drive at.

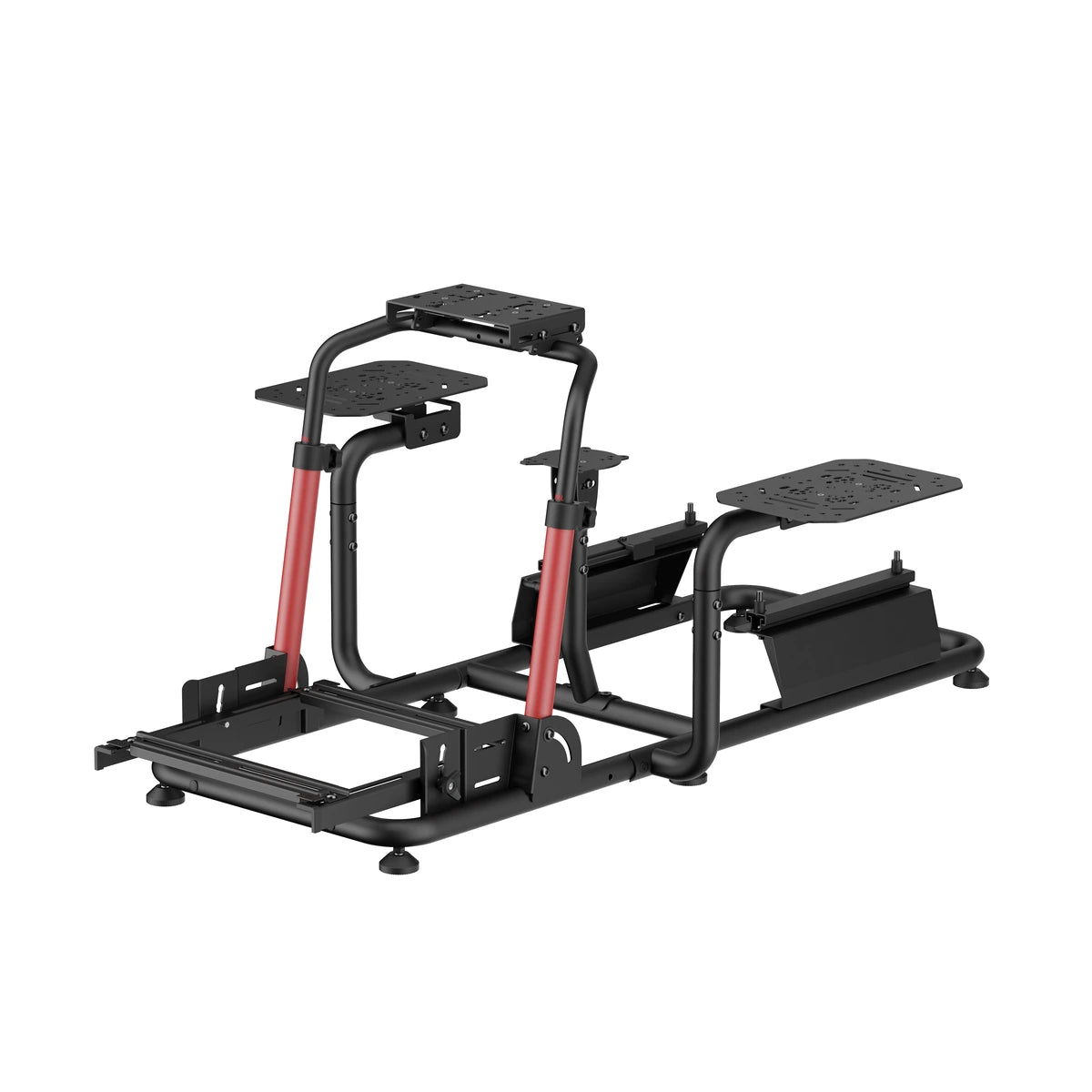

Three-Position Pedal Plate

The pedal plate sets flat, at 7.5 degrees or at 15 degrees. Flat suits rudder pedals; the raised positions suit a racing pedal set where you want your heels planted and your ankle angle comfortable.

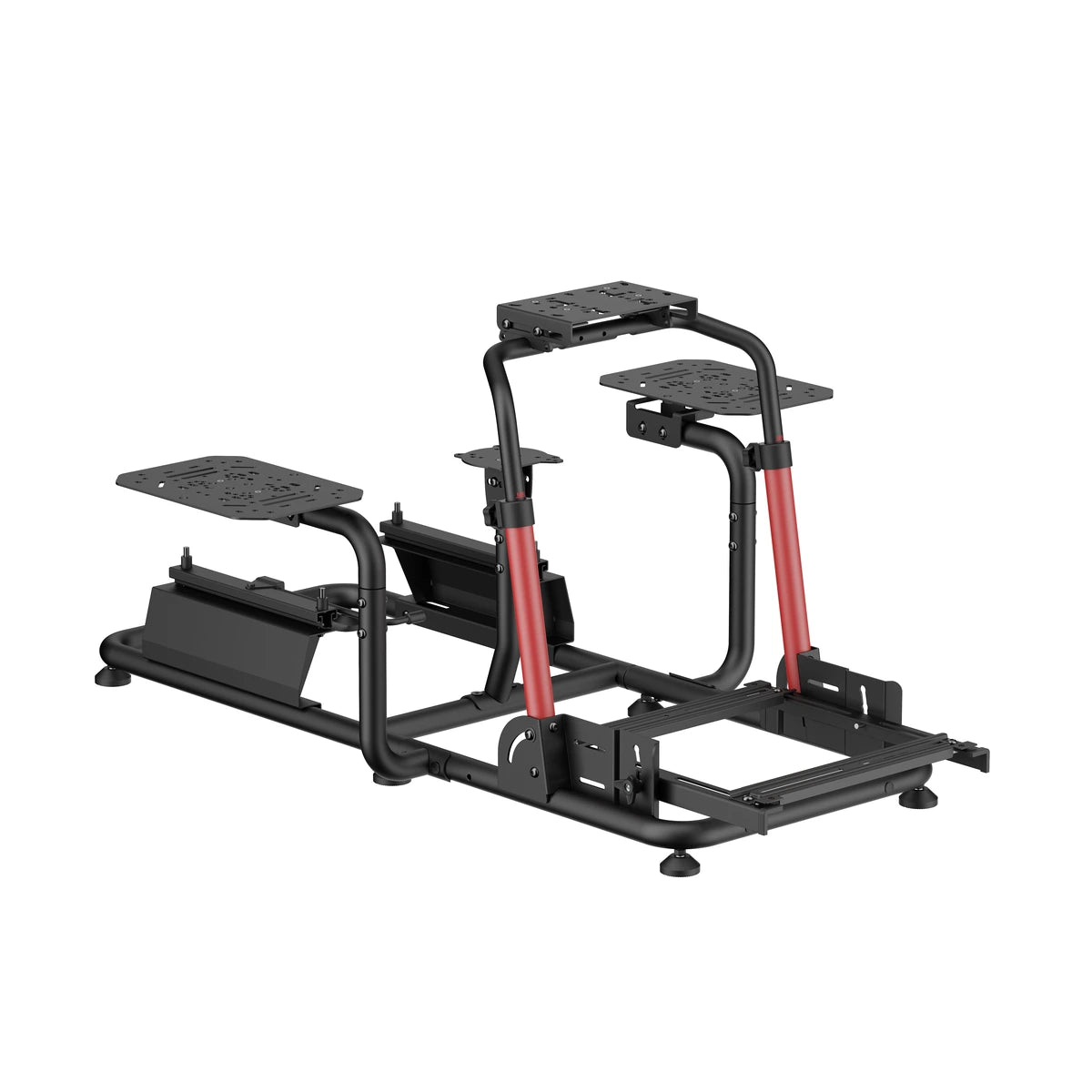

Powder-Coated Steel Frame

A fixed steel tube frame in fine-texture black with red uprights, on adjustable feet. Fixed geometry means there is nothing to re-tighten between sessions, which is the usual weak point of folding wheel stands.

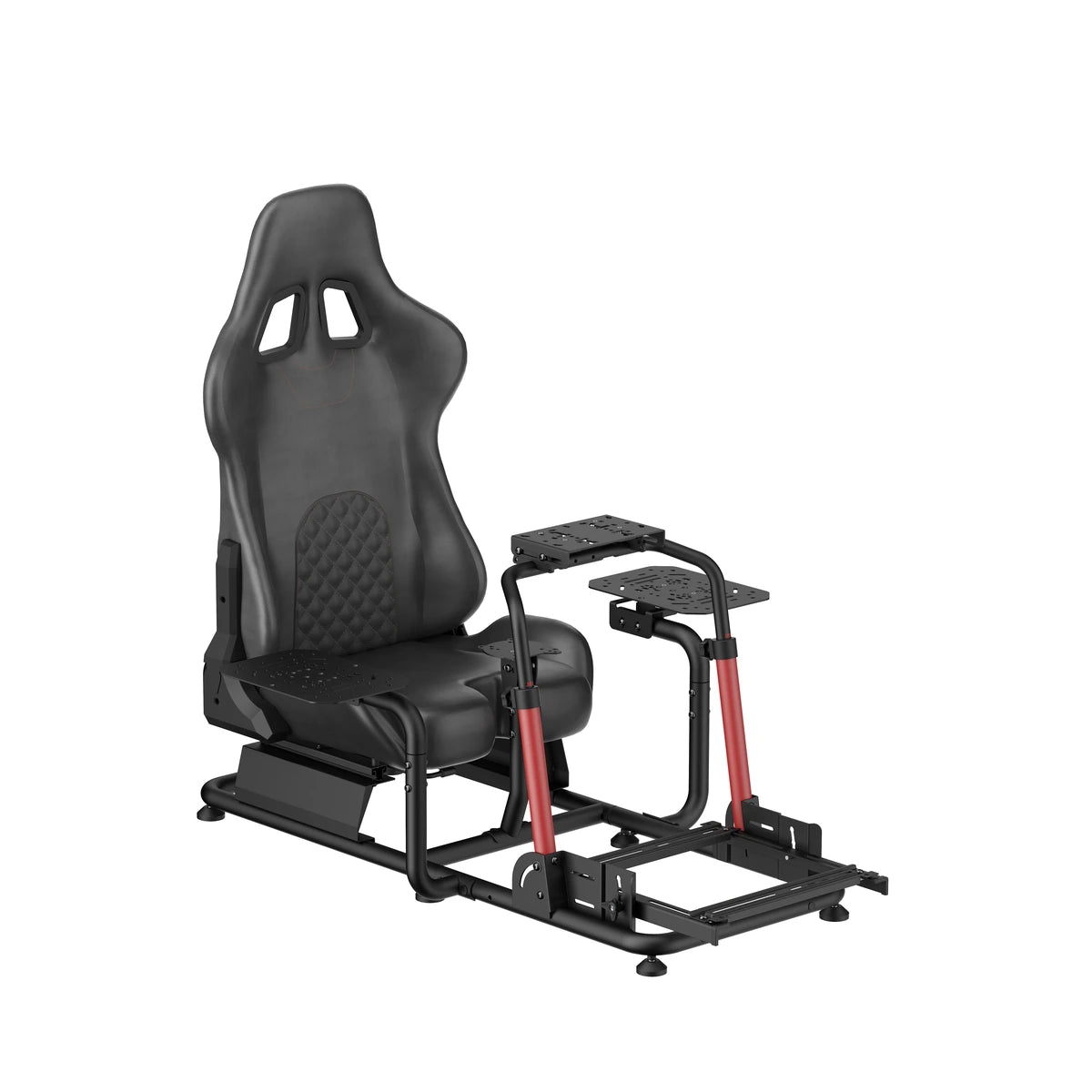

Reclining Seat on a 180 mm Slide

The PU leather seat reclines from 45 to 90 degrees and slides 180 mm fore and aft. That covers an upright airliner posture, a reclined fighter position and a laid-back GT driving position on the same rig.

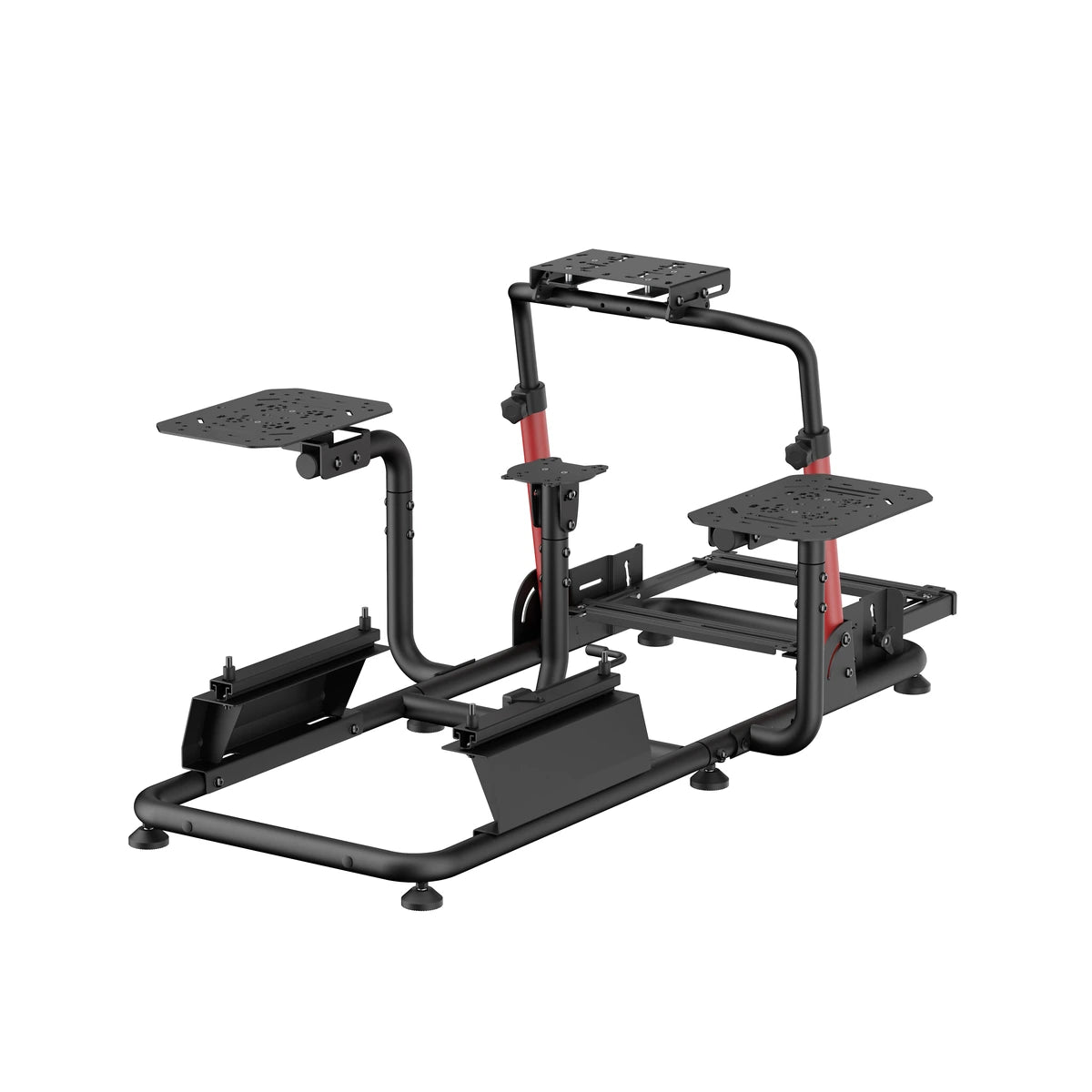

What bolts where

The frame carries four separate mounting surfaces, each pre-drilled with a multi-hole pattern and each adjustable independently. That is what lets one cockpit cover a HOTAS flight setup, a yoke-and-rudder GA setup and a wheel-and-pedals racing setup without re-building anything.

Position What it is for Adjustment
Top control panel A yoke, a wheel base, or a centre-mount flight stick Height adjustable on the uprights, tilt at +29° / +14.5° / 0° / -14.5° / -29°
Twin side plates A HOTAS pair: joystick on the right, throttle on the left Each plate sets its own height and angle on its own arm

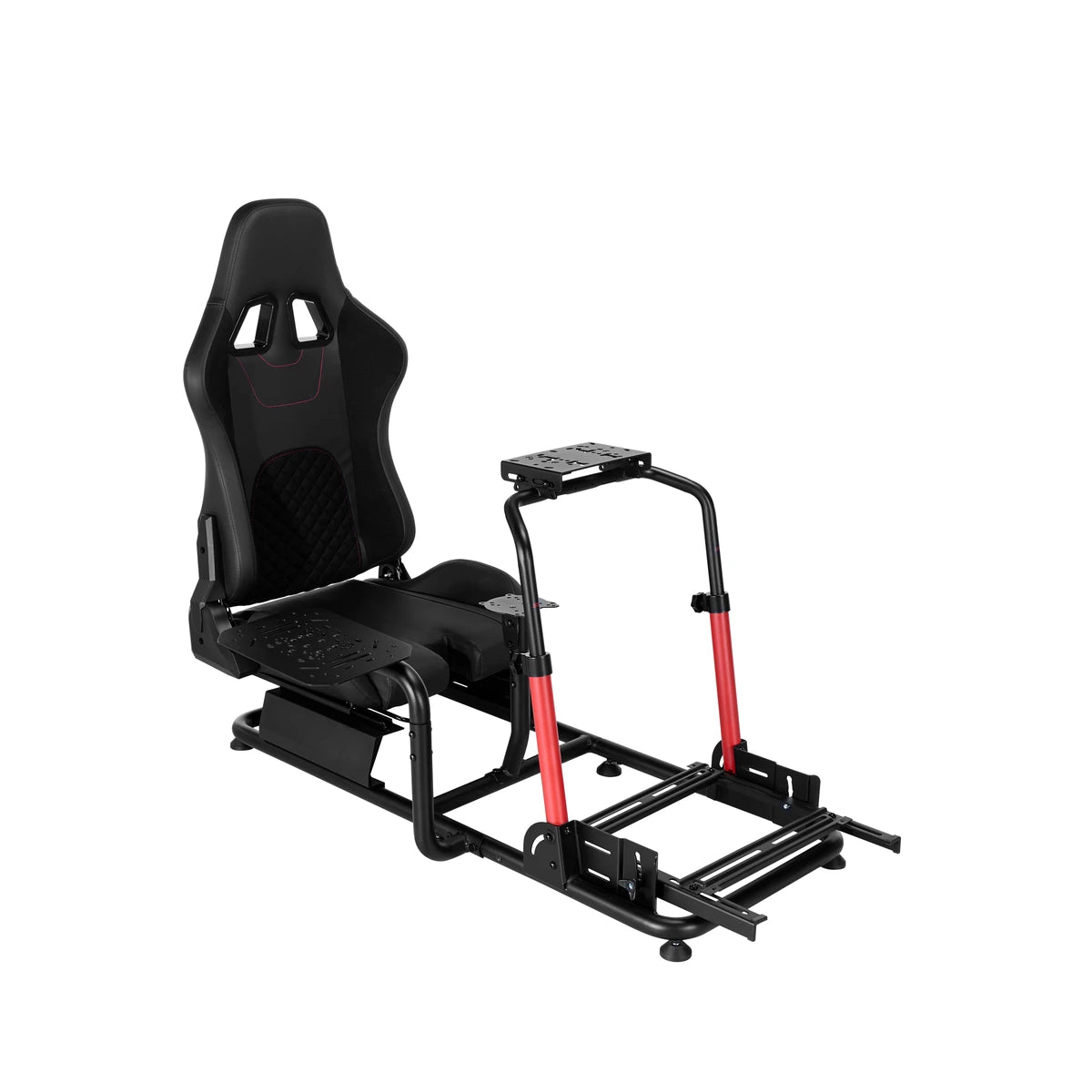

Centre plate A centre-mount flight stick, between the knees Sits on the forward frame ahead of the seat
Pedal plate Rudder pedals, or a racing pedal set Tilt at 0° / +7.5° / +15°, plus fore and aft position on the rails

The plates use generic multi-hole patterns rather than one brand's bolt spacing, so most mainstream flight and racing hardware will line up, but we would rather check than guess. Tell us the exact stick, throttle, yoke, pedals or wheel base you are mounting and we will confirm the fit before you order. Call 0488 385 870 or send us a message. There is no monitor mount on this frame, so if you want a screen on the rig, pair it with a separate monitor stand.

Seat, panel and pedals all move independently.

Fit is the difference between a rig you use every night and one you stop sitting in. On this cockpit the seat back angle, the seat fore and aft position, the control panel angle and the pedal plate angle are four separate adjustments, so a 130 cm junior pilot and a 200 cm adult can both find a position on the same frame. The side plates then move independently on their own arms, which is what lets you set a genuine HOTAS position rather than reaching forward for a stick clamped to the front of a wheel stand.

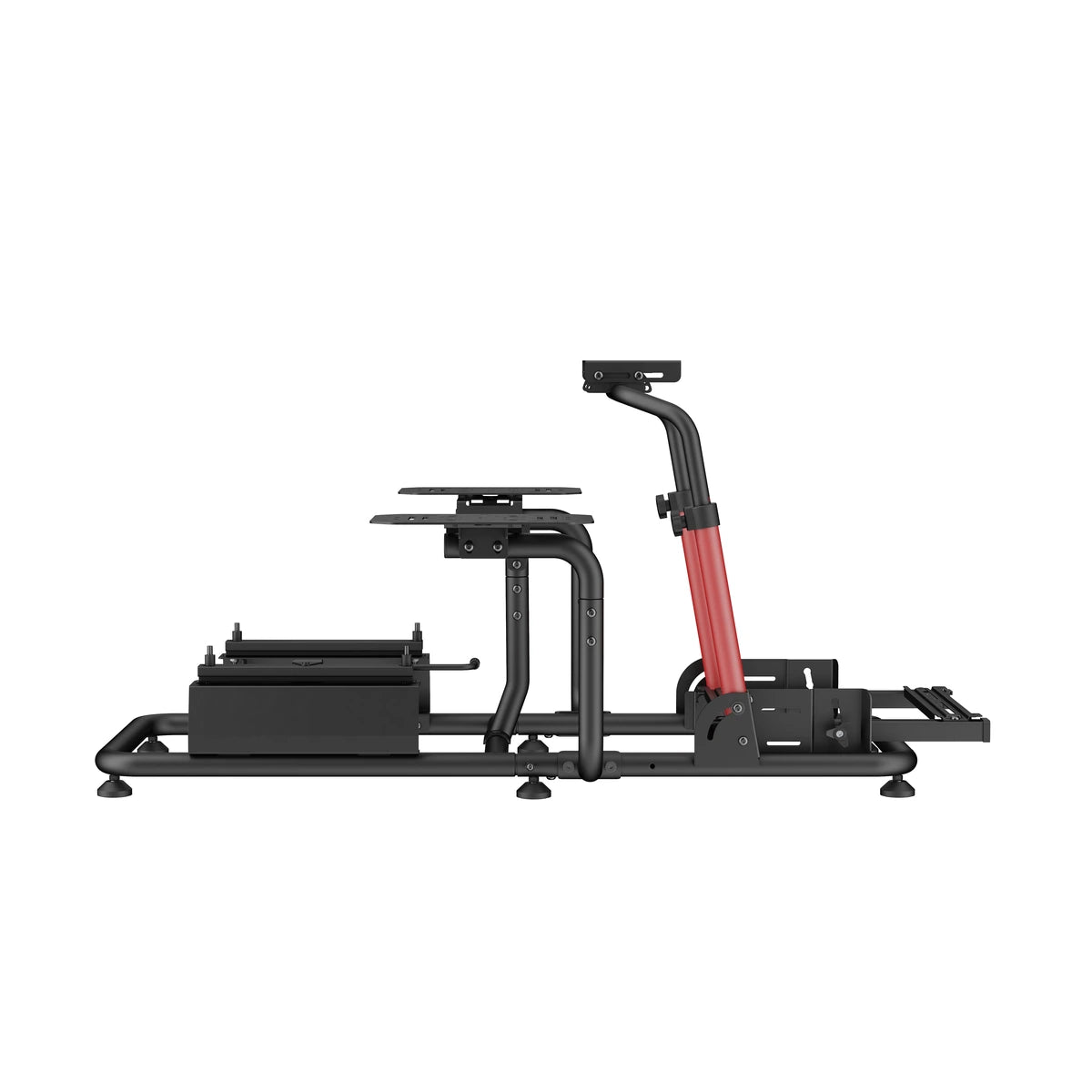

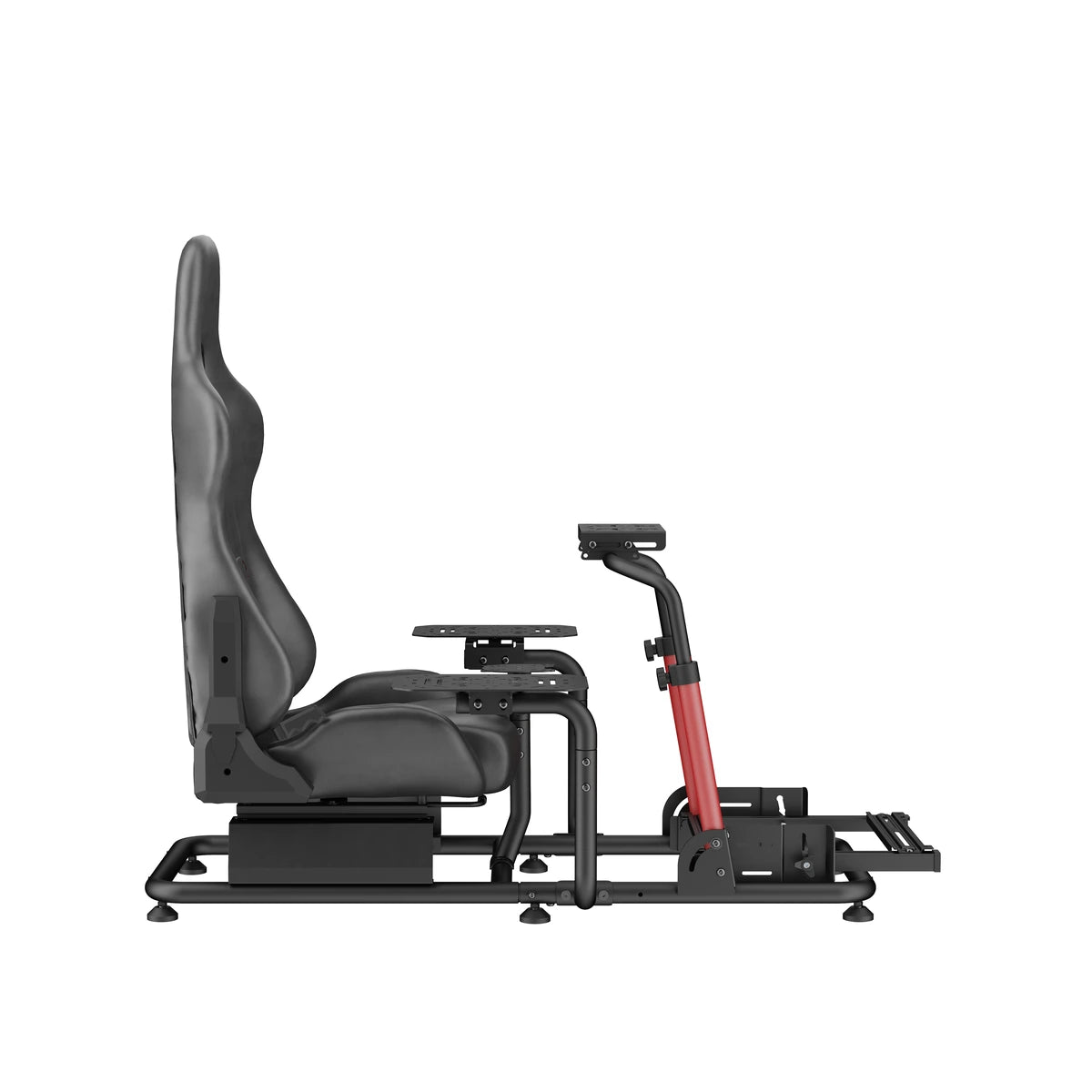

Playmax Flight Simulation Chair and Stand, side profile showing the seat slide rail and red uprights

Playmax Flight Simulation Chair and Stand specifications

Playmax · PFSC

Flight Simulation Chair and Stand

Product categoryFlight simulator cockpit
Assembled dimensions1303 mm (L) x 1045 mm (W) x 1097 mm (H)
Maximum user weight100 kg
Recommended user height130 cm to 200 cm
Frame typeFixed frame
Frame materialSteel
Frame finishPowder coated
Frame colourFine texture black and fine texture red
Seat typeReclining seat with PU leather cover
Seat width450 mm
Seat gliding track180 mm
Seat back tilt range45° to 90°
Control panel tilt+29° / +14.5° / 0° / -14.5° / -29°
Pedal panel tilt0° / +7.5° / +15°
Maximum supported torque12 N·m
Cable managementYes, integrated
Shipping weight20 kg
Part numberPFSC

What you receive

  • 1 x Playmax flight simulation chair, reclining with a PU leather cover
  • 1 x adjustable simulation stand frame in powder-coated steel
  • Mounting hardware and fittings
  • Flight controls, pedals, wheel bases, monitors and monitor stands are not included

Frequently asked questions

What it is and who it suits

Is the seat included, or is this just the stand?

The seat is included. You receive the reclining PU leather chair, the powder-coated steel stand frame and the mounting hardware in one box. The only things not included are the controls themselves: joystick, throttle, yoke, rudder pedals, wheel base, racing pedals, monitor and monitor stand.

Can I use this for sim racing as well as flight?

Yes. The top control panel takes a wheel base, the pedal plate takes a racing pedal set, and the frame is rated to 12 N·m of wheel base torque. Playmax list it as a flight simulator cockpit first, and the twin side plates and reclining seat are aimed at flight, but the geometry works for GT-style driving too. If sim racing is your main use and you already own a higher-torque direct drive base, read the torque question below first.

What does the 12 N·m torque rating actually mean?

It is the strongest wheel base Playmax rate the frame for. Belt and gear-driven wheels and entry-level direct drive bases at or under 12 N·m are inside that rating. A mid or high-end direct drive base running 15 N·m or more is not, and will flex or twist the front of the frame. If you are running that kind of base, you want a heavier racing cockpit instead. Browse our sim racing cockpits or call us and we will point you at the right frame.

How tall and heavy can the pilot be?

Playmax rate it for users from 130 cm to 200 cm tall and up to 100 kg. The 180 mm seat slide and the 45 to 90 degree backrest range are what cover that spread. If you are close to the 100 kg limit, or you want a higher weight rating, a separate heavy-duty seat on a full cockpit is the better route.

Is this a good first flight sim rig?

It is aimed squarely at that. The usual first-rig path is a wheel stand, then a seat, then a set of side mounts, and it adds up. This arrives as one complete seated flight position with every plate already on the frame, which means the only decision left is which controls to put on it.

Mounting and compatibility

Will my joystick and throttle fit the side plates?

The side plates are pre-drilled with a generic multi-hole pattern rather than one brand's bolt spacing, so most mainstream sticks and throttles bolt straight on, and many can be clamped where the base is not drilled for mounting. Because bolt patterns vary, tell us exactly which stick and throttle you have and we will confirm before you order. Call 0488 385 870 or send us a message.

Can I mount a yoke to it?

Yes. The top control panel is the yoke position. It adjusts for height on the uprights and tilts through five fixed detents from 29 degrees forward to 29 degrees back, which is the range you need to get a general aviation yoke sitting square. See the yokes we stock, and check the bolt pattern with us for your specific model.

Does it take rudder pedals?

Yes. The pedal plate is the rudder pedal position and tilts at 0, 7.5 or 15 degrees, plus it moves fore and aft on the rails to set your leg reach. Flat is the usual setting for rudder pedals. Browse our rudder pedals for options that suit this frame.

Can I mount a joystick between my knees rather than at the side?

Yes. There is a dedicated centre plate on the forward frame ahead of the seat for a centre-mount stick, which is the correct position for most fighter aircraft. You can leave the side plates fitted for a throttle on one side, or remove the one you are not using.

Is there a monitor mount on the frame?

No. This is a seat and controls cockpit with no monitor arm, so plan on either a VR headset or a separate monitor stand beside the rig. Some of our product photography shows a monitor on a separate stand behind the cockpit for context, and that stand is not part of this product.

Can I add a shifter or handbrake?

There is no dedicated shifter or handbrake plate on this frame. Some third-party clamp-on mounts will grip the side tube, but we do not want to promise a fit sight unseen. If a shifter matters to you, tell us which one and we will check, or look at a racing cockpit with a purpose-built shifter mount.

Assembly, space and care

How much floor space does it need?

Assembled it measures 1303 mm long, 1045 mm wide and 1097 mm high, which is roughly 1.3 m by 1.05 m of floor. It is a fixed frame rather than a folding one, so allow for it staying set up, and leave a little clearance behind the seat for the backrest to recline.

Does it fold away between sessions?

No. It is a fixed-frame cockpit by design, which is what gives it its rigidity: there are no folding joints to work loose or re-tighten. If you need something that collapses into a cupboard, a folding wheel stand is the compromise you want instead, and it will not be as solid.

How hard is it to assemble?

It arrives flat-packed with the mounting hardware and fittings included, and goes together as a bolted steel frame with the seat mounted onto it. It is a straightforward build with the supplied hardware, and an easier job with a second pair of hands for lifting the seat into place. Allow an unhurried afternoon for your first assembly.

How do I look after the seat and frame?

Wipe the PU leather with a damp cloth and a mild cleaner, and keep it out of prolonged direct sunlight, which is what ages PU covers fastest. The powder-coated steel frame needs nothing beyond a dust. Re-check the frame bolts after the first few weeks of use, as with any bolted rig.

Buying in Australia

How heavy is it and how does it ship?

It ships at around 20 kg flat-packed. It is stocked in Queensland and ships Australia-wide by courier. For current stock and a delivery estimate to your postcode, call us on 0488 385 870 or send us a message.

Is the price in Australian dollars and does it include GST?

Yes. All prices on Player1 Sim Gear are in Australian dollars and include GST. We are a Queensland-based business and issue a tax invoice with every order.

What warranty and support do I get?

The cockpit carries the Playmax manufacturer warranty, and your purchase is covered by Australian Consumer Law. Warranty and support are handled locally by our Queensland team rather than through an overseas returns process. Our team fly and race on this gear themselves, so call us on 0488 385 870 or send us a message if you want a hand working out whether this is the right cockpit for your hardware.

Complete your flight setup

The cockpit gives you the seat, the frame and every mounting plate. These are the controls that go on it.
