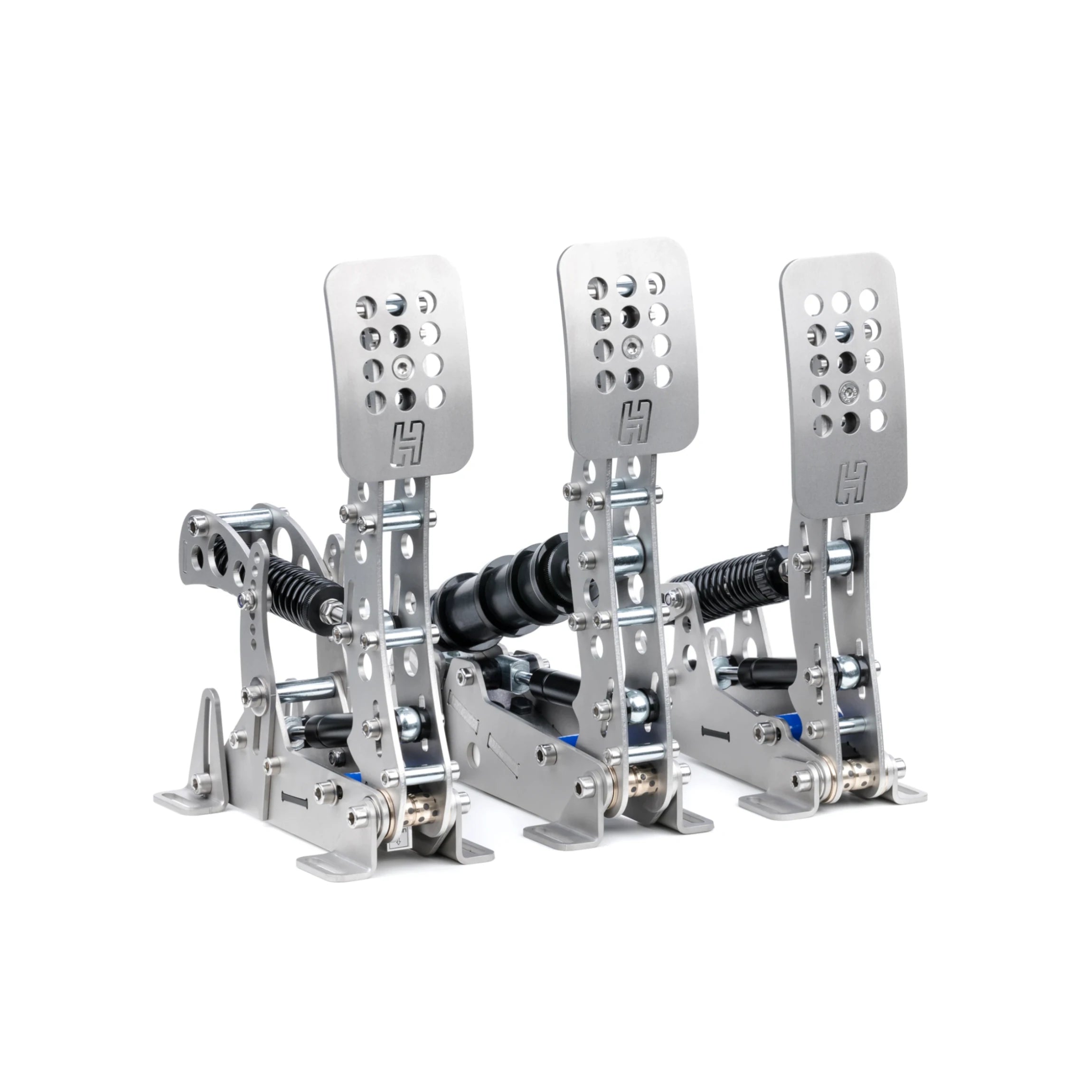

Heusinkveld Ultimate+ 3-Pedal Set Silver

Heusinkveld presents the highest quality, most adjustable and most realistic feeling pedals on the market: Heusinkveld Sim Pedals Ultimate+ powered by SmartControl software.

The Sim Pedals Ultimate+ are designed for high-end professional motorsport simulators and can be used in the following driving simulator environments:

  • For professional driver training
  • For home use (eg. eSports simulators, simracing enthusiasts)
  • In commercial applications (eg. rental simulators)

Capable of simulating pedal loads as high as in real GT and F1 cars, this high-end pedal set are trusted by world class GT, single seater and Esports drivers.

Engineering

The pedals have a strong, durable and adjustable design capable of handling up to 140kg of actual force at the brake pedal (200kg loadcell). Designed with CAD and FEA, all structural parts are CNC precision laser cut stainless steel with a glass bead blasted finish.

The all new custom made brake elastomers are smooth, responsive and provide an unprecedented progressive brake resistance (concave force curve) just as you would have in a real race car. On the ingoing and outgoing stroke they have firm bump and rebound characteristics. They retain their as-new characteristics even after thousands of races.

The bespoke hydraulic dampers of the Sim Pedals Ultimate are ultra-reliable and do not require periodic maintenance. The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose. The amount of damping can be adjusted.

The Sim Pedals Ultimate+ load cell assemblies provide a true linear input measurement of throttle position and brake force. Their accuracy and durability are unmatched as they do not wear over time. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.

The pedals have passed full EMC compliance testing, guaranteeing a stable output signal regardless of other electronic components used in your simulator.

Powered by Heusinkveld SmartControl software

The Sim Pedals Ultimate+ come with a powerful configuration tool SmartControl, allowing you to set up your pedals. A key feature of SmartControl is the ability to set custom signal output maps per pedal. Working together with all-new electronics, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force. There is support for saving an unlimited amount of profiles.

More information

For the Sim Pedals Ultimate+ we also offer an optional mounting plate: the Sim Pedals Ultimate+ Baseplate.

Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Sim Pedals Ultimate+, even if you use the optional Sim Pedals Ultimate+ Baseplate.

This product is compatible with the PC / Windows platform. It cannot be used on consoles such as Xbox or PlayStation.

Software overview and download

Heusinkveld SmartControl & SmartControl Live are powerful configuration tools compatible with the following Heusinkveld products:

  • Ultimate+
  • Sprint
  • MagShift
  • Handbrake (new version with integrated controller)
  • Classic Sim Pedals Ultimate with the Sim Pedals Ultimate Upgrade Kit

SmartControl & SmartControl Live Overview – Introduction to the software configuration tools.

Download SmartControl & SmartControl Live

SmartControl Pedal Presets

Ultimate+ (Silver)

Product Manual

Elastomer Kit - Sim Pedals Ultimate+

Product Manual

Ultimate Upgrade Kit for classic Sim Pedals Ultimate

The PDF product manual below is version 1.1 and contains a small update compared to the printed manual which comes with the upgrade kit.

Product Manual

Installation tutorial video

Sprint

Quick Start

Product Manual (latest version for pedals with side markings on brake rubbers).

Product Manual (version 1.3, for pedals without side markings on brake rubbers)

Mounting schematics – Pedal mounting points & Sprint baseplate suggestion

Video tutorial

Elastomer Kit - Sim Pedals Sprint

Product Manual

Manuals for legacy Heusinkveld products

Below you’ll find manuals for legacy Heusinkveld products. These products are no longer manufactured but we’re there to help if you need any support.

Classic Sim Pedals Ultimate

This manual is for the classic (non-SmartControl) Sim Pedals Ultimate.

Product Manual

Download DiView – Calibration tool for Sim Pedals Ultimate.

Service Bulletin #1 – Throttle Damper Retrofit

Service Bulletin #3 – Direct Drive Wheel EMI Fix

Maintenance tips

Sim Pedals Pro

Product Manual

Service Bulletin #2 – Clutch Backplate

Service Bulletin #3 – Direct Drive Wheel EMI Fix

Sim Pedals Pro Curved Pedal Plate Upgrade

Sim Pedals Racecenter

Product Manual

Service Bulletin #3 – Direct Drive Wheel EMI Fix

Classic Sim Handbrake (without SmartControl)

Product Manual

Service Bulletin #4 – Sim Handbrake Controller Casing

Sim Rig GT

Product Manual

Sim Shifter Sequential

Product Manual

Sprint Baseplate Anthracite & Team Redline Edition

Product Manual – version 1.4 (PDF)

Video tutorial

Ultimate+ Baseplate earlier specs

Product Manual (for the specification sold from April 2015 until late 2023)

Product Manual (for early spec sold until April 2015)


See also

Shipping

We want you to get your new gear as fast as possible, so we always aim to ship on the same day we receive your order, using the fastest and most reliable couriers in Australia. Of course, it may not always be possible to process your order on the same day, so please allow 1-2 business days for processing. If we encounter any delays we will let you know via email.

To  maximize efficiency, Player1 Sim Gear ships all products in their original packaging straight from our warehouses or directly from our suppliers and manufacturers. Orders may be shipped in part or in full, and different courier companies may be used for different parts of your order. Please allow 2-8 business days for delivery.  Please advise your phone number at checkout so we can get in touch with you if there is any problem. If you should receive a product that has been damaged while in transit please contact us immediately.

Please make sure someone will be available to receive your order, otherwise, your package may be diverted to your local post office or to your local shipping depot. We recommend all deliveries are sent to a business address to avoid any re-delivery charges.  Note: Player1 Sim Gear will only ship to confirmed addresses, we cannot ship to PO Boxes sorry.

There may be times when the product you have ordered turns out to be out-of-stock with us or our suppliers. We will contact you to arrange a refund or alternate product if an item you have ordered is out-of-stock or unavailable for immediate shipment. You may cancel your order at any time prior to shipping.

International Orders: Apologies at the moment we don't ship internationally as standard. However if you outside Australia and there is something you'd like to purchase please do message us at sales@p1simgear.com.au, we will be happy to see what we can do.

Note re Larger cockpits and remote locations:  We do our very best to ensure accurate shipping rates, however for larger cockpits and heavier items, rarely our shipping pricing may not be correct. In the event that the actual shipping costs for a large item should be exceed those quoted in your order, we will call you to discuss before we dispatch. You will have the option then to amend or cancel your order at no cost.

Returns

We hope we can provide as much information and guidance as possible about each item so that you will love whatever you buy. We do understand though that the unforeseen happens. So in the unlikely event you wish to raise a return, please contact us and we shall discuss options and how we will proceed with the return request.

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.  You may return your item(s) for an exchange/refund, so long as it is in the same condition that you received it, unopened, with tags and in its original packaging. You’ll also need the receipt or proof of purchase.

To request a return, you must first send an email to support@p1simgear.com.au with your Order number as the email subject and Reason for Return in the email body/message. We will reply to your email with your relevant return information. We will not accept any returned items if we have not had an email from you requesting a return, so you must request a return first, before sending anything back.

Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.

All returns are subject to the following conditions:
  • You, the buyer, are are fully responsible for paying all charges necessary to return the item to us. A restocking fee of up to 20% of the returned product's value may apply.

  • Items must be returned sealed and unused in their original packaging and in a fully resalable condition. All items are supplied to you, the customer, in brand new condition unless explicitly stated otherwise in the product title. For such items supplied in Brand New condition, if any seals have been broken, the item cannot subsequently be sold as new after the return, therefore the return will be declined or a restocking fee will be levied and partial refund given.

  • If the item is deemed DOA or faulty once opened, we shall troubleshoot and assess the nature of the fault and repair the item or replace like-for-like, should the fault be deemed a legitimate fault.

  • Items returned that are not in their original condition may not be accepted, and the refund request declined.

  • Returned items must be complete with all packaging in good condition, ready for immediate resale. All components and items within packaging (e.g. polystyrene/bubble wrap) must be returned also. We reserve the right to levy a charge to replace product packaging which is damaged  / defaced / missing.

  • We cannot accept responsibility for returned parcels which are undelivered back to us (e.g. lost by the courier, delivered to incorrect address) or damaged in transit back to us. We strongly advise you send returned items using an insured & tracked service. Furthermore, we also strongly advise you to obtain and retain your proof of postage, as you may require it should you decide to make a claim against your carrier should they damage or lose your item whilst returning it to us.

For items which require assembly, we are not responsible for any charges (labour or otherwise) incurred during fitment/removal of allegedly faulty (or incorrectly supplied) parts.

Returns made outside of the 30-day return window, or with no valid reason, will be declined.

Pre-Order Cancellations
In the event a Pre-Order becomes unavailable or is cancelled by Player1 Sim Gear you, the buyer, are entitled to a full refund. In the event that you change your mind or choose to cancel your Pre-Order for any reason prior to shipment, cancellation fees may apply to offset any unrecoverable costs incurred by Player1 Sim Gear.

This product includes a 1-year Manufacturers Limited Hardware Warranty

Heusinkveld SmartControl Live

Heusinkveld Sprint pedals come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with our own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.

These adjustments can be made without having to recalibrate the pedals (including iRacing). All settings can be saved into profiles, which can be loaded again in a few mouse clicks.

The brand-new Heusinkveld SmartControl Live is an innovative software tool to adjust your controller settings to your own preferences while driving. Activate SmartControl profiles for different cars and classes at the touch of a button, without having to leave the simulator software.

Engineering

Designed with CAD and FEA, all structural parts are CNC precision laser cut stainless steel with a glass bead blasted finish. The pedals are strong, stiff, compact and durable. Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles. The custom made brake elastomers provide a realistic progressive feel and retain their as-new characteristics even after thousands of races.

Hydraulic damping

The bespoke hydraulic dampers of the Sim Pedals Ultimate are ultra-reliable and do not require periodic maintenance. Even in the unlikely case of a failure, all hydraulic dampers can easily be removed while the pedal still retains its basic functionality as the pedal sensors are separated from the hydraulic circuit.

Sensors & output

The Sim Pedals Ultimate+ load cell assemblies provide a true linear input measurement of throttle and clutch position and brake force. Their accuracy and durability are unmatched as they do not wear over time. Heusinkveld proprietary electronics provide a full-range 12bit output for each pedal. Custom output curves can be freely configured and stored into profiles using the Heusinkveld SmartControl software.

Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. After calibration every single pedal provides an output signal using the full 12-bit range, providing instant and accurate output to your favorite simulator software.

The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

The pedals have passed full EMC compliance testing, guaranteeing a stable output signal regardless of other electronic components used in your simulator.

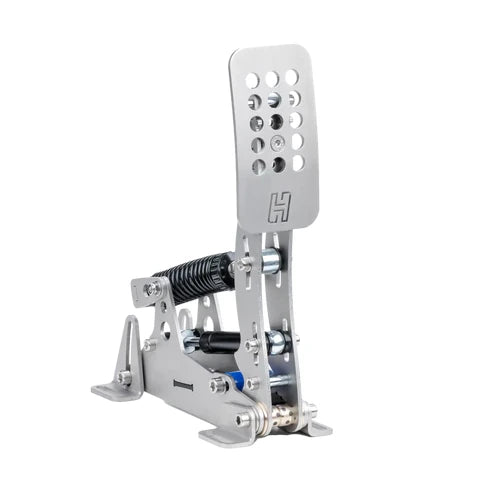

Throttle

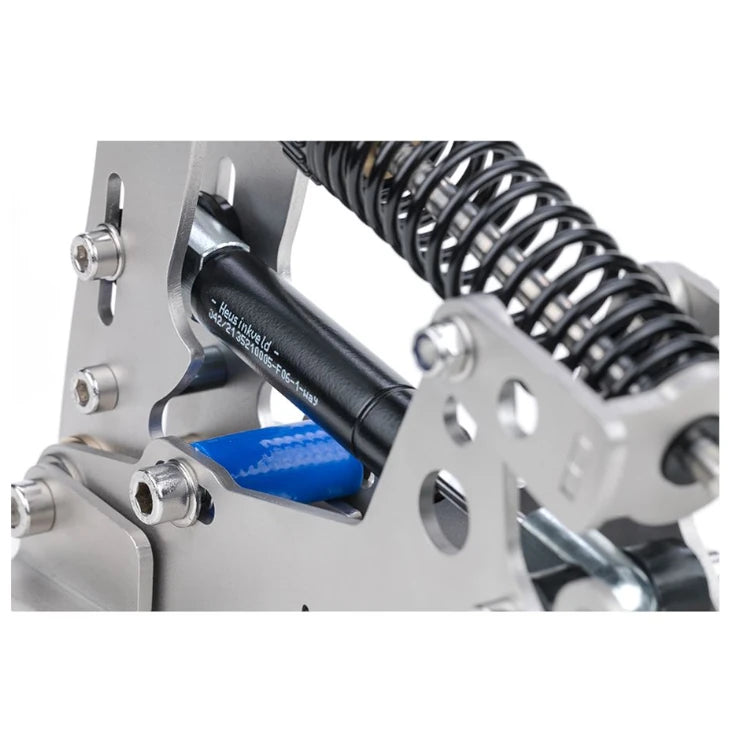

Heusinkveld Ultimate+ Black - throttle. Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer. The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose. The amount of damping can be adjusted. A load cell provides a true linear input measurement of the pedal position. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.

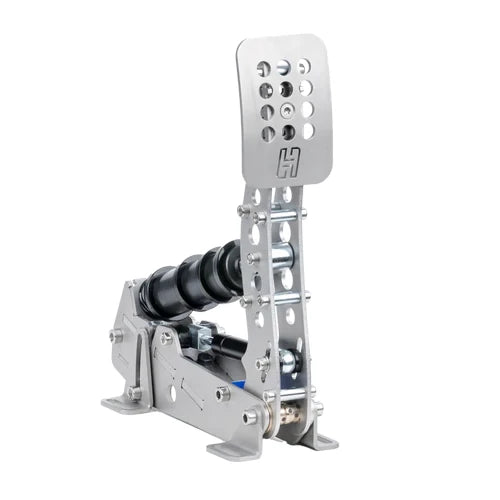

Brake

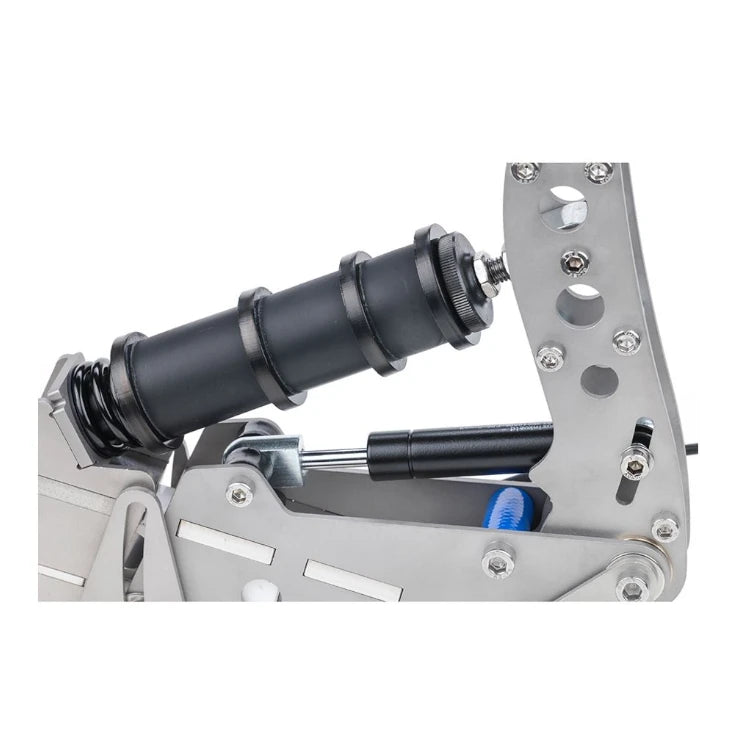

The brake features a realistic dual stage brake system with a 200kg load cell, capable of handling actual pedal forces up to 140kg (measured at the pedal footplate). The adjustable coil spring simulates the initial pad-to-disc gap. The main brake springs are all new custom made Heusinkveld injection molded thermoset elastomers.

These proprietary elastomers are smooth and responsive and provide an unprecedented progressive brake resistance (convex force curve) just as you would have in a real race car. On the ingoing and outgoing stroke they have firm bump and rebound characteristics.

Automated testing shows these elastomers have zero performance degradation even after one million duty cycles. You can choose from a total of 9 possible resistance settings, allowing you set set the pedal from very soft to extremely stiff.

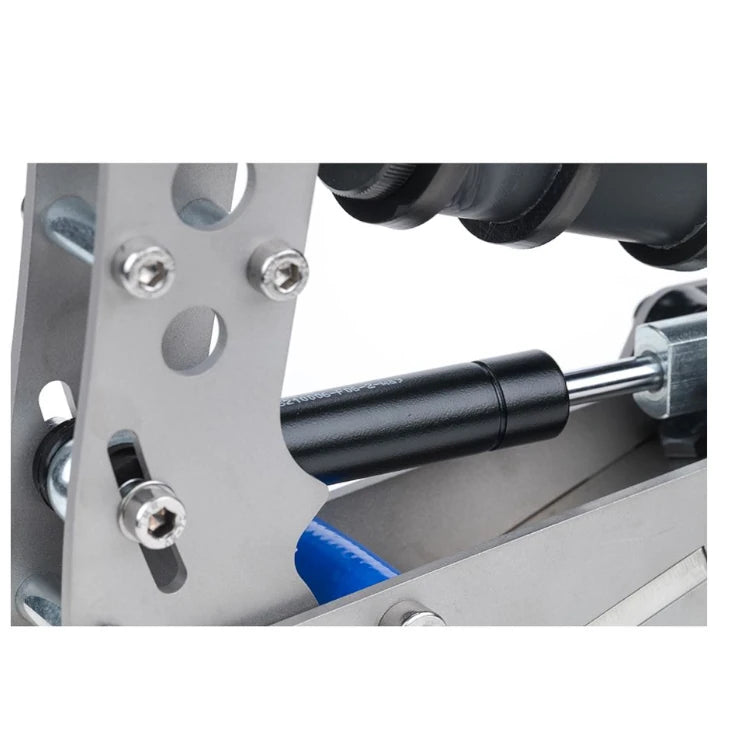

The brake features a 2-way hydraulic damper. This damping resists speed at the ingoing and outgoing stroke just as experienced in actual brake assemblies. The amount of damping is adjustable.

ELECTRONICS

The all new electronics have been integrated in the brake pedal. This allows for a clean setup with a minimum of wire clutter.

The controller board has received a conformal coating in order to shield it from moisture and dust. The product as a whole is CE certified and has been tested to be compliant with all applicable European EMC norms and regulations.
