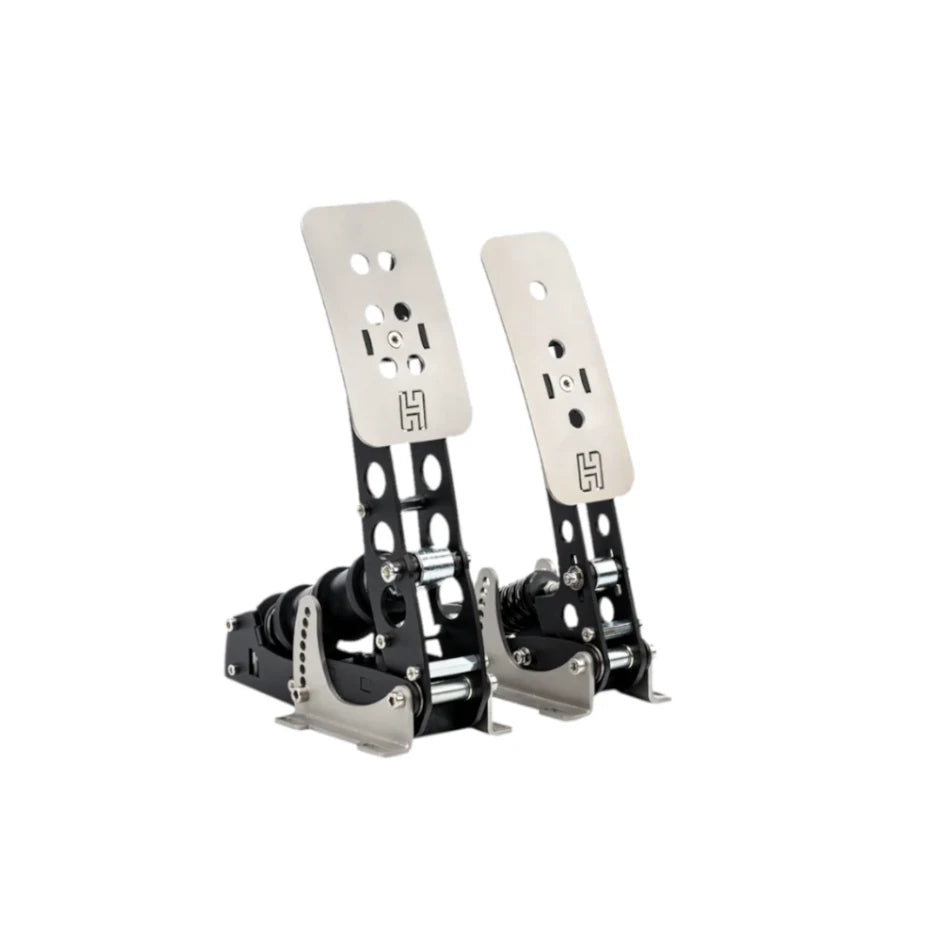

Heusinkveld Sprint 2-Pedal Set Black
- Regular price
- $1,089.00
- Regular price
-
- Sale price
- $1,089.00
- Unit price
- per
Vendor : Heusinkveld
Product Type : Pedals
Sku : HE-SPS2B
Heusinkveld Sprint 2-Pedal Set Black
Limited Offer! Free Heusinkveld cap valued at $49.95 with every Heusinkveld pedals purchase.
Heusinkveld Sim Pedals Sprint are a perfect choice for both casual sim-racers as well as eSports professionals. A strong, compact and highly adjustable design with custom electronics and powerful SmartControl software. Fully adjustable pedal geometry and force (up to 65kg at the brake), limitless configuration options in the software.
Every tenth of a second counts! If you’re looking for pedals that help you to be both quick and consistent, look no further. Years of experience and all new testing methods have been used during the development of this innovative top-of-the line simulator product: the Heusinkveld Sim Pedals Sprint.
Overview
The Sim Pedals Sprint are a strong, compact and highly adjustable design, with the main parts made out of CNC precision laser cut steel. Mathematical models were made to accurately calculate pedal travel and force curves, predicting with great accuracy how each pedal behaves in different configurations.
All metal profiles either have a RAL7016 Anthracite Grey fine-structure powder coat or a bead blasted semi-gloss metallic look.
The pedals include all new concepts for bearings and pivot points in order to minimize unnecessary play. Automated testing routines have been used to simulate up to 1 million duty cycles.
Durable load cells measure throttle and clutch position and force applied to the brake. Unlike designs with rotary potentiometers, load cells provide true linear output in relation to your pedal output. They are insensitive to dust and dirt and do not wear out, resulting in unmatched accuracy and durability over time.
Custom developed and EMC tested electronics make sure each pedal responds instantly and accurately in your favourite simulator software. The included SmartControl software allows easy configuration of dead zones, brake force and customize (non-linear) pedal output curves.
Software overview and download
Heusinkveld SmartControl & SmartControl Live are powerful configuration tools compatible with the following Heusinkveld products:
- Ultimate+
- Sprint
- MagShift
- Handbrake (new version with integrated controller)
- Classic Sim Pedals Ultimate with the Sim Pedals Ultimate Upgrade Kit
SmartControl & SmartControl Live Overview – Introduction to the software configuration tools.
Ultimate+ (Silver)
New Ultimate+ Baseplate
Elastomer Kit - Sim Pedals Ultimate+
Ultimate Upgrade Kit for classic Sim Pedals Ultimate
The PDF product manual below is version 1.1 and contains a small update compared to the printed manual which comes with the upgrade kit.
Sprint
Product Manual (latest version for pedals with side markings on brake rubbers).
Product Manual (version 1.3, for pedals without side markings on brake rubbers)
Mounting schematics – Pedal mounting points & Sprint baseplate suggestion

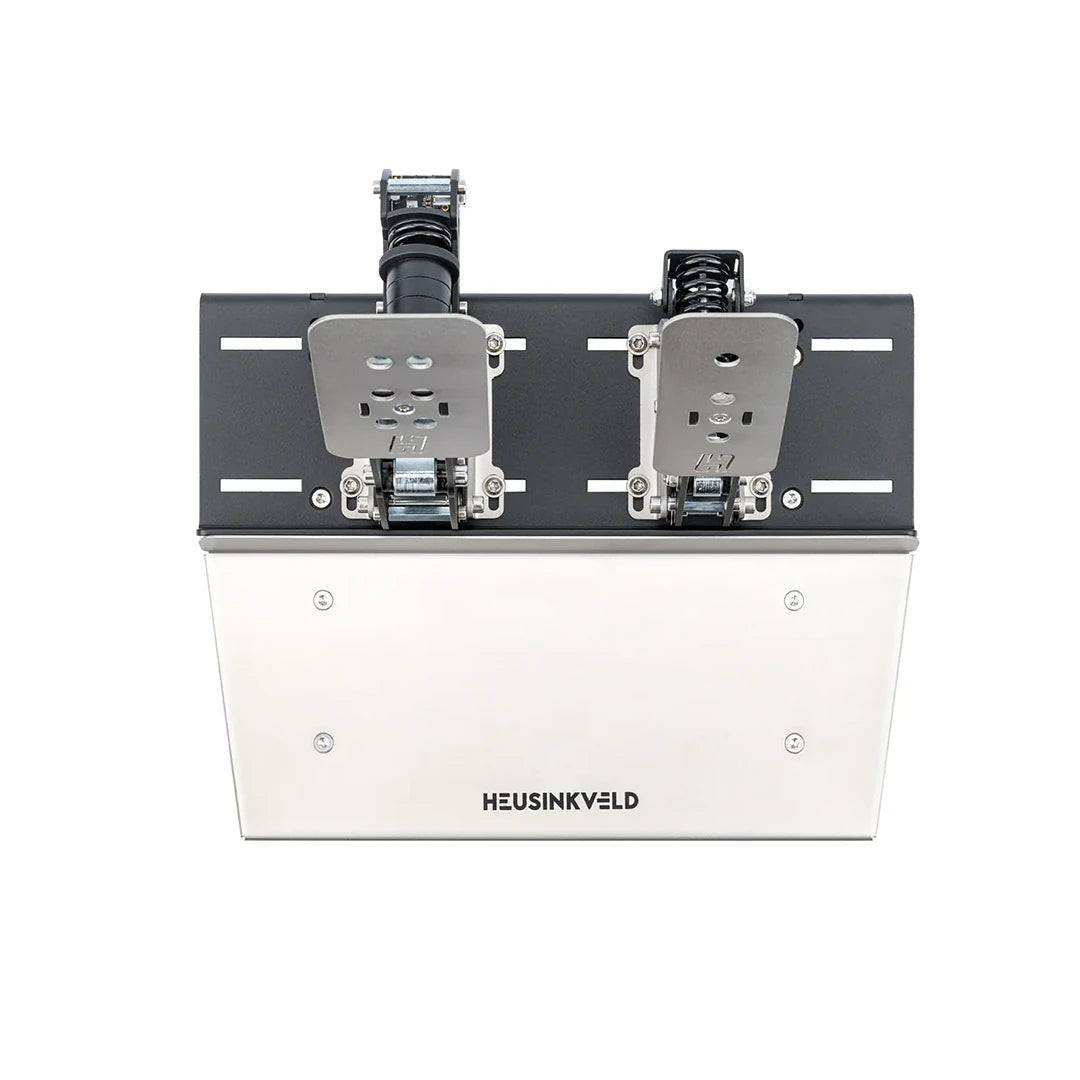

Sprint Baseplate Black
Elastomer Kit - Sim Pedals Sprint
MagShift
Service bulletin #5 – For MagShifts produced in 2023
Manuals for legacy Heusinkveld products
Below you’ll find manuals for legacy Heusinkveld products. These products are no longer manufactured but we’re there to help if you need any support.
Classic Sim Pedals Ultimate
This manual is for the classic (non-SmartControl) Sim Pedals Ultimate.
Download DiView – Calibration tool for Sim Pedals Ultimate.
Service Bulletin #1 – Throttle Damper Retrofit
Service Bulletin #3 – Direct Drive Wheel EMI Fix
Sim Pedals Pro
Service Bulletin #2 – Clutch Backplate
Service Bulletin #3 – Direct Drive Wheel EMI Fix
Classic Sim Handbrake (without SmartControl)
Service Bulletin #4 – Sim Handbrake Controller Casing
Sim Rig GT
Sim Shifter Sequential
Sprint Baseplate Anthracite & Team Redline Edition
Product Manual – version 1.4 (PDF)
Ultimate+ Baseplate earlier specs
Product Manual (for the specification sold from April 2015 until late 2023)
Product Manual (for early spec sold until April 2015)
See also
Shipping
We want you to get your new gear as fast as possible, so we always aim to ship on the same day we receive your order, using the fastest and most reliable couriers in Australia. Of course, it may not always be possible to process your order on the same day, so please allow 1-2 business days for processing. If we encounter any delays we will let you know via email.
To maximize efficiency, Player1 Sim Gear ships all products in their original packaging straight from our warehouses or directly from our suppliers and manufacturers. Orders may be shipped in part or in full, and different courier companies may be used for different parts of your order. Please allow 2-8 business days for delivery. Please advise your phone number at checkout so we can get in touch with you if there is any problem. If you should receive a product that has been damaged while in transit please contact us immediately.
Please make sure someone will be available to receive your order, otherwise, your package may be diverted to your local post office or to your local shipping depot. We recommend all deliveries are sent to a business address to avoid any re-delivery charges. Note: Player1 Sim Gear will only ship to confirmed addresses, we cannot ship to PO Boxes sorry.
There may be times when the product you have ordered turns out to be out-of-stock with us or our suppliers. We will contact you to arrange a refund or alternate product if an item you have ordered is out-of-stock or unavailable for immediate shipment. You may cancel your order at any time prior to shipping.
International Orders: Apologies at the moment we don't ship internationally as standard. However if you outside Australia and there is something you'd like to purchase please do message us at sales@p1simgear.com.au, we will be happy to see what we can do.
Note re Larger cockpits and remote locations: We do our very best to ensure accurate shipping rates, however for larger cockpits and heavier items, rarely our shipping pricing may not be correct. In the event that the actual shipping costs for a large item should be exceed those quoted in your order, we will call you to discuss before we dispatch. You will have the option then to amend or cancel your order at no cost.
Returns
We hope we can provide as much information and guidance as possible about each item so that you will love whatever you buy. We do understand though that the unforeseen happens. So in the unlikely event you wish to raise a return, please contact us and we shall discuss options and how we will proceed with the return request.
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. You may return your item(s) for an exchange/refund, so long as it is in the same condition that you received it, unopened, with tags and in its original packaging. You’ll also need the receipt or proof of purchase.
To request a return, you must first send an email to support@p1simgear.com.au with your Order number as the email subject and Reason for Return in the email body/message. We will reply to your email with your relevant return information. We will not accept any returned items if we have not had an email from you requesting a return, so you must request a return first, before sending anything back.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
-
You, the buyer, are are fully responsible for paying all charges necessary to return the item to us. A restocking fee of up to 20% of the returned product's value may apply.
-
Items must be returned sealed and unused in their original packaging and in a fully resalable condition. All items are supplied to you, the customer, in brand new condition unless explicitly stated otherwise in the product title. For such items supplied in Brand New condition, if any seals have been broken, the item cannot subsequently be sold as new after the return, therefore the return will be declined or a restocking fee will be levied and partial refund given.
-
If the item is deemed DOA or faulty once opened, we shall troubleshoot and assess the nature of the fault and repair the item or replace like-for-like, should the fault be deemed a legitimate fault.
-
Items returned that are not in their original condition may not be accepted, and the refund request declined.
-
Returned items must be complete with all packaging in good condition, ready for immediate resale. All components and items within packaging (e.g. polystyrene/bubble wrap) must be returned also. We reserve the right to levy a charge to replace product packaging which is damaged / defaced / missing.
-
We cannot accept responsibility for returned parcels which are undelivered back to us (e.g. lost by the courier, delivered to incorrect address) or damaged in transit back to us. We strongly advise you send returned items using an insured & tracked service. Furthermore, we also strongly advise you to obtain and retain your proof of postage, as you may require it should you decide to make a claim against your carrier should they damage or lose your item whilst returning it to us.
For items which require assembly, we are not responsible for any charges (labour or otherwise) incurred during fitment/removal of allegedly faulty (or incorrectly supplied) parts.
Returns made outside of the 30-day return window, or with no valid reason, will be declined.
Pre-Order CancellationsIn the event a Pre-Order becomes unavailable or is cancelled by Player1 Sim Gear you, the buyer, are entitled to a full refund. In the event that you change your mind or choose to cancel your Pre-Order for any reason prior to shipment, cancellation fees may apply to offset any unrecoverable costs incurred by Player1 Sim Gear.
This product includes a 1-year Manufacturers Limited Hardware Warranty
Heusinkveld SmartControl Live
Heusinkveld Sprint pedals come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with our own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.
These adjustments can be made without having to recalibrate the pedals (including iRacing). All settings can be saved into profiles, which can be loaded again in a few mouse clicks.
The brand-new Heusinkveld SmartControl Live is an innovative software tool to adjust your controller settings to your own preferences while driving. Activate SmartControl profiles for different cars and classes at the touch of a button, without having to leave the simulator software.
Features
The Heusinkveld Sprint pedals have a strong, compact and highly adjustable design with the main parts made out of CNC precision laser cut steel, intended for your home-use simulator. Mathematical models were made to accurately calculate pedal travel and force curves, predicting with great accuracy how each pedal behaves in different configurations.
All metal profiles either have a Black structure powder coat or a bead blasted semi-gloss metallic look.
The pedals include all new concepts for bearings and pivot points in order to minimize unnecessary play. Automated testing routines have been used to simulate up to 1 million duty cycles.
Durable load cells measure throttle and clutch position and force applied to the brake. Unlike designs with rotary potentiometers, load cells provide true linear output in relation to your pedal output. They are insensitive to dust and dirt and do not wear out, resulting in unmatched accuracy and durability over time.
Custom developed and EMC tested electronics make sure each pedal responds instantly and accurately in your favorite simulator software. The included SmartControl software allows easy configuration of deadzones, brake force and customize (non-linear) pedal output curves.
Throttle
Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control over any race car. With five pedal travel settings, adjustable pedal force curve, spring preload, pedal angle and pedal height you’ll be able to set up the throttle exactly to your liking.
The graphs below show the effect of the force curve (left) and preload adjustments (right).
Brake

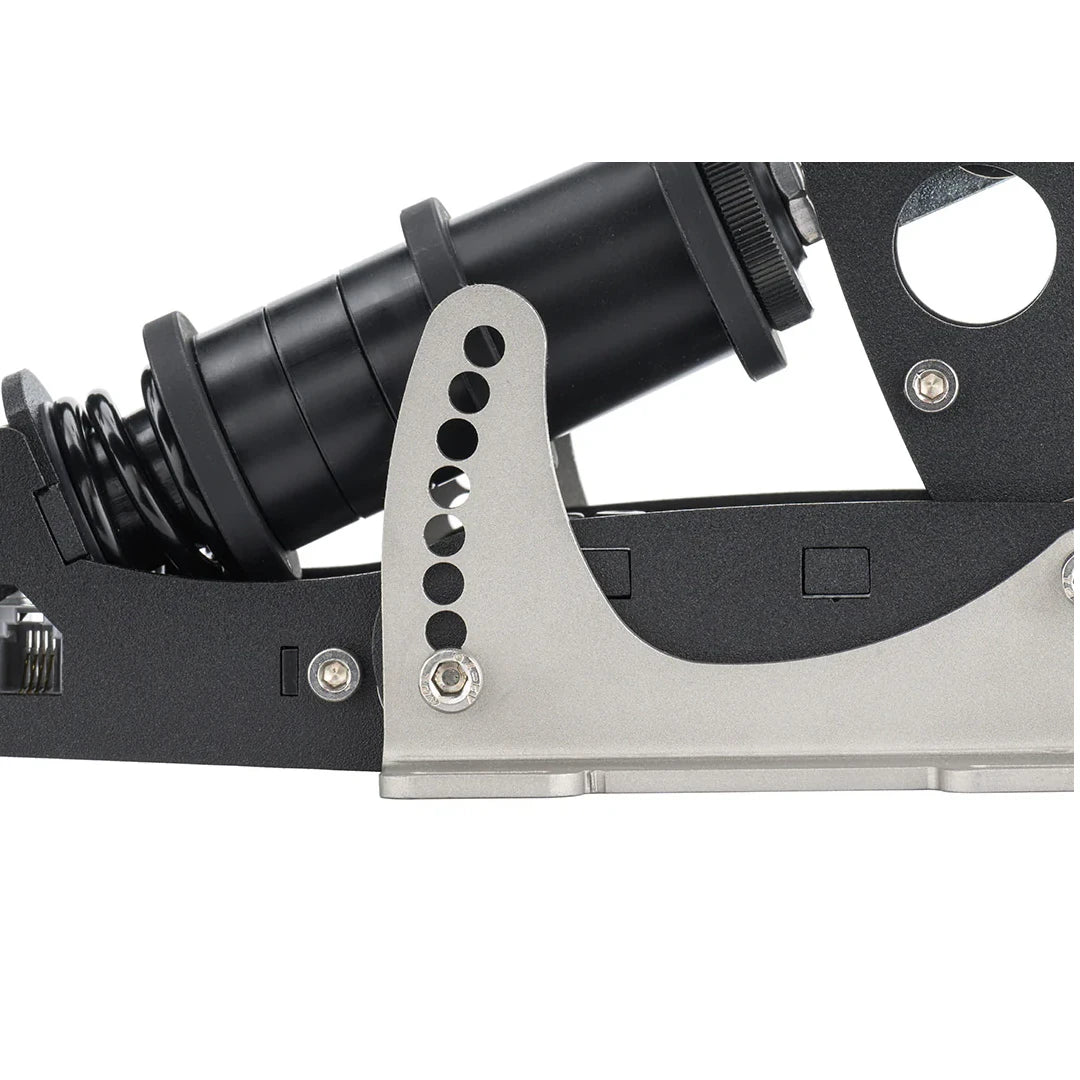

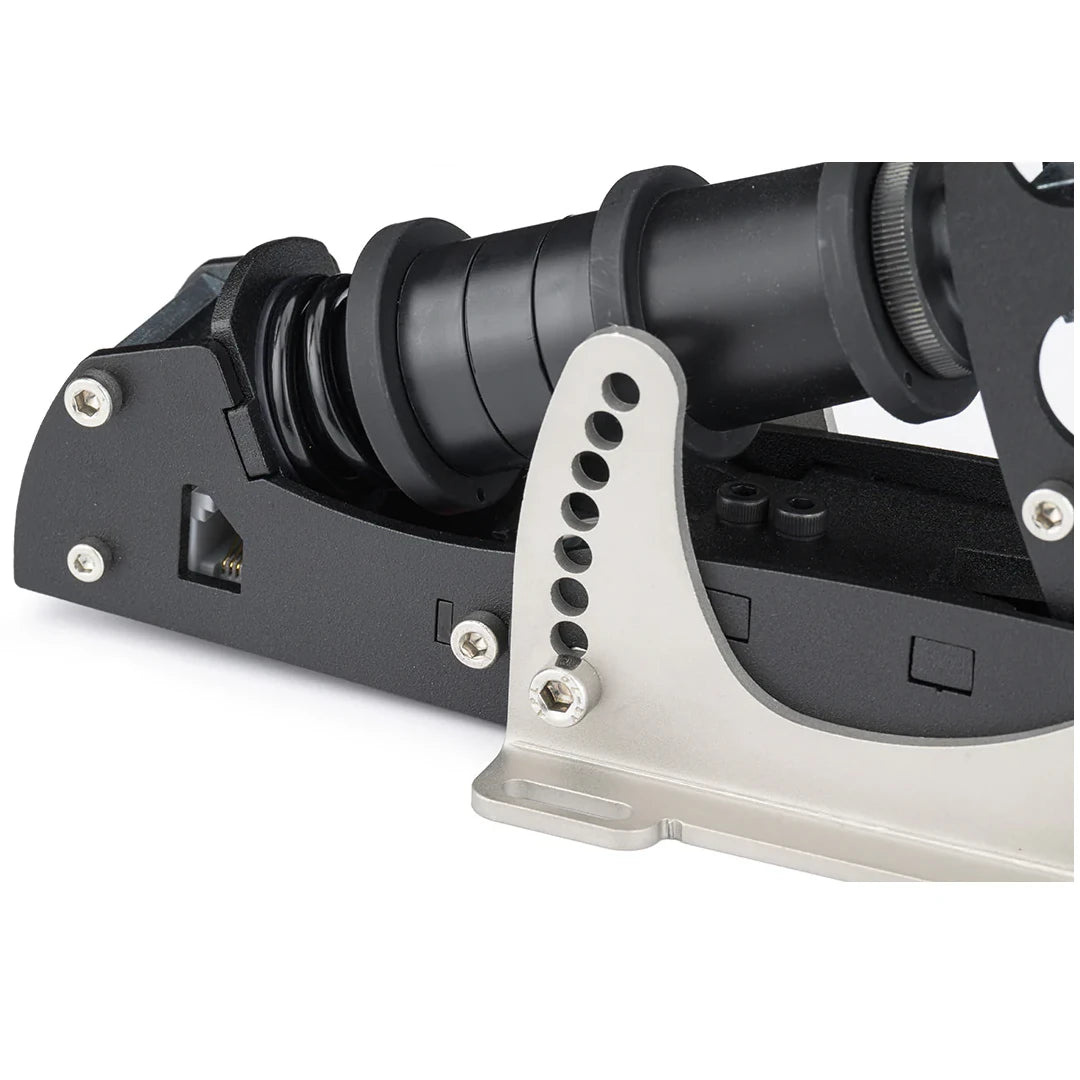

The dual stage brake system consists of an adjustable initial coil spring, simulating the pad to disc gap, and progressive rubber springs. The pedal firmness is adjusted by selecting from 6 different rubber stack heights. The pedal angle and pedal height can also be adjusted.
A 120kg load cell measures up to 65kg (143lbs) of maximum actual brake force, ensuring this brake pedal caters both for simracers who like to apply significant force while braking but also for racers who like much lower operating forces.
The graphs below show the effect of the force curve adjustment.
Clutch

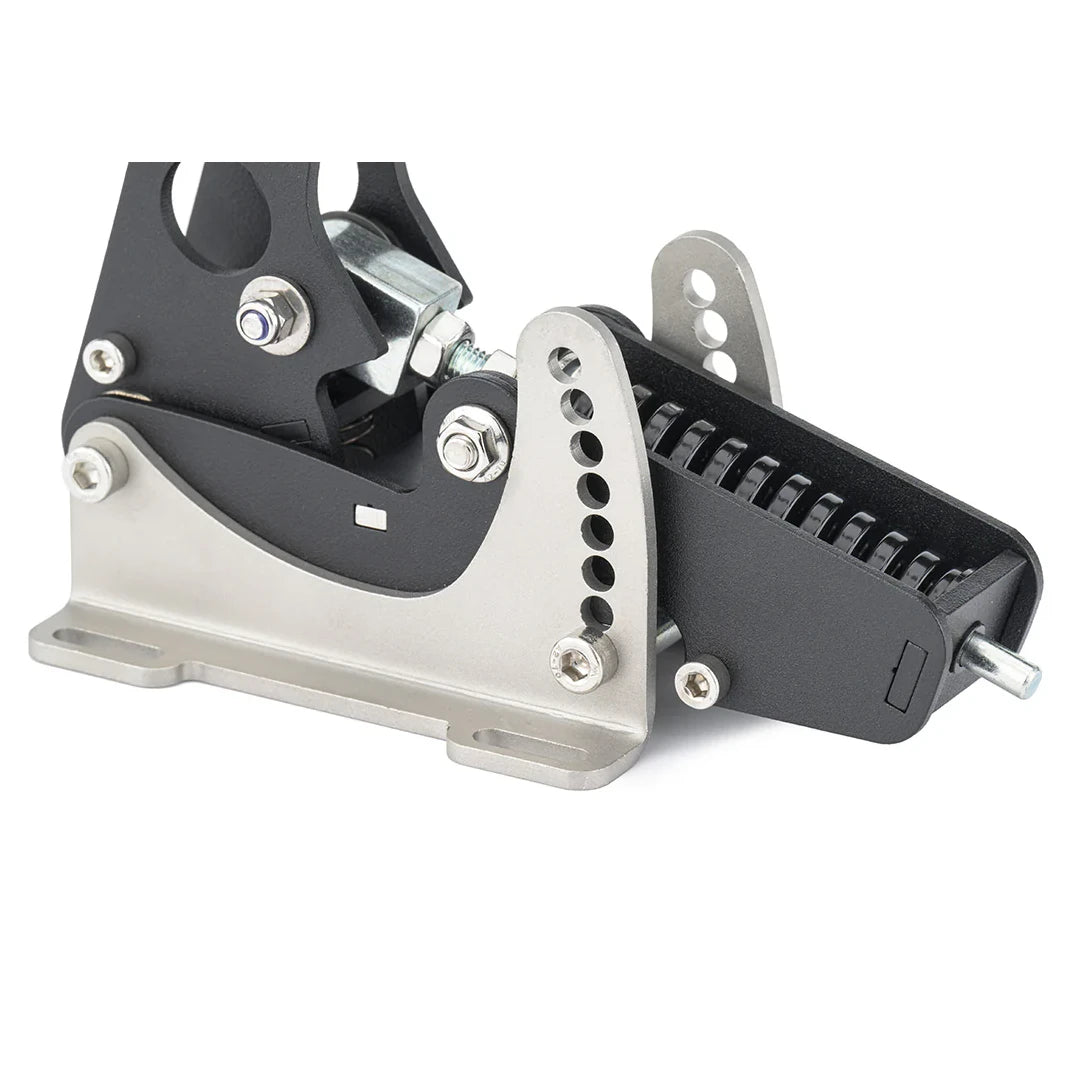

The clutch features a regressive spring mechanism to simulate a typical concave clutch curve. Furthermore, the clutch features three pedal force curve settings, adjustable spring preload, pedal angle and pedal height.
The graphs below show the effect of the force curve (left) and preload adjustments (right).
ELECTRONICS

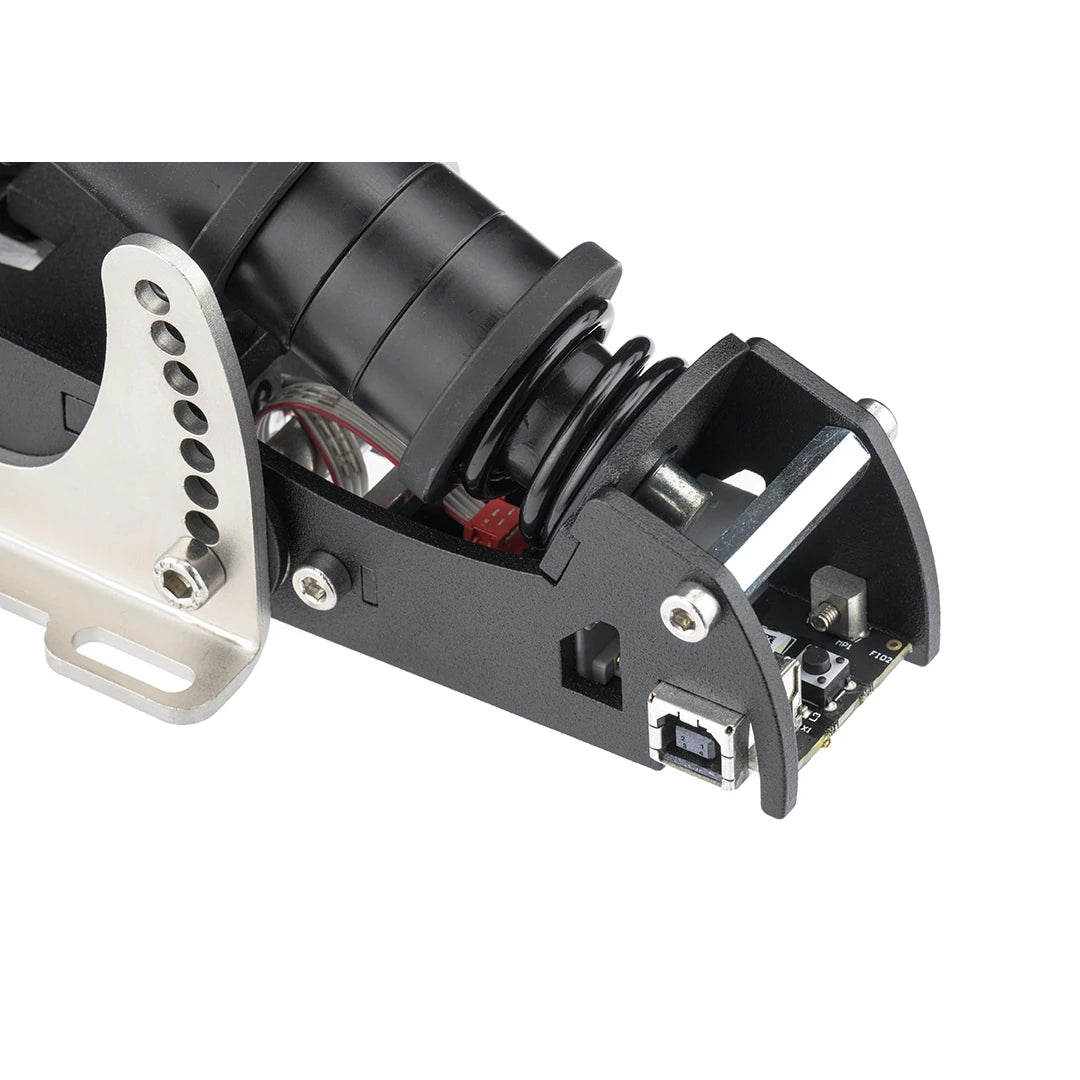

The all new electronics have been integrated in the brake pedal. This allows for a clean setup with a minimum of wire clutter.
The controller board has received a conformal coating in order to shield it from moisture and dust. The product as a whole is CE certified and has been tested to be compliant with all applicable European EMC norms and regulations.
