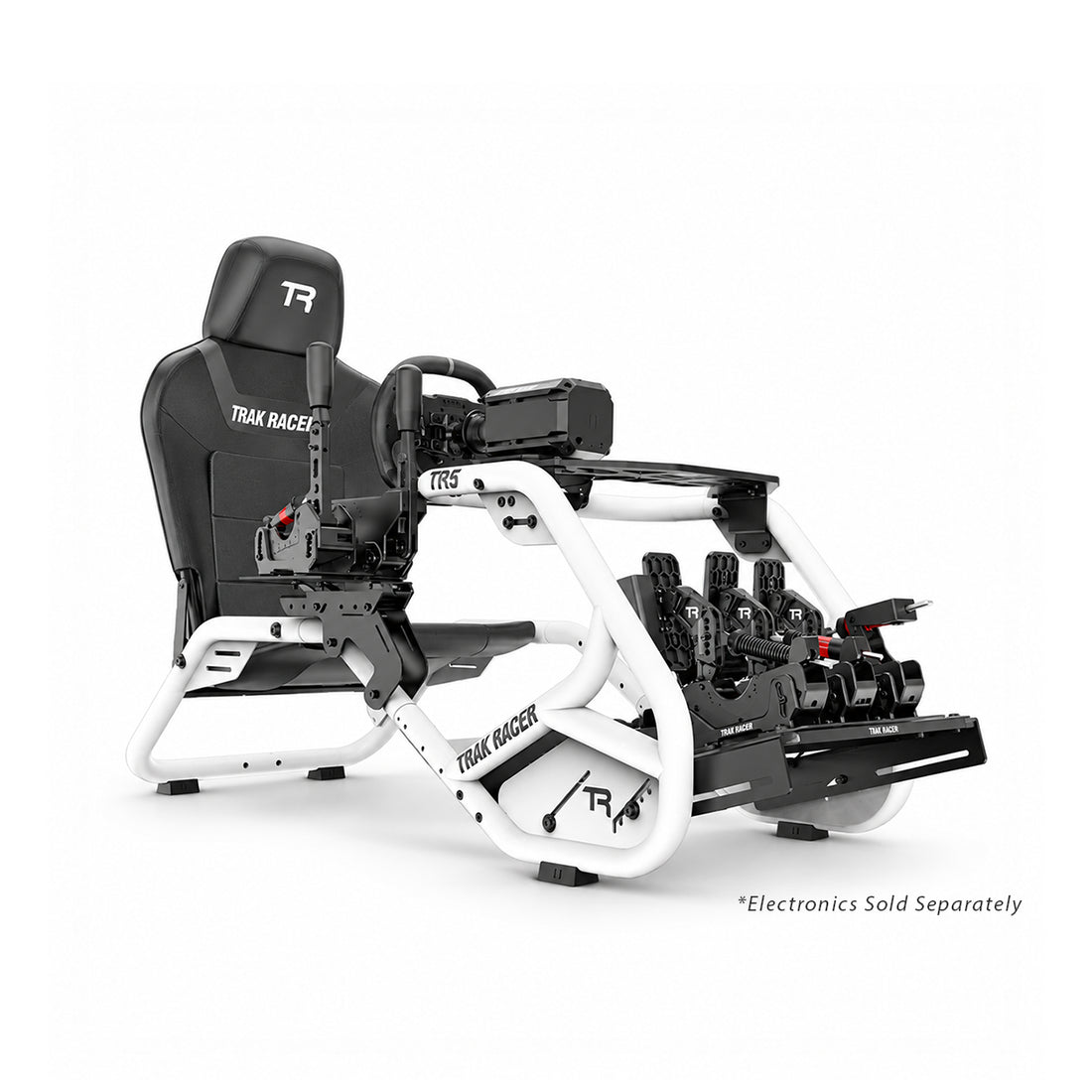

Trak Racer TR5 Racing Simulator Cockpit

No review yet. Write Review
Regular price
$899.00
Regular price
Sale price
$899.00
Tax included. Shipping calculated at checkout.

Vendor : Trak Racer

Product Type : Cockpit

Sku : TR5

Reassurance Image
Secure Purchase
Reassurance Image
Player1 Certified
Reassurance Image
Satisfaction Guarantee
Reassurance Image
Manufacturer Warranty

Trak Racer · TR5 Hybrid Racing Simulator · SKU: TR5

Trak Racer TR5 Hybrid Racing Simulator
Adjustable. Direct Drive Ready. Expandable.

The TR5 is a fully adjustable hybrid sim cockpit built on a rigid carbon steel frame — tested to 25Nm direct drive torque and 150kg structural load. Switch between upright and reclined seating positions, dial in wheelbase height, angle and pedal distance, then expand the rig with monitors, haptics, flight controls and more. One cockpit. Every discipline. Available from Player1 Sim Gear, your fully authorised Australian Trak Racer partner and reseller, shipping Australia-wide.

25NmDD-ready
150kgmax load
140–200cmdriver height
85°–145°seat recline
5-yearwarranty
Trak Racer TR5 Hybrid Racing Simulator

Adjustable. Rigid. Ready for everything.

Hybrid Seating — Upright & Reclined

Switch between an upright position for rally, formula and flight sim, or a fully reclined GT/endurance position. Backrest reclines from 85° to 145° — the widest range in this class.

Direct Drive Ready — Up to 25Nm

The TR5's rigid carbon steel frame is tested to handle wheelbases up to 25Nm — covering Simagic Alpha Mini, MOZA R9/R12, Fanatec CSL DD and higher-end direct drive units without flex.

Fully Adjustable Wheelbase Mount

Independently adjust height, tilt (±7°/-14°) and horizontal position (100mm range) to place the steering wheel exactly where your driving position demands.

Adjustable Pedal Plate

Dial in the perfect pedal angle and reach in a single adjustment. Pedal distance adjusts across 580–600mm, with angle range of +18°/-56° — accommodating full-size load cell sets.

Adjustable Shifter & Handbrake Mount

Fine-tune shifter or handbrake angle and reach independently of the main frame — stays comfortable regardless of driver position or hardware changes.

Fits Drivers from 140cm to 200cm

The extending frame accommodates drivers from 140cm (4'5") up to 200cm (6'7") — suitable for junior sim racers right through to adults of any height.

Rigid Carbon Steel Construction

Structural fatigue tested to 150kg static load and 16,000 load cycles — meaning the frame won't loosen, creak or shift over years of heavy sim use.

Faux Leather & Micro Suede Seat

Premium faux leather and micro suede upholstery included in the box. The seat supports backrest recline across the full 85°–145° range and suits long sim sessions comfortably.

Modular Accessory Ecosystem

Expand the TR5 with our purpose-built add-ons — the cockpit-mounted single monitor stand, dual flight sim mount and accessory kit — which bolt straight onto the frame's mounting points.

Universal Wheel & Pedal Compatibility

Works with Logitech, Fanatec, Thrustmaster, Moza, Simagic, Simucube and Trak Racer hardware — plus PC, PlayStation and Xbox platforms out of the box.

Two driving positions. One cockpit.

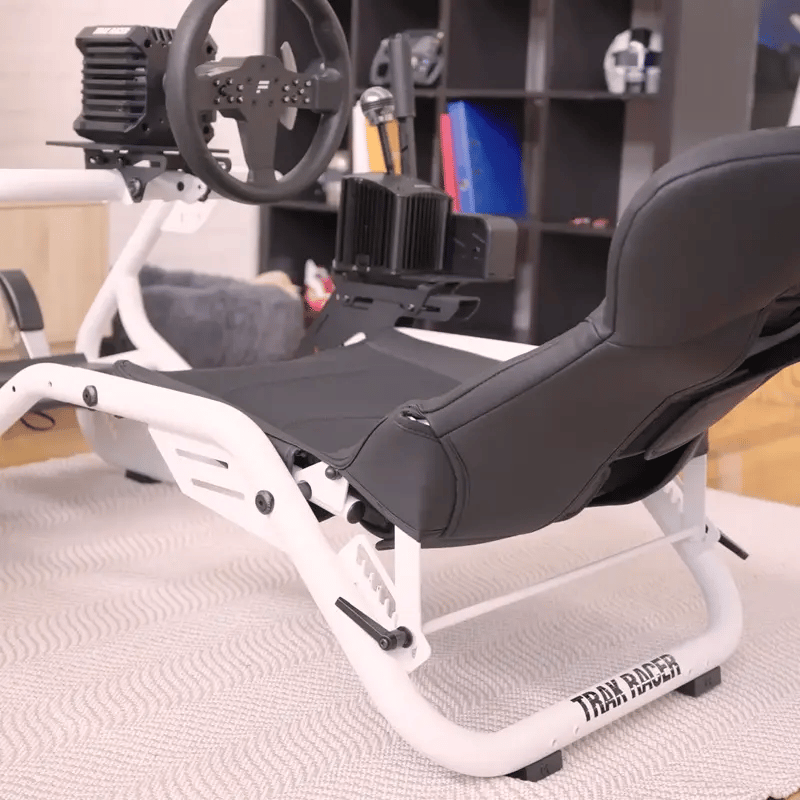

Trak Racer TR5 — hybrid upright and reclined seating positions

Hybrid Seating

Upright or Reclined — Your Choice

85°–145° Backrest Recline Range

Most cockpits lock you into one position. The TR5 doesn't. The backrest reclines from an alert, upright 85° position — ideal for rally, formula and flight sim — all the way to a laid-back 145° GT or endurance configuration. Adjust once and the rig remembers, so sharing the cockpit between drivers with different preferences takes seconds.

  • Upright (85°–100°) — Optimal for rally, HOTAS flight sim and circuit racing with high situational awareness.
  • Reclined (100°–145°) — GT, endurance and cockpit-style flight sim positioning for longer sessions.
  • Seamless switching — Single adjustment point; no need to reposition the wheel or pedals.

Frame Strength

Direct Drive Ready. No Flex. No Compromise.

Tested to 25Nm · 150kg Static Load · 16,000 Cycles

The TR5's rigid carbon steel construction passes a 150kg static load test across 16,000 fatigue cycles — built to the same structural standard as cockpits costing significantly more. The wheelbase mount handles up to 25Nm of torque without shifting, which means your wheel position stays exactly where you set it even at full force feedback.

  • 25Nm torque rating — Handles Simagic Alpha, MOZA R9/R12, Fanatec DD, Simucube 2 Sport and similar.
  • 150kg / 16,000-cycle fatigue test — Frame that doesn't creak, loosen or shift over years of use.
  • Carbon steel tubing — Rigid enough for advanced DD setups in a compact footprint.

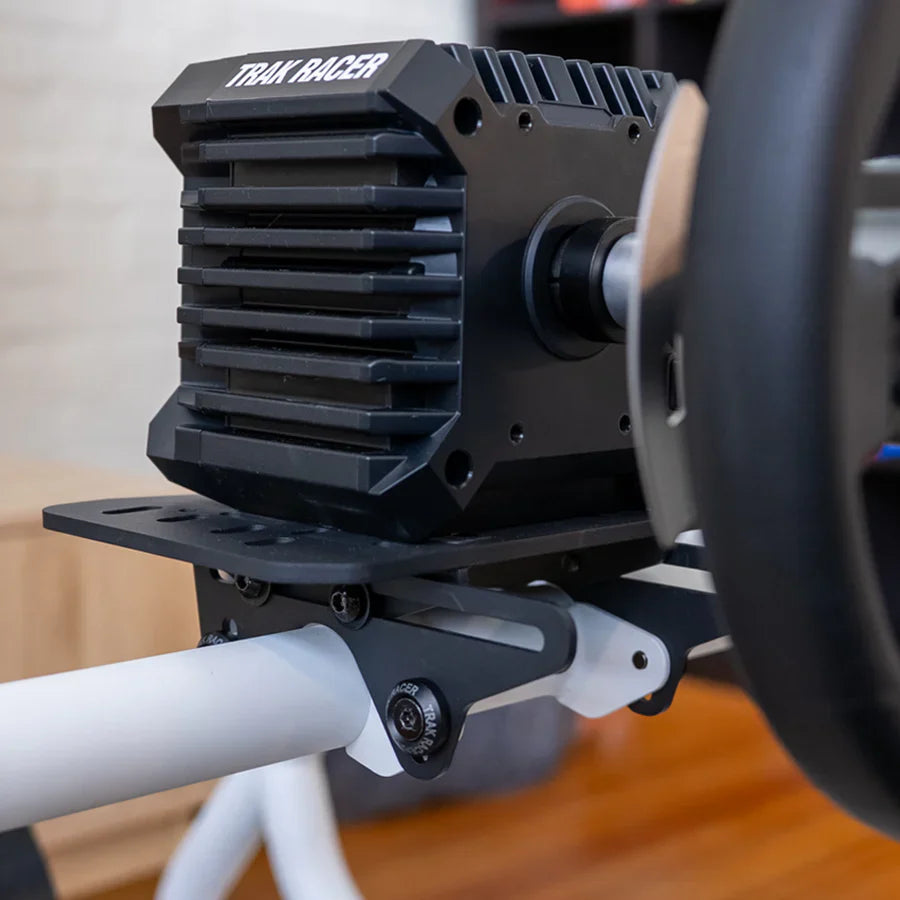

Trak Racer TR5 — rigid steel construction for direct drive wheelbases

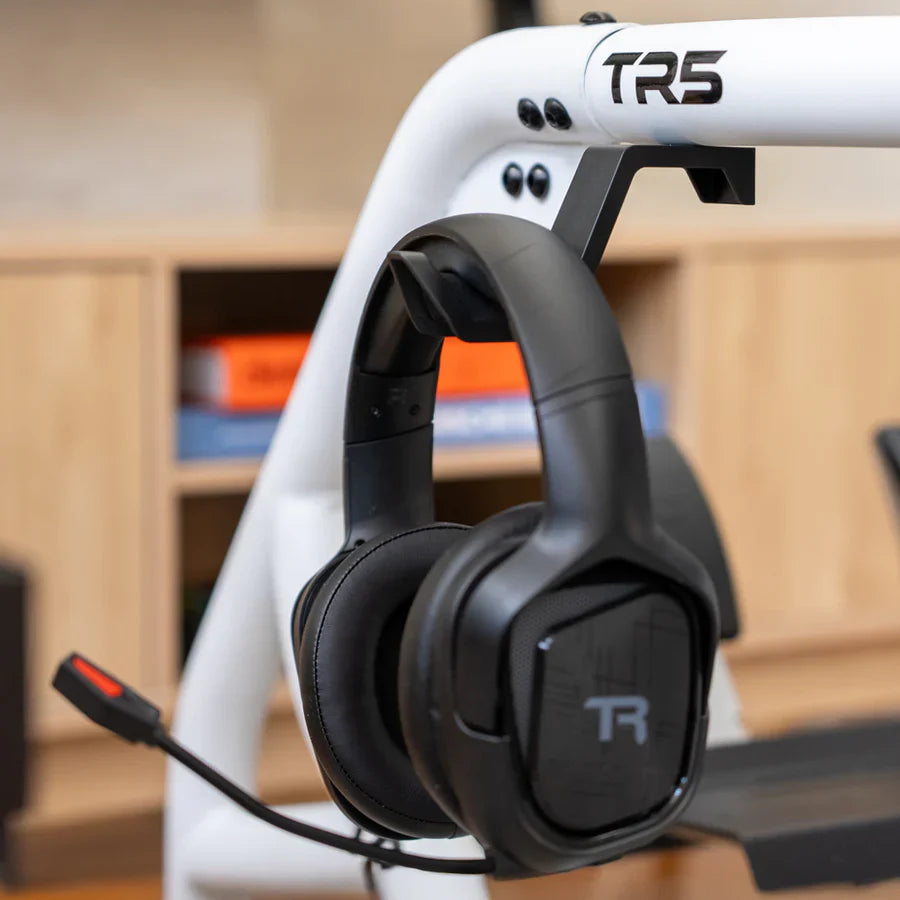

Trak Racer TR5 — modular accessory expansion ecosystem

Expandability

Start Compact. Build Up.

Monitor Stand · Flight Mount · Accessory Kit

The TR5 is designed as a platform, not just a product. Pre-engineered mounting points throughout the frame accept Player1 Sim Gear's purpose-built TR5 add-ons — a cockpit-mounted single monitor stand, a dual flight sim mount, and an accessory kit with caster wheels, a drink holder and a headphone hook. Build your rig exactly to your budget and discipline.

  • Single monitor stand — Cockpit-mounted, supports displays up to 50".
  • Dual flight sim mount — Adds joystick, throttle, yoke and HOTAS mounting.
  • Accessory kit — Rear caster wheels, drink holder and headphone hook.

Three independent adjustment points

Wheelbase Mount

Position the steering wheel exactly where your driving position demands — independent of seat recline. Full height, tilt and horizontal slide adjustment.

Tilt: ±7° / −14°  ·  Slide: 100mm horizontal

Pedal Plate

Dial in pedal reach and angle with a single adjustment. Works with Logitech, Fanatec, Thrustmaster, Moza, Heusinkveld, Simagic and more.

Distance: 580–600mm  ·  Angle: +18° / −56°

Shifter & Handbrake Mount

Fine-tune the angle and reach of your shifter or handbrake independently. Stays in position regardless of driver or seat position changes.

Adjustable angle & distance  ·  Left or right-side fit

Universal compatibility

The TR5 is compatible with all major sim racing hardware brands. If you own wheels, pedals or a wheelbase from any of these manufacturers, the TR5 will work with your existing setup:

Logitech Fanatec Thrustmaster Moza Racing Simagic Simucube Trak Racer Heusinkveld PXN Cube Controls

Platform compatibility:

PC PlayStation Xbox

Note: Platform compatibility depends on your wheelbase and pedal set. Most Moza, Simagic and Simucube wheelbases are PC-only; Fanatec CSL DD and Logitech G series support console. The TR5 cockpit frame itself has no platform restriction.

TR5 add-ons from Player1 Sim Gear

Purpose-built accessories that bolt straight onto the TR5 frame. Each sold separately.

TR5 Hybrid Racing Simulator — Full Specifications

Trak Racer · SKU: TR5

TR5 Hybrid Racing Simulator

Frame MaterialRigid Carbon Steel
Seat MaterialFaux Leather & Micro Suede
Dimensions (L × W × H)1405–1530 mm × 775 mm × 1155 mm
Driver Height140 cm (4'5") – 200 cm (6'7")
Driver Weight Limit150 kg / 330 lbs
Structural Fatigue Test150 kg static load · 16,000 cycles
Max Wheel Torque25 Nm (direct drive compatible)
Driving PositionsUpright & Reclined (hybrid)
Backrest Recline85° – 145°
Wheelbase AdjustmentHeight ±7° / −14° tilt · 100 mm horizontal
Pedal Plate Distance580 – 600 mm
Pedal Plate Angle+18° / −56°
Expansion MountsMonitor Stand, Flight Mount, Accessory Kit
Wheel CompatibilityLogitech · Fanatec · Thrustmaster · Moza · Simagic · Simucube · Trak Racer
Platform CompatibilityPC · PlayStation · Xbox
Flight Sim CompatibleYes — via dual flight sim mount
FoldableNo
Warranty5 Years

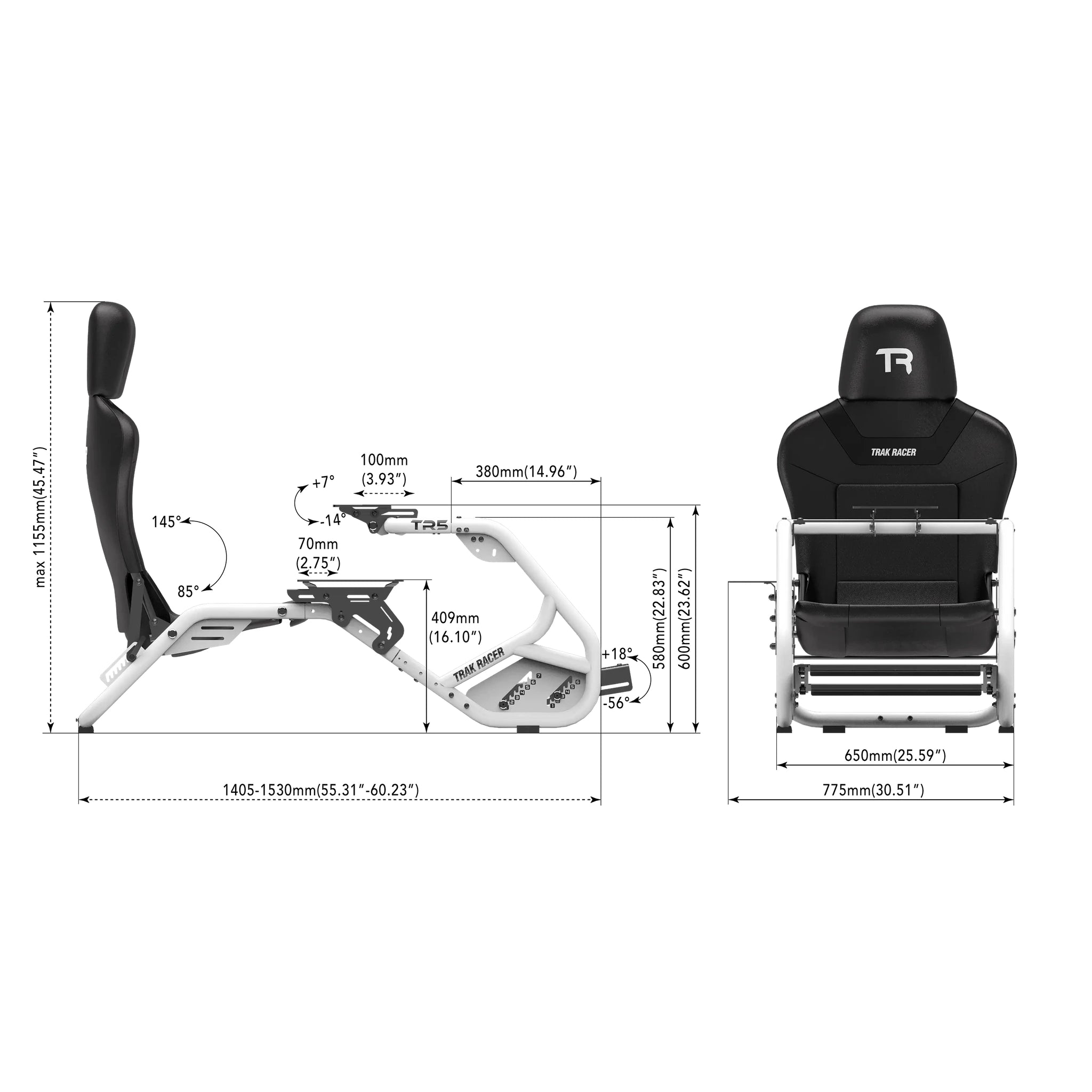

Trak Racer TR5 Hybrid Racing Simulator — dimensions diagram
5yr

5-Year Warranty

The TR5 is backed by a 5-year warranty covering materials and manufacturing defects under standard residential use. As an authorised Australian Trak Racer partner and reseller, Player1 Sim Gear handles all warranty claims locally — no overseas returns, no runaround.

In the box

  • TR5 Hybrid Racing Simulator frame
  • Faux Leather & Micro Suede seat
  • Shifter / Handbrake mount
  • Cable management ties
  • Quick-start assembly guide
  • Wheelbase, pedals, wheel, shifter, monitor and accessories sold separately.

Frequently asked questions

Setup & Fit

What driver heights does the TR5 accommodate?

The TR5 frame adjusts to fit drivers from 140cm (4'5") up to 200cm (6'7"). The extending frame design means younger or shorter drivers and tall adults can both achieve a proper driving position. Weight limit is 150kg / 330lbs.

Can I use the TR5 for both upright and reclined seating?

Yes — this is the TR5's defining feature. The backrest reclines from 85° (upright, rally / flight sim) all the way to 145° (reclined, GT / endurance). You can switch positions without adjusting the wheel or pedal positions, making it easy to share between drivers or switch disciplines.

How difficult is the TR5 to assemble?

Assembly is designed to be straightforward with standard hand tools. The TR5 includes a quick-start guide covering the full build. Most customers complete assembly in 1–2 hours. If you run into any issues, call us on 0488 385 870 and we can walk you through it.

Wheelbase & Pedal Compatibility

Will the TR5 handle a direct drive wheelbase?

Yes. The TR5 is tested and rated for wheelbases up to 25Nm, covering all mainstream direct drive units including the Simagic Alpha Mini and Alpha, MOZA R9 and R12, Fanatec CSL DD and Gran Turismo DD, and Simucube 2 Sport. For wheelbases above 25Nm (Simucube 2 Pro/Ultimate, Moza R21, Simagic Alpha U), we'd recommend the TR8 Pro or TR160 V5 range for a stiffer platform.

What wheel and pedal brands are compatible?

The TR5 is compatible with Logitech, Fanatec, Thrustmaster, Moza Racing, Simagic, Simucube and Trak Racer hardware. Pedal sets from Heusinkveld, Cube Controls and other brands using standard mounting patterns are also compatible. If you're unsure about a specific model, call us on 0488 385 870.

Can I use the TR5 with my PlayStation or Xbox?

Yes — the TR5 cockpit frame works with all platforms. Platform compatibility depends on your specific wheelbase and pedal set: Fanatec CSL DD and Logitech G series support console play natively. Most Moza, Simagic and Simucube wheelbases are PC-only. Contact us if you need help matching hardware to your platform.

Accessories & Expansion

What accessories can I add to the TR5?

Player1 Sim Gear stocks three purpose-built TR5 add-ons: the cockpit-mounted single monitor stand (displays up to 50"), the dual flight sim mount (for joystick, throttle, yoke and HOTAS controls), and the accessory kit (rear caster wheels, drink holder and headphone hook). The TR5 frame also accepts other Trak Racer accessories via its built-in mounting points — call us on 0488 385 870 and we'll match the right ones to your build. All sold separately.

Can the TR5 be used for flight simulation?

Yes. The TR5's hybrid reclined position works well for flight sim cockpit setups, and our optional dual flight sim mount allows you to attach joystick, throttle, yoke and HOTAS controls directly to the frame. The TR5 is well-suited to MSFS 2024, DCS World and X-Plane builds at this price point.

Does the TR5 come with a seat?

Yes — the TR5 includes a Faux Leather & Micro Suede seat as standard. If you're looking to upgrade to a competition-grade racing seat, our Trak Racer GT Pro or Rally-Pro Racing Seats are compatible with the TR5 via standard bracket mounting.

Buying in Australia

What warranty does the TR5 come with in Australia?

The TR5 is backed by a 5-year warranty covering materials and manufacturing defects under standard residential use. Player1 Sim Gear is a fully authorised Australian Trak Racer partner and reseller — all warranty claims are handled locally. Your purchase is also protected by Australian Consumer Law, providing statutory guarantee rights for repair, replacement or refund for major failures.

How is the TR5 shipped in Australia?

Player1 Sim Gear ships the TR5 Australia-wide via courier from Queensland. For current stock availability, lead time and a delivery estimate to your suburb, call us on 0488 385 870 or send us a message.
