Simucube Wheelbase Mount V2
- Regular price
- $329.00
- Regular price
-
- Sale price
- $329.00
- Unit price
- per
Vendor : Simucube
Product Type : Wheel Mount
Sku : SCWBM2A
Couldn't load pickup availability
Secure Checkout
5 Star Service
Phone Support
Manufacturer Warranty
Simucube · Wheelbase Mount · SC2 & SC3

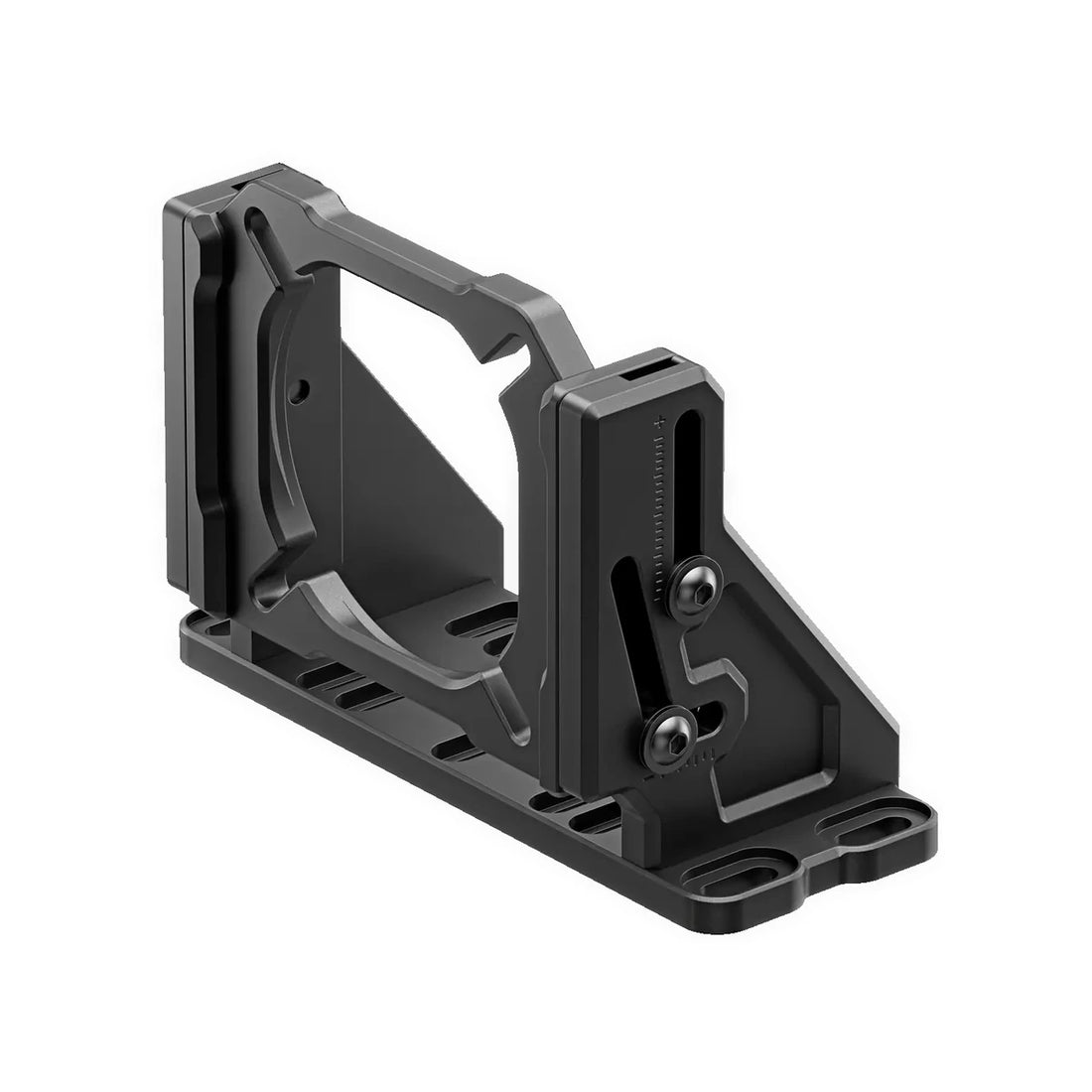

Simucube Wheelbase Mount V2The official bottom mount for every Simucube 2 and Simucube 3 wheelbase.
The Simucube Wheelbase Mount V2 is a heavy-duty, CNC-machined aluminium mount that locks your Simucube 2 or Simucube 3 direct-drive wheelbase rigidly to your cockpit. Its redesigned drop-down installation lets the wheelbase hang in place on its own weight before you touch a bolt, so you are never balancing a heavy motor with one hand. Stepless tilt from -24° to +20°, plus an inverted mounting option, lets you set the wheel exactly where your seating position needs it. Available from Player1 Sim Gear, your authorised Australian Simucube dealer, shipping Australia-wide.

What it does
A safer, stiffer way to mount a Simucube direct drive.
Drop-Down Installation
Bolt the lower bracket to your rig and the wheelbase bracket to your base, then simply lower the wheelbase in. Locating pins on each side run into grooves in the lower bracket and hold it on its own weight while you set the angle and tighten up.
Stepless Tilt, -24° to +20°
Set the wheel anywhere across a 44° range with no fixed notches. The adjustment slots create a variable pivot point, so the wheelbase can tilt upwards without touching the mounting surface.
Inverted Mounting Option
Flip the mount and hang the wheelbase underneath for more legroom and a lower monitor line, a popular choice for formula-style seating positions.
CNC-Machined Aluminium
Machined from solid aluminium for a rigid connection between wheelbase and rig, so the force feedback from a Simucube 3 Ultimate reaches your hands instead of flexing the mount.
Engraved Angle Markings
Marker lines on the side plates let you read the wheelbase angle at a glance and return to the same setting after a change, in +1° steps on the upward side and -4° steps on the downward side.
Fits Most Aluminium Profile Rigs

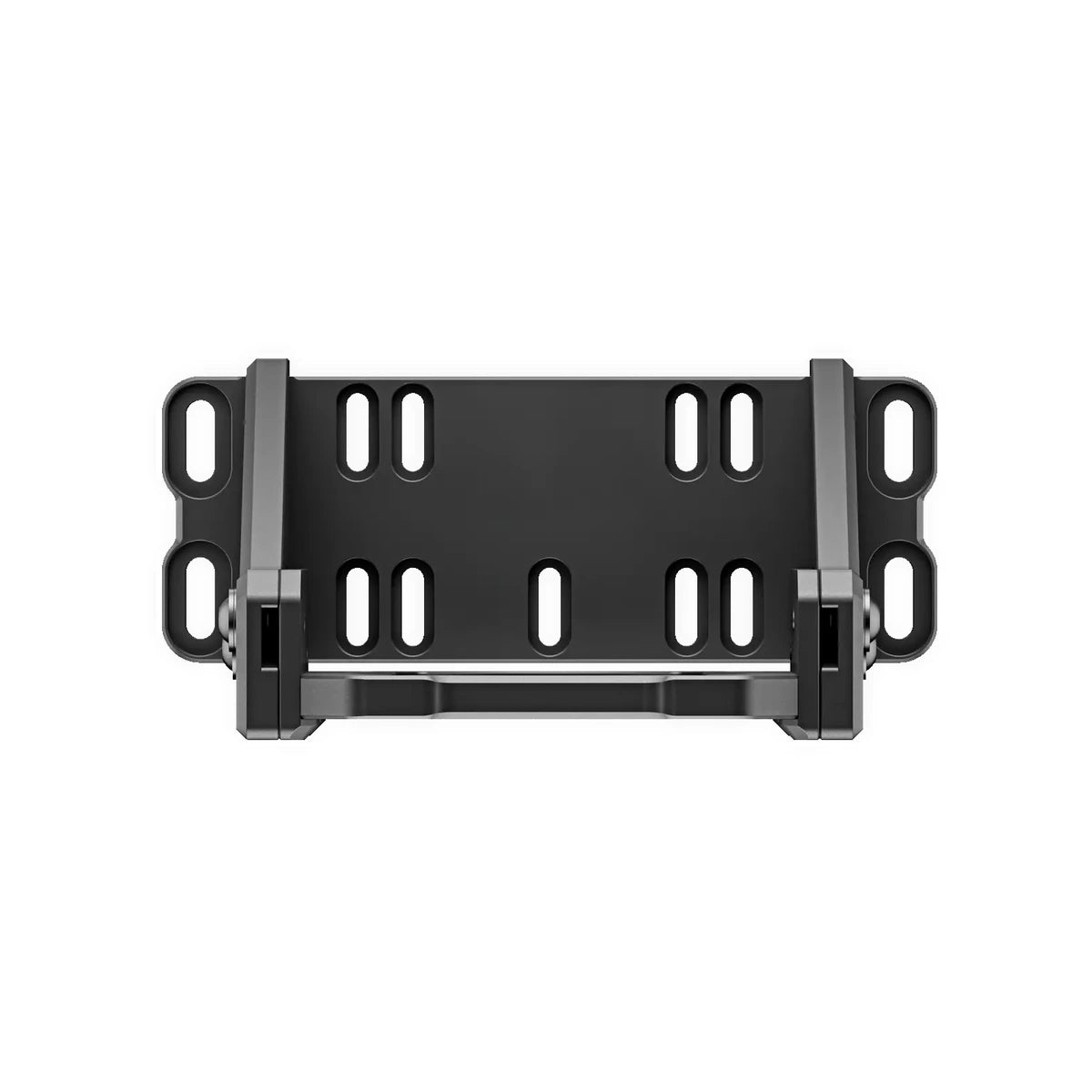

The outer slots take M8 screws into standard T-slot aluminium profile, and a second set of smaller slots accepts M6 screws for rigs with a different mounting pattern. All fasteners and the 5mm hex key are in the box.
Installation
Drop it in, set the angle, lock it down.
-
01
Attach the lower bracket
Fix the lower bracket to your aluminium profile rig with four M8x18 screws and washers through the outermost slots (around 17Nm). For other hole patterns, use at least four M6x16 screws in the smaller slots (around 10Nm).
-
02
Attach the wheelbase bracket

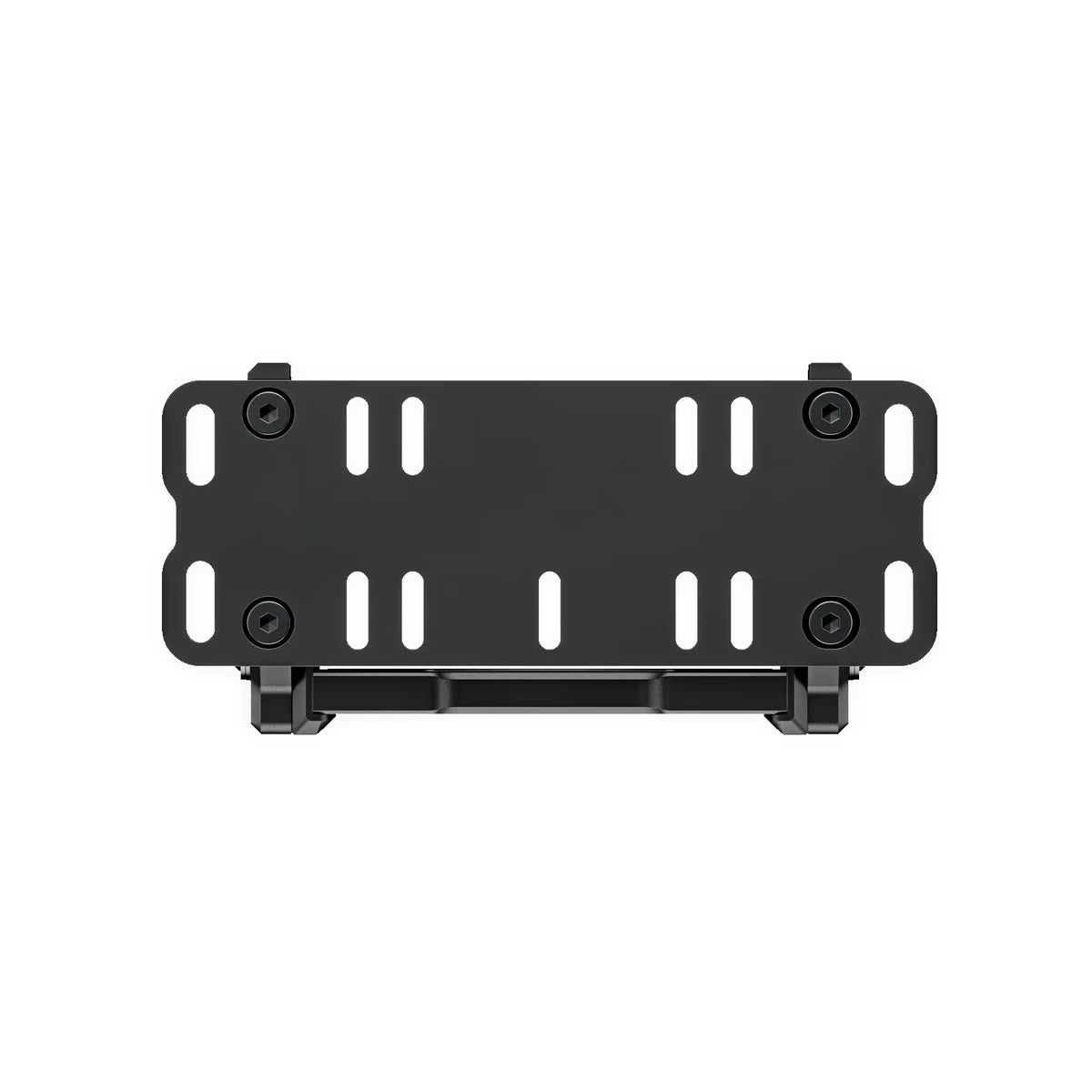

Bolt the wheelbase bracket to your Simucube with the four longer M8x30 screws and washers (around 17Nm), oriented as shown in Simucube's guide.
-
03
Drop the wheelbase in
Line the locating pins up with the grooves and lower the wheelbase until it sits level. No room above because of a fixed monitor? Assemble the mount first and slide the wheelbase through the centre opening instead.
-
04
Set the angle and tighten
Tilt to your preferred angle, then lock it with four M8x18 screws and washers on the sides (around 17Nm). These screws must be tight before you drive.
Full step-by-step drawings, including the inverted installation, are in the official Simucube Mount V2 guide.
Compatibility
Which wheelbases and rigs does it fit?
The Mount V2 is Simucube's own mount and fits every current Simucube wheelbase, from the Simucube 2 Pro to the Simucube 3 Ultimate. It is designed for Simucube bases only, so it is not a universal mount for other brands' direct-drive motors.
| Simucube wheelbase | Fits Mount V2 |
|---|---|
| Simucube 2 Sport | ✓ Yes |
| Simucube 2 Pro (incl. R2) | ✓ Yes |
| Simucube 2 Ultimate | ✓ Yes |
| Simucube 3 Sport | ✓ Yes |
| Simucube 3 Pro | ✓ Yes |
| Simucube 3 Ultimate | ✓ Yes |
| Rig type | Fasteners | Slots used |
|---|---|---|
| Aluminium profile (T-slot) | 4 x M8x18 + M8 T-slot nuts | Outermost slots |
| Other mounting patterns | At least 4 x M6x16 | Smaller slots |
Mounting to an aluminium profile cockpit such as the Trak Racer TR160 V5? Browse our sim racing cockpits, or call us on 0488 385 870 and we will confirm the fit for your rig before you order.
Technical specifications
Wheelbase Mount V2 specifications
Simucube · SCWBM2A
Wheelbase Mount V2
In the box
What's included
- Mount wheelbase bracket (1)
- Mount lower bracket (1)
- M8x18 flanged hex head screws (8)
- M8x30 flanged hex head screws (4)
- M6x16 hex head screws (5)
- M8 washers (12)
- M6 washers (5)
- M8 T-slot nuts (4)
- 5mm hex L-key (1)
Common questions
Frequently asked questions
Compatibility & Fit
What is the Simucube Wheelbase Mount V2?
It is Simucube's official CNC-machined aluminium bottom mount for its direct-drive wheelbases. It bolts to your rig, holds the wheelbase rigidly, and lets you tilt it steplessly from -24° to +20° or mount it inverted.
Which Simucube wheelbases does it fit?
All of them: the Simucube 2 Sport, Pro and Ultimate and the Simucube 3 Sport, Pro and Ultimate. One mount covers both generations, so it stays useful if you upgrade from an SC2 to an SC3.
Will it fit a MOZA, Fanatec or Simagic wheelbase?
No. The wheelbase bracket is made for the Simucube motor housing, so it is a Simucube-only part. For other brands, use that brand's own mount or a cockpit with a universal front or bottom mount.
Will it fit my cockpit?
On an aluminium profile rig the lower bracket bolts straight on with the supplied M8 screws and T-slot nuts. For steel rigs or other hole patterns there is a second set of smaller slots for M6 screws (use at least four). If you are unsure, send us your rig model and we will check it.
Can I mount the wheelbase upside down?
Yes. The Mount V2 supports inverted installation, hanging the wheelbase beneath the mount for extra legroom and a lower monitor position. Simucube's guide has a dedicated inverted installation procedure.
Does it work as a front mount?
The Mount V2 is designed as a bottom (deck) mount: the lower bracket bolts to a horizontal surface on your rig and the wheelbase sits in the bracket above or below it. If your cockpit only has a front-mount plate, call us and we will talk through the options.
Setup & Adjustment
How does the drop-down installation work?
You fit the lower bracket to the rig and the wheelbase bracket to the wheelbase, then lower the wheelbase in from above. Pins on each side run into grooves and hold it on its own weight, so both hands are free to set the angle and fit the locking screws.
What if my monitor is directly above the wheelbase?
Use Simucube's second installation method: assemble the two brackets, bolt the mount to the rig, then slide the wheelbase through the centre opening until its flange seats in the bracket. No lifting over the top required.
How do I change the wheel angle?
Loosen the side locking screws, lift from the motor shaft and the rear of the wheelbase to tilt it up, or press down on the shaft to tilt it down, then re-tighten the four M8x18 screws (around 17Nm). The engraved angle markings on the side plates show roughly where you are.
What tools do I need?
Only the 5mm hex L-key that comes in the box, plus a torque wrench if you want to hit Simucube's recommended values exactly. Every screw, washer and T-slot nut is included.
Buying in Australia
What warranty and support do you offer?
The mount is covered by Simucube's manufacturer warranty, and Player1 Sim Gear is an authorised Australian Simucube dealer, so you are buying genuine hardware, never grey imports. Your purchase is also covered by the Australian Consumer Law, and our QLD-based team handles support locally. Prices are in AUD and include GST.
How is it shipped in Australia?
Player1 Sim Gear ships the Wheelbase Mount V2 Australia-wide by courier. For current stock and a delivery estimate, call us on 0488 385 870 or send us a message.
Build the full setup
Complete your Simucube setup

Simucube 3 Pro
Next-gen direct-drive wheelbase
Shop Simucube 3 Pro →

Simucube 2 Pro R2
25Nm direct-drive wheelbase
Shop Simucube 2 Pro →

SC3 Shaft Extension Kit
Bring the wheel closer on SC3
Shop shaft extension →

Shop all Simucube
Bases, wheels, pedals, accessories
Browse Simucube →
Not sure if this fits your rig?
Player1 Sim Gear is an authorised Australian Simucube dealer. Tell us your wheelbase and cockpit and we will confirm the Mount V2 suits them before you order. Ships Australia-wide.
